Home / Caldwell Dura-Lite Composite Adjustable Lifting Beams

Caldwell Lifting Solutions

Caldwell Dura-Lite Composite Adjustable Lifting Beams

Caldwell Dura-Lite Composite Adjustable Lifting Beams
Caldwell Dura-Lite Composite Adjustable Lifting Beams
Caldwell Dura-Lite Composite Adjustable Lifting Beams
Caldwell Dura-Lite Composite Adjustable Lifting Beams
Caldwell Dura-Lite Composite Adjustable Lifting Beams

Caldwell Dura-Lite Composite Adjustable Lifting Beams

$1,518.00

Contact Sales Team for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacities: 0.25T to 3T
  • Non-corrosive
  • Complies with ASME B30.20, design category B, service class 4
  • Proof tested with certificate issued
  • Compliant with European Community standards CE

Customers Also Bought

Description

Features & Specification

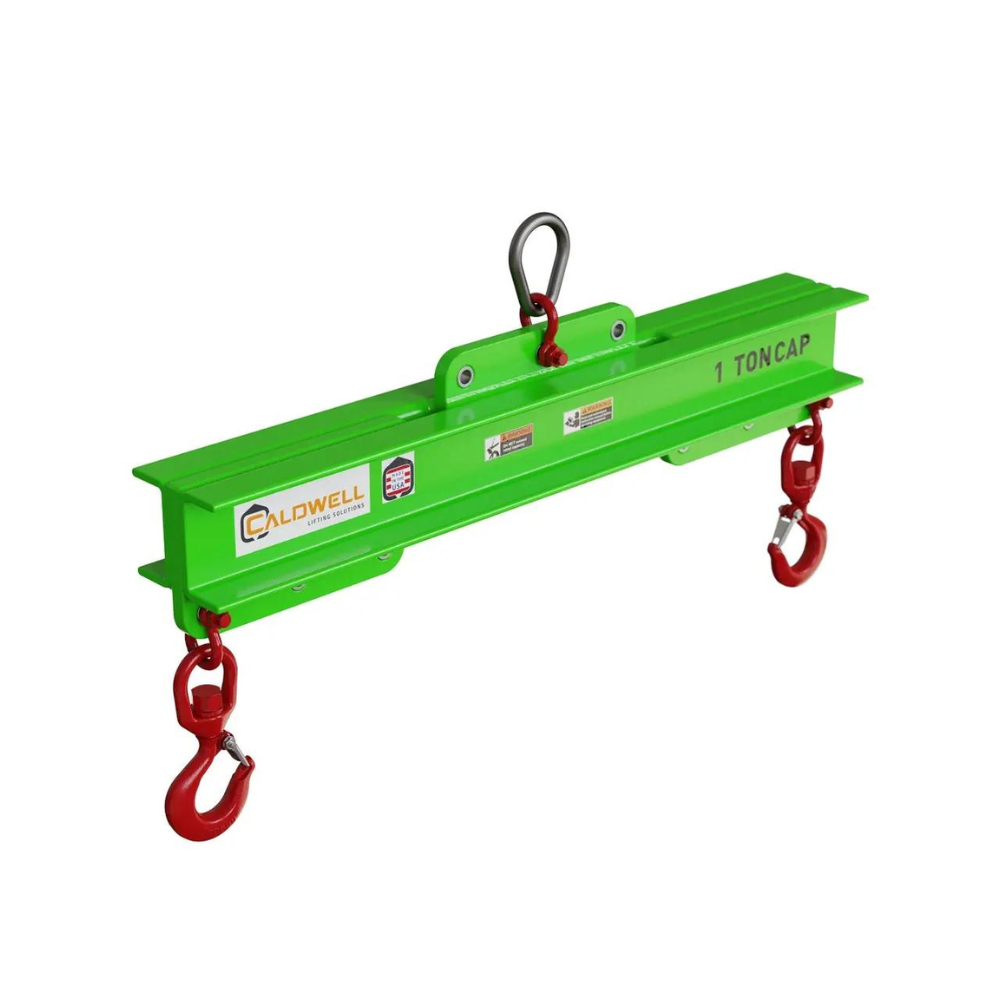

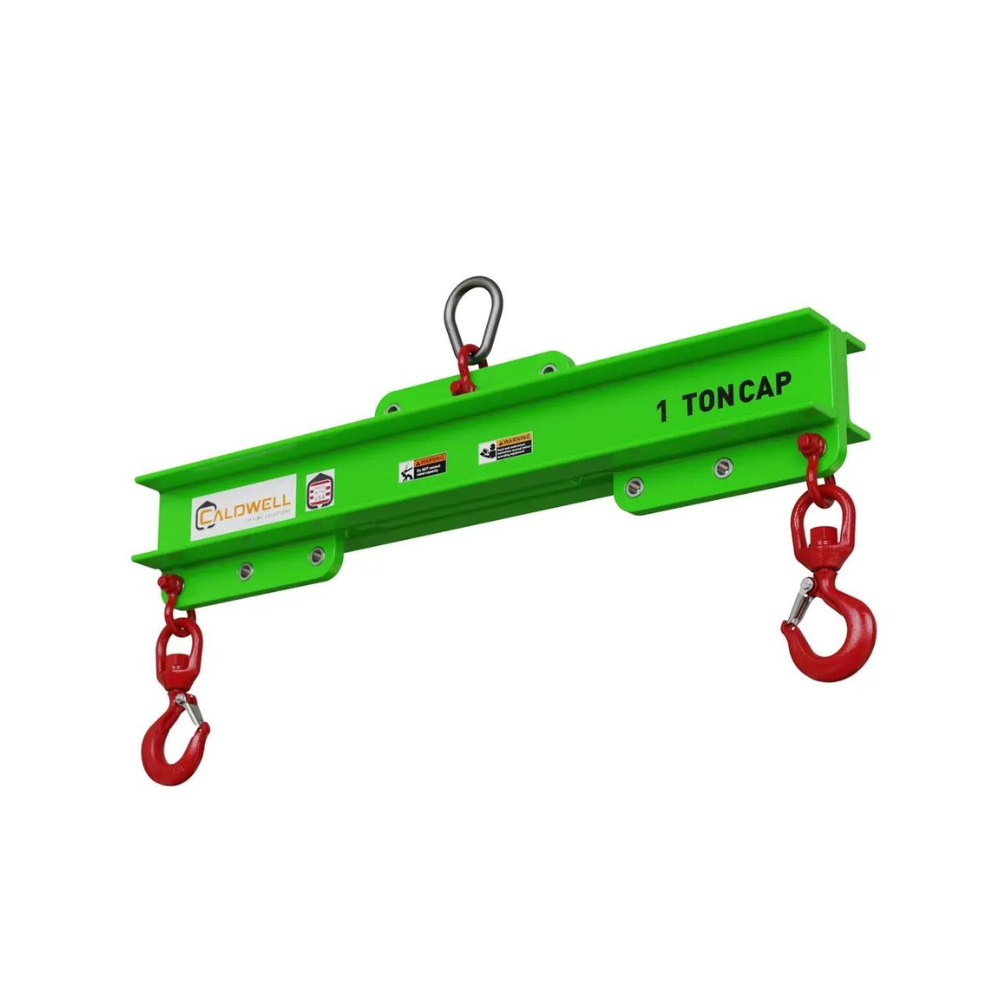

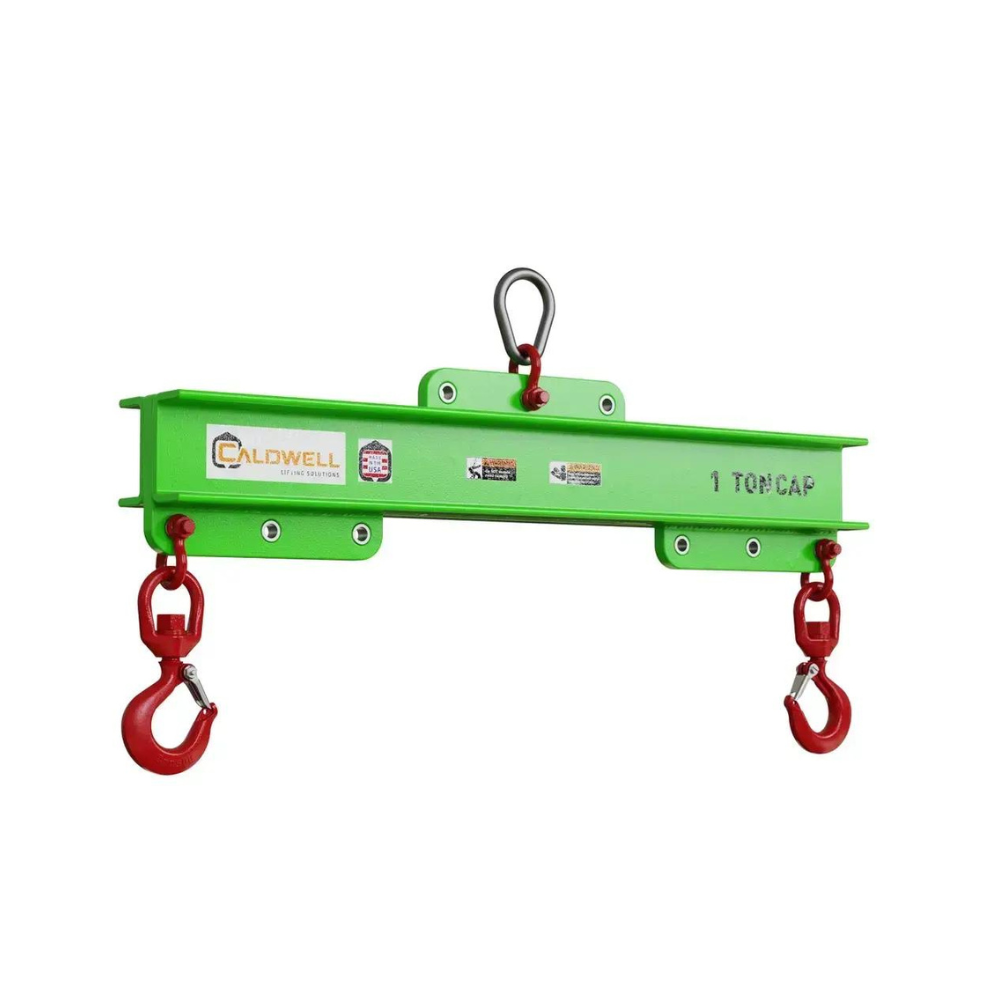

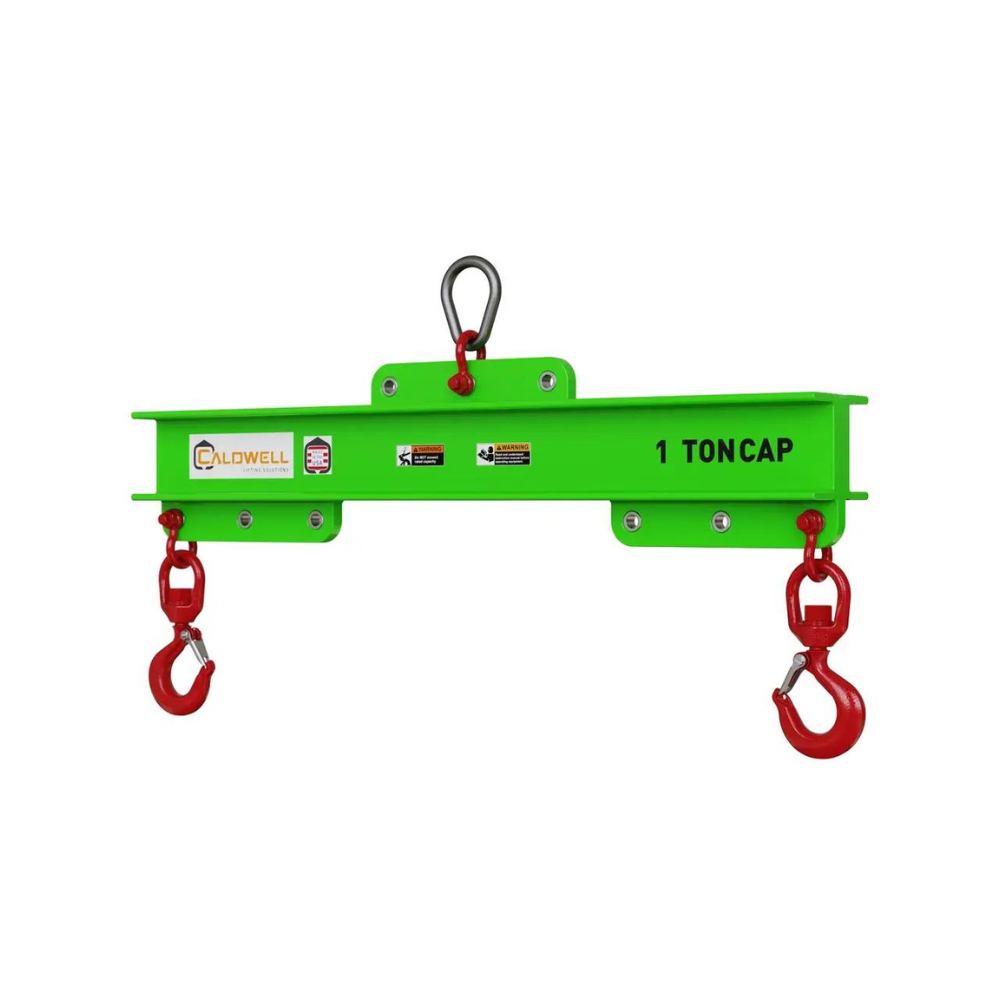

Ingeniously designed to cater for the rigors of corrosive environments, workspaces where sparks are a serious risk, or simply situations where a lighter beam can handle a heavy load, Caldwell's Dura-Lite Composite Adjustable Lifting Beams are a great option.

Available in a safe working load capacities from 0.25t up to 3t, with a range of spreads, these lifting beams are manufactured from heavy-duty non-corrosive materials, making them ideal for a plethora of applications.

Proof tested and supplied with a certificate of conformity, these units comply with ASME B30.20, design category B, service class 4, as well as being European Community standards CE.

Downloads
  • Dura-Lite Model 416 Composite Adjustable Lifting Beam Cut Sheet

  • Dura-Lite Composite Lifting Beams Instruction Manual

SKU

Capacity

(tons)

Max. Spread

(in.)

Min. Spread

(in.)

Bail Adj Increments

(in.)

HR

(in.)

Beam Weight Only

(lbs)

Weight w/ Hardware

(lbs)

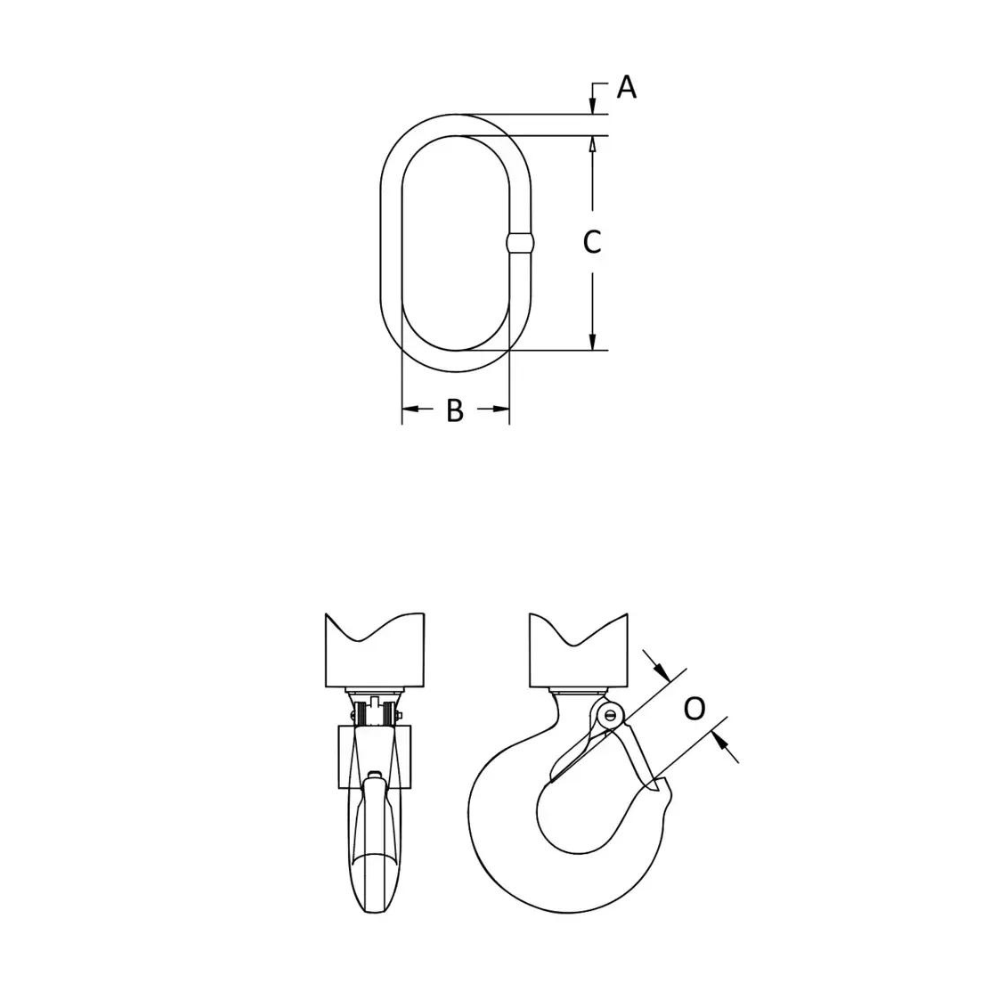

A

(in.)

B

(in.)

C

(in.)

O

(in.)

416-1/4-2

0.25

24

12

3

13.5

7

9

0.38

1.5

2

0.89

416-1/4-3

0.25

36

24

3

13.5

9

11

0.38

1.5

2

0.89

416-1/4-4

0.25

48

36

3

13.5

11

13

0.38

1.5

2

0.89

416-1/4-6

0.25

72

48

6

16.5

27

28

0.38

1.5

2

0.89

416-1/4-8

0.25

96

72

6

16.5

32

35

0.38

1.5

2

0.89

416-1/4-10

0.25

120

96

6

18.5

74

76

0.38

1.5

2

0.89

416-1/4-12

0.25

144

120

6

18.5

87

89

0.38

1.5

2

0.89

416-1/4-14

0.25

168

144

6

18.5

101

103

0.38

1.5

2

0.89

416-1/2-2

0.5

24

12

3

13.9

9

11

0.38

1.5

1.9

0.89

416-1/2-3

0.5

36

24

3

13.9

10

13

0.38

1.5

1.9

0.89

416-1/2-4

0.5

48

36

3

14.9

14

16

0.38

1.5

1.9

0.89

416-1/2-6

0.5

72

48

6

16.9

30

32

0.38

1.5

1.9

0.89

416-1/2-8

0.5

96

72

6

18.9

64

66

0.38

1.5

1.9

0.89

416-1/2-10

0.5

120

96

6

18.9

80

82

0.38

1.5

1.9

0.89

416-1-2

1

24

12

3

20.4

14

20

0.62

2.8

4.5

0.91

416-1-3

1

36

24

3

20.4

16

22

0.62

2.8

4.5

0.91

416-1-4

1

48

36

3

22.4

23

29

0.62

2.8

4.5

0.91

416-1-6

1

72

48

6

24.4

60

66

0.62

2.8

4.5

0.91

416-1-8

1

96

72

6

25.4

72

79

0.62

2.8

4.5

0.91

416-2-2

2

24

12

3

23.5

19

30

0.62

2.8

4.3

1.09

416-2-3

2

36

24

3

25.5

25

36

0.62

2.8

4.3

1.09

416-2-4

2

48

36

3

27.5

45

57

0.62

2.8

4.3

1.09

416-2-6

2

72

48

6

27.5

68

79

0.62

2.8

4.3

1.09

416-3-2

3

24

12

3

26.5

22

38

0.62

2.8

4.3

1.36

416-3-3

3

36

24

3

26.5

25

41

0.62

2.8

4.3

1.36

416-3-4

3

48

36

3

28.5

45

62

0.62

2.8

4.3

1.36
