Home / EKKO EK14C-130 3000lbs Counterbalanced Stacker 130" Lift

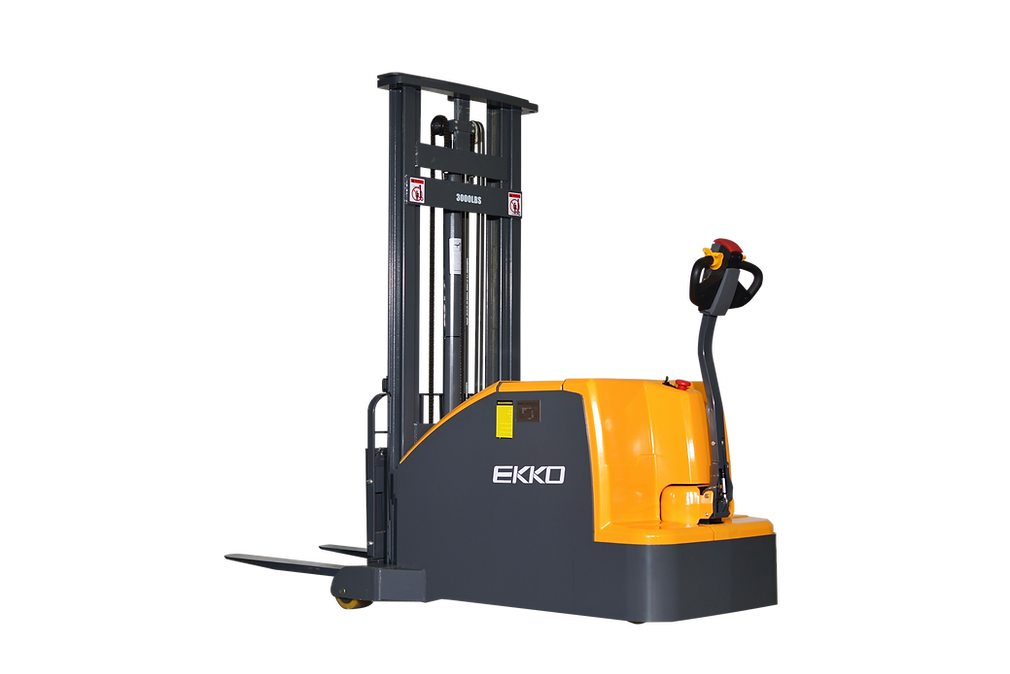

EKKO EK14C-130 3000lbs Counterbalanced Stacker 130" Lift
EKKO EK14C-130 3000lbs Counterbalanced Stacker 130" Lift
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
The EKKO EK14C-130 is a fully electric counterbalanced walkie stacker designed for lifting and transporting loads without the need for front support legs. Its counterbalanced design allows it to handle closed-bottom pallets, skids, machinery, and other loads that standard straddle stackers cannot accommodate.
With a 3,000 lb load capacity and a maximum lift height of 130 inches, this stacker is well suited for warehouses, manufacturing facilities, shipping areas, and retail stockrooms. The AC drive system delivers smooth performance, while Electronic Power Steering (EPS) improves maneuverability and reduces operator effort.
Powered by a 24V battery with an onboard charger, the EK14C-130 is built for reliable daily operation and efficient material handling.
Features
- 3,000 lb maximum load capacity
- 130" maximum lift height
- Counterbalanced design for closed-bottom pallets and skids
- Fully electric drive and lift functions
- Electronic Power Steering (EPS)
- Curtis AC controller for smooth operation
- Adjustable forks for a variety of pallet sizes
- 24V battery with onboard charger included
- Ideal for warehouses, manufacturing, and distribution environments
|
Model |
EK14C-130 |
|
|
Lift |
Electric |
|
|
Drive |
Electric |
|
|
Load capacity |
(lb) |
3000 |
|
Load center distance |
(in) |
24 |
|
Wheel base |
(in) |
44.7 |
|
Lifting height |
(in) |
130 |
|
Free lifting height |
(in) |
4 |
|
Lowered mast height |
(in) |
85.6 |
|
Extended mast height |
(in) |
158.66 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
2/5 |
|
Overall length |
(in) |
118 |
|
Overall width |
(in) |
39 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/42.1 |
|
Fork adjust width |
(in) |
8.6-26 |
|
Turning radius |
(in) |
66.3 |
|
Max.gradient performance, laden/unladen |
(%) |
6/10 |
|
Lift speed, laden/unladen |
(in/s) |
2.95/3.94 |
|
Charger |
(V/A) |
24V/30A |
|
Driving Motor |
(KW) |
1.5 |
|
Lifting Motor |
(KW) |
2.2 |
|
EPS Steering Motor |
EPS |
|
|
Battery voltage |
(V/Ah) |
24V/210Ah |
|
Service Weight |
(lb) |
4230 |
