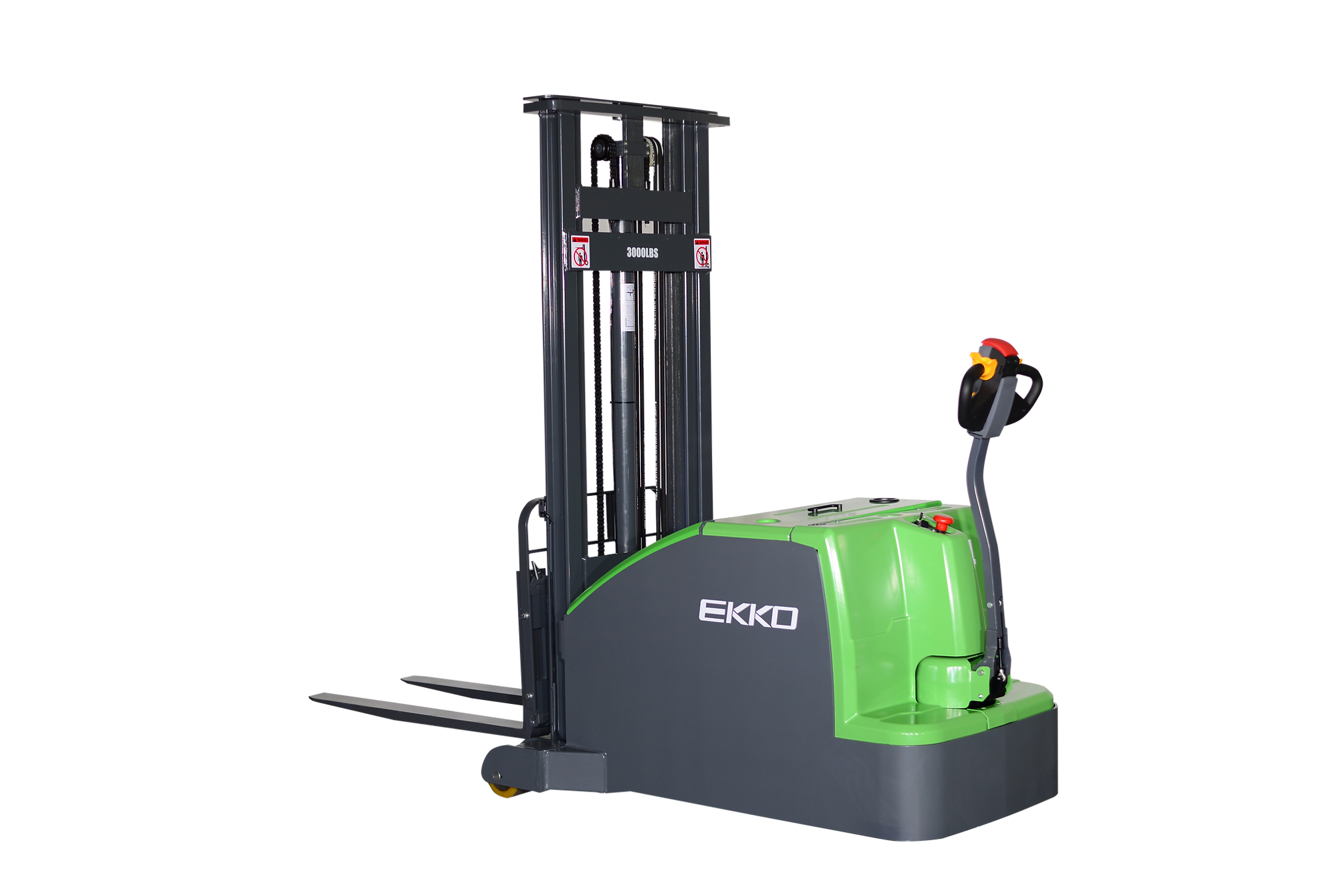

EKKO EK14C-130LI 3000lbs Counterbalanced Stacker 130" Lift
EKKO EK14C-130LI 3000lbs Counterbalanced Stacker 130" Lift
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
The EKKO EK14C-130Li Lithium Counterbalanced Walkie Stacker is designed for material handling applications where traditional straddle stackers cannot operate. Its counterbalanced configuration eliminates the need for front support legs, allowing it to lift closed-bottom pallets, transport equipment, and work with a wide variety of loads.
With a 3,000 lb load capacity and a 130-inch maximum lift height, this walkie stacker is well suited for warehouses, manufacturing facilities, retail stockrooms, and distribution centers. The compact design provides excellent maneuverability in confined work areas while delivering the lifting performance needed for everyday pallet handling.
Powered by a 24V 150Ah lithium battery, the EK14C-130Li offers consistent performance with fast charging, minimal maintenance, and no battery watering requirements. The integrated charger makes recharging simple, helping reduce downtime and improve productivity throughout the workday.
The AC drive motor delivers smooth acceleration and reliable travel performance, while Electric Power Steering (EPS) minimizes operator fatigue by reducing steering effort during extended use. A built-in 4-inch side shift allows for precise load positioning without repositioning the entire machine, increasing efficiency during stacking and retrieval tasks.
Adjustable forks accommodate a variety of pallet sizes, and the heavy-duty mast provides stable lifting and lowering under load. Intuitive controls offer responsive operation, giving operators greater confidence when working in tight aisles or busy warehouse environments.
Features
- 3,000 lb lifting capacity
- 130-inch maximum lift height
- Counterbalanced design for handling closed-bottom pallets
- 24V 150Ah maintenance-free lithium battery
- Integrated onboard charger
- Electric Power Steering (EPS)
- 4-inch hydraulic side shift
- AC drive system for smooth, efficient operation
- Adjustable forks for multiple pallet sizes
- Compact design for tight warehouse aisles
- Heavy-duty steel construction
- Low-maintenance electric operation
The EKKO EK14C-130Li is an excellent solution for businesses that need the versatility of a counterbalanced stacker with the efficiency, reliability, and low maintenance benefits of modern lithium-powered equipment.
|
Model |
|
EK14C-130Li |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3000 |
|
Load center distance |
(in) |
24 |
|
Wheel base |
(in) |
47 |
|
Lifting height |
(in) |
130 |
|
Side Shifting |
(in) |
4 |
|
Lowered mast height |
(in) |
85.6 |
|
Extended mast height |
(in) |
158.7 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
2/5 |
|
Overall length |
(in) |
118 |
|
Overall width |
(in) |
42.1 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/42.1 |
|
Fork adjust width |
(in) |
8.6-26 |
|
Turning radius |
(in) |
57 |
|
Max.gradient performance, laden/unladen |
(%) |
6/10 |
|
Lift speed, laden/unladen |
(in/s) |
2.95/3.94 |
|
Lowering speed, laden/unladen |
(in/s) |
5.3/4.7 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(V/W) |
AC 24V/2500W |
|
Lifting Motor |
(V/W) |
24V/2500W |
|
EPS Steering Motor |
(V/W) |
24/200W |
|
Battery voltage |
(V/Ah) |
24V/150Ah Lithium |
|
Service Weight |
(lb) |
4230 |
