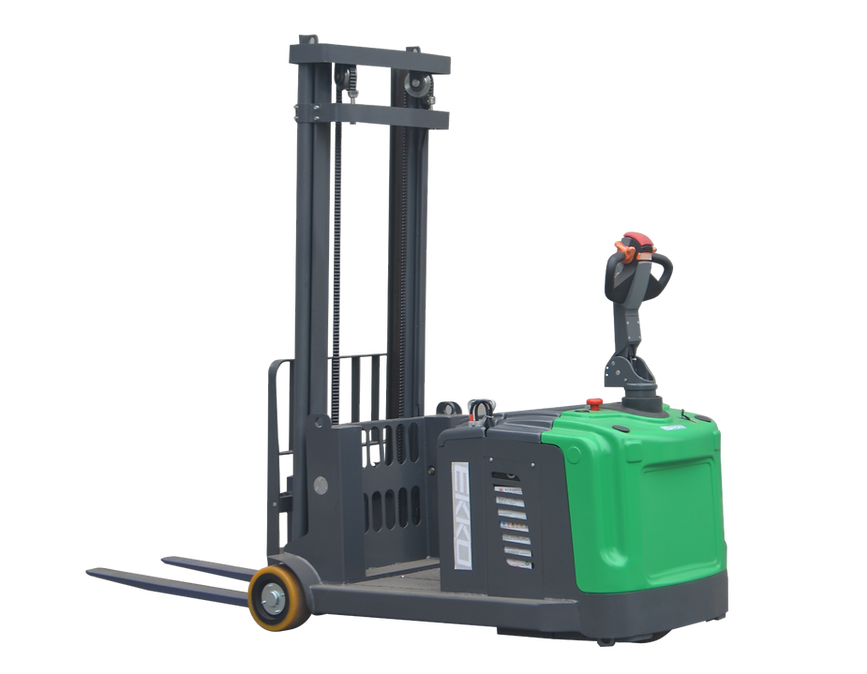

The EKKO EK14S-130Li is a lithium-powered counterbalanced walkie stacker designed for lifting and transporting loads in warehouses, production facilities, and shipping areas. Its counterbalanced design eliminates front support legs, allowing it to handle closed-bottom pallets, machinery, and other loads that standard straddle stackers cannot access.
With a 3,300 lb load capacity and a maximum lift height of 130 inches, this electric stacker is equipped with a maintenance-free 24V lithium battery, AC drive system, and electronic power steering for responsive handling and consistent performance throughout the workday. The integrated side shift provides precise load positioning, reducing the need to reposition the entire truck when placing or retrieving pallets.
The adjustable forks accommodate a range of pallet sizes, while the compact footprint and tight turning radius make it suitable for operating in narrow aisles and confined work areas.
Features
- 3,300 lb maximum load capacity
- 130 in maximum lift height
- Counterbalanced design for handling closed-bottom pallets
- Integrated 4 in side shift for accurate load placement
- 24V 150Ah lithium battery with included charger
- Maintenance-free lithium power system
- AC drive and lift motors
- Electronic power steering (EPS)
- Adjustable forks for multiple pallet configurations
- Compact design for maneuvering in tight spaces
Built for daily material handling, the EKKO EK14S-130Li combines the versatility of a counterbalanced stacker with the efficiency of lithium power, making it a practical solution for facilities that require reliable lifting without the size of a traditional forklift.
|
Model |
|
EK14S-130-LI |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3300 |
|
Load center distance |
(in) |
24 |
|
Wheel base |
(in) |
47 |
|
Lifting height |
(in) |
130 |
|
SIDE-SHIFTING |
(in) |
4 |
|
Lowered mast height |
(in) |
84 |
|
Extended mast height |
(in) |
167 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
2/5 |
|
Overall length |
(in) |
113 |
|
Overall width |
(in) |
39 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/45.3 |
|
Fork adjust width |
(in) |
8.6-28.3 |
|
Turning radius |
(in) |
57 |
|
Max.gradient performance, laden/unladen |
(%) |
6/10 |
|
Lift speed, laden/unladen |
(in/s) |
4/5.1 |
|
Lowering speed, laden/unladen |
(in/s) |
5.3/4.7 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(V/W) |
AC 24V/2500W |
|
Lifting Motor |
(V/W) |
24V/2500W |
|
EPS Steering Motor |
(V/W) |
24/200W |
|
Battery voltage |
(V/Ah) |
24V/150Ah Lithium |
|
Service Weight |
(lb) |
3840 |
