Home / EKKO EK18RF 4000lbs Stand-Up Rider Forklift 216" Lift

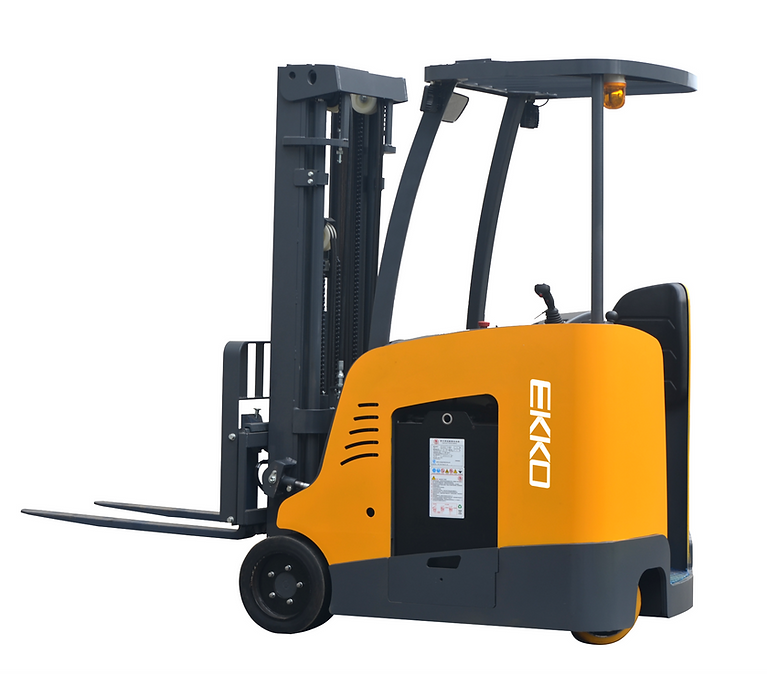

EKKO EK18RF 4000lbs Stand-Up Rider Forklift 216" Lift
EKKO EK18RF 4000lbs Stand-Up Rider Forklift 216" Lift
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
The EKKO EK18RF Stand-Up Rider Forklift is a high-performance electric material handling solution engineered for efficient pallet transport and stacking in warehouses, distribution centers, and manufacturing facilities. Designed with a compact stand-up operator compartment, the EK18RF delivers excellent maneuverability in confined spaces while maintaining a rated load capacity of 4,000 lb (1,814 kg). Powered by a 48V electric drive system, the forklift provides smooth acceleration, responsive hydraulic controls, and quiet, emission-free operation, making it well suited for indoor applications requiring high productivity and reduced operating costs.
Built for demanding material handling tasks, the EK18RF offers a maximum lift height of 216 inches (18 feet), allowing operators to efficiently access high-level racking systems. The forklift features an advanced AC drive motor and electronic controller that provide precise travel and lift performance while minimizing maintenance requirements. Standard features such as integrated side shift, hydraulic power steering, and ergonomic operator controls enhance load positioning accuracy, reduce operator fatigue, and improve overall workflow efficiency. Its compact turning radius and optimized chassis design enable safe operation in narrow aisles without compromising stability or lifting performance.
Constructed with industrial-grade components for long-term durability, the EKKO EK18RF is designed to withstand the rigorous demands of daily warehouse operations. The robust steel frame, reliable hydraulic system, and heavy-duty mast assembly ensure dependable performance under continuous use, while the electric powertrain contributes to lower energy consumption and reduced maintenance compared to internal combustion alternatives. Combining high lifting capability, compact dimensions, and advanced electric technology, the EK18RF provides an efficient, cost-effective solution for businesses seeking to maximize productivity, optimize storage capacity, and minimize total cost of ownership.
|
Model |
|
EK18RF |
|
Power unit |
|
Electric |
|
Operation Type |
|
Rider |
|
Loading capacity |
Q (LBS) |
4000 |
|
Load center |
c (Inch) |
24 |
|
Axle centre to fork face |
x (Inch) |
11.5 |
|
Wheelbase |
y (Inch) |
48.8 |
|
Service weight with battery |
LBS |
7940 |
|
Wheels type |
|
Solid wheel |
|
Driving wheel size |
Φ×w(Inch) |
16×7-10.5（15.98*7.01*10.51） |
|
Bearing wheel size |
Φ×w(Inch) |
13.5×5.2 |
|
Wheels, number front/rear |
|
1×/2 |
|
Track width |
b10 (Inch) |
35.04 |
|
Mast/fork carriage tilt, fwd/bwd |
a/b (°) |
3/5 |
|
Lowered mast height |
h1 (Inch) |
91.77 |
|
Free lift height |
h2 (Inch) |
61.34 |
|
Lift height |
h3 (Inch) |
216.54 |
|
Extended mast height |
h4 (Inch) |
248.43 |
|
Height of overhead guard (cabin) |
h6 (Inch) |
90.08 |
|
Height of seat/stand-on platform |
h7 (Inch) |
9.06 |
|
Overall length |
l1 (Inch) |
117.78 |
|
Length to fork face |
l2 (Inch) |
72.52 |
|
Overall width |
b1/ b2 (mm) |
42.52/42.13 |
|
Fork dimensions |
s/e/l (Inch) |
1.58/4.72/45.28 |
|
Width of forks |
b3 (Inch) |
36.22 |
|
Ground clearance under mast |
m1 (Inch) |
2.95 |
|
Min.Ground clearance |
m2 (Inch) |
3.86 |
|
Aisle width requirement |
Ast (FT) |
10.5 |
|
Min.Turning radius |
Wa (Inch) |
58.5 |
|
Travel speed,laden/unladen |
(km/h) |
12/13 |
|
Lifting speed, with/without load |
(mm/s) |
250/400 |
|
Lowering speed, with/without |
(mm/s) |
240/258 |
|
Climbing ability, with/without |
(%) |
6/10 |
|
Service brake |
|
Hydraulic |
|
Drive motor, 60-minute rating |
(kW) |
6 |
|
Lift motor rating at S3 15% |
(kW) |
7.7 |
|
Battery according to DIN 43531/35/36 A,B,C,no |
|
no |
|
Battery voltage/rated capacity |
(V/Ah) |
48/420 |
|
Battery weight (± 5%) |
(LBS) |
1570 |
|
Power consumption VDI |
(mm) |
38*18.1*29.53 |
|
Type of drive control |
|
AC |
|
Noise level at operator‘s ear |
(dB(A)) |
≤70 |
|
steering type |
|
Hydraulic steering |
