Home / EKKO EOP70 2200lbs Order Picker
EKKO EOP70 2200lbs Order Picker
EKKO EOP70 2200lbs Order Picker
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought

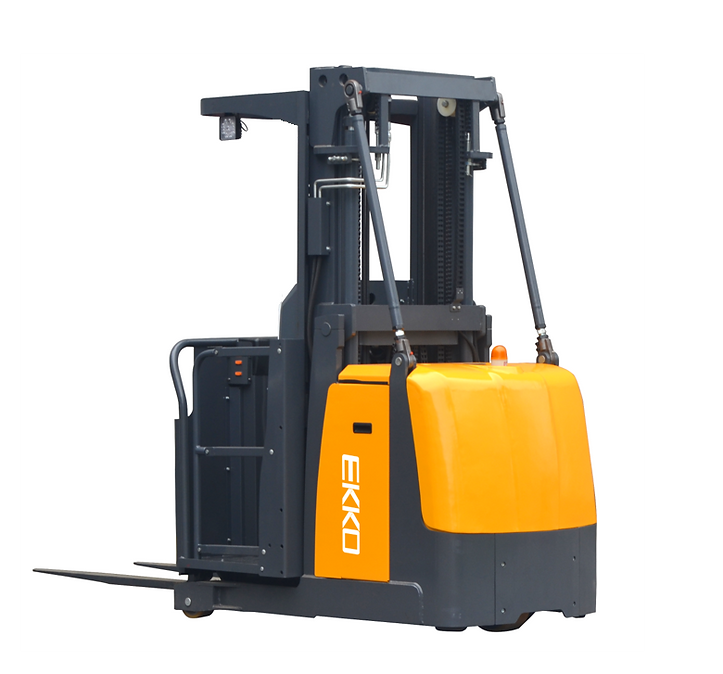

The EKKO EOP70 Electric Order Picker is a high-performance, mid-level warehouse picking solution engineered to improve productivity, safety, and efficiency in order fulfilment operations. Featuring a robust 1,000 kg load capacity, a maximum platform picking height of 6.55 m, and a compact stand-on design, the EOP70 enables operators to access elevated inventory quickly while maintaining excellent manoeuvrability in narrow warehouse aisles.
Powered by a maintenance-friendly AC drive motor with a Curtis electronic controller and Electronic Power Steering (EPS), the EOP70 delivers smooth travel, precise handling, and reliable performance throughout demanding warehouse environments. Its heavy-duty welded steel chassis, polyurethane load wheels, integrated battery and charger, and triple-stage mast provide long-term durability and dependable operation across distribution centres, manufacturing facilities, and retail storage applications.
Designed for intensive order picking, the EOP70 combines operator comfort with advanced safety and operational efficiency. The elevated operator platform, stable mast construction, ergonomic controls, and low-maintenance electrical system make it an ideal solution for high-throughput picking tasks where speed, accuracy, and reliability are essential.
|
Model |
|
EOP70 |
|
Power unit |
|
Electric |
|
Operation |
|
Stand on |
|
Rated loading capacity |
Q (lbs) |
2200 |
|
Load centre |
c (Inch) |
19.68 |
|
Between fork backrest & front wheel |
x (Inch) |
7.56 |
|
Wheelbase |
y (Inch) |
53.46 |
|
Service weight with battery |
lbs |
6600 |
|
Wheels type |
|
PU |
|
Driving wheel size |
Φ×w(Inch) |
Φ9.84×5 |
|
Bearing wheel size |
Φ×w(Inch) |
Φ5.9×3.23 |
|
Wheels, number front/rear (x = driven) |
|
1，/2 |
|
Track width |
b11 (Inch) |
37.8 |
|
Lowered mast height |
h1 (Inch) |
93.11 |
|
Lifting height |
h3 (Inch) |
196" |
|
Extended mast height |
h4 (Inch) |
285 |
|
Height of overhead guard(cabin) |
h6 (Inch) |
89.48 |
|
height of seat/stand-on platform |
h7 (Inch) |
10.67 |
|
Additional lift height |
h9 (Inch) |
30.71 |
|
total lift height |
h10 (Inch) |
227 |
|
Platform lifting height |
h12 (Inch) |
206.873 |
|
Lowered fork height |
h13 (Inch) |
1.97 |
|
Picking height |
h15 Inch) |
258.01 |
|
Overall length |
l1 (Inch) |
111.41 |
|
Body Length |
l2 (Inch) |
69.29 |
|
Overall width |
b1/ b2 (Inch) |
39.37/145.28 |
|
Fork Size |
s/e/l (Inch) |
1.37/3.93/42.13 |
|
Width of fork fixing frame |
b3 (Inch) |
35.83 |
|
outside fork width |
b5 (Inch) |
34.33 |
|
Min.Ground clearance |
m2 (Inch) |
1.97 |
|
Aisle width for pallets 39.37*47.24 crossways |
Ast (Inch) |
122.24 |
|
Aisle width for pallets 31.5*47.24 lengthways |
Ast (Inch) |
126.77 |
|
Turing Radius |
Wa (Inch) |
61.81 |
|
Travel speed,laden/unladen |
(km/h) |
8 |
|
Lifting speed, with/without load(cabin) |
(mm/s) |
n/a |
|
Lifting speed, with/without load(Fork) |
(mm/s) |
n/a |
|
Lowering speed, with/without load(cabin) |
(mm/s) |
n/a |
|
Lowering speed, with/without load(Fork) |
(mm/s) |
n/a |
|
Climbing ability, with/without load |
(%) |
3/6 |
|
Brake Type |
|
Electromagnetic brake |
|
Drive Motor |
(kW) |
3 |
|
Lift Motor |
(kW) |
6 |
|
Battey, DIN 43531/35/36 A,B,C,no |
|
no |
|
Battery voltage/rate capacity |
(V/Ah) |
24/350 |
|
Battery Weight（±5%） |
(LBS) |
n/a |
|
Type of drive control |
|
AC |
|
Noise level |
(dB(A)) |
≤75 |
