Home / HSI 6000lbs Cantilever Style Jib Crane

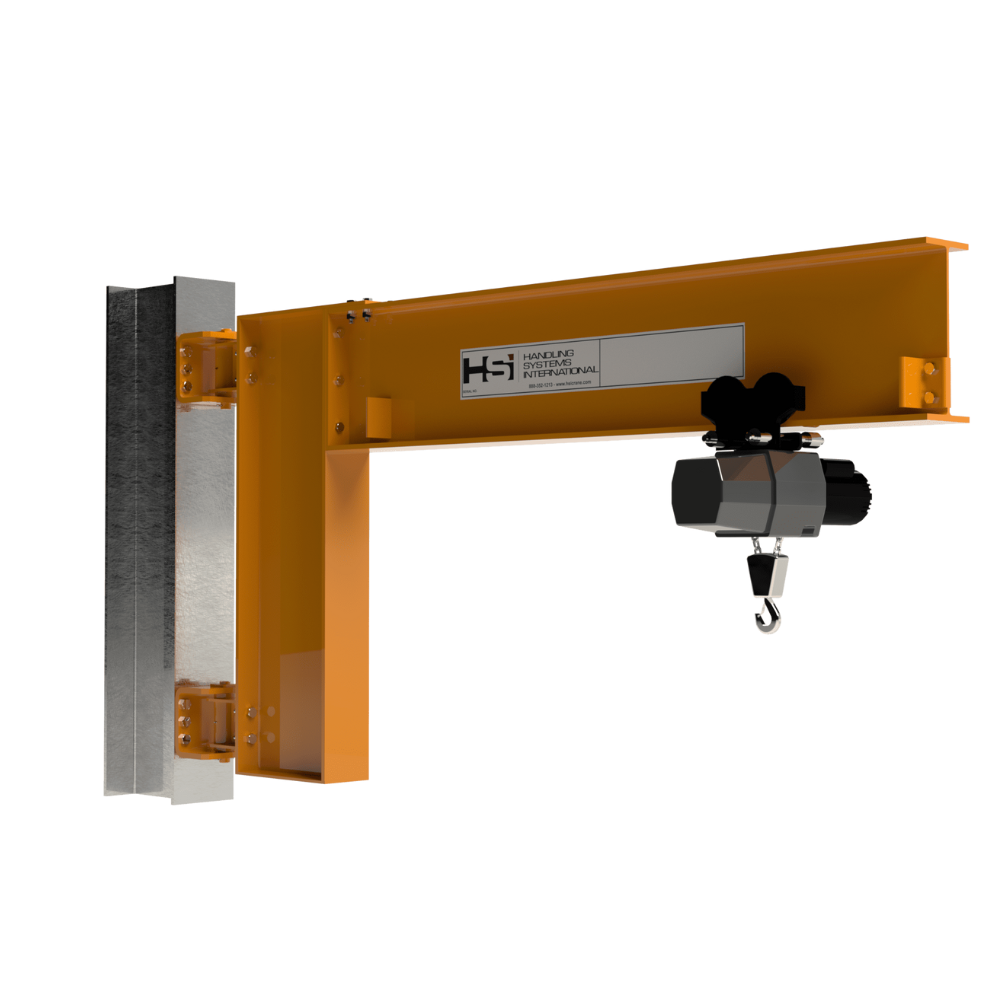

HSI 6000lbs Cantilever Style Jib Crane

HSI 6000lbs Cantilever Style Jib Crane

HSI 6000lbs Cantilever Style Jib Crane

$3,732.18

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 6000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Headroom Required
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If floor space is a premium in your facility, but you still require a heavy-duty lifting tool, then this wall/column-mounted jib crane from HSI Crane could be the answer to your problems.

Highly suitable for use in bays, along a wall, or in an individual work cell, this cantilever-style jib crane has a safe working load limit of 6000lbs and is available in span lengths from 8ft up to 20ft*. Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist.

Standard rotation with a cantilever jib crane is 180-degrees (depending on how and where it’s mounted), with this particular heavy-duty model offering smooth and effortless rotation, thanks to the cast iron fittings, complete with rollers bearings and zerk fittings allowing for easy in-situ lubrication.

Designed to maximize hoist lift, this wall/column-mounted jib crane requires less headroom when mounting, making it an easy to install lifting solution, even in heavy-duty environments.

All Cranes manufactured by HIS have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the Downloads section to the right.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Cantilever Jib Crane ONLY!

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.



Downloads
  • HSI Model 313 Cantilever Type Jib Crane Owners Manual

  • HSI Jib Crane Accessories

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311/313 Wall to Fitting Centerline

313-6000-8

313

6000

8

W16X45

7"

6'-0"

790

10005

3000 Series

4 1/2"

313-6000-9

313

6000

9

W16X45

7"

6'-0"

815

11371

3000 Series

4 1/2"

313-6000-10

313

6000

10

W16X45

7"

6'-0"

840

12744

3000 Series

4 1/2"

313-6000-11

313

6000

11

W16X45

7"

6'-0"

900

14125

3000 Series

4 1/2"

313-6000-12

313

6000

12

W16X45

7"

6'-0"

960

15513

3000 Series

4 1/2"

313-6000-13

313

6000

13

W18X55

7-1/2"

6'-0"

1415

17055

3000 Series

4 1/2"

313-6000-14

313

6000

14

W18X55

7-1/2"

6'-0"

1470

18481

3000 Series

4 1/2"

313-6000-15

313

6000

15

W18X55

7-1/2"

7'-6"

1525

15933

3000 Series

4 1/2"

313-6000-16

313

6000

16

W18X55

7-1/2"

7'-6"

1580

17088

3000 Series

4 1/2"

313-6000-17

313

6000

17

W21X68

8-1/4"

8'-6"

2040

16332

3000 Series

4 1/2"

313-6000-18

313

6000

18

W21X68

8-1/4"

8'-6"

2110

17391

3000 Series

4 1/2"

313-6000-19

313

6000

19

W21X68

8-1/4"

9'-6"

2230

16516

3000 Series

4 1/2"

313-6000-20

313

6000

20

W21X68

8-1/4"

9'-6"

2350

17478

3000 Series

4 1/2"

313-6000-21

313

6000

21

W24x84#

9"

9'-6"

3176

20827

4000 Series

313-6000-22

313

6000

22

W24x84#

9"

9'-6"

3176

20827

4000 Series

313-6000-23

313

6000

23

W24x84#

9"

8'-6"

3879

26568

4000 Series

313-6000-24

313

6000

24

W24x84#

9"

8'-6"

3879

26568

4000 Series

313-6000-25

313

6000

25

W24x84#

9"

9'-3"

4162

26803

4000 Series

313-6000-26

313

6000

26

W24x84#

9"

9'-3"

4162

26803

4000 Series

313-6000-27

313

6000

27

W24x84#

9"

10'-0"

4445

27045

4000 Series

313-6000-28

313

6000

28

W24x84#

9"

10'-0"

4445

27045

4000 Series
