Renfroe DG Locking Type Lifting Clamps

Renfroe DG Locking Type Lifting Clamps
Renfroe DG Locking Type Lifting Clamps
Renfroe DG Locking Type Lifting Clamps

Renfroe DG Locking Type Lifting Clamps

$693.00

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacities: 0.5t / 1t / 2t
  • Developed to lift & transport crane & railroad rails
  • Lightweight design for easy clamp placement & removal
  • Incorporates the Lock Closed feature

Customers Also Bought

Description

Features & Specification

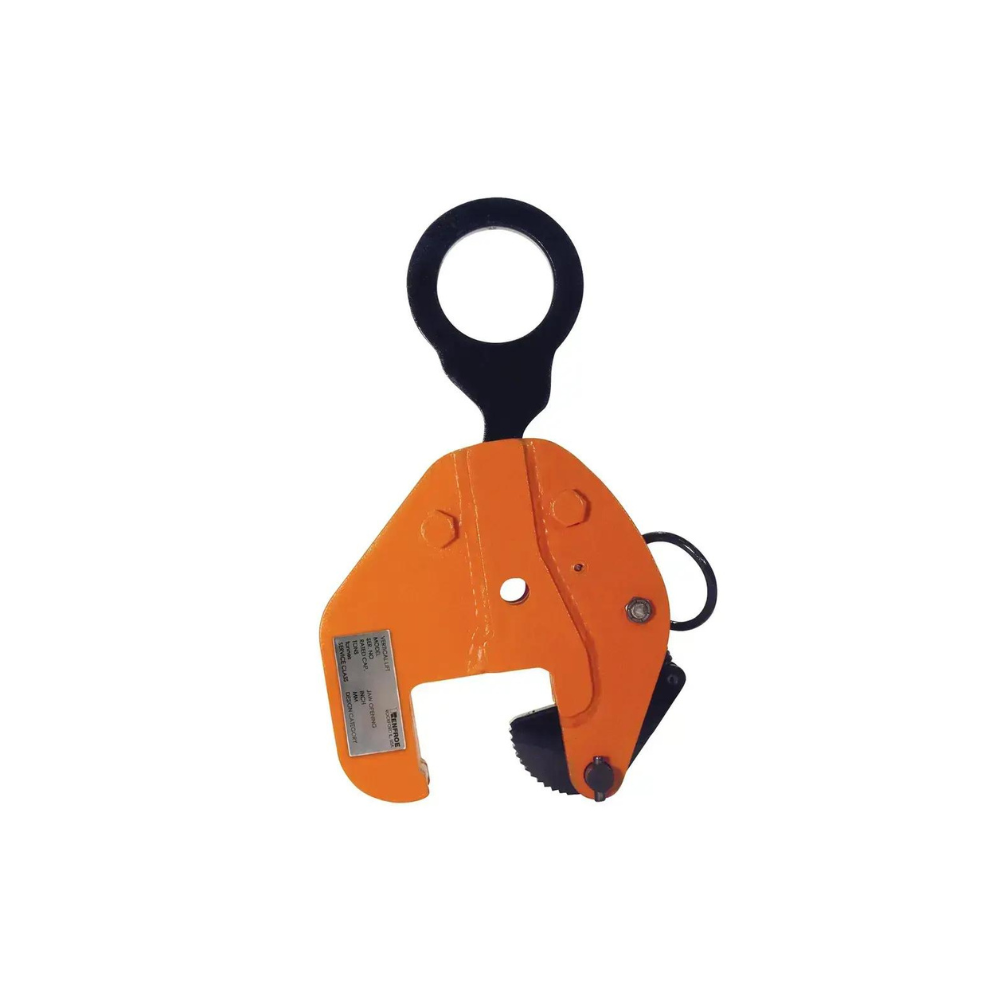

Engineered specifically for lifting and transporting railroad and crane rails, Renfroe's Model DG Lifting Clamp is a lesson in lightweight design with excellent working load limits.

Super-lightweight enabling it to be applied/removed by hand, this lifting clamp features the brands signature 'lock closed' feature.



Downloads
  • Renfroe DG Lifting Clamp Data Sheet

  • Renfroe DG Lifting Clamp Operator Manual

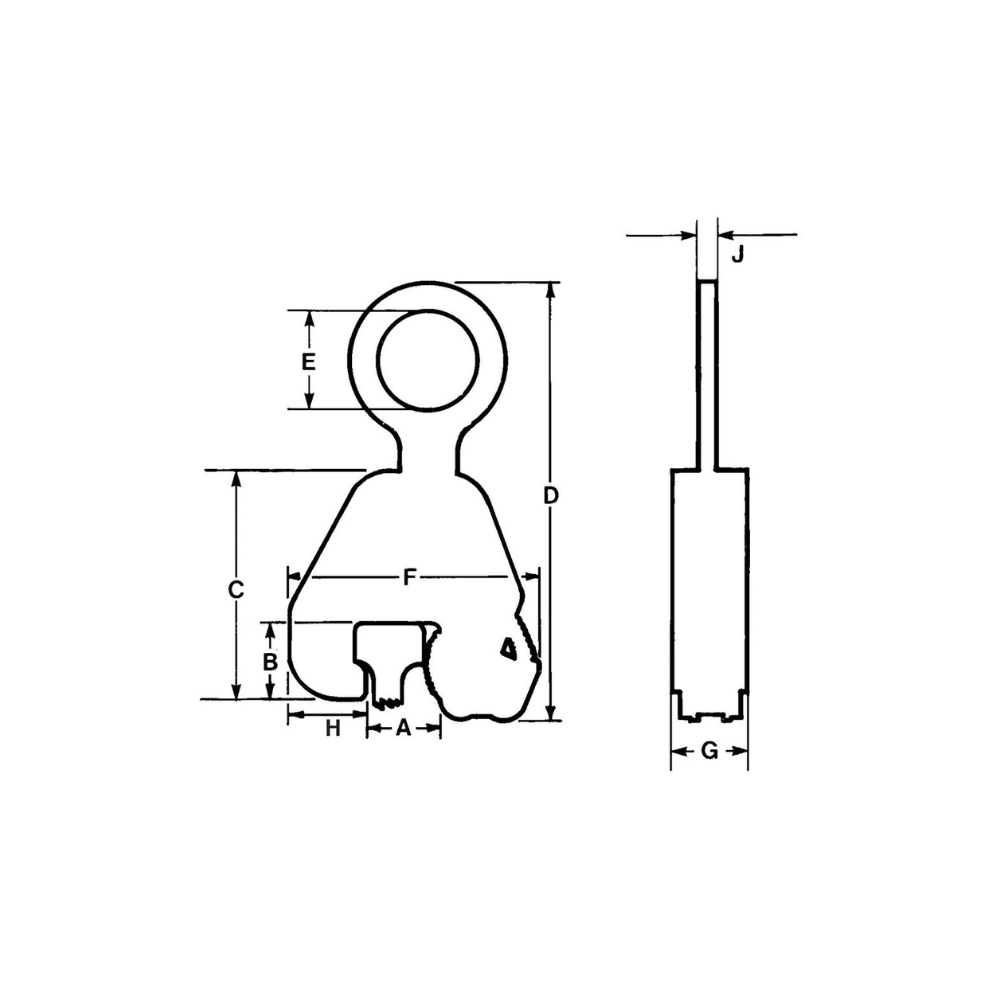

SKU

Capacity

(tons)

Shackle Hole

Dia (in.)

Weight

(lbs)

Capacity Std

Rail Max (lbs)

Capacity Std

Rail Min (lbs)

Clamp

Height

(in.)

Clamp

Length

(in.)

Clamp

Width

(in.)

Jaw

Height

(in.)

Jaw

Length

(in.)

Overall Clamp

Height (in.)

Shacke

Thick (in.)

DG-00.50-A

0.5

2.375

10

25

12

6.6875

5.375

2.5

1.3125

1.625

11.25

0.5

DG-00.50-B

0.5

2.375

11

50

30

6.6875

6

2.5

1.375

1.625

11.25

0.5

DG-01.00-A

1

2.625

16

0

0

8.125

8.625

3.25

2.5

1.875

13.5

0.625

DG-02.00-A

2

3.625

26

155

60

9

0

3.25

2.625

2.5

16

0.75

DG-02.00-B

2

3.625

26

0

0

9.5

10.375

3.25

2.625

2.5

16

0.75
