Home / Renfroe NM Locking Screw Type Non-Marring Lifting Clamps

Renfroe

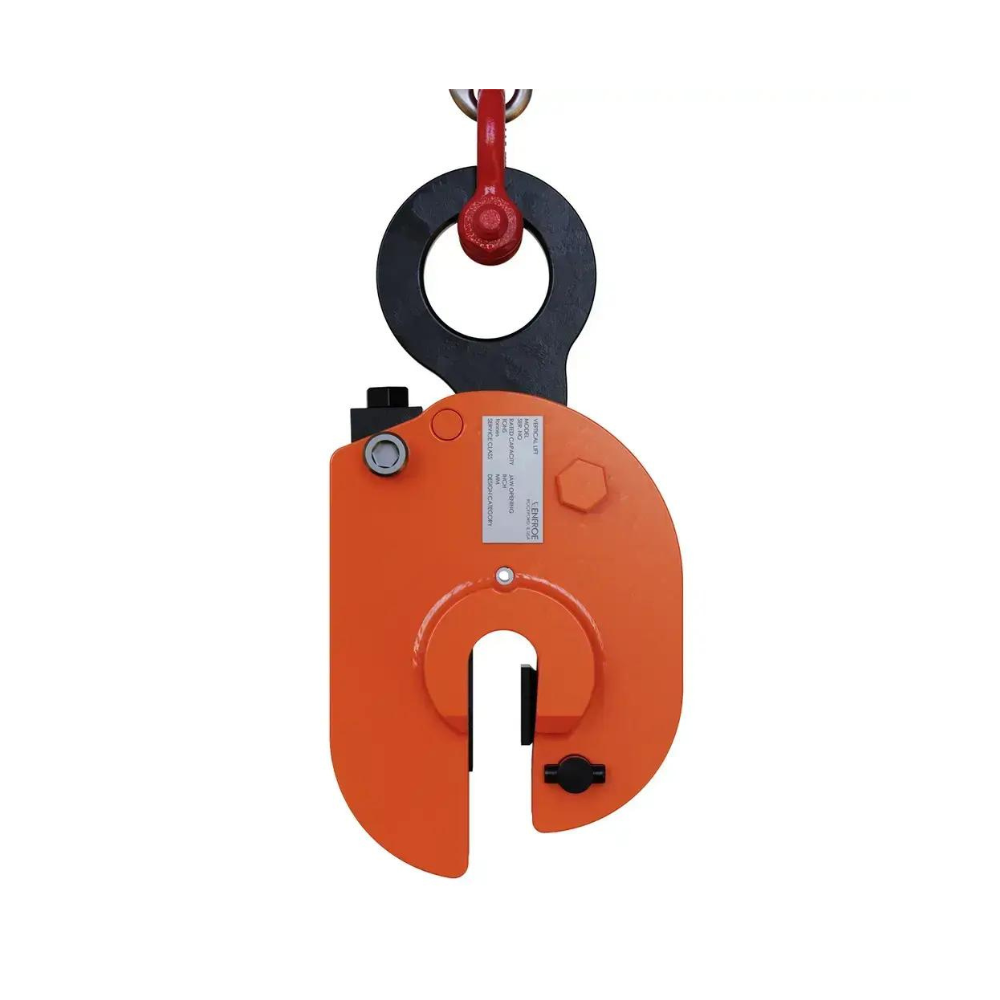

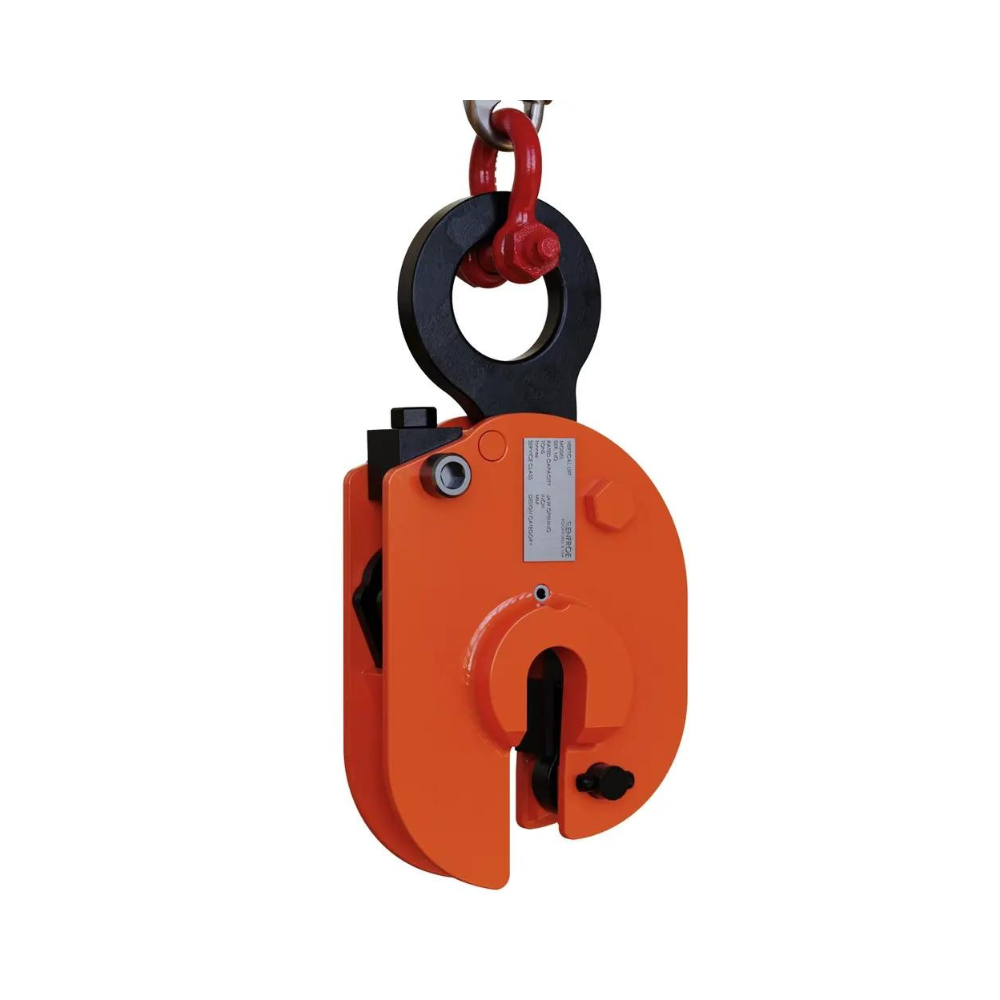

Renfroe NM Locking Screw Type Non-Marring Lifting Clamps

Renfroe NM Locking Screw Type Non-Marring Lifting Clamps
Renfroe NM Locking Screw Type Non-Marring Lifting Clamps
Renfroe NM Locking Screw Type Non-Marring Lifting Clamps
Renfroe NM Locking Screw Type Non-Marring Lifting Clamps

Renfroe NM Locking Screw Type Non-Marring Lifting Clamps

$3,665.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity Options: 1 - 12 Tons
  • Turns plates from horizontal through the same 90 degree arc
  • Incorporates a Lock Open - Lock Closed feature for easy on & off clamp positioning
  • Recommended for use in pairs
  • Supplied with smooth gripping pads to prevent marring
  • Capable of gripping stainless steel, copper, aluminum and other polished metal plates

Customers Also Bought

Description

Features & Specification

Expertly manufactured with smooth gripping surfaces to prevent any marring of stainless steel, copper, aluminum, and any other polished metal plates, the NM Series has been specifically designed to keep your plates in tip-top condition during every lift.

Recommended for use in pairs and attached to a chain/wire rope sling, supported by a spreader beam, Renfroe's NM Lifting Clamps are available in safe working loads from 1Ton up to 12Tons, with jaw openings from 0.75-inch to 6-inch (model dependant).

NOTE: The NM Lifting Clamp is not intended for use in transporting plates when using mobile equipment due to shocking of load.



Downloads
  • Renfroe NM Non-Marring Lifting Clamp Cut Sheet

  • Renfroe NM Non-Marring Lifting Clamp Operators Manual

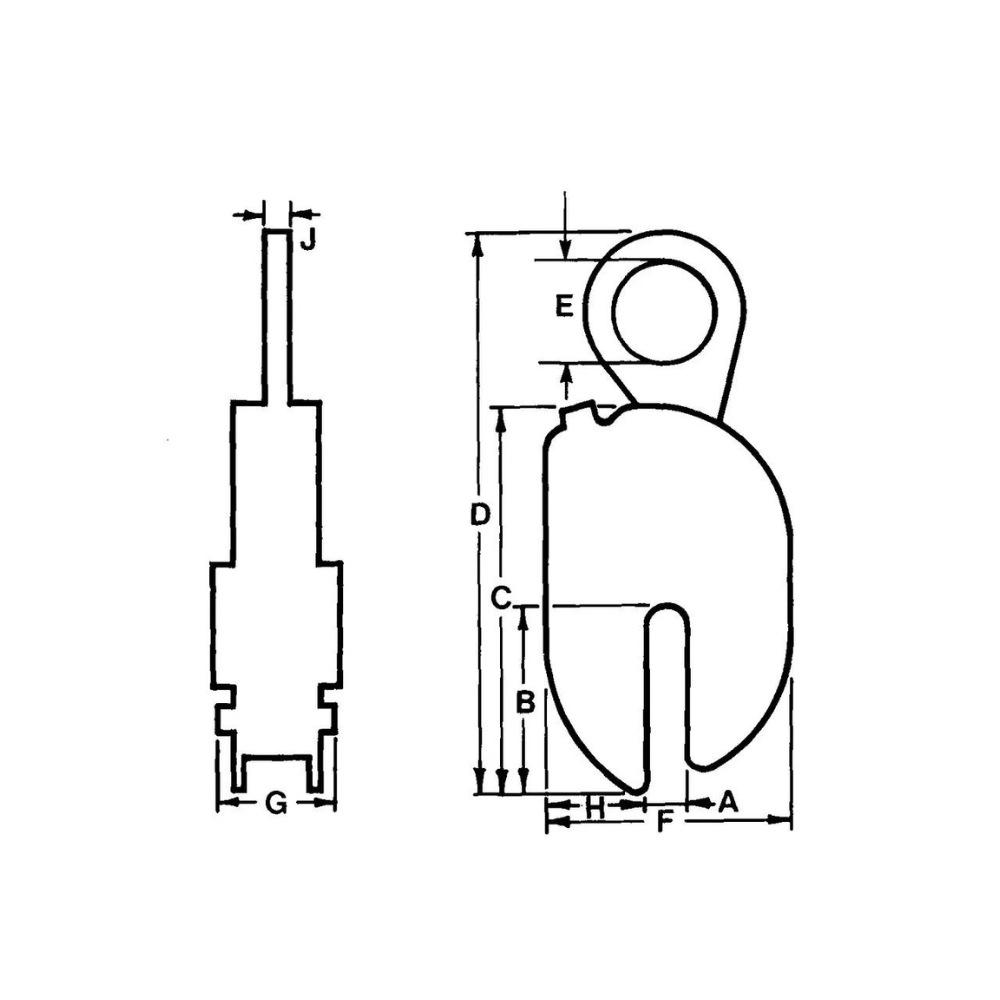

SKU

Capacity

(tons)

Shackle Hole Dia.

(in.)

Weight

(lbs)

Max. Jaw Open

(in.)

Clamp Height

(in.)

Clamp Length

(in.)

Clamp Width

(in.)

Jaw Height

(in.)

Jaw Length

(in.)

Overall Clamp Length

(in.)

Shackle Thick

(in.)

NM-01.00-A

1

2.375

17

0.75

5.875

9.375

3.125

2.375

4.5

15.375

0.625

NM-01.00-B

1

2.375

19

1.25

6.375

9.375

3.125

2.375

4.5

15.375

0.625

NM-01.00-C

1

2.375

21

1.75

6.875

9.375

3.125

2.375

4.5

15.375

0.625

NM-01.00-D

1

2.375

23

2.25

7.375

9.375

3.125

2.375

4.5

15.375

0.625

NM-02.00-A

2

2.625

23

1

6.75

10.0625

3.75

2.875

5.125

16

0.625

NM-02.00-B

2

2.625

27

1.5

7.25

10.0625

3.75

2.875

5.125

16

0.625

NM-02.00-C

2

2.625

28

2.

7.25

10.0625

3.75

2.875

5.125

16

0.625

NM-02.00-D

2

2.625

30

2.5

8.25

10.0625

3.75

2.875

5.125

16

0.625

NM-02.00-E

2

2.625

33

3

8.25

10.0625

3.75

2.875

5.125

16

0.625

NM-04.00-A

4

2.9375

45

1.5

7.75

12.125

4.5

1

5.375

18.5625

2.975

NM-04.00-B

4

2.9375

48

2.5

8.75

12.125

4.5

2.9375

5.375

18.5625

1

NM-04.00-C

4

2.9375

50

3

9.75

12.125

4.5

2.9375

5.375

18.5625

1

NM-04.00-D

4

2.9375

55

4.25

11

12.125

4.5

2.9375

5.375

18.5625

1

NM-08.00-A

8

3.875

193

3.25

15.375

20.25

6.375

5.875

11

27.75

2

NM-08.00-B

8

3.875

195

3.5

15.625

20.25

6.375

5.875

11

27.75

2

NM-08.00-C

8

3.875

210

4.5

16.625

20.25

6.375

5.875

11

27.75

2

NM-08.00-D

8

3.875

225

5.5

17.625

20.25

6.375

5.875

11

27.75

2

NM-12.00-A

12

3.875

200

4

16.125

20.25

7.875

5.875

11

27.75

2

NM-12.00-B

12

3.875

220

5.5

17.625

20.25

7.875

5.875

11

27.75

2

NM-12.00-C

12

3.875

240

6

18.125

20.25

7.875

5.875

11

27.75
