Home / RUD ACP-Turnado, UNC Thread with Variable Length

RUD

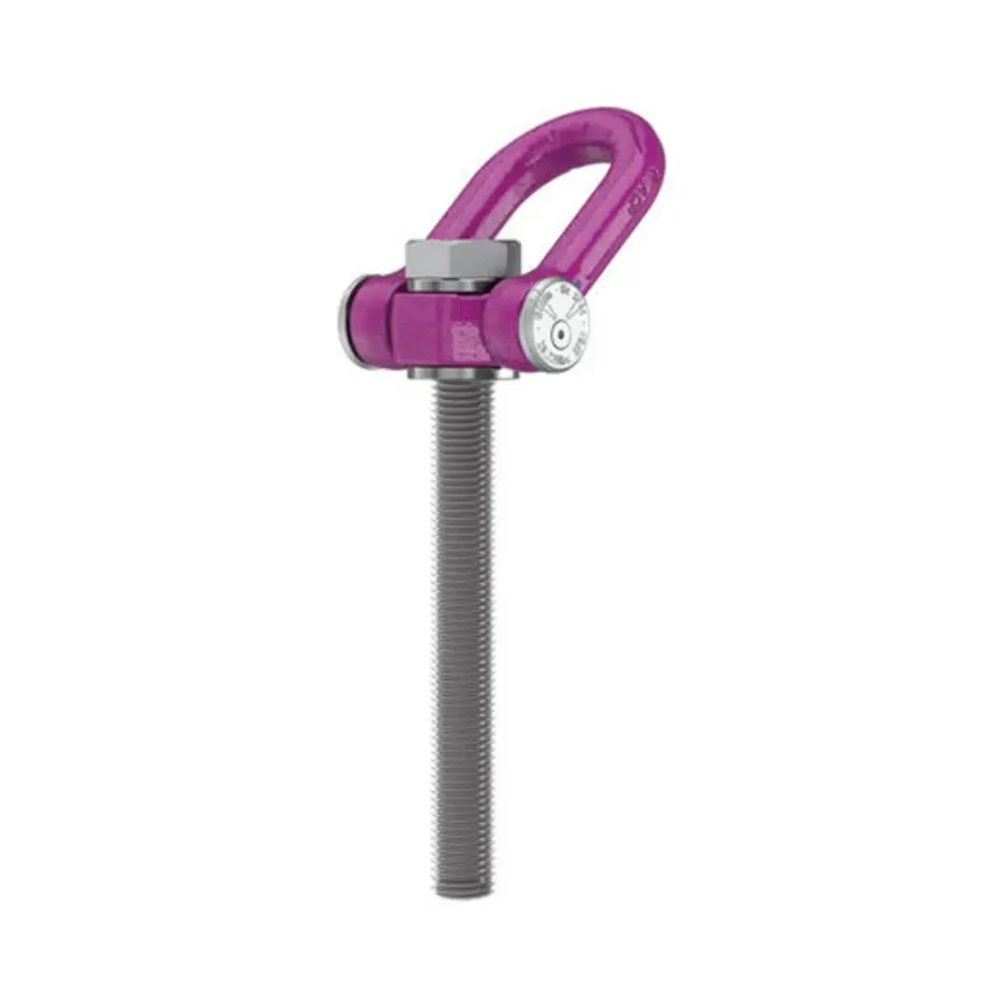

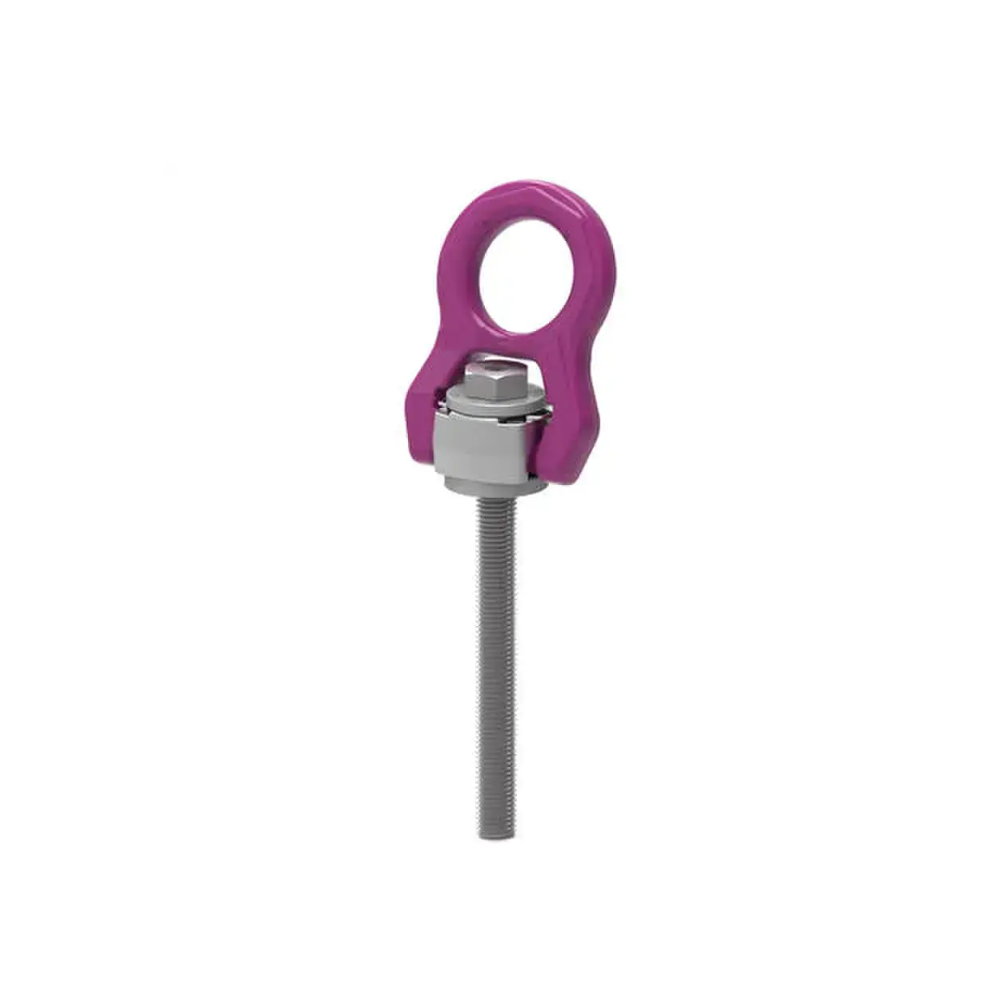

RUD ACP-Turnado, UNC Thread with Variable Length

RUD ACP-Turnado, UNC Thread with Variable Length
RUD ACP-Turnado, UNC Thread with Variable Length
RUD ACP-Turnado, UNC Thread with Variable Length

RUD ACP-Turnado, UNC Thread with Variable Length

$265.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 1.35 t – 8 t
  • Unique RUD spring mechanism
  • Stuck position of suspension ring avoided
  • No dangerous transverse loads
  • No kinks
  • Movement: Pivots 180° / Swivels 360°

Customers Also Bought

Description

Features & Specification

Offering higher working load limits than comparable products, RUD ACP-Turnado UNC Thread with Variable Length is available in WLL's from 1.35t up to 8t.

Fitted with a unique RUD spring mechanism that avoids stuck positions of the suspension ring, this model eliminates the risk of kinking.

Designed to swivel 360-degrees and pivots through 180-degrees.

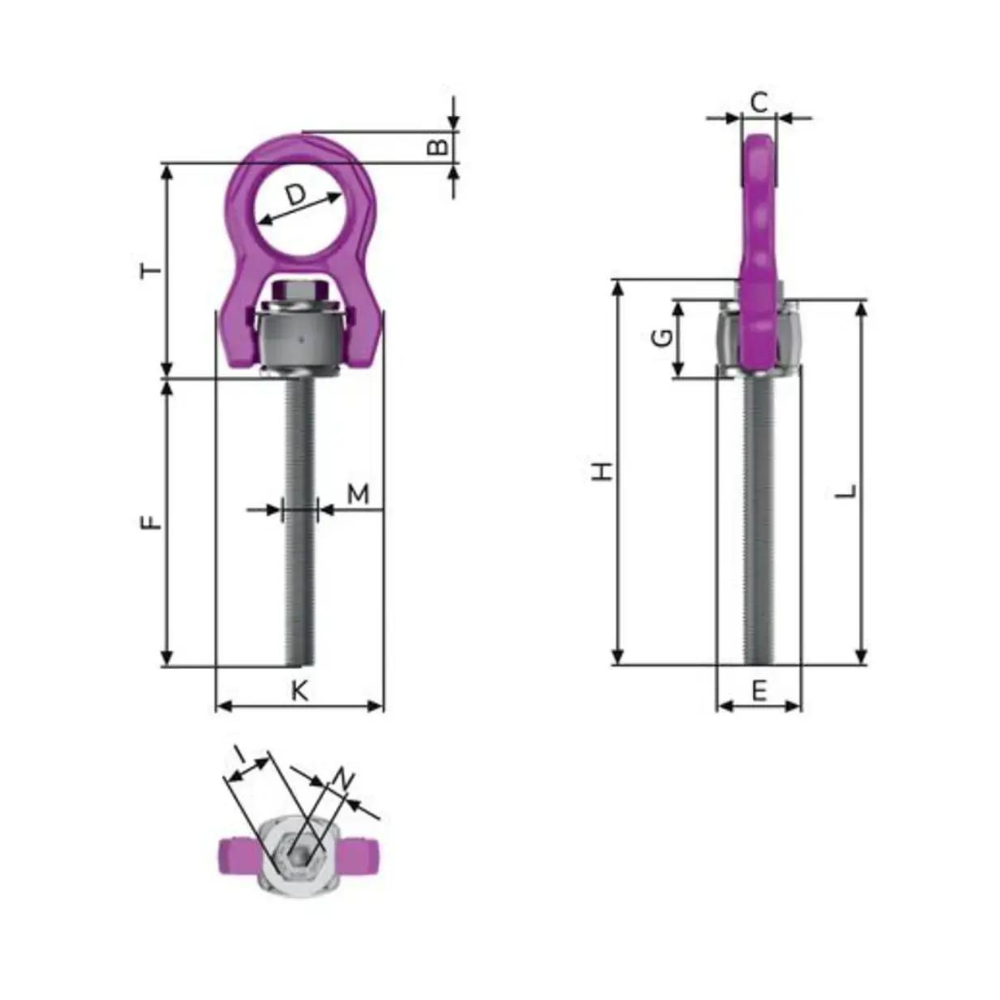

SKU

WLL

(tons)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F Max

(mm)

F Min

(mm)

G

(mm)

H Max

(mm)

H Min

(mm)

I

K

(mm)

L Max

(mm)

L Min

(mm)

M

N

(in.)

Pitch T

(mm)

8600632 1 /2 UNC

1.35

11

10.5

38

30

124

18

28

160

54

0.75

58

152

40

1/2"-13UNC

0.31

83

8600634 5/8-11NC

2.5

14

14

50

70

148

16

36

194

68

0.94

76

184

52

5/8"-11UNC

0.38

107

8600636 3 /4-10

4

17

17

50

45

185

20

43.5

240

81

1.12

89

228

64

3/4"-10UNC

0.5

118

8600638 1-8 UNC

6.3

23

23

66

60

199

25

55

270

107

1.5

121

254

80

1"-8UNC

0.56

154

8600640 1 1 /4-7 UNC

8

29

27

75

75

271

32

68.5

359

135

1.88

148

339

100

1 1/4"-7UNC

0.62

183

8600643

14

32

32

82

70

287

38

60

370

131

2.25

168

347

108

1 1/2"-6UNC

0.88

189
