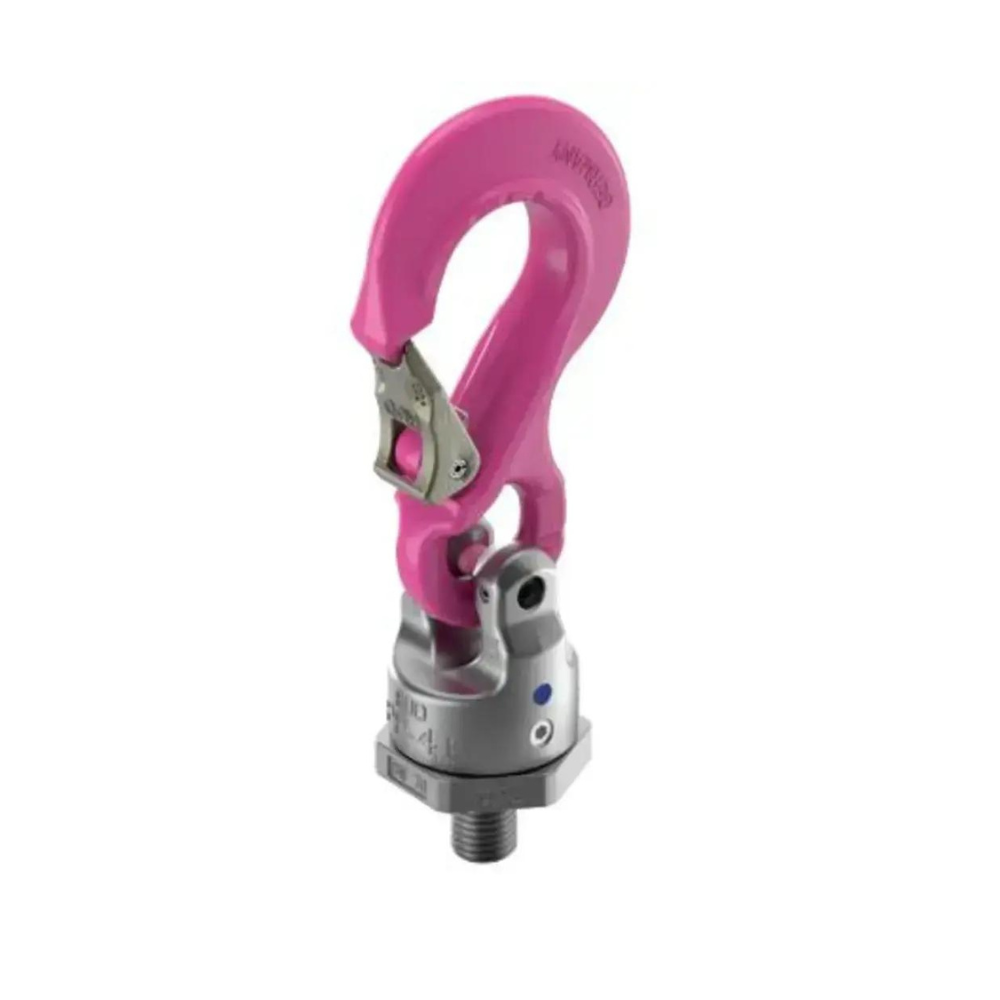

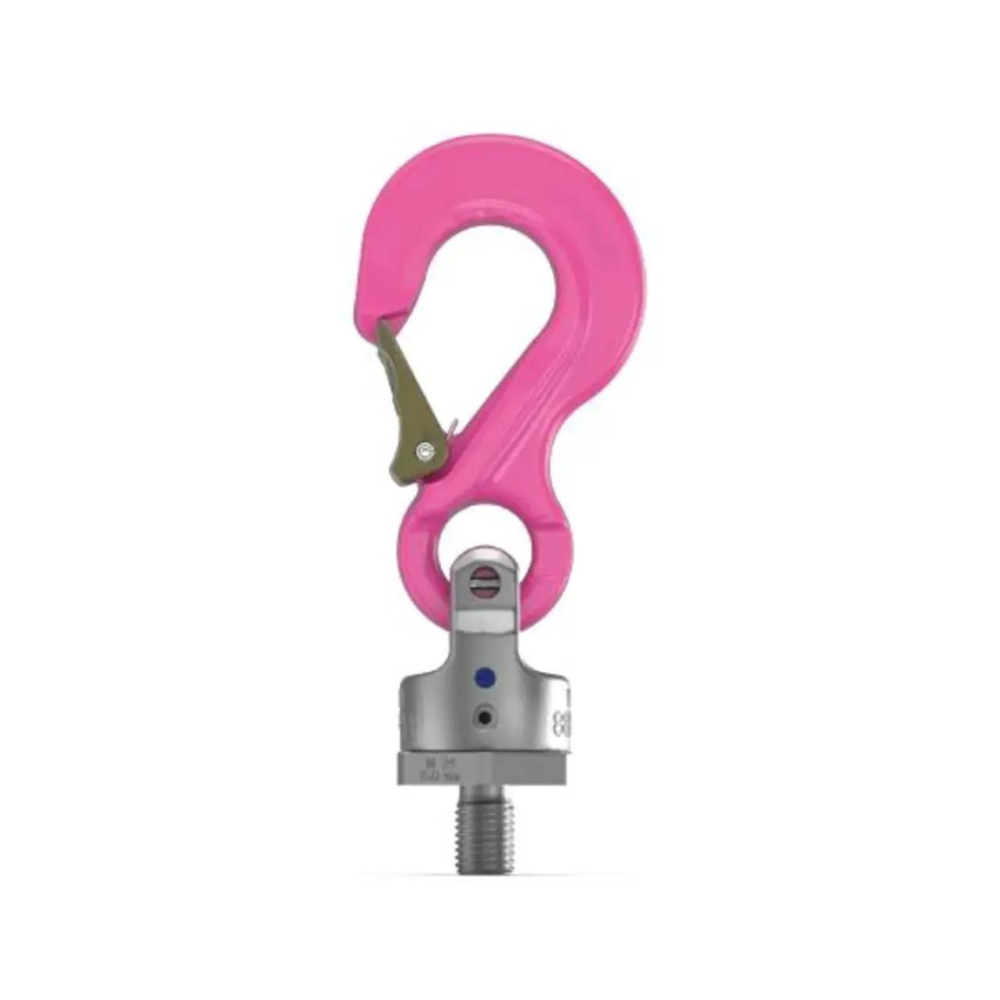

RUD PP-S Powerpoint Universal Connection, UNC Thread

RUD PP-S Powerpoint Universal Connection, UNC Thread
RUD PP-S Powerpoint Universal Connection, UNC Thread
RUD PP-S Powerpoint Universal Connection, UNC Thread
RUD PP-S Powerpoint Universal Connection, UNC Thread
RUD PP-S Powerpoint Universal Connection, UNC Thread
RUD PP-S Powerpoint Universal Connection, UNC Thread

RUD PP-S Powerpoint Universal Connection, UNC Thread

Price on Application

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 1.5t - 8t
  • UNC Thread

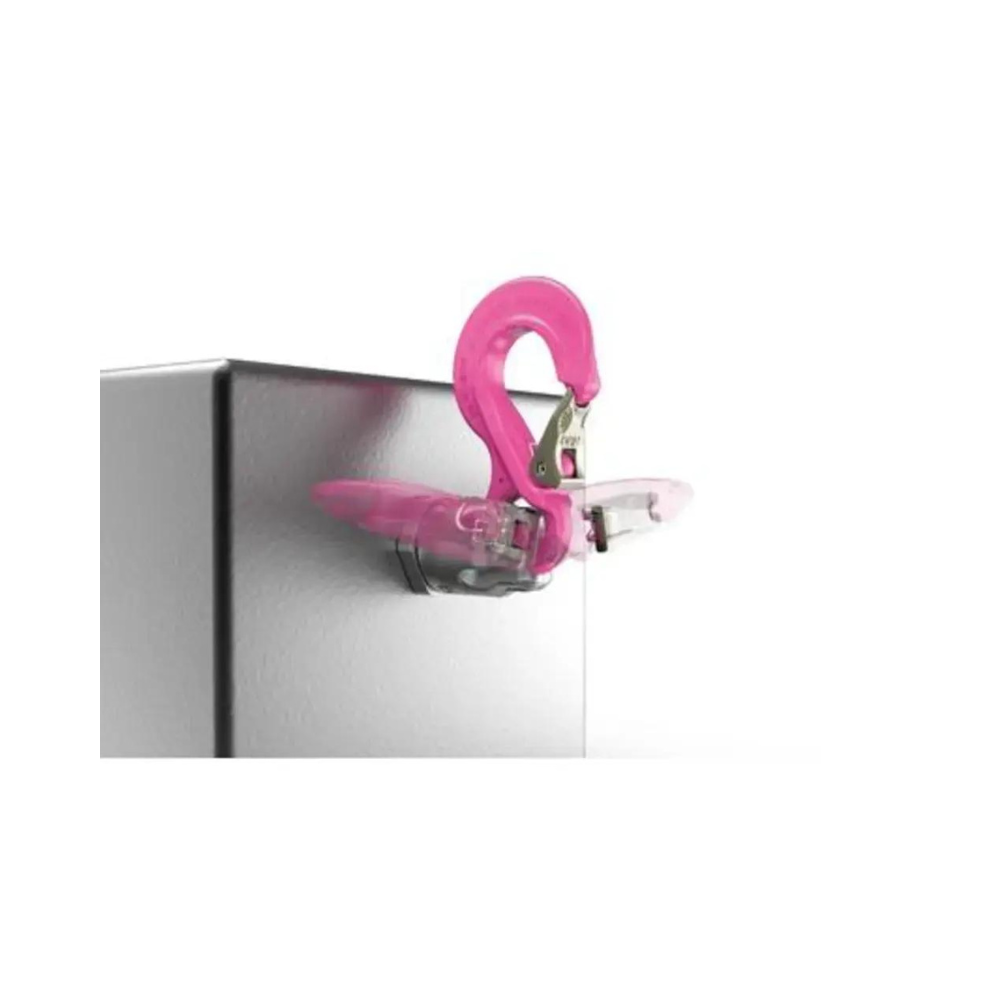

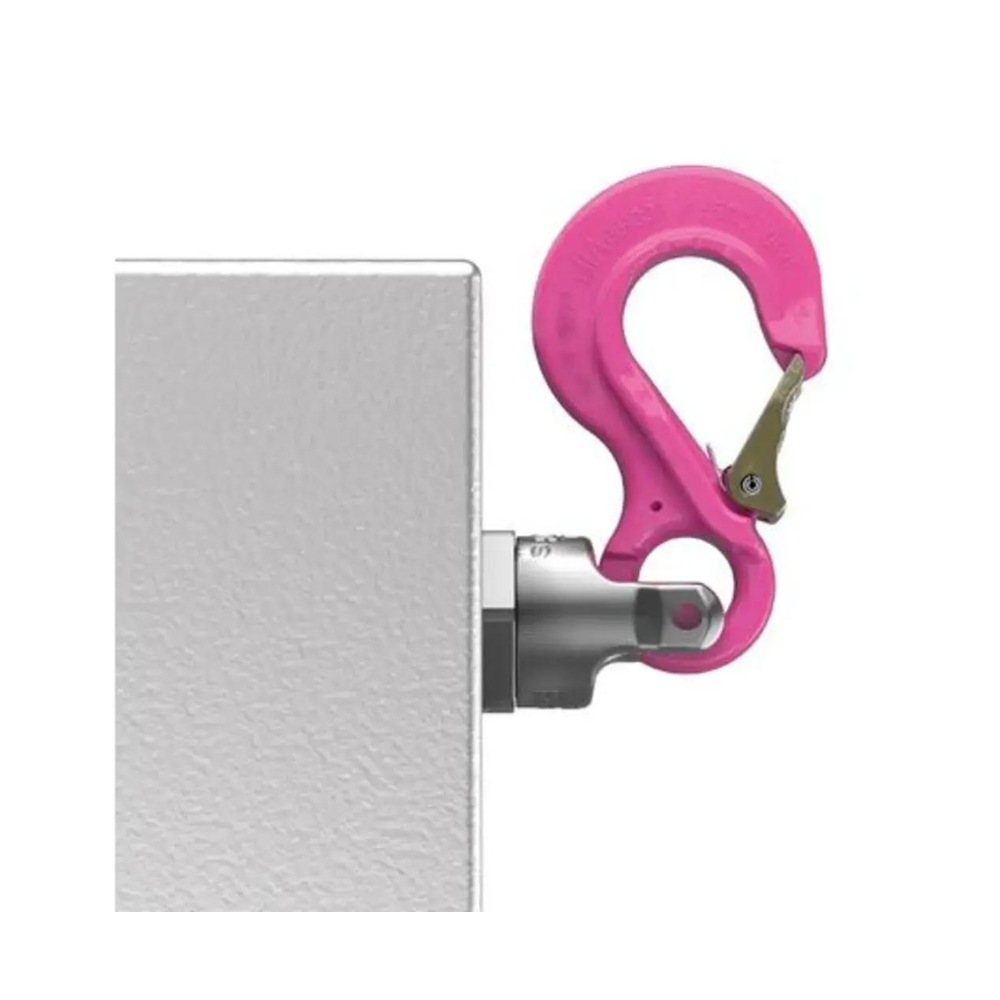

  • Rotating 360°, pivoting 230°
  • Universal hook connection for ring assemblies, round slings, wire ropes, hook assemblies

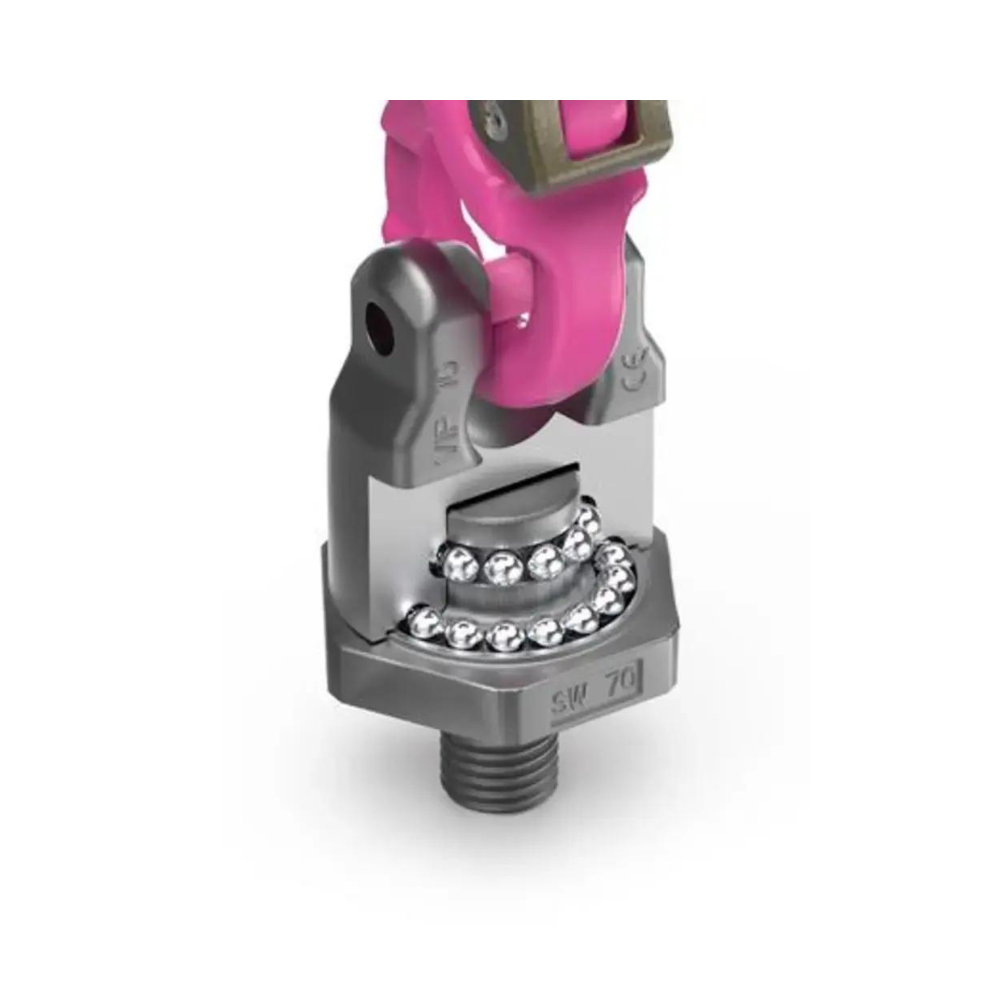

  • Double ball bearing for turning/rotating operations

Customers Also Bought

Description

Features & Specification

Boasting an excellent working load limit range of 1.5t to 8t (5/8"-11UNC- 1 1/2"-6BSWthread), RUD's PP-S Powerpoint Universal Connection, UNC Thread, is suitable for ring assemblies, round slings, wire ropes, and hook assemblies - it's pretty much always the right connection.

Extremely easy to rotate, rotating a full 360-degrees, thanks to the double ball bearing, these lifting points also pivot 230-degrees, as well as achieving the lowest kinking possibility due to a cardan joint.

Each of these lifting points is fitted with a robust forged safety latch for optimal safety, while the shape of the hook tip prevent hinging in small opening. Stamped with WLL rating for easy identification.



Downloads
  • RUD PP Powerpoint Brochure

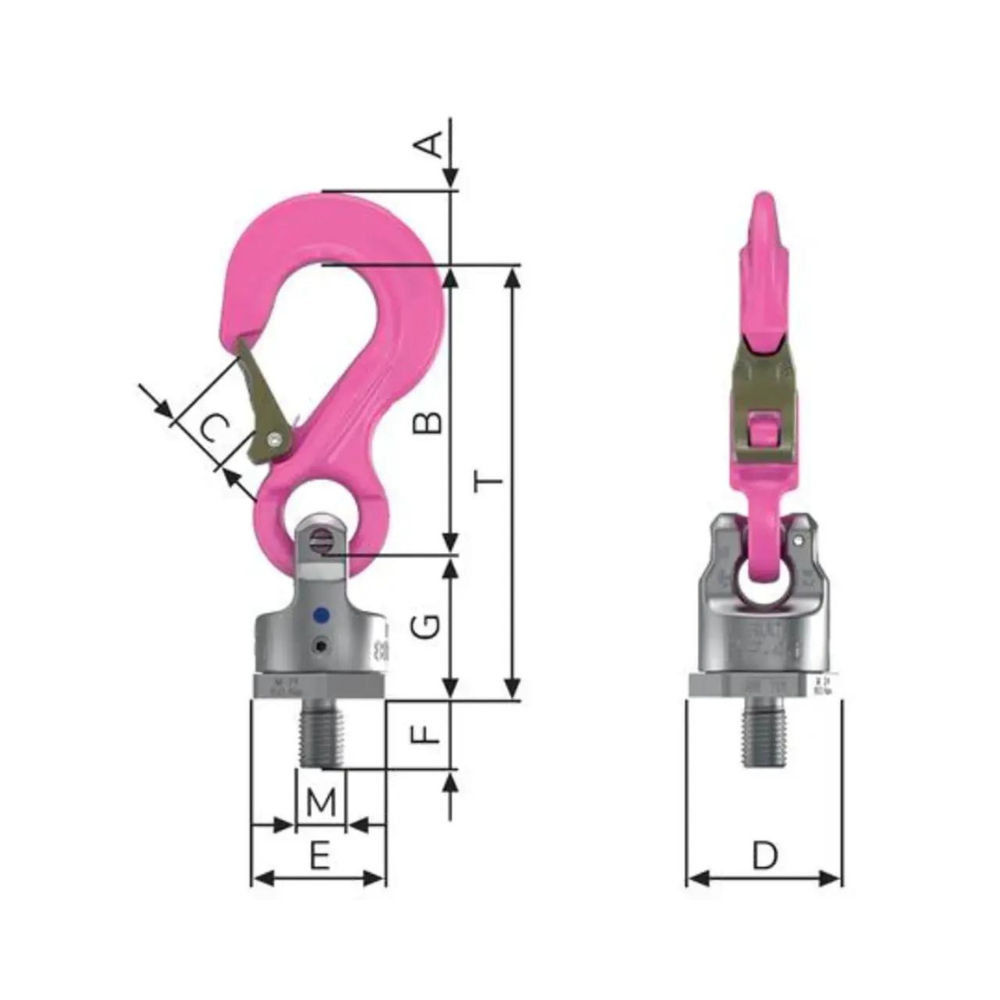

SKU

WLL

(tons)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

F Max

(mm)

F Min

(mm)

G

(mm)

M

Pitch T

(mm)

8600582

1.5

20

97

25

46

41

24

24

16

49

5/8"-11UNC

146

8600583

2.5

28

126

30

61

55

30

30

20

61

3/4"-10BSW

187

8600526

8

49

208

48

100

90

54

300

36

102

1 1/2"-6BSW

310
