Home / RUD SO-PP-VIP, UNC Inch Thread with Variable Length

RUD

RUD SO-PP-VIP, UNC Inch Thread with Variable Length

RUD SO-PP-VIP, UNC Inch Thread with Variable Length
RUD SO-PP-VIP, UNC Inch Thread with Variable Length

RUD SO-PP-VIP, UNC Inch Thread with Variable Length

$264.00

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 1320lbs - 17630lbs
  • UNC Inch Thread with Variable Length
  • Low Kink Possibility
  • Rotates 360°, pivots 230°
  • Comes with Locknut & Washer

Customers Also Bought

Description

Features & Specification

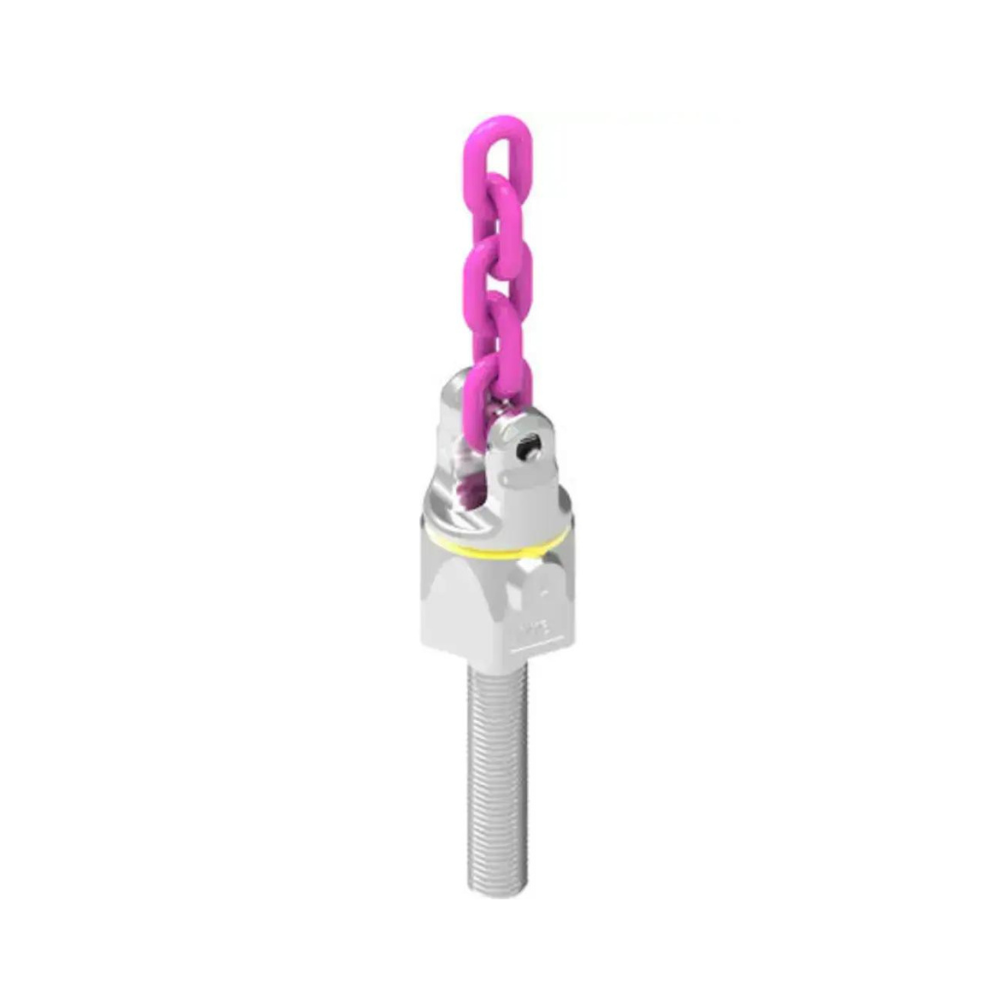

Easy to rotate and always facing the right direction, RUD's SO-PP-VIP Chain Connection, UNC Inch Thread with Variable Length, comes in working load limits from 1320lbs up to 17630lbs.

A universal design suitable for chains, hooks, and eyes, the double ball bearing offers smooth turning and rotating operations, rotating 360° and pivoting 230°.

A low kinking possibility is also achieved thanks to the cardan joint.

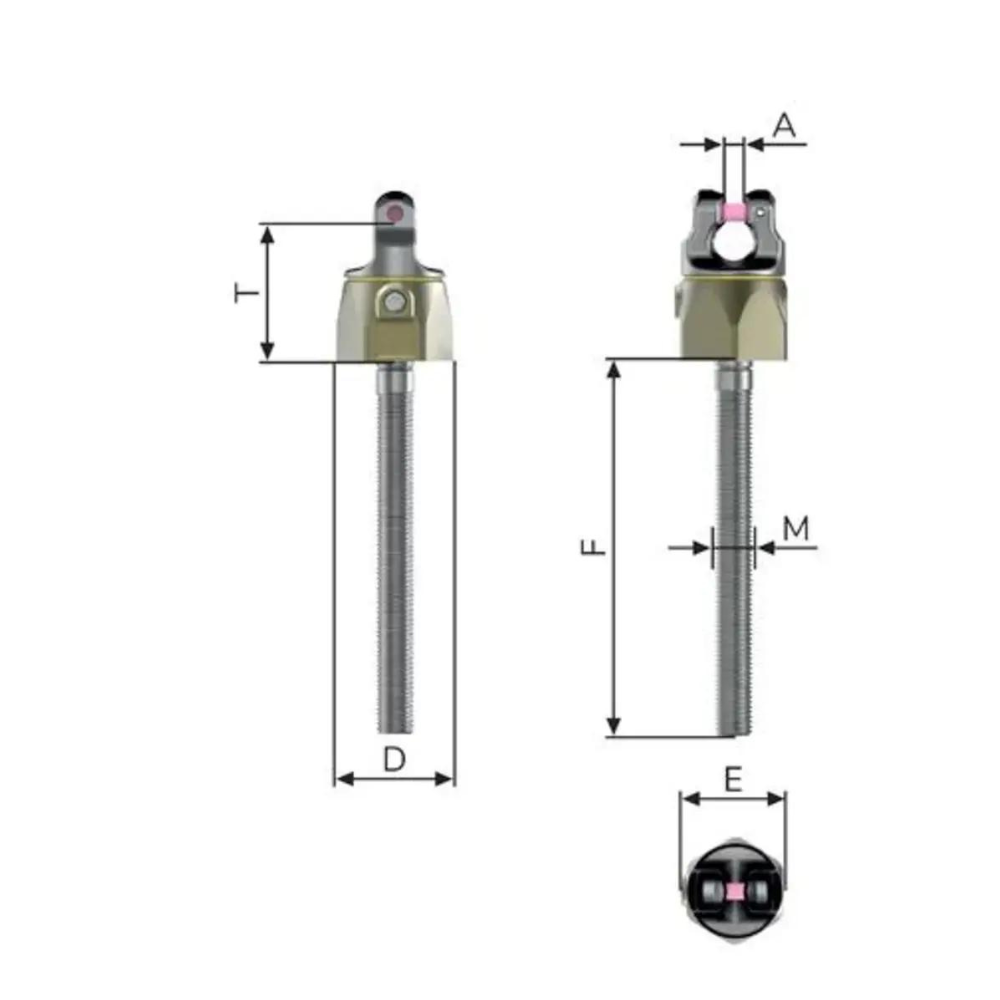

SKU

WLL

(lbs)

A

(mm)

D

(mm)

E

(mm)

F Max

(mm)

F Min

(mm)

M

T

(mm)

8600320

1320

4

42

36

149

40

1/2"-13UNC

47

8600321 5/8 F=7 3/32

2860

6

48

41

1180

50

5/8"-11UNC

58

8600322

4400

8

62

55

222

56

3/4"-10UNC

73

8600323

7700

10

81

70

74

25

1"-8UNC

94

8600324

11000

13

99

85

91

31

1 1/4"-7UNC

108

8600305 1-1/2-6UNC

17630

16

100

90

300

39

1 1/2"-6UNC

100

8600305 1 1/2-8 UNC

17630

16

100

90

300

39

1 1/2"-8UN

100
