Quick Overview:
  • Working Load Limit Range: 10t - 20t
  • Thread Size: M24
  • Patented Steel ICE-Bolt
  • Patented Wear Markings
  • Forged Safety Latch

Customers Also Bought

Description

Features & Specification

Known in the industry as the 'threaded hook for all lifting means,' RUD's VCGH-G Bolt On Excavator Hooks are available in 10t and 20t variations, both with M24 thread.

Suitable for use with wire rope slings and round slings, as well as a lifting point on cross bars and beams, these bolt on hooks feature a robust forged safety latch for improved safety.

Additionally, for total reliability, the ICE-Bolts are made from patented steel that's suitable for deep temperature usage, while the improved design is tough enough to produce high bending strengths and lower wear occurrence.

Finally, the patented wear markings make wear and teat of the VCGH-G range easy to identify, further improving user safety,

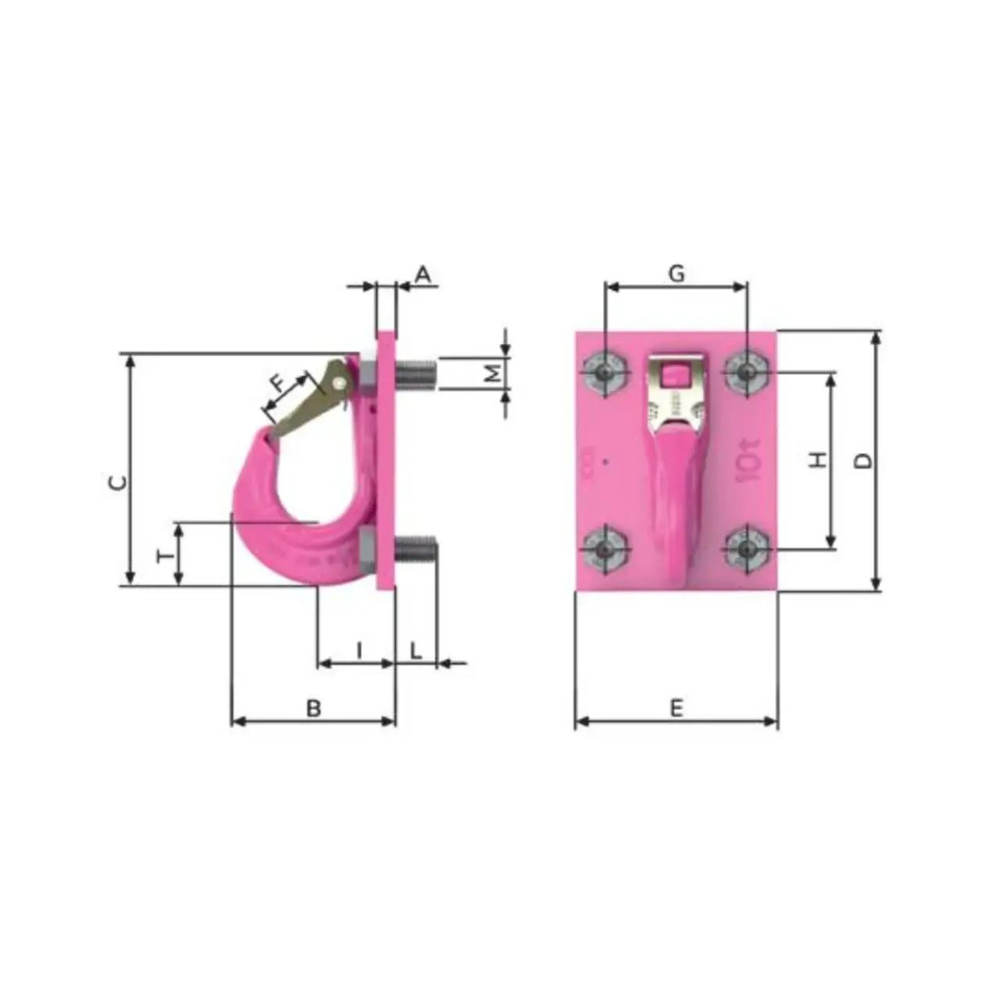

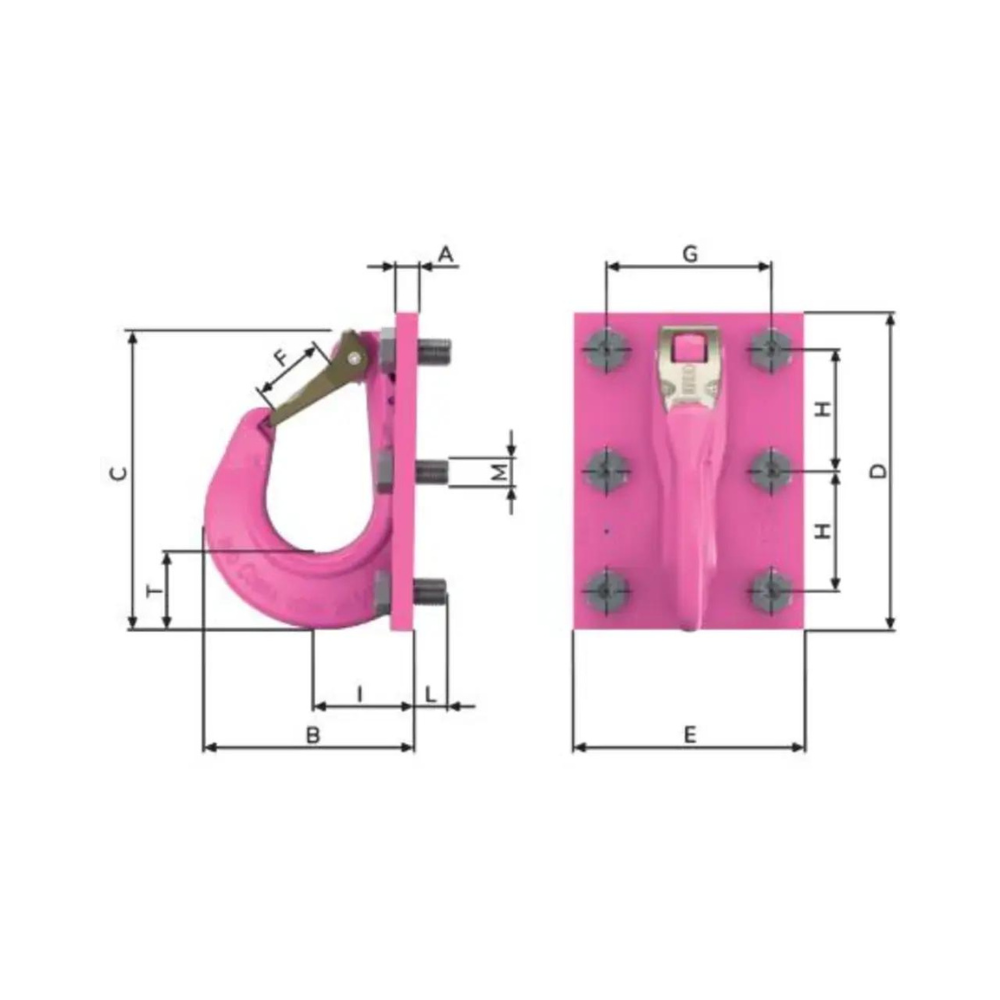

SKU

WLL

(lbs)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

I

(mm)

L

(mm)

M

Pitch T

(mm)

7984048

22040

15

141

200

220

170

48

120

150

70

35

M24

49

7984313

44090

20

196

276

292

240

63

150

110

92

30

M24

79
