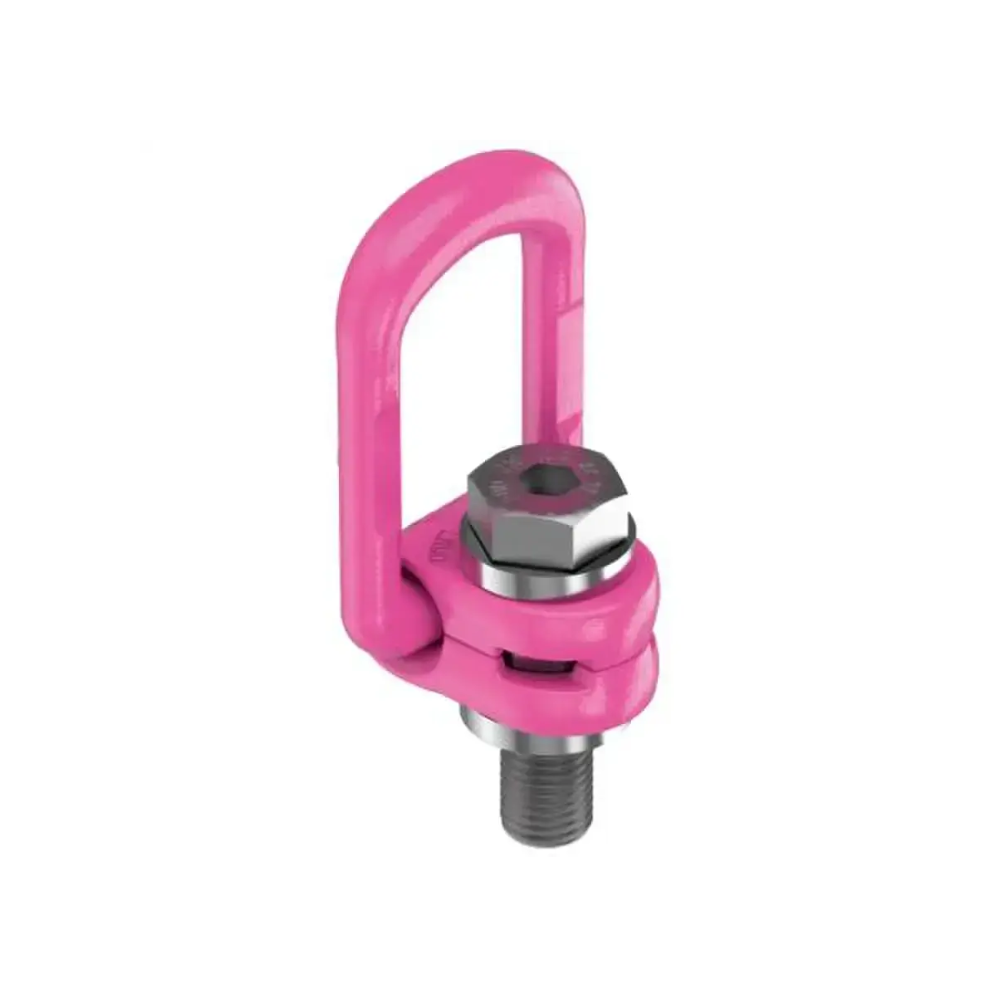

RUD VLBG Load Ring, Metric Thread

RUD VLBG Load Ring, Metric Thread
RUD VLBG Load Ring, Metric Thread

RUD VLBG Load Ring, Metric Thread

$412.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 1.2t - 4t
  • Corrud-DT corrosion protection
  • Captive but Exchangeable RUD-bolt

Customers Also Bought

Description

Features & Specification

A tried and tested load ring, RUD's VLBG Metric Thread offers full working load limit in all directions.

Available in 1.2t, 2t and 4t variations, this lifting point can swivel 360-degrees and pivot 180-degrees.

Featuring a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection, the clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.

Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.

NOTE: Please observe torque instructions when lifting point is permanently installed.



Downloads
  • RUD VLBG Load Ring Data Sheet

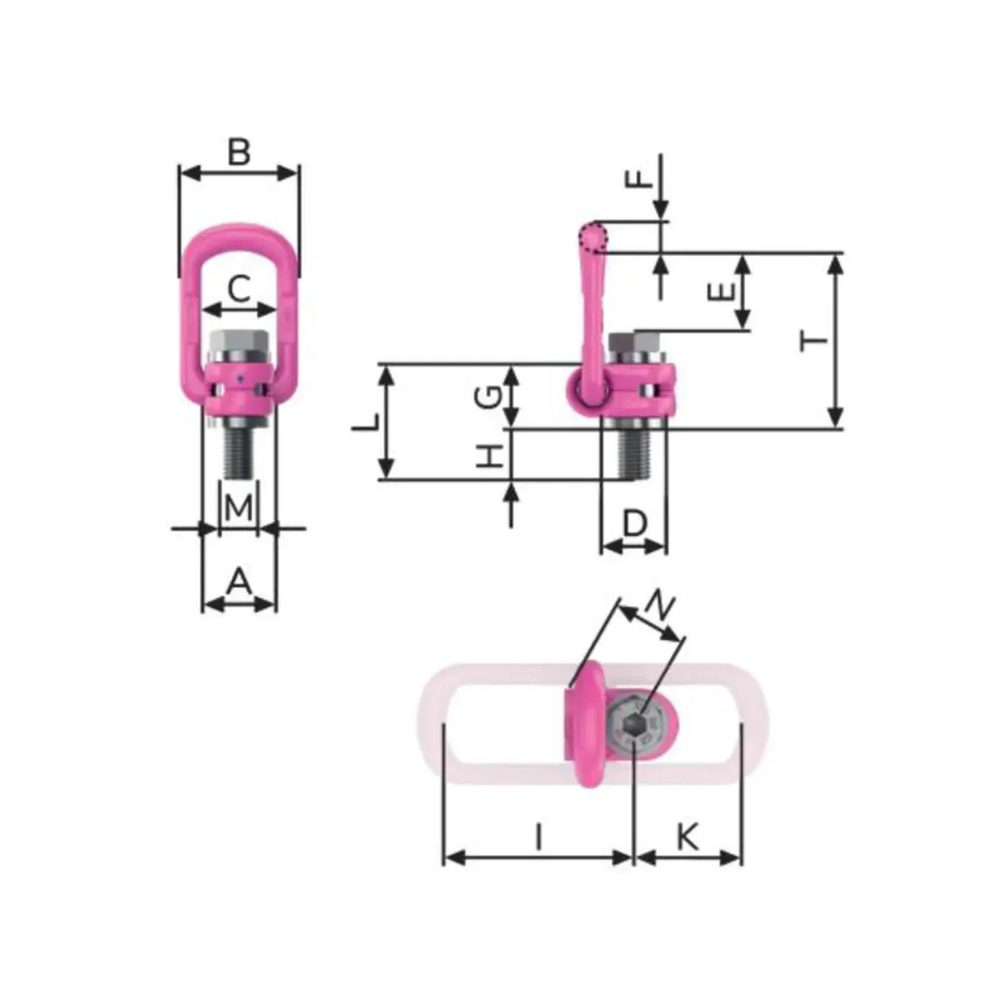

SKU

WLL

(tons)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

I

(mm)

K

(mm)

L

(mm)

M

N

(mm)

T

(mm)

8600399

1.2

33

56

36

30

39

13.5

36

21

86

47

57

M14

38

85

8600384

2

50

82

54

45

55

16.5

43

27

113

64

70

M18

48

110

7983658

4

60

103

65

60

69

22.5

61

39

151

80

100

M27

67

147
