Home / RUD VLBG-Plus Load Ring, Metric Thread with Max. Length

RUD

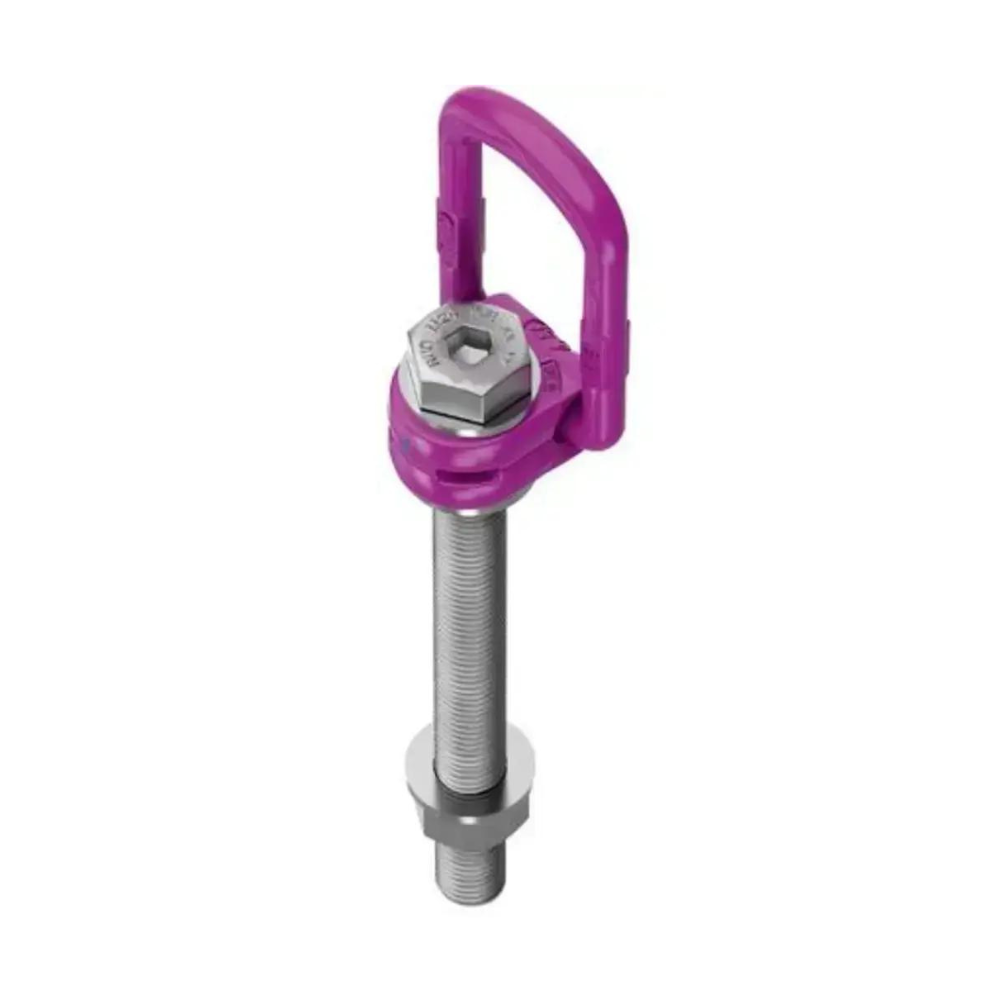

RUD VLBG-Plus Load Ring, Metric Thread with Max. Length

RUD VLBG-Plus Load Ring, Metric Thread with Max. Length
RUD VLBG-Plus Load Ring, Metric Thread with Max. Length

RUD VLBG-Plus Load Ring, Metric Thread with Max. Length

$236.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 0.63t - 20t
  • Thread Range: M8 - M48
  • Clear Minimum WLL Markings
  • Quick & Easy Installation
  • Tested & Certified by DGUV
  • Movement: Swivel 360°, Pivots 180°

Customers Also Bought

Description

Features & Specification

With a large working load limit range of 0.63t up to 20t (M8 - M48), RUD's VLBG-Plus Load Ring, Metric Thread, with Max Length is one of the most tried and tested lifting rings on the market, capable of achieving full WLL in all directions.

These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.

Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.

NOTE: Please observe torque instructions when lifting point is permanently installed.

DISCLAIMER: Some sizes may require longer lead times



Downloads
  • RUD VLBG-Plus Load Ring Data Sheet

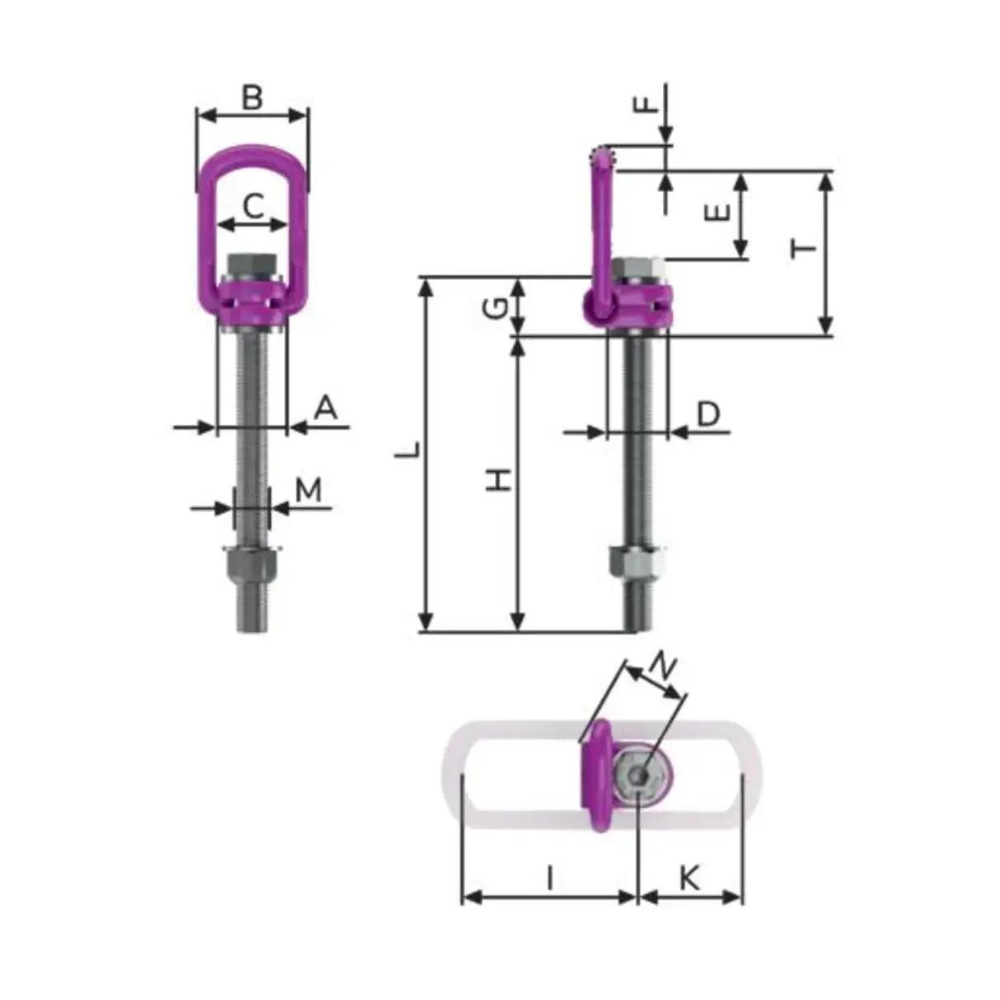

SKU

WLL

(t)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H Max

(mm)

H Min

(mm)

I

(mm)

K

(mm)

L Max

(mm)

L Min

(mm)

M

N

(mm)

T

(mm)

8600470

0.63

30

54

34

24

40

10

29

76

8

75

45

105

37

M8

32

75

8600471

0.9

30

54

34

24

39

10

29

96

10

75

45

125

39

M10

32

75

8600474

2

33

56

36

30

39

13.5

36

149

16

86

47

185

50

M16

38

85

8600476

3.5

50

82

54

45

55

16.5

43

187

20

113

64

230

65

M20

48

110

8600478

4.5

50

82

54

45

67

18

43

222

24

130

78

265

69

M24

48

125

8600480

6.7

60

103

65

60

67

22.5

61

279

30

151

80

340

90

M30

67

147

8600480

6.7

60

103

65

60

67

22.5

61

339

280

151

80

400

341

M30

67

147

8600289

8

77

122

82

70

97

26.5

77

223

36

205

110

300

113

M36

87

197

8600290

10

77

122

82

70

94

26.5

77

273

42

205

110

350

119

M42

70

197

8600291

15

95

156

100

85

109

36

87

263

42

230

130

350

129

M42

100

222

8600291

15

95

156

100

85

109

36

87

413

264

230

130

500

351

M42

100

222

8600292

20

95

156

100

95

105

36

87

213

48

230

130

300

135

M48

100

222

8600292

20

95

156

100

95

105

36

87

303

48

230

130

390

135

M48

100

222
