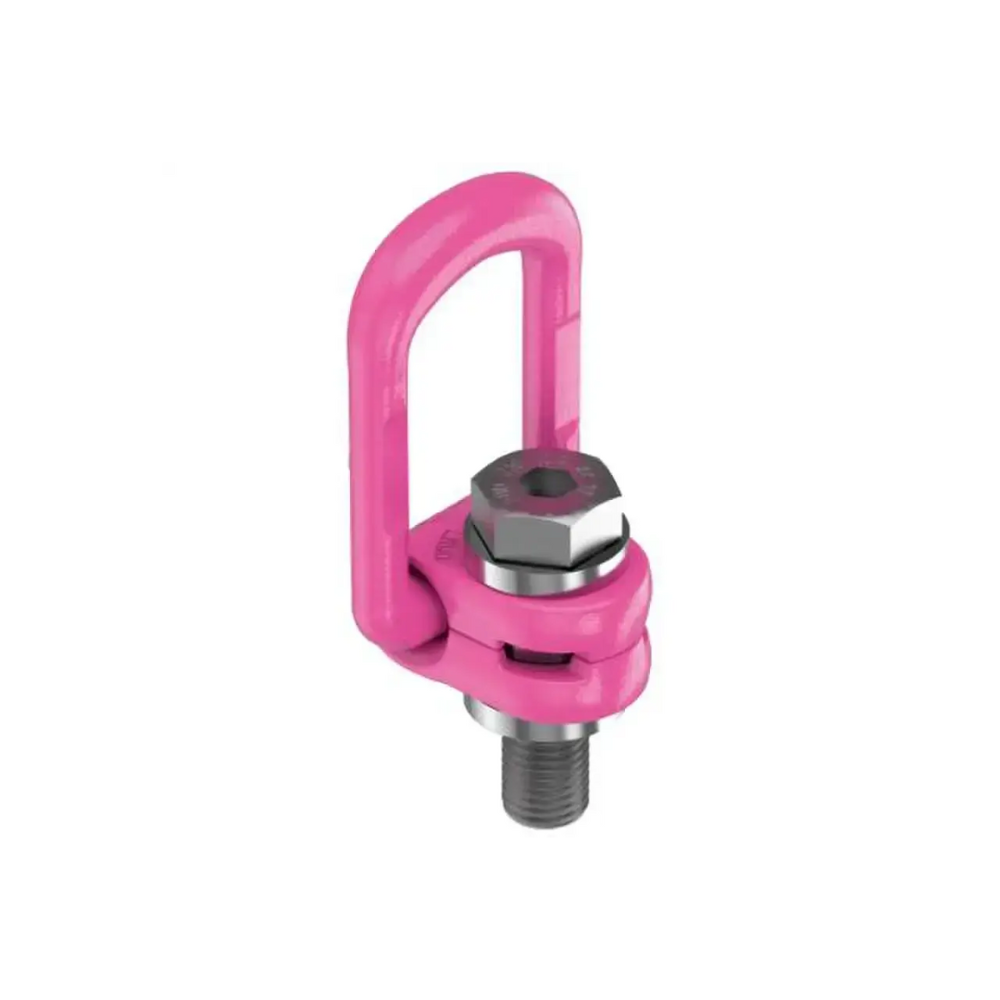

RUD VLBG Ring Bolt, Metric Fine-Thread with Variable Length

RUD VLBG Ring Bolt, Metric Fine-Thread with Variable Length
RUD VLBG Ring Bolt, Metric Fine-Thread with Variable Length

RUD VLBG Ring Bolt, Metric Fine-Thread with Variable Length

$264.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 2200lbs - 8820lbs
  • Metric Fine Thread with Variable Length
  • Thread Options: M12 / M16 / M24
  • Captive but Exchangeable RUD Bolt
  • Corrud-DT Corrosion Protection

Customers Also Bought

Description

Features & Specification

A time tried and tested lifting solution, RUD's VLBG Ring Bolt (Fine Metric Thread with Max Length) is available in working load limits of 2200lbs - 8820ls, with full WLL achievable in all directions.

Featuring a captive but exchangeable RUD-Bolt with special Corrud-DT corrosion protection, this lifting bolt swivels 360-degrees and pivots 180-degrees.

Additionally, the clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.

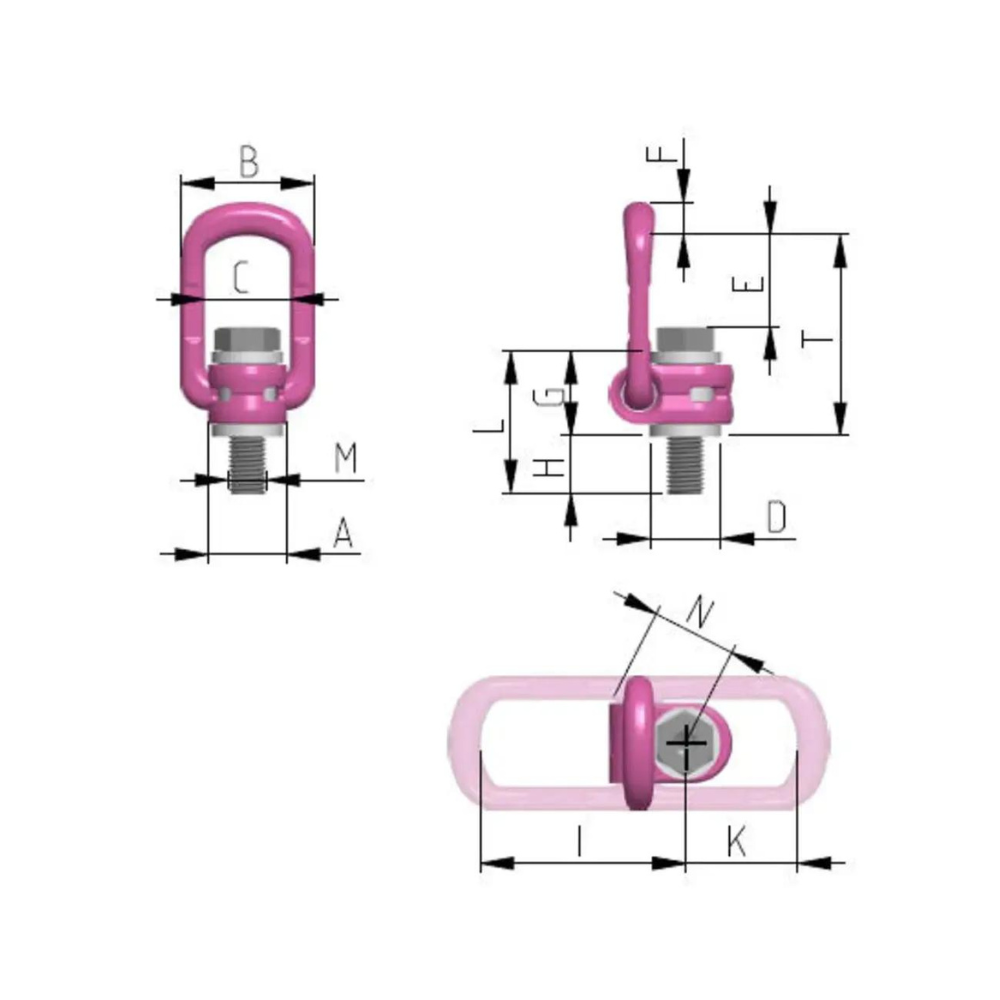

SKU

WLL

(tons)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H Max

(mm)

H Min

(mm)

I

(mm)

K

(mm)

L Max

(mm)

L Min

(mm)

M

N

(mm)

T

(mm)

8600382

2200

32

54

34

26

38

10

29

31

12

75

45

60

41

M12x1,5

32

75

8600383

3300

33

56

36

30

39

13.5

36

39

16

86

47

75

52

M16x1,5

38

85

8600386

8820

50

82

54

45

67

18

43

62

24

130

78

105

67

M24x1,5

48

125
