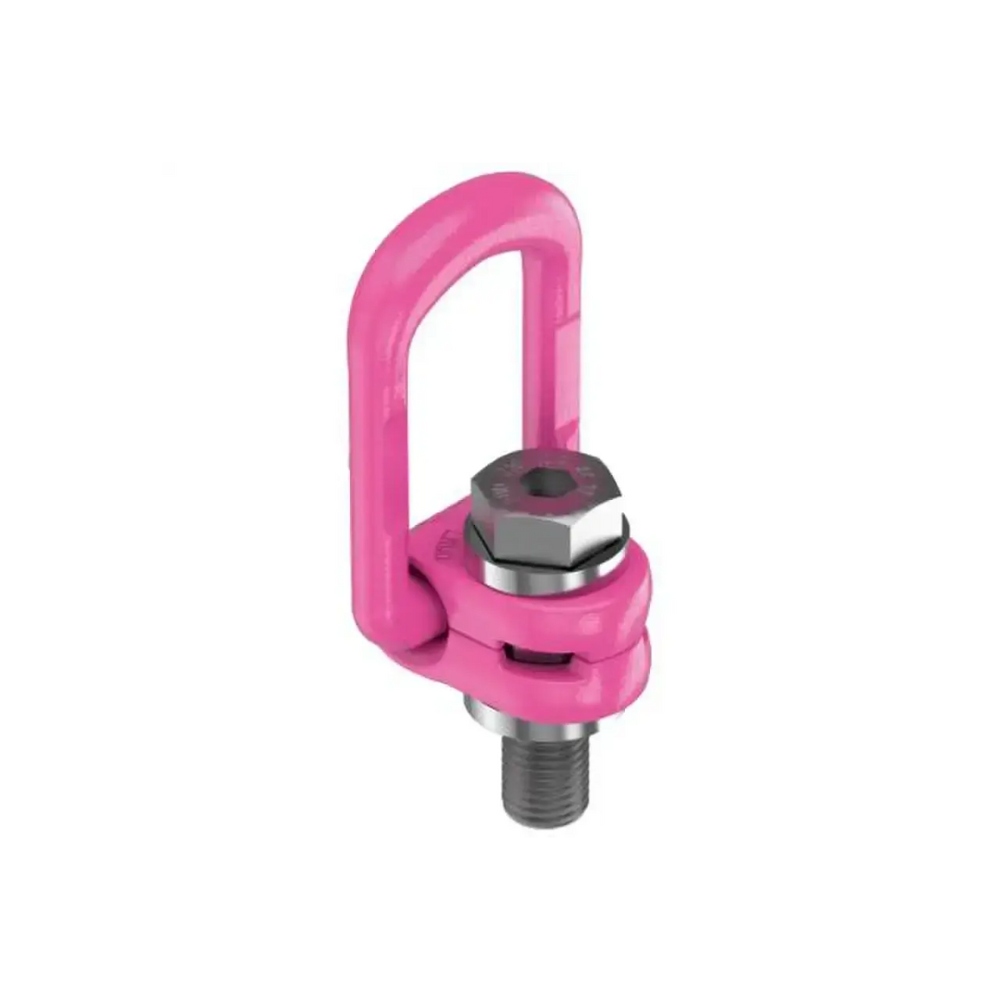

RUD VLBG-Z Load Ring, UNC/UN Thread

RUD VLBG-Z Load Ring, UNC/UN Thread
RUD VLBG-Z Load Ring, UNC/UN Thread

RUD VLBG-Z Load Ring, UNC/UN Thread

$202.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 0.63t - 20t
  • UNC/UN Thread
  • Captive but exchangable RUD-Bolt
  • Bracket adjustable in force direction
  • Clear Minimum WLL Markings
  • Quick & Easy Installation
  • Tested & Certified by DGUV
  • Movement: Swivel 360°, Pivots 180°

Customers Also Bought

Description

Features & Specification

With a large working load limit range of 0.63t up to 20t , RUD's VLBG-Z Load Ring, UNC/UN Thread, is a true tried and tested lifting ring, capable of achieving full WLL in all directions and coming in a comprehensive range of thread sizes.

These lifting points swivel a complete 360-degrees, with the suspension ring pivoting 180-degrees, the VLBG-Plus Load Ring features a captive but exchangeable ICE-Bolt made from patented steel with specialist Corrud-DT corrosion protection. The clamping spring of the VLBG Load Ring operates as a noise reduction and holds the suspension ring in the requested position.

Quick and easy to install with just one bolt connection, hand tightening with an appropriate wrench is sufficient for a singular lift.

NOTE: Please observe torque instructions when lifting point is permanently installed.

Downloads
  • RUD VLBG-Plus Load Ring Data Sheet

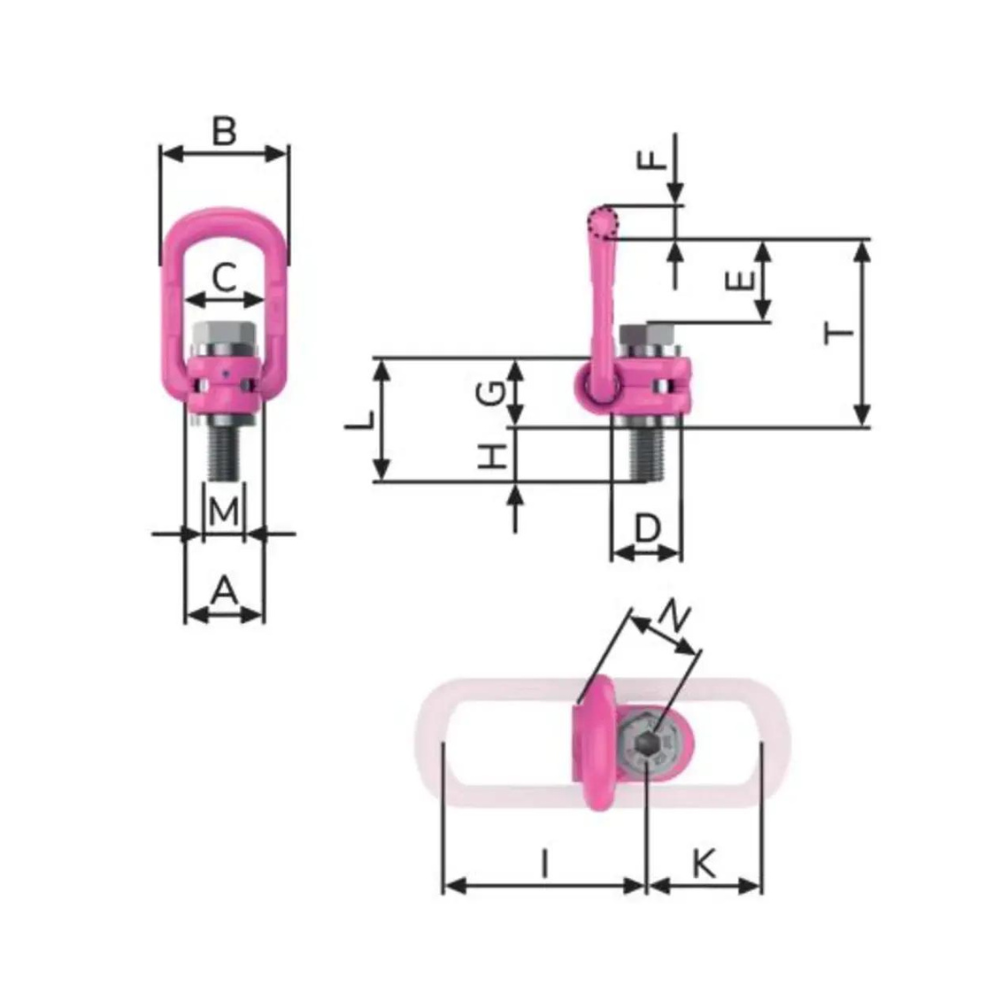

SKU

WLL

(lbs)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

I

(mm)

K

(mm)

L

(mm)

M

N

(mm)

T

(mm)

8504256

1110

30

54

34

24

39

10

29

16

75

45

45

3/8"-16UNC

32

75

8502349

1760

32

54

34

26

38

10

29

22

75

45

50

1/2"-13UNC

32

75

8502350

2640

33

56

36

30

39

13.5

36

24

86

47

60

5/8"-11UNC

38

85

8502351

4400

50

82

54

45

55

16.5

43

28

113

64

71

3/4"-10UNC

48

110

8502352

7040

50

82

54

45

55

16.5

43

27

113

64

70

7/8"-9UNC

48

110

8502353

8810

50

82

54

45

67

18

43

41

130

78

84

1"-8UNC

48

125

8502354

11000

60

103

65

60

64

22.5

61

41

151

80

102

1 1/4"-8UN

67

147

8503187

14080

60

103

65

60

64

22.5

61

41

151

80

102

1 1/4"-7UNC

67

147

8504257

17630

77

122

82

70

97

26.5

77

62

205

110

140

1 1/2"-6UNC

87

197

8504258

44090

95

156

100

95

105

36

87

69

230

130

156

2"-4 1/2 UNC

100

222
