Home / RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting

RUD

RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting

RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting
RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting
RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting
RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting
RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting
RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting
RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting

RUD VRBG 31.5 and 50 Load Ring on Plate for Bolting

$6,097.00

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 31.5t -50t
  • Split force introduction thanks to multiple point fixing
  • Bracket can be pivoted through 180°
  • WLL possible up to 90° in load ring plane
  • Clear indication of the minimum WLL for all loading directions

Customers Also Bought

Description

Features & Specification

RUD VRBG Load Ring for Bolting can handle loads of between 31.5t and 50t, depending on the variation selected.

Split force has been introduced courtesy of the multiple point fixing, with working load limits possible up to 90-degrees in load ring plane. Additionally, the bracket can be pivoted through 180-degrees.

Each unit features clear indications of minimum working load limit for all loading directions for easy reference.

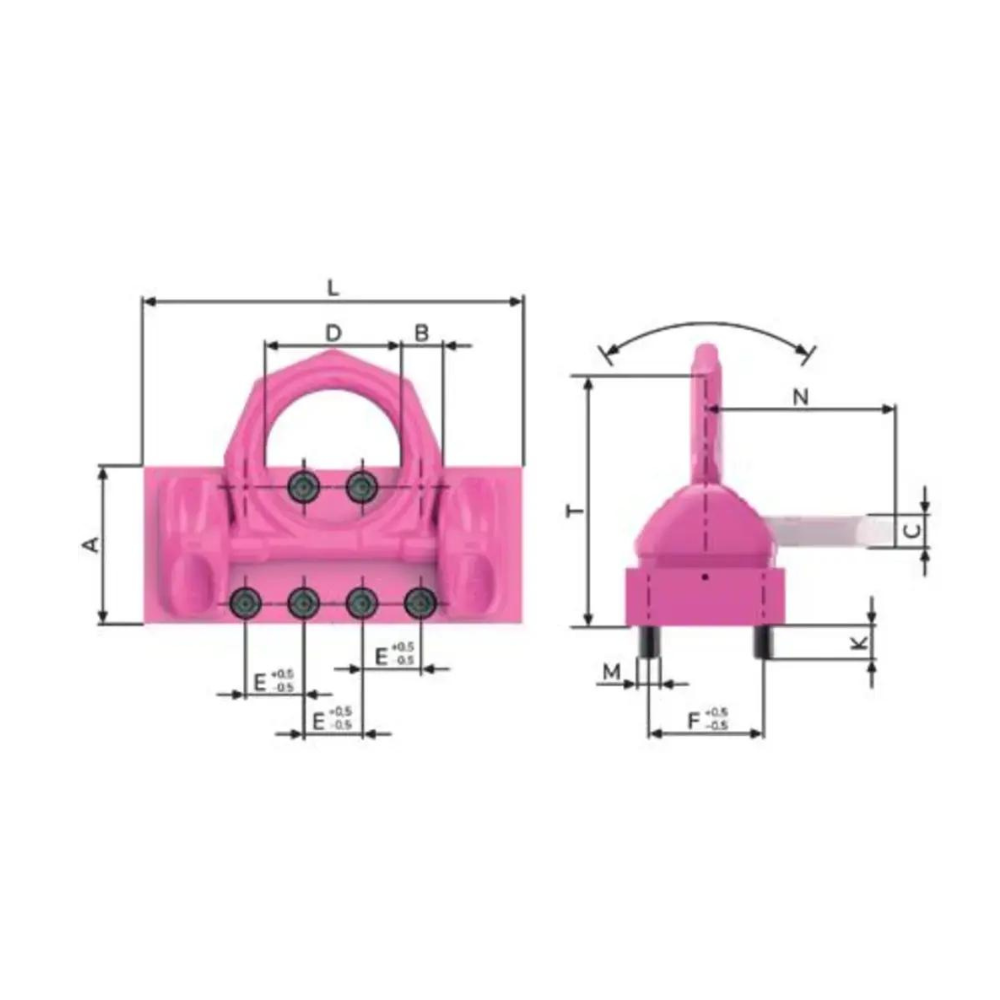

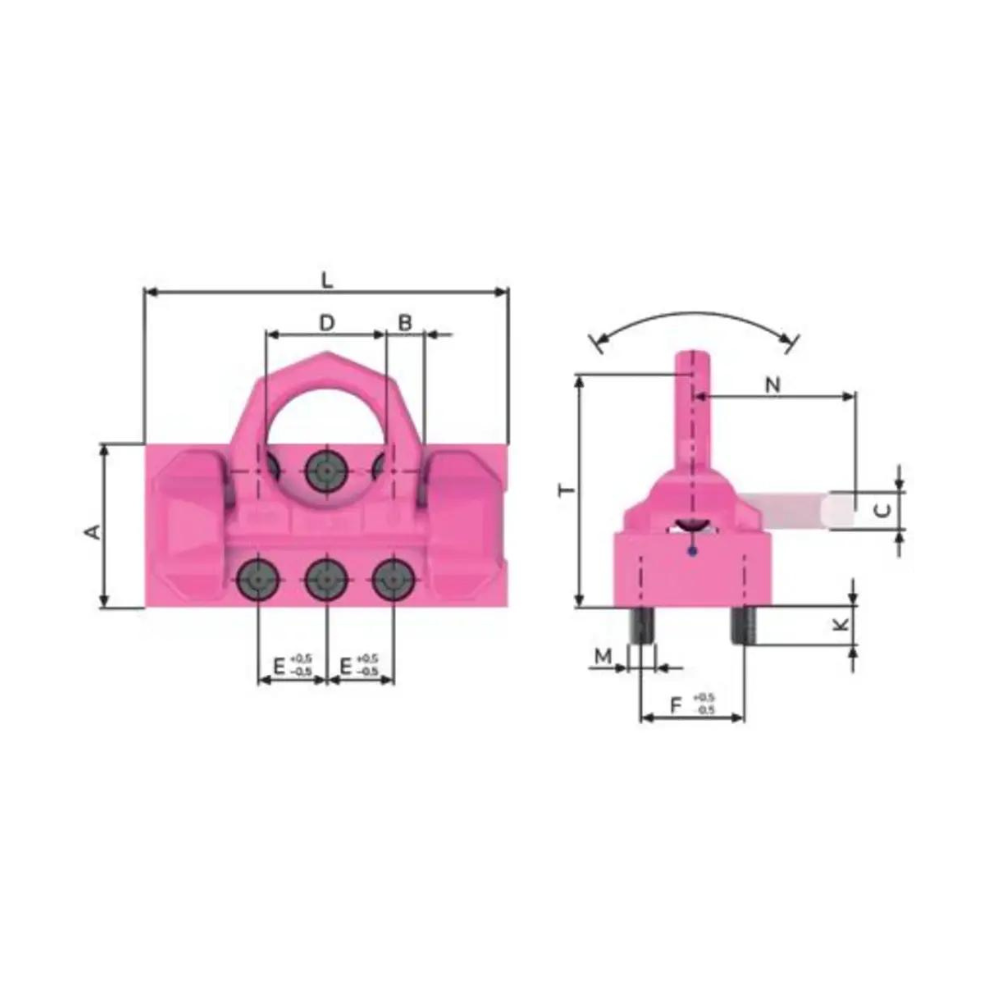

SKU

WLL

(lbs)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

K

(mm)

L

(mm)

M

N

(mm)

T

(mm)

7910387

69440

180

42

42

130

75

120

46

400

M30

195

265

7910591

69440

180

42

42

130

75

120

46

400

M30

195

288

7909951

110230

270

70

55

230

100

200

60

650

M36

335

430
