Home / RUD VRBS Load Ring for Welding

RUD

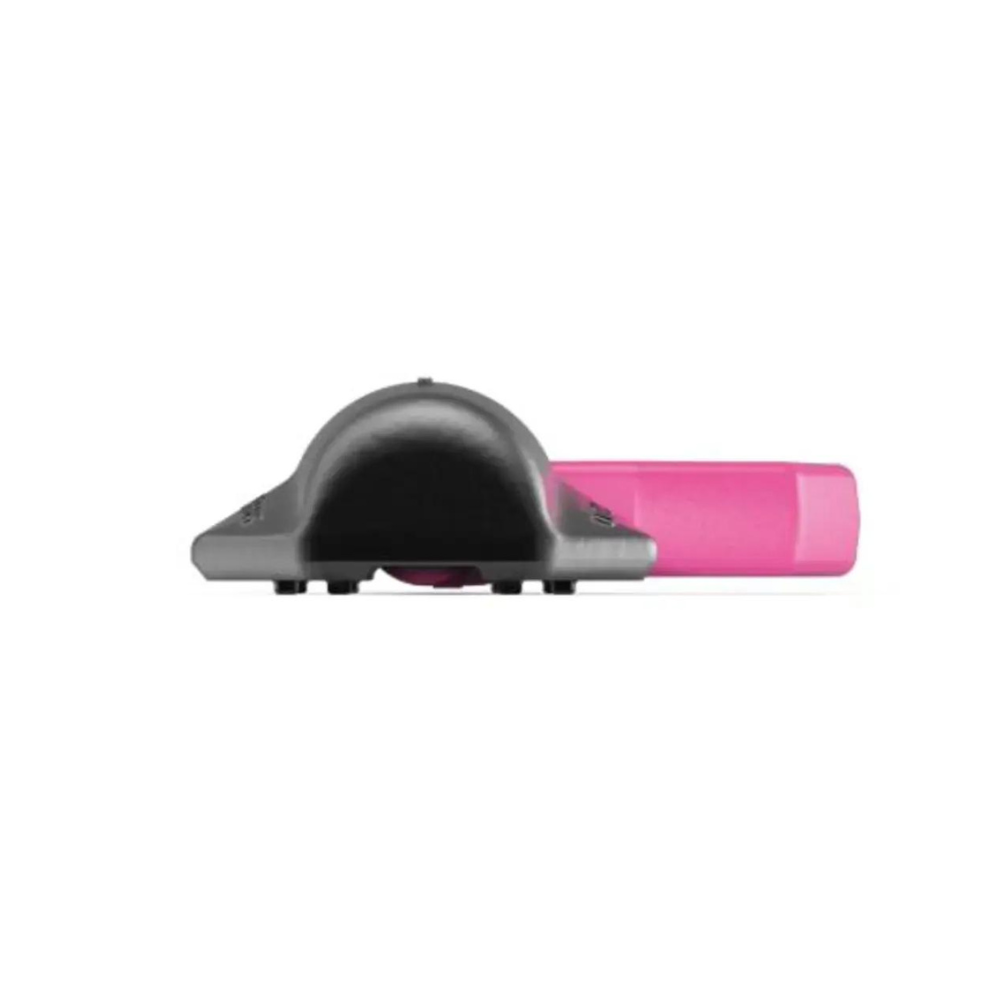

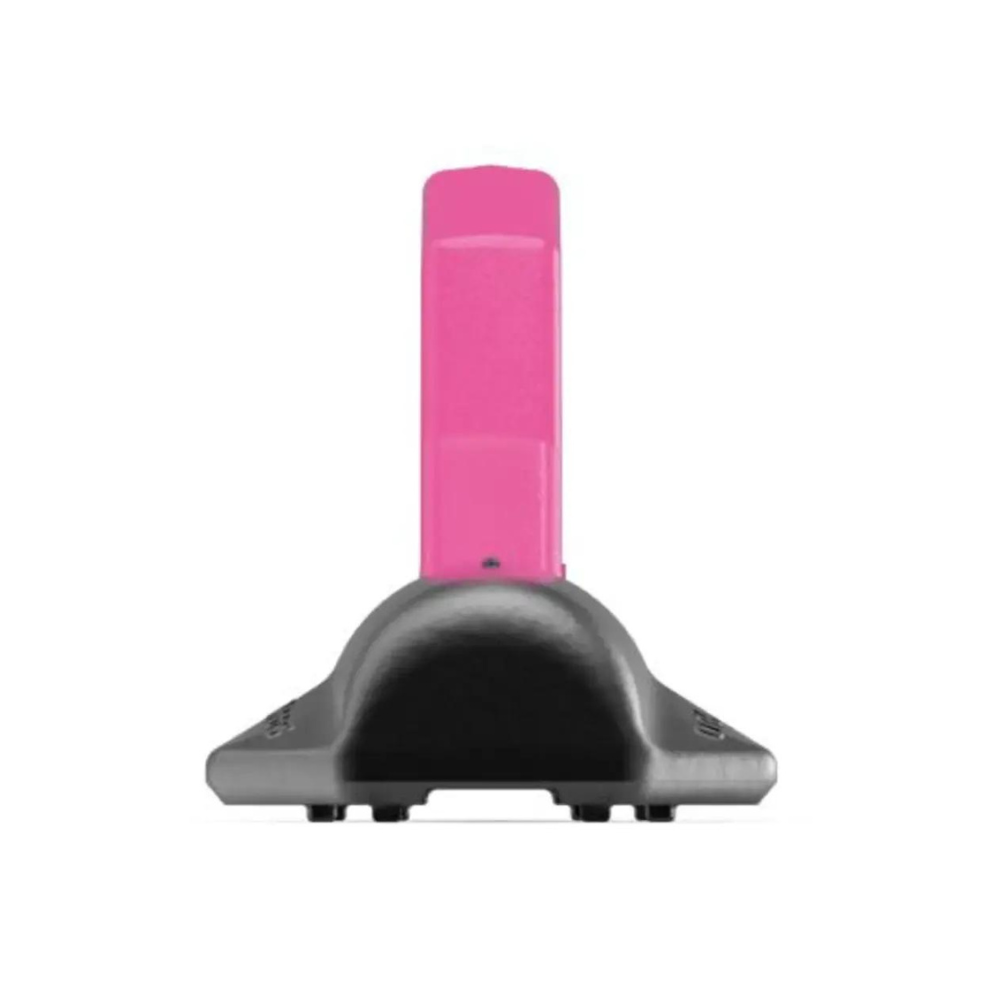

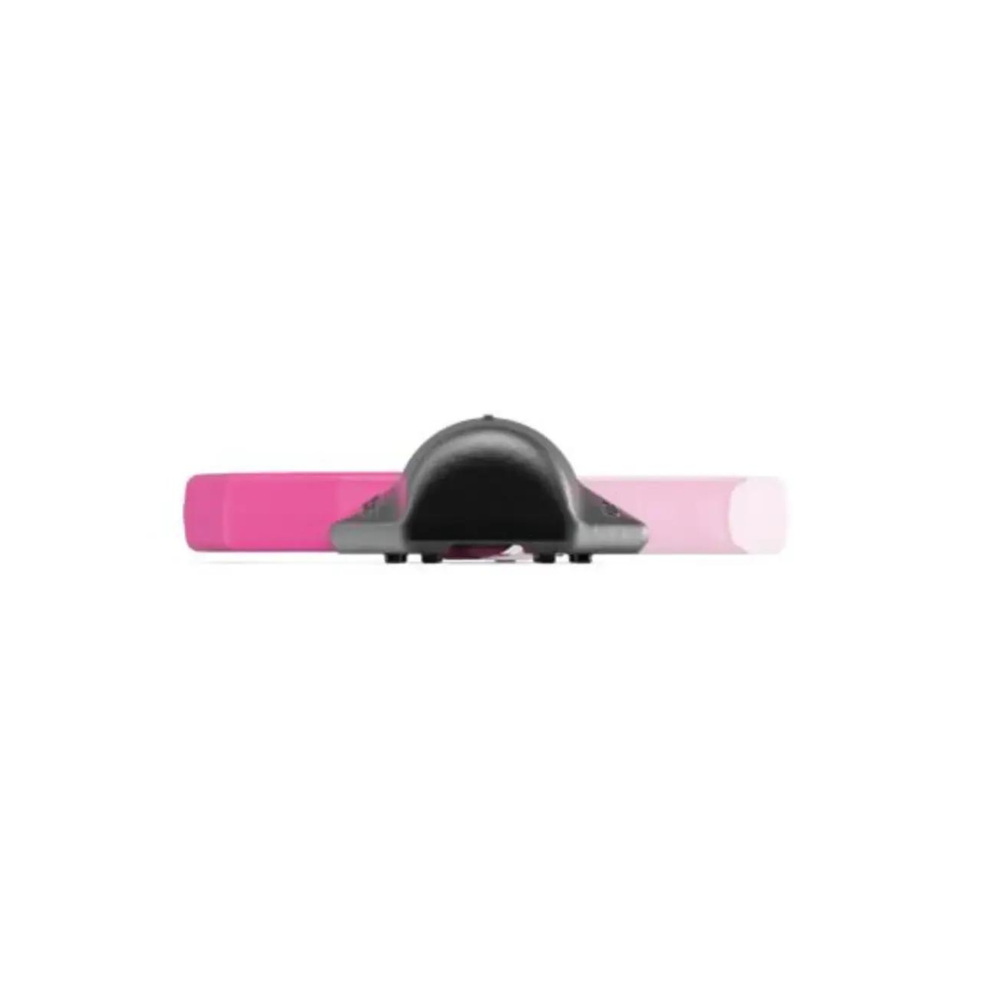

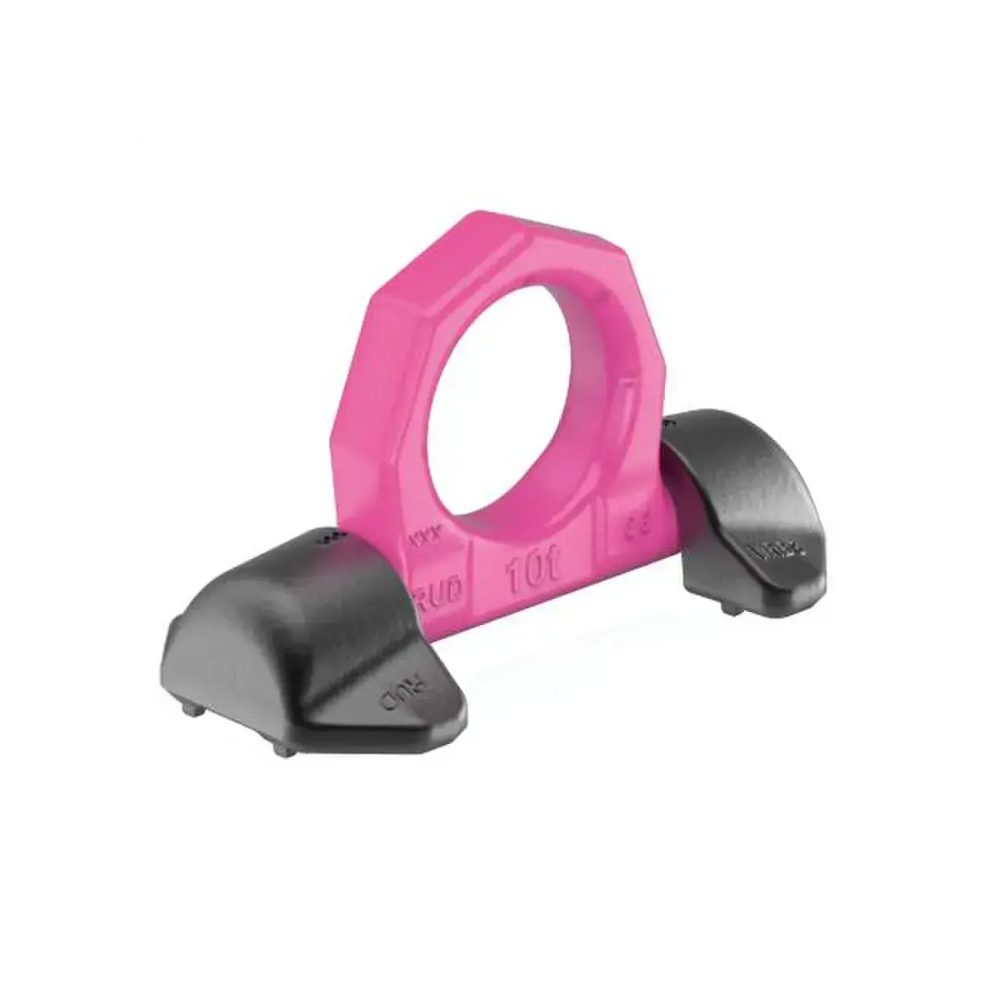

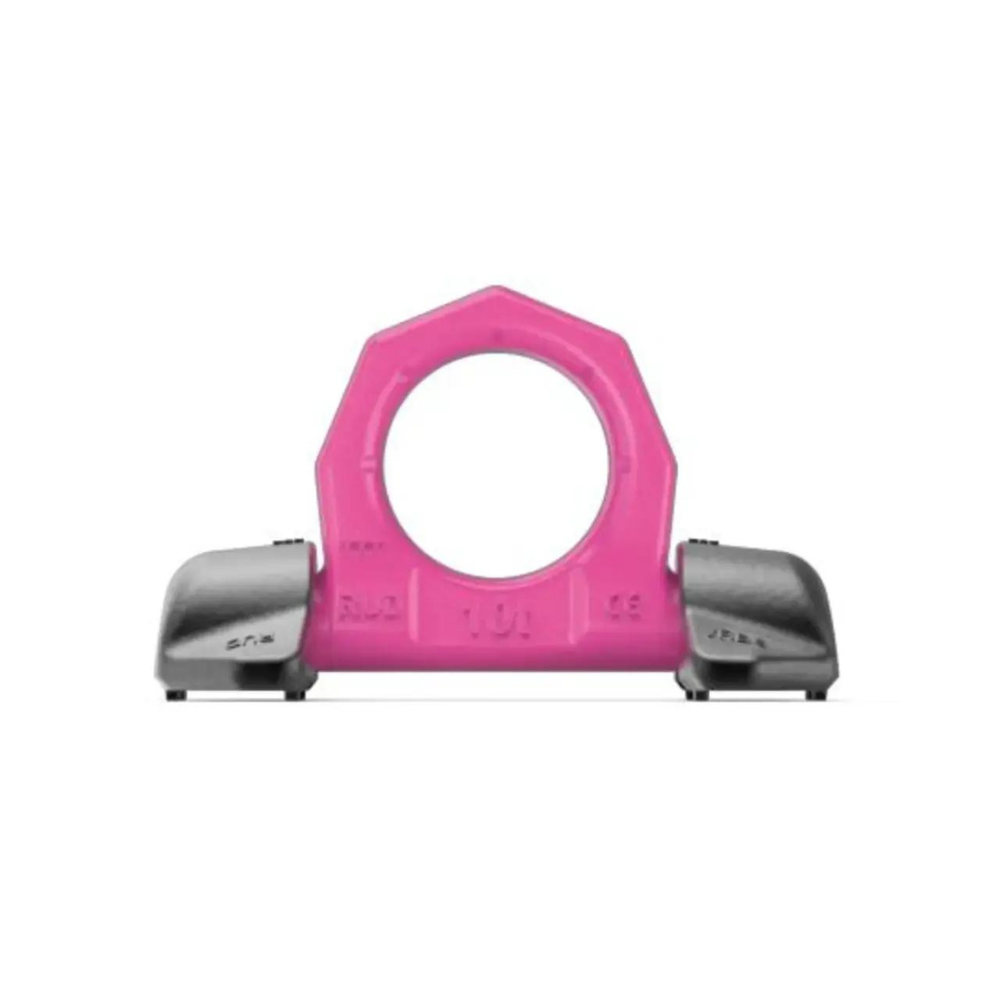

RUD VRBS Load Ring for Welding

RUD VRBS Load Ring for Welding
RUD VRBS Load Ring for Welding
RUD VRBS Load Ring for Welding
RUD VRBS Load Ring for Welding
RUD VRBS Load Ring for Welding
RUD VRBS Load Ring for Welding

RUD VRBS Load Ring for Welding

$80.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL range 4 t – 31.5 t
  • Clear indication of the minimum WLL for all loading directions
  • Wear markings for easy determination of wear
  • Distance knobs on the weld-on block for the necessary distance for root welding
  • The weld-on block is forged from a material that is easy to weld

Customers Also Bought

Description

Features & Specification

Available in working load limits from 4t up to 31.5t, RUD's VRBS Load Ring is suitable for welding applications.

Strong and super durable, these welding blocks are forged from materials that are easy to weld, with the distance knobs engineered for the necessary distance suitable for root welding.

Stamped with clear indications of minimum working load limit for all directions, these eye plate weldable lifting points also features wear markings for easy identification of general wear and usage - improving safety.

NOTE: Welding should always be performed by a fully trained employee.



Downloads
  • RUD VRBS Data Sheet

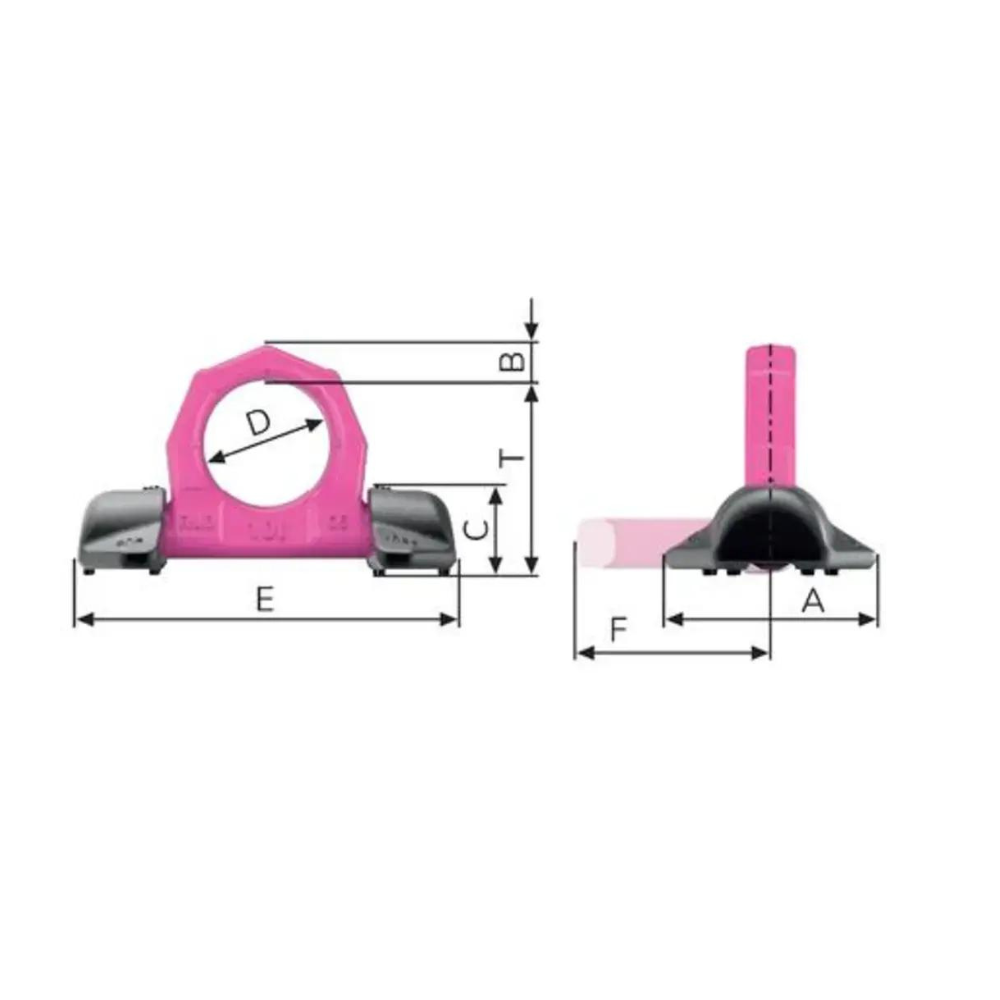

SKU

WLL

(tons)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

Pitch T

(mm)

7992488

4

62

14

28

48

135

71

65

7992489

6.7

88

20

39

60

170

92

84

7992490

10

100

22

46

65

195

100

95

7992491

16

130

30

57

90

263

134

127

60267

31.5

160

42

78

130

373

195

178
