Home / RUD VWBG Load Ring, Metric Thread with Variable Length

RUD

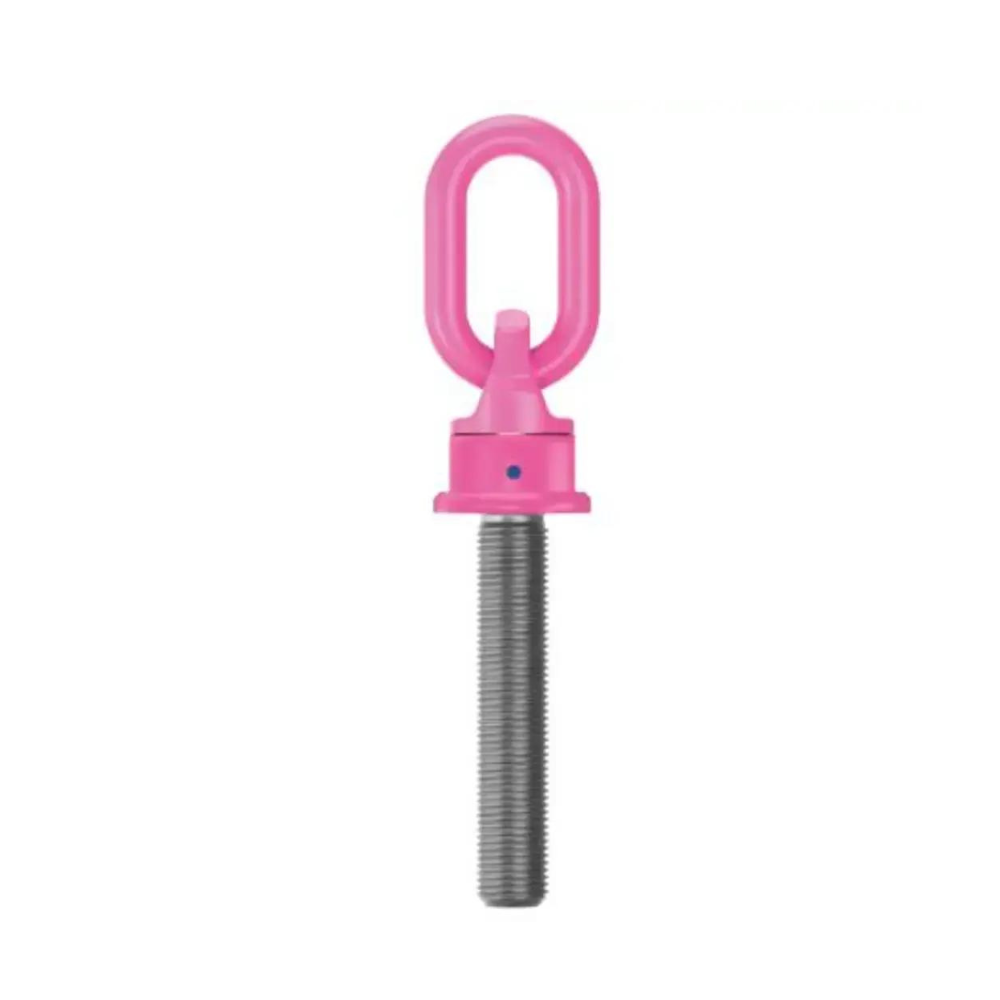

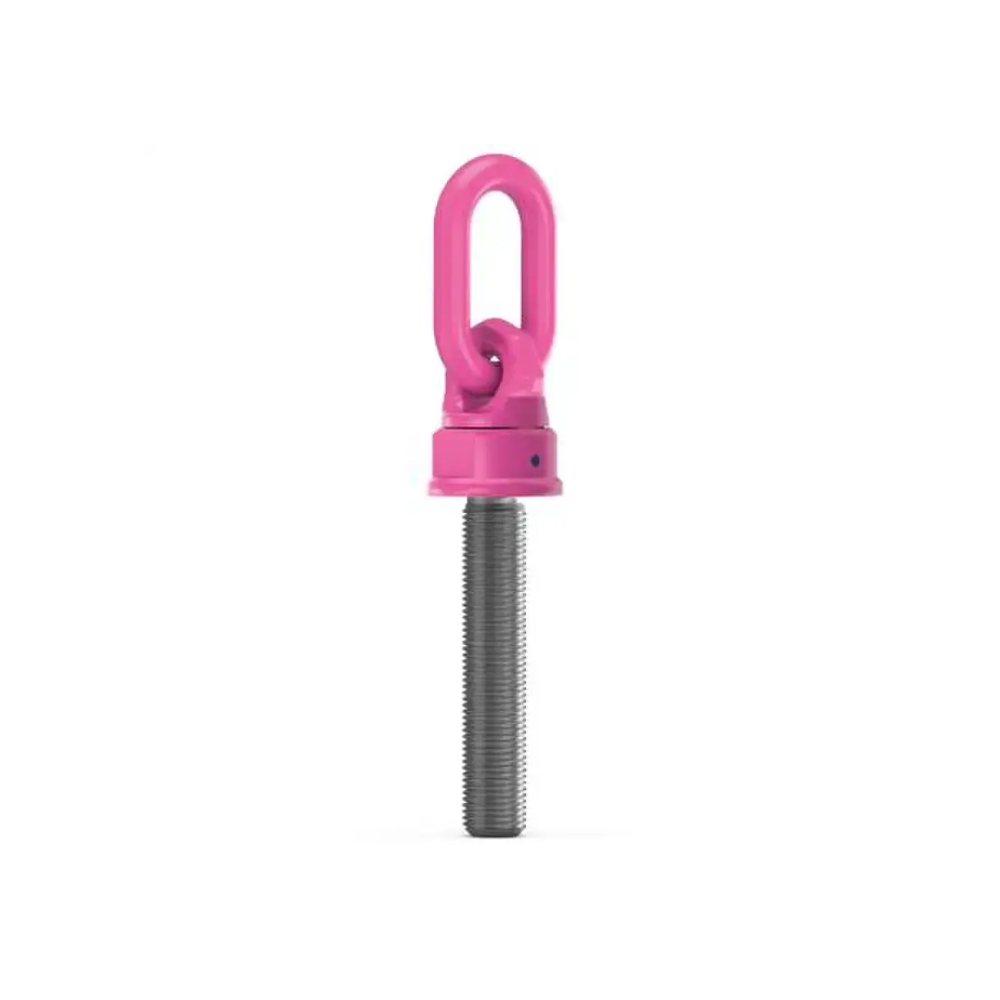

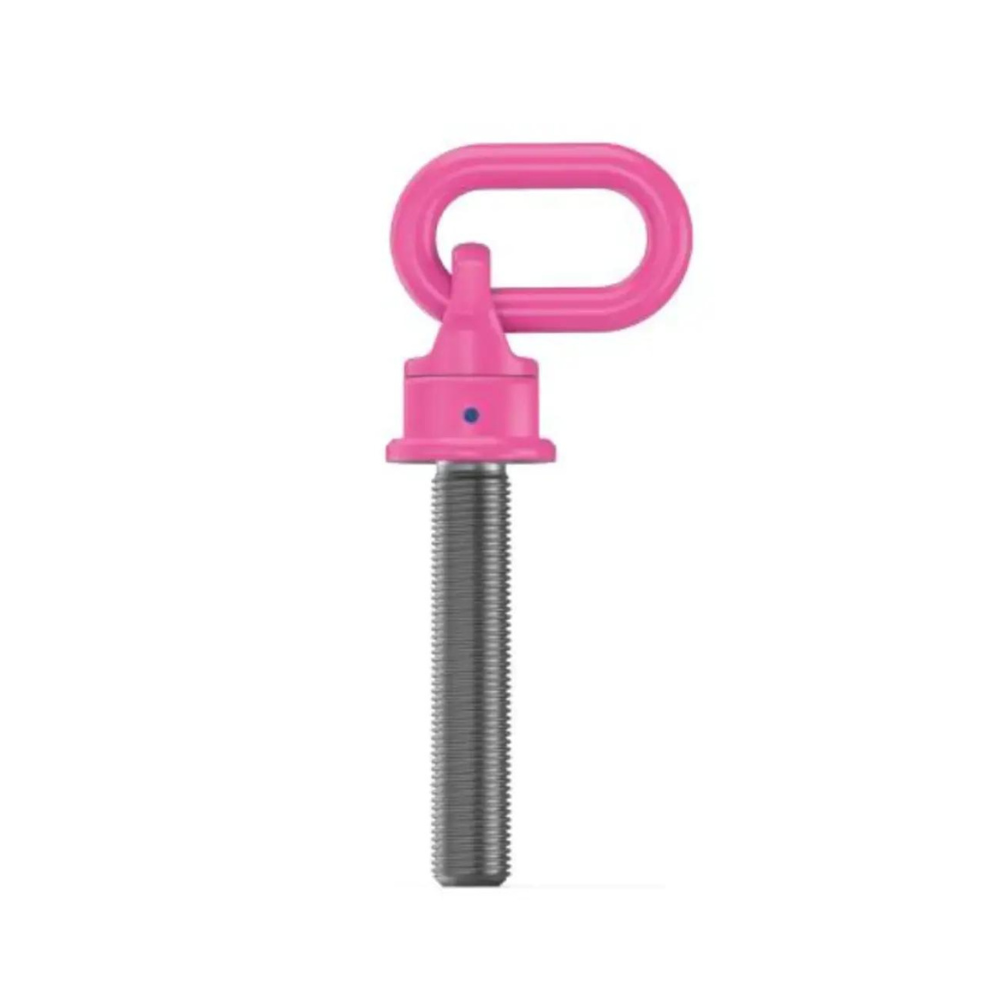

RUD VWBG Load Ring, Metric Thread with Variable Length

RUD VWBG Load Ring, Metric Thread with Variable Length
RUD VWBG Load Ring, Metric Thread with Variable Length
RUD VWBG Load Ring, Metric Thread with Variable Length
RUD VWBG Load Ring, Metric Thread with Variable Length
RUD VWBG Load Ring, Metric Thread with Variable Length
RUD VWBG Load Ring, Metric Thread with Variable Length
RUD VWBG Load Ring, Metric Thread with Variable Length

RUD VWBG Load Ring, Metric Thread with Variable Length

$1,726.00

Contact Sales for Current Lead Times

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 6t – 40t
  • Metric Thread
  • Variable Length
  • Thread Options: M33 - M90
  • Clear indication of the minimum WLL for all loading directions
  • Higher WLL by optimised attachment or application

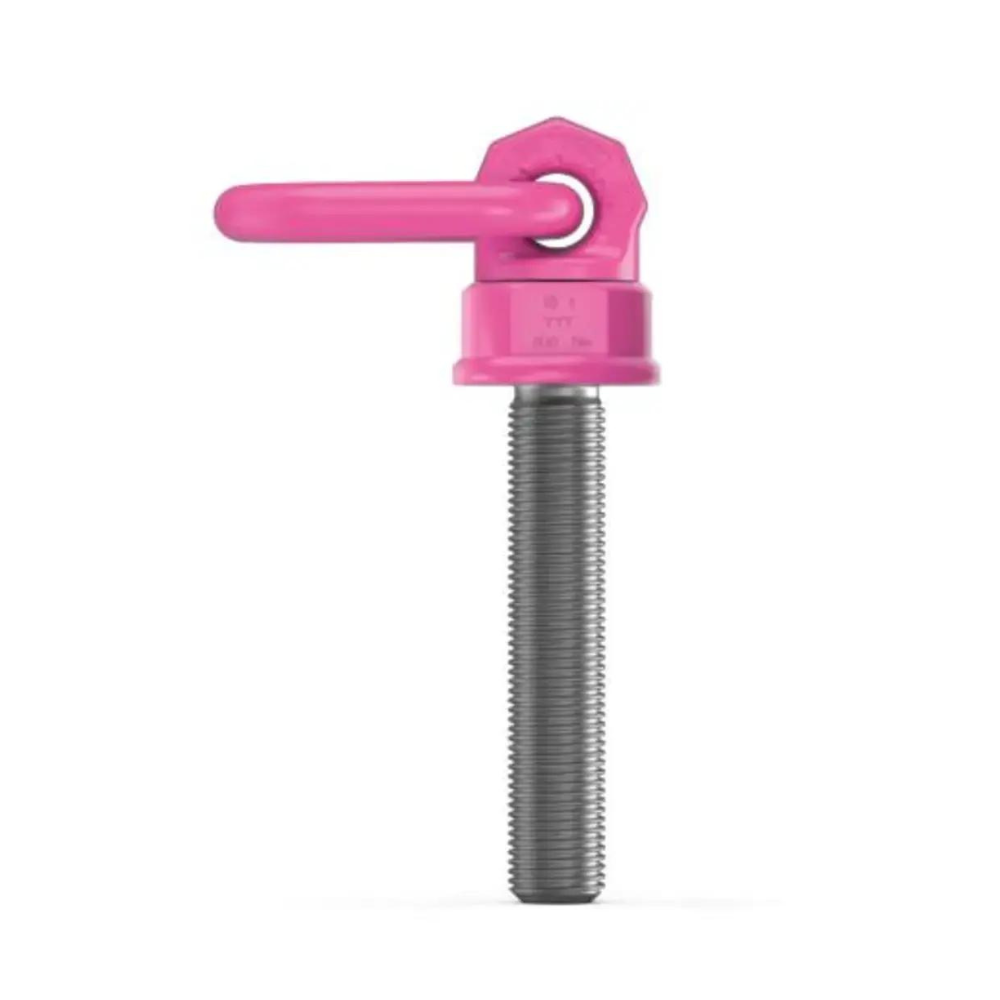

  • Rotatable 90° to the bolt-on direction under rated WLL
  • Variable bolt lengths available for use in threaded and through holes
  • Large cl

Customers Also Bought

Description

Features & Specification

A truly diverse lifting point, suitable for a wide range of lifting scenarios, RUD's VWBG Load Ring (Metric Thread with Variable Length) is available in a comprehensive range of working load limits from 6t up to 40t (M33 - M90).

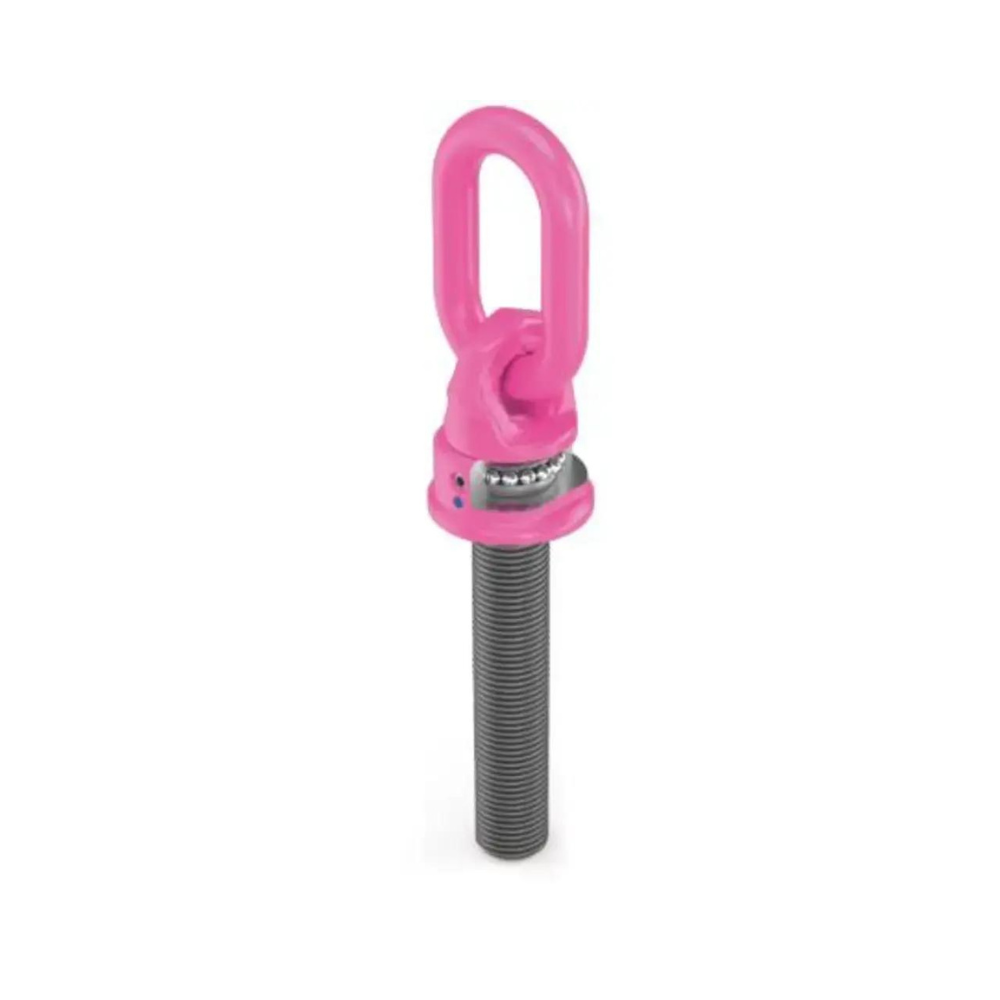

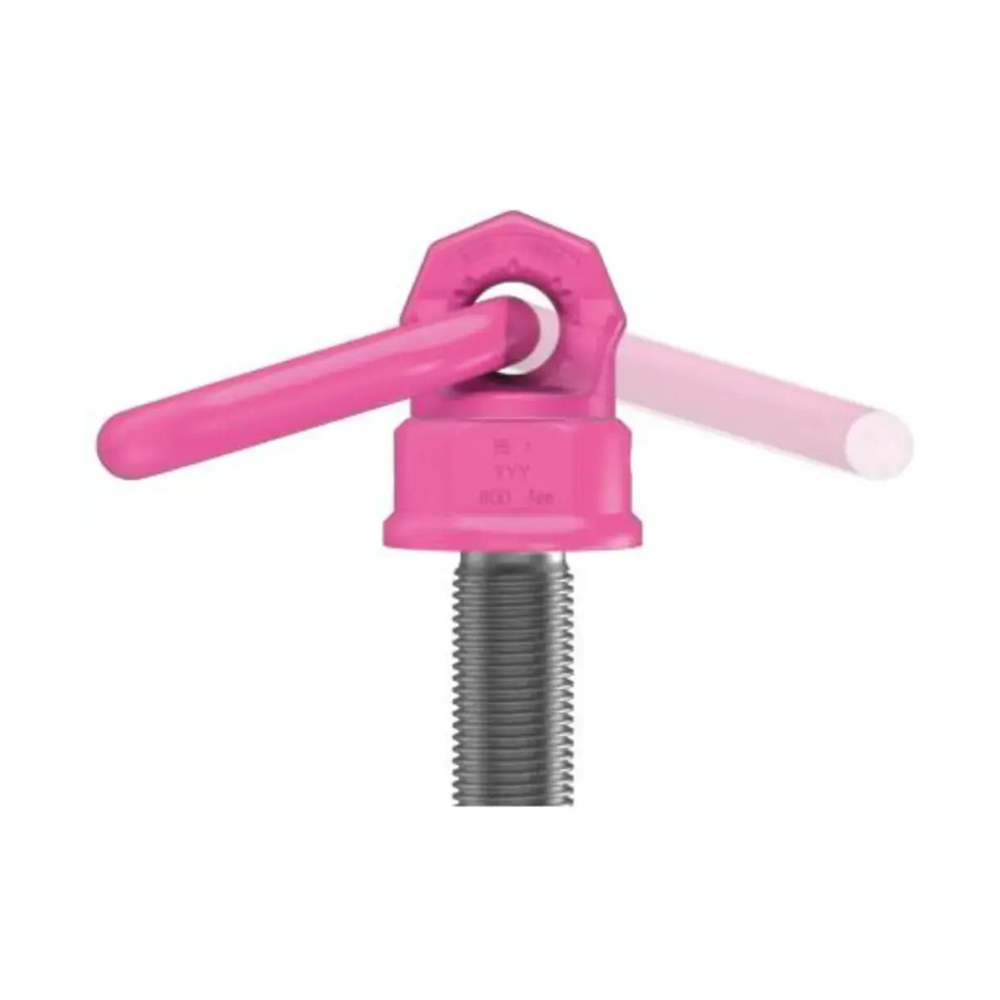

Capable of rotating 360° and pivoting 230°, these units are rotatable 90° to the bolt-on direction under rated WLL.

Designed with a large clearance between the bolt-on surface and load to prevent damage, each unit is stamped with optical markings for easy determination for withdraw from service, improving safety.

Downloads
  • RUD VWBG Data Sheet

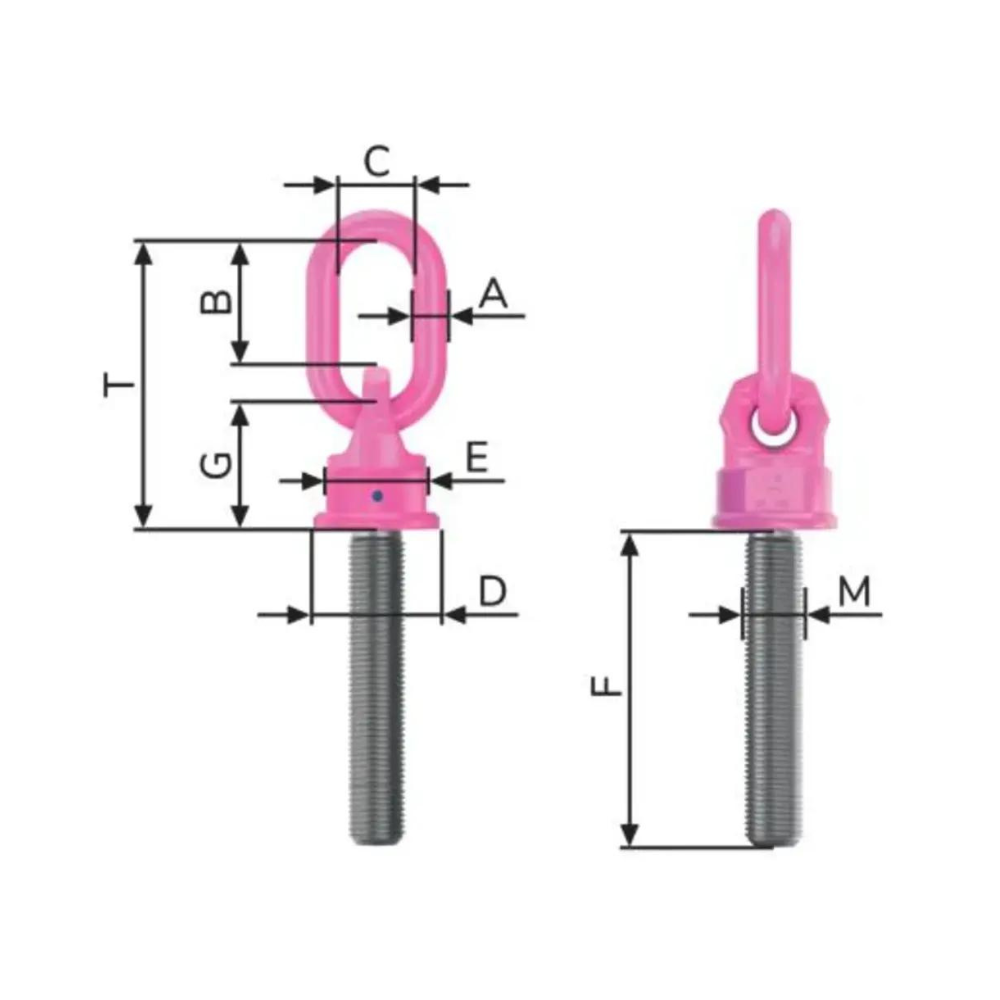

SKU

WLL-X

(t)

WLL-Y

(t)

WLL-Z

(t)

A

(mm)

B

(mm)

C
(mm)

D

(mm)

E

(mm)

F Max

(mm)

F Min

(mm)

G

(mm)

M

T

(mm)

8600150

6

7.5

15

23

86

50

90

80

300

33

94

1 3/8"-6UNC

208

8600451

8

10

15

23

86

50

90

80

300

36

94

M36-M39

208

8600452 M42

12

13

17

26

111

65

98

85

300

42

95

M42-M45

234

8600453 M48

13

16

18

26

111

65

98

85

300

48

96

M48x3

235

8600454 M56 5.5TP

16

22

28

32

119

70

120

95

300

56

120

M56-M62

271

8600455 M64 X 4

16

25

28

32

119

70

120

95

300

64

120

M64-M76

271

8600456 72 X 4

31.5

40

50

46

130

90

170

145

300

72

159

M72-M76

338

8600457 M80 300MM

35

48

50

46

130

90

170

145

300

80

159

M80-M85

338

8600458 M90-153

40

50

50

46

168

110

170

145

300

90

159

M90-M150

378
