Quick Overview:
  • Large WLL range 6 t – 50 t
  • UNC Thread
  • Clear indication of the minimum WLL for all loading directions
  • Higher WLL by optimised attachment or application
  • Rotatable 90° to the bolt-on direction under rated WLL
  • Variable bolt lengths available for use in threaded and through holes
  • Large clearance between the bolt-on surface and load to prevent damage

Customers Also Bought

Description

Features & Specification

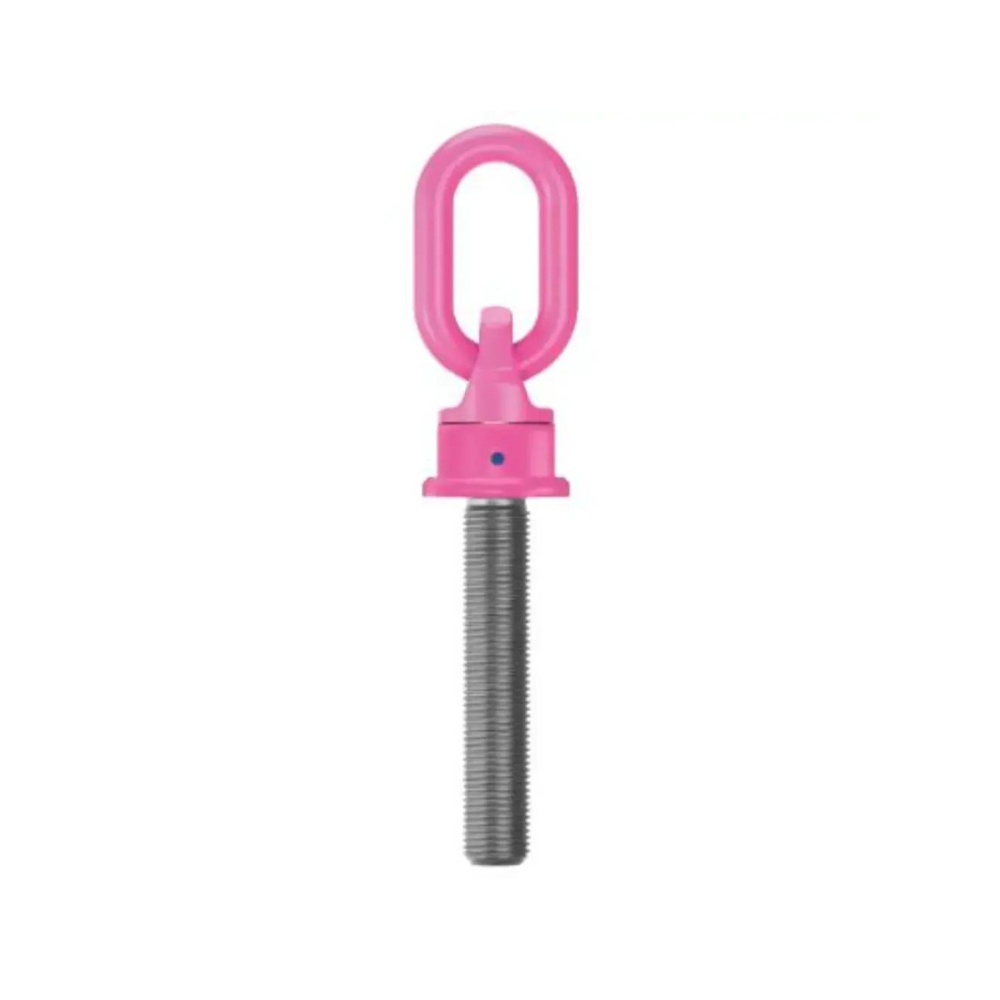

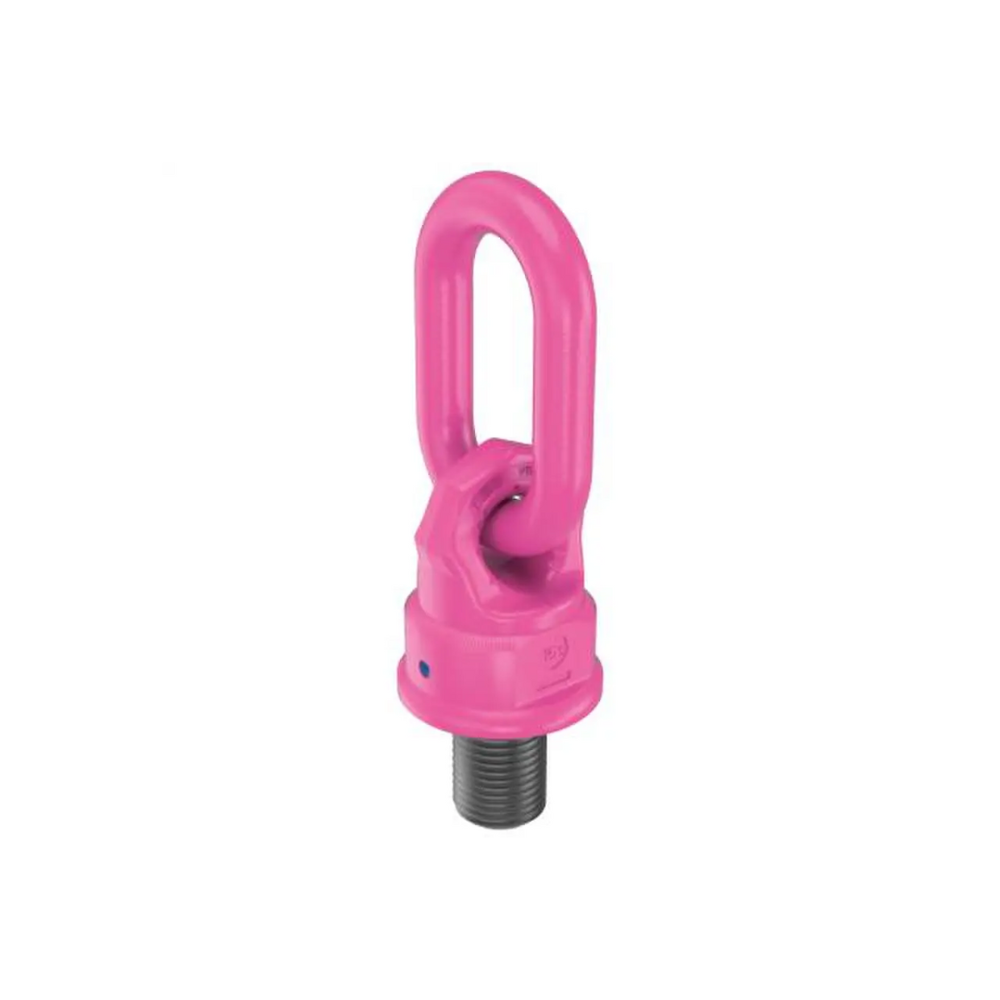

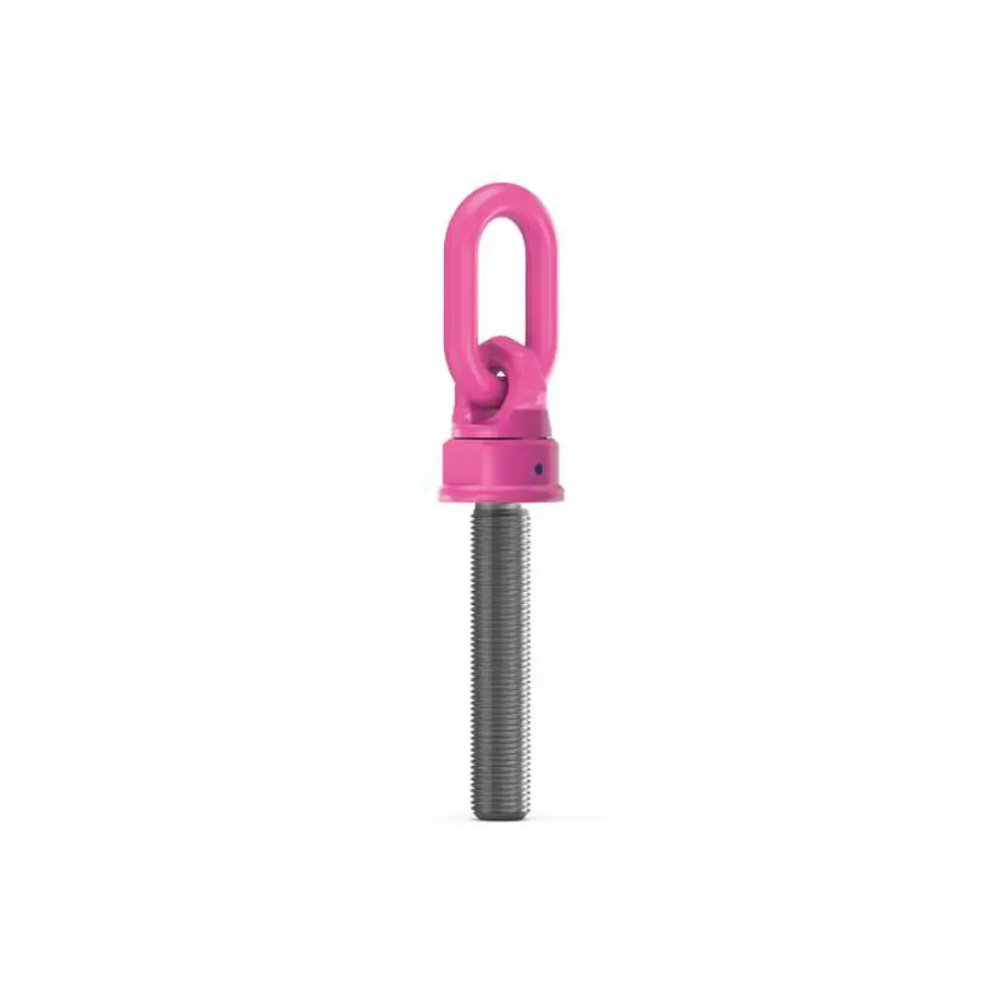

A truly diverse lifting point, suitable for a wide range of lifting scenarios, RUD's VWBG Load Ring (UNC Thread with Variable Length) is available in working load limits from 6t up to 50t - see specification tab for full details

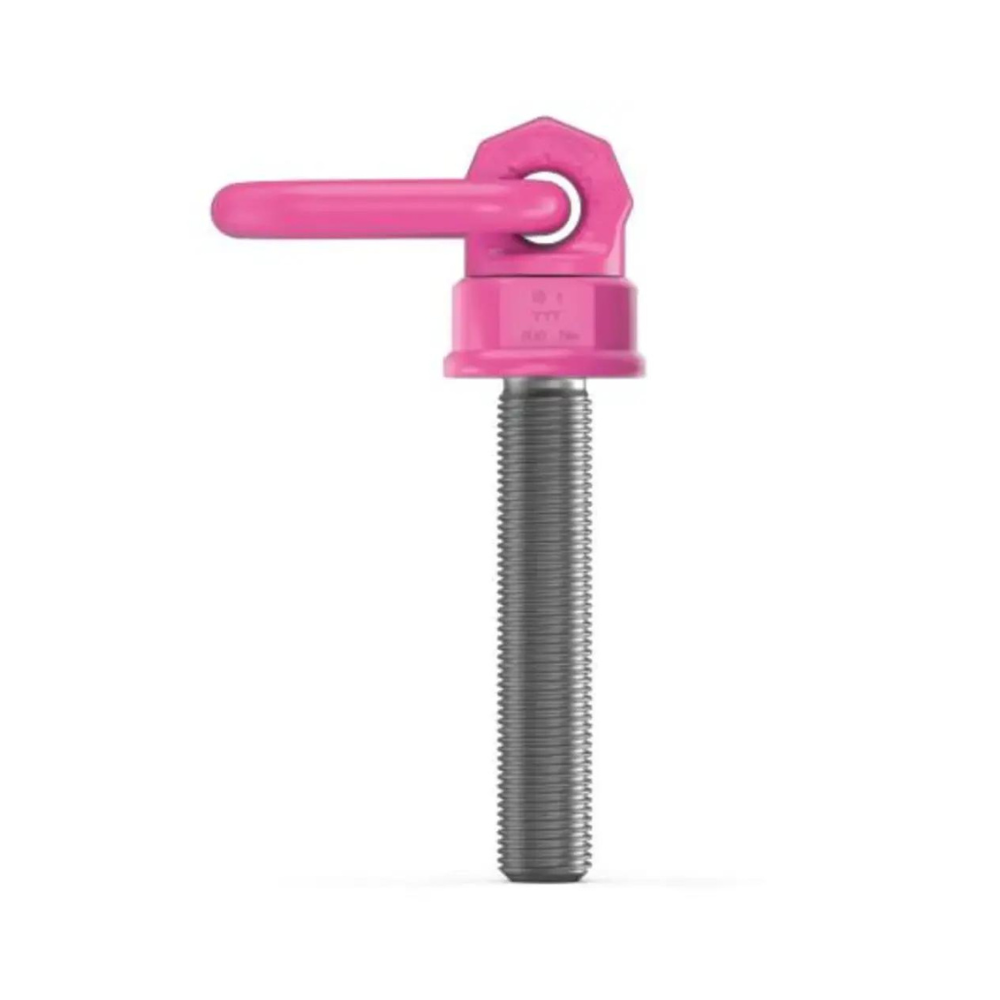

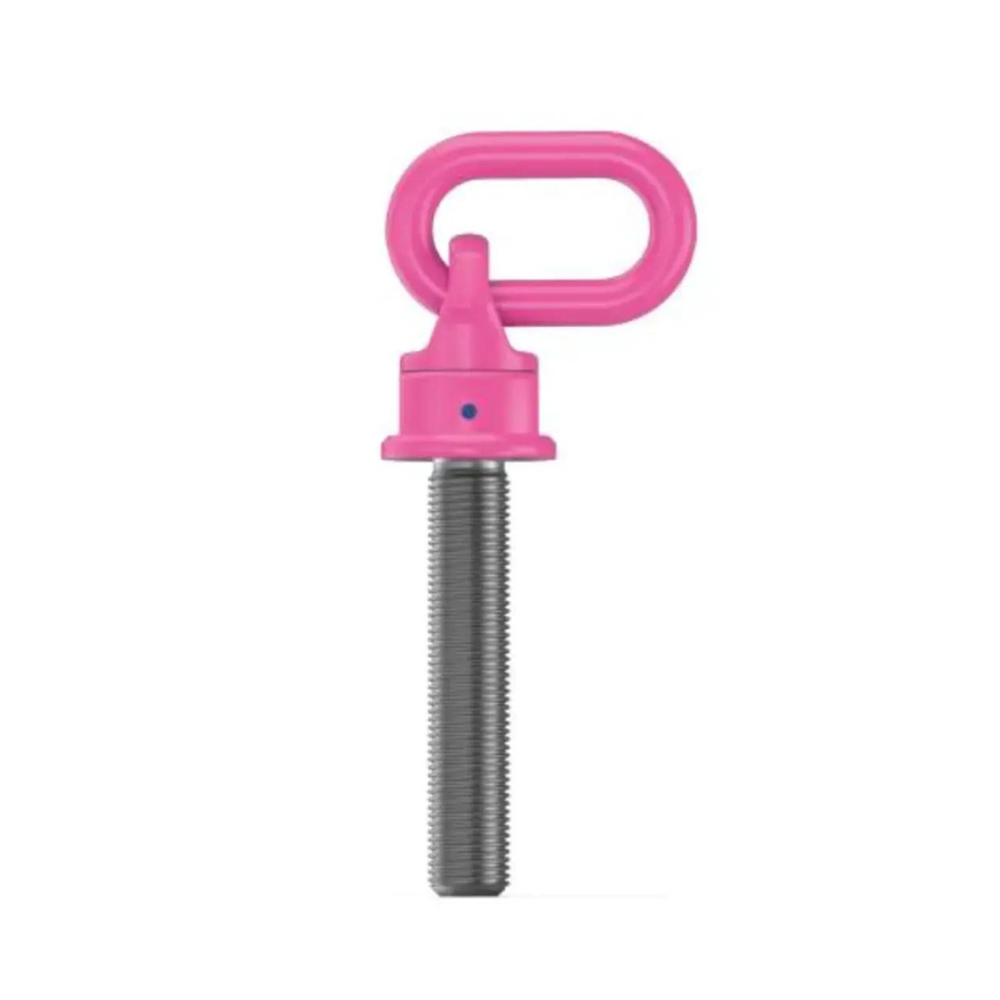

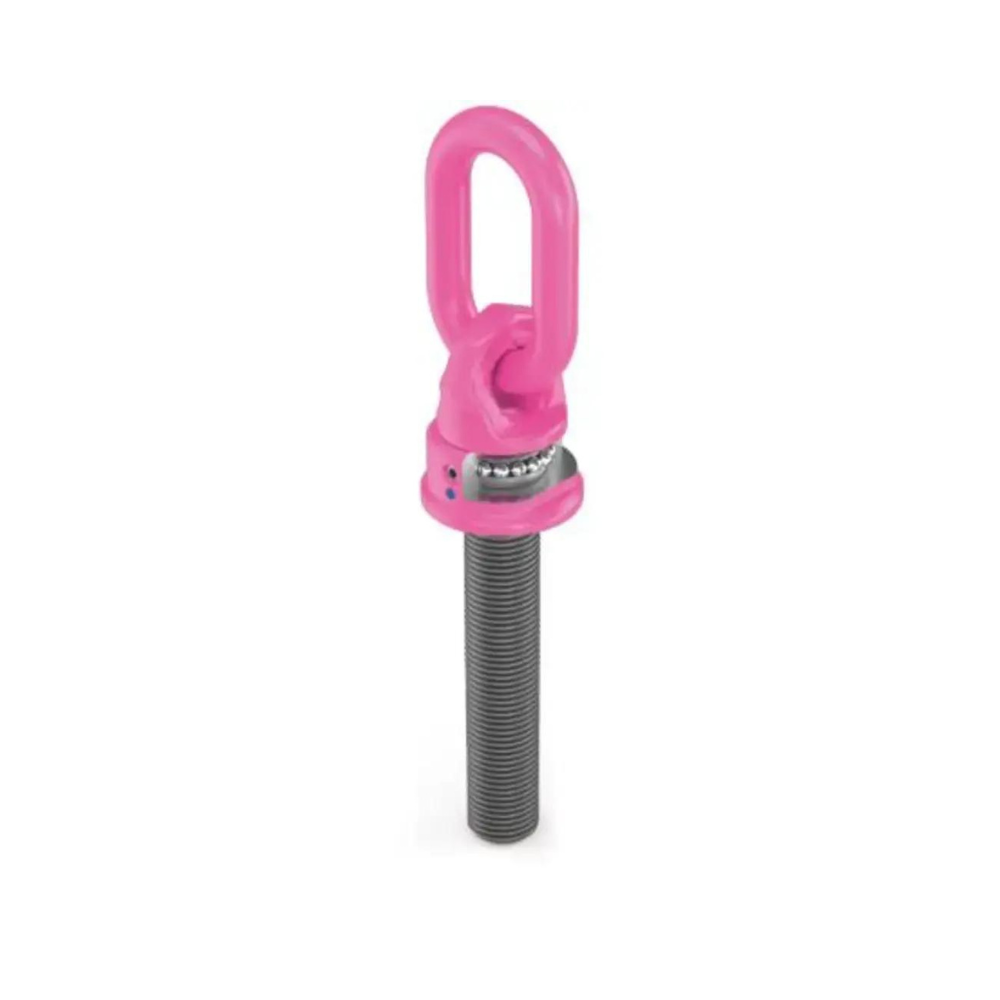

Capable of rotating 360° and pivoting 230°, these units are rotatable 90° to the bolt-on direction under rated WLL.

Designed with a large clearance between the bolt-on surface and load to prevent damage, each unit is stamped with optical markings for easy determination for withdraw from service, improving safety.

Downloads
  • RUD VWBG Data Sheet

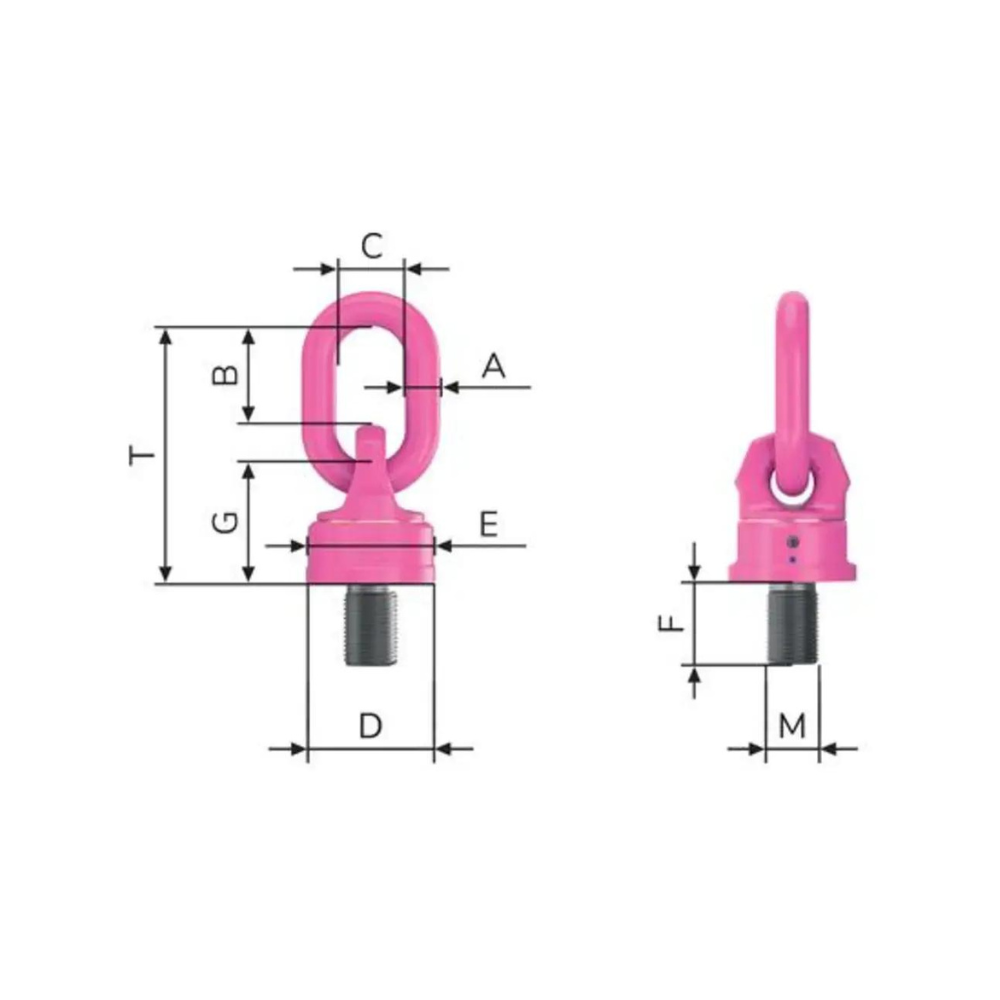

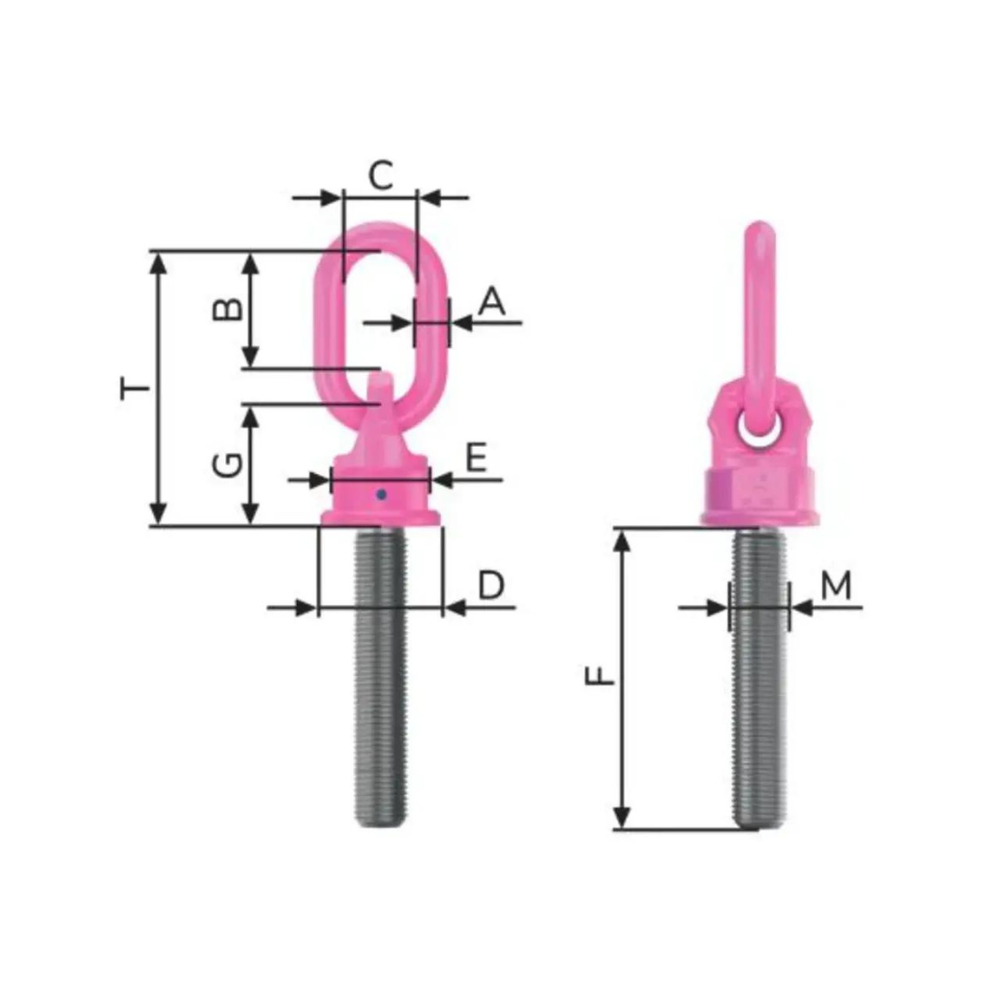

SKU

WLL-X

(t)

WLL-Y

(t)

WLL-Z

(t)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F
(mm)

F Max

(mm)

F Min

(mm)

G

(mm)

M

T

(mm)

8600150

6

7.5

15

23

86

50

90

80

50

300

33

84

1 3/8"-6UNC

208

8600457 3 1/2-4 UNC

35

48

50

46

130

90

170

145

133

305

80

159

3 1/2"-4UNC

338
