Home / RUD VWBG-V Load Ring, Metric Thread with Max. Length

RUD

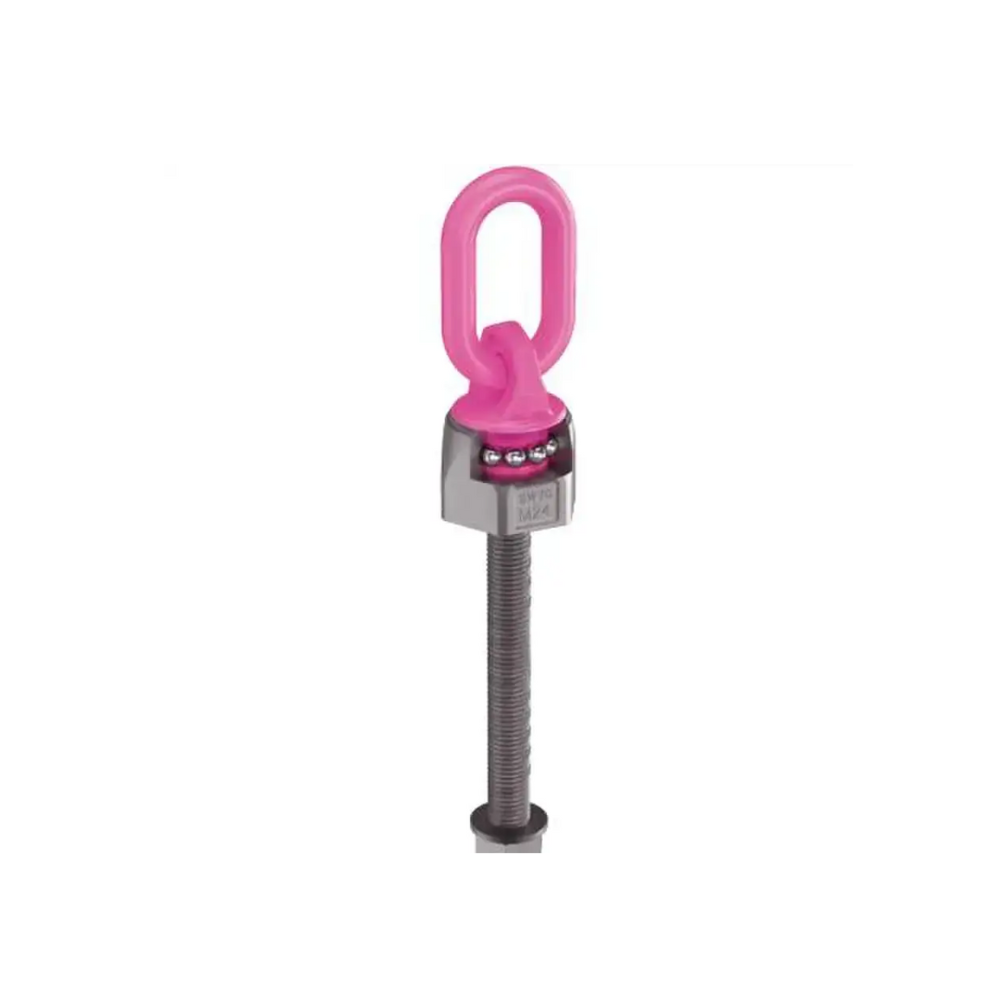

RUD VWBG-V Load Ring, Metric Thread with Max. Length

RUD VWBG-V Load Ring, Metric Thread with Max. Length
RUD VWBG-V Load Ring, Metric Thread with Max. Length

RUD VWBG-V Load Ring, Metric Thread with Max. Length

$251.00

Typically Ships In: 2-3 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/es/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • WLL Range: 0.3t – 5t
  • Metric Thread with Max Length (M8 - M30)
  • Rotatable 90° to the bolt-on direction under rated WLL
  • Non-removable special bolt
  • Corrosion protection with Corrud-DT
  • Large clearance between the bolt-on surface and load to prevent damage

Customers Also Bought

Description

Features & Specification

If you're in the market for a load ring that offers diversity at every lifting angle, then RUD's VWBG-V Metric Thread with Max. Length is right up your street.

Available in working load limits from 0.3t up to 5t, the VWBG-V Load Ring is rotatable to the bolt-on direction under rated WLL, and features a clear indication of the minimum WLL for all load directions.

Coming in variable bolt lengths, this exceptional load ring is designed with a large clearance between the bolt-on surface and load to prevent unwanted damage, and features RUD bolts that are protected with a special corrosion protection (Corrud-DT) improving lifecyles in harsh conditions.

Downloads
  • RUD VWBG Data Sheet

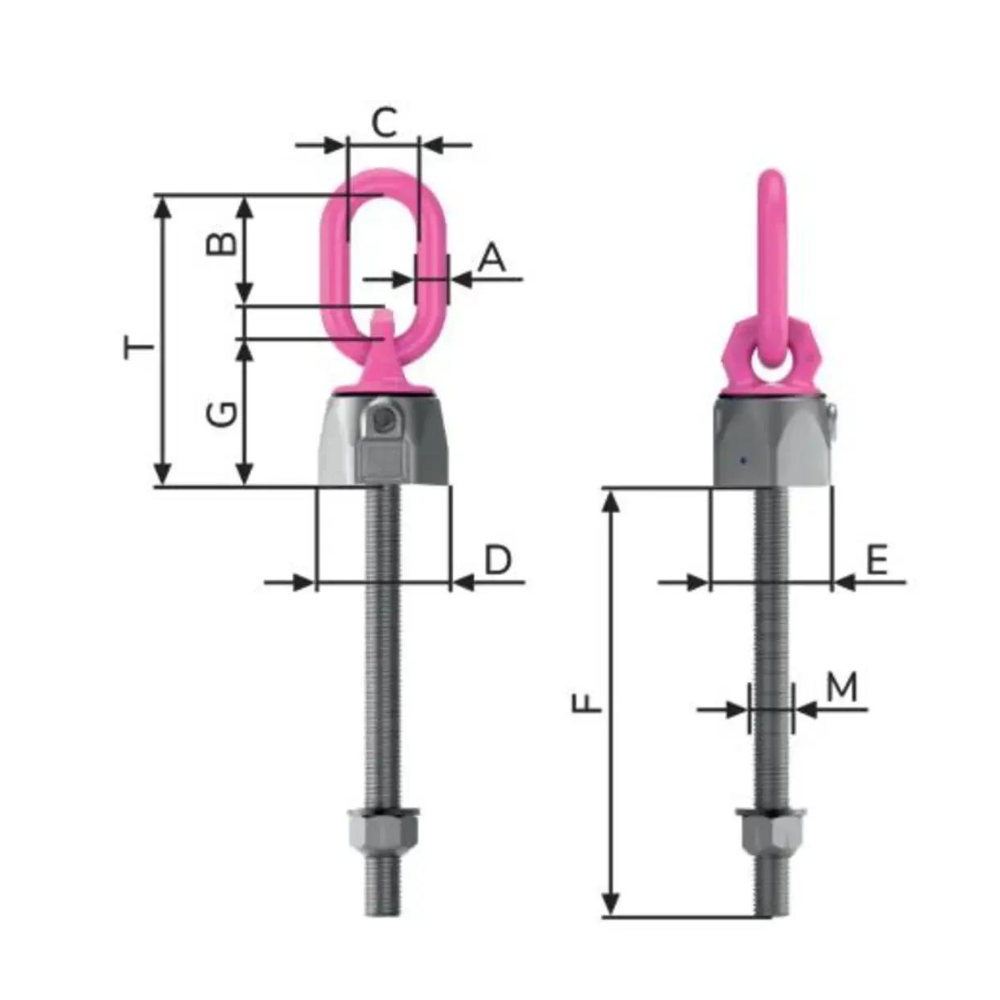

SKU

WLL-X

(t)

WLL-Y

(t)

WLL-Z

(t)

A

(mm)

B

(mm)

C
(mm)

D

(mm)

E

(mm)

F Max

(mm)

F Min

(mm)

G

(mm)

M

T

(mm)

8600330

0.3

0.4

0.6

8

31

29

30

27

102

8

36

M8

76

8600331

0.45

0.6

0.9

8

31

29

36

30

122

0

38

M10

78

8600332 M12 F140

0.6

0.75

1.2

10

49

35

42

36

140

0

47

M12

107

8600337 M14 F160

1

1.25

2

13

46

38

48

41

160

0

56

M14

114

8600333 M16 F180

1.3

1.5

2.6

13

46

38

48

41

180

0

56

M16

114

8600333 M16 F80MM

1.3

1.5

2.6

13

46

38

48

41

80

0

56

M16

114

8600338 M18 F83 MM

1.8

2

3.6

13

54

35

62

55

83

18

67

M18

137

8600334 M20 F223MM

2

2.5

4

13

54

35

62

55

223

0

67

M20

137

8600334 M22 F94MM

2

2.5

4

13

54

35

62

55

94

0

67

M22

137

8600335 M24 F257MM

3.5

4

7

18

66

40

81

70

257

0

88

M24

173

8600336 M30 F330

5

6

10

22

90

50

99

85

330

0

106

M30

221

src="https://cdn.shopify.com/s/files/1/0765/0875/8299/files/RUDVWBG-VLoadRingMetricThreadwithMaxLengthdiagram.png?v=1723532504">
