Home / Vestil Steel Manual Carousels
Vestil Steel Manual Carousels
Vestil Steel Manual Carousels
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Customers Also Bought

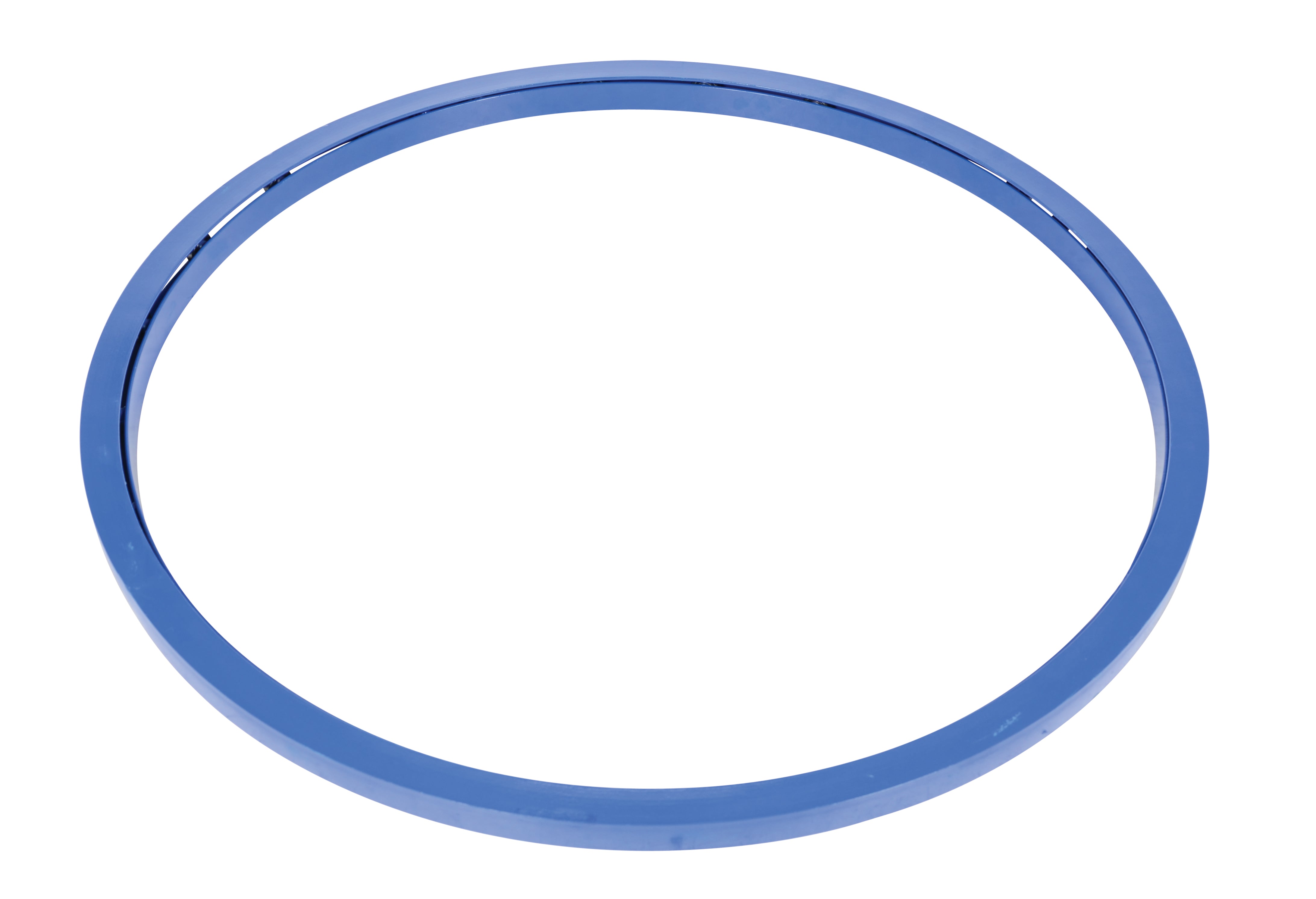

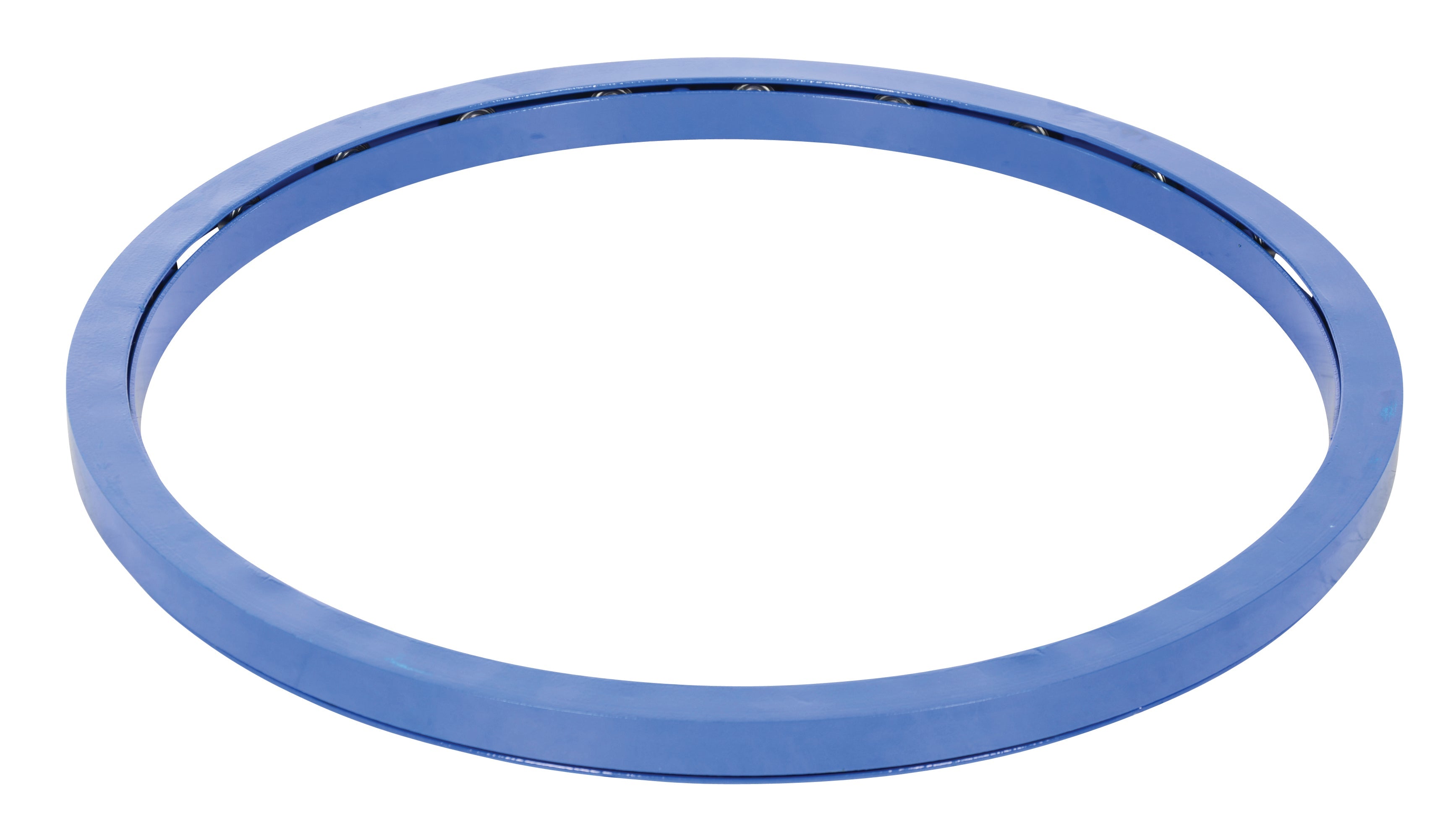

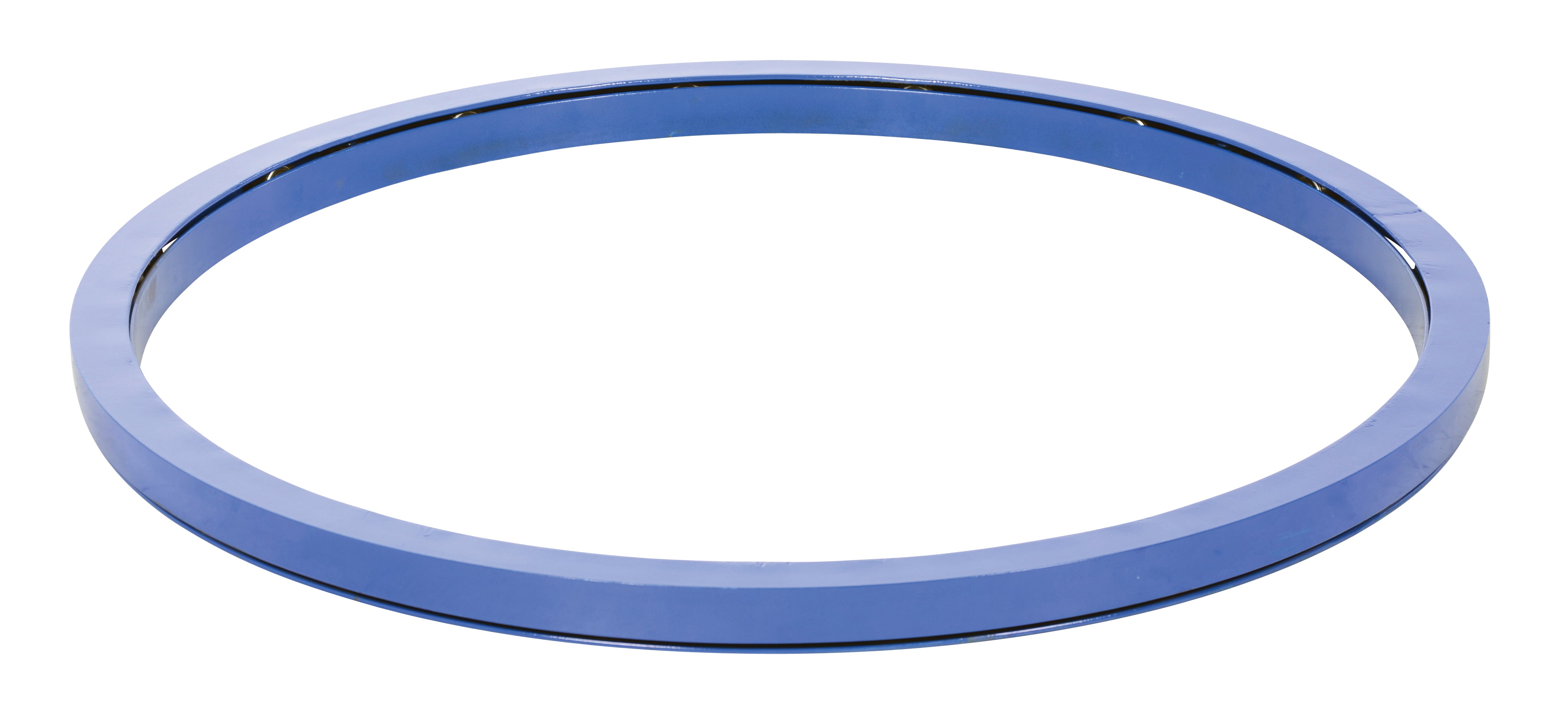

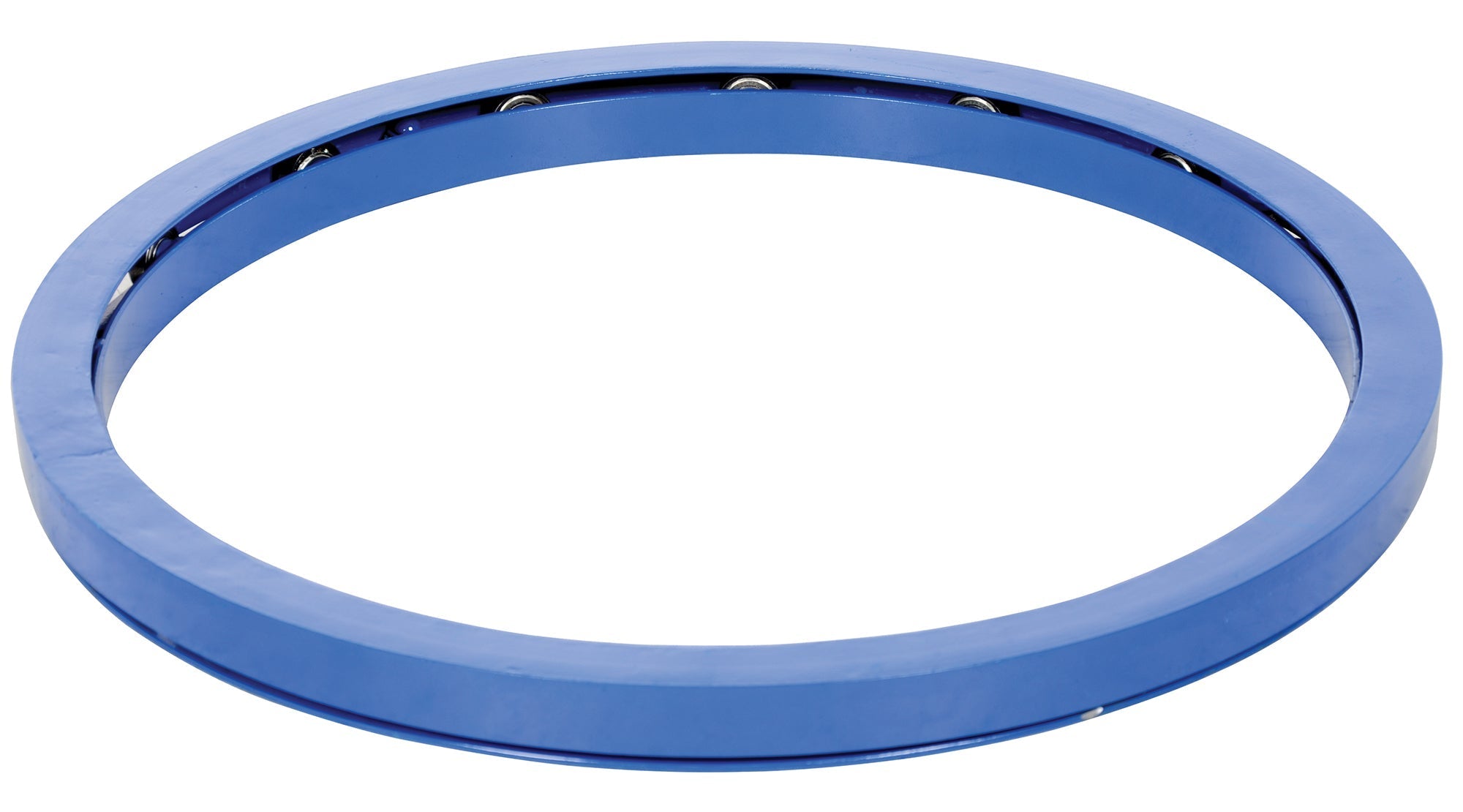

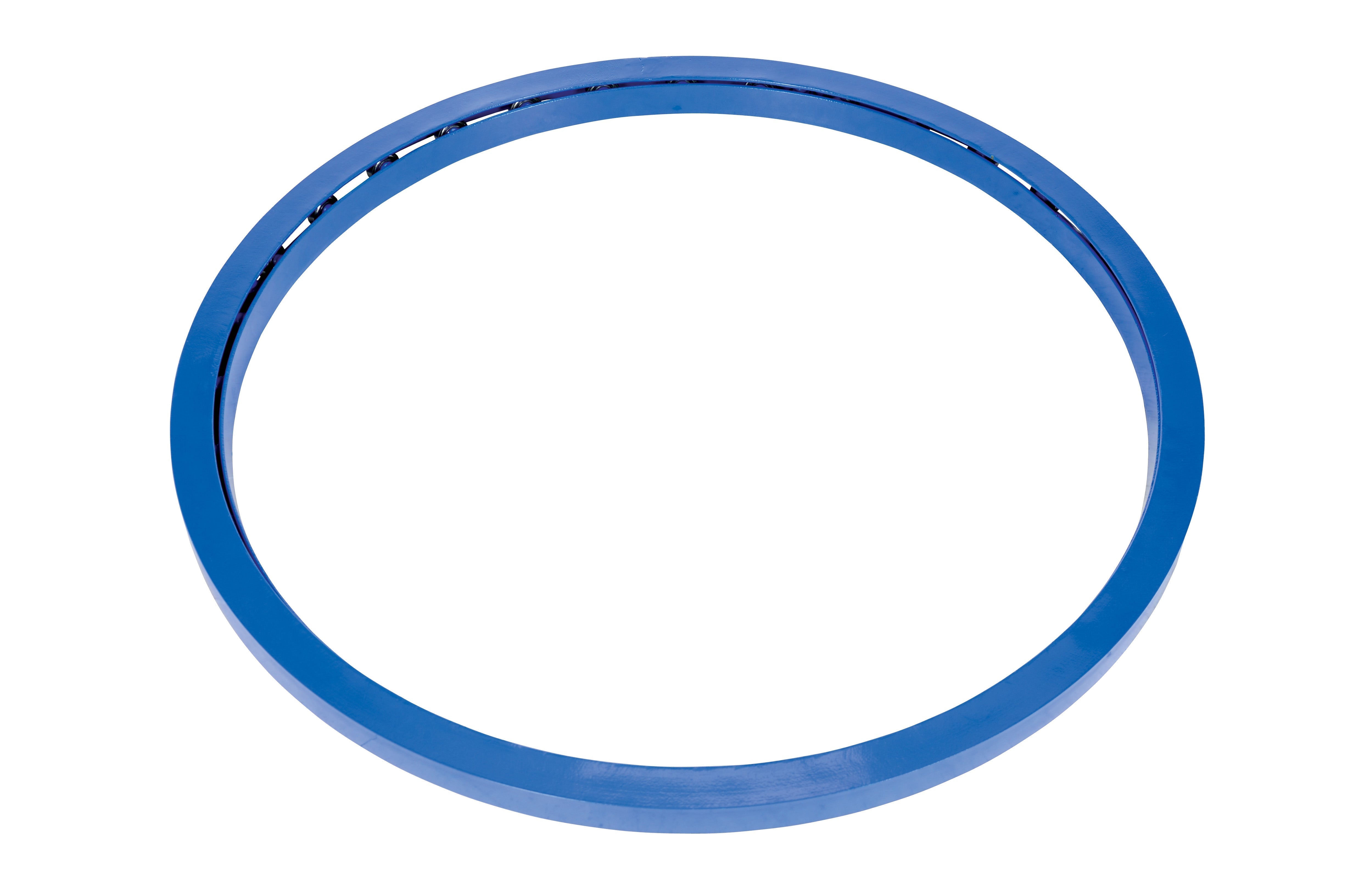

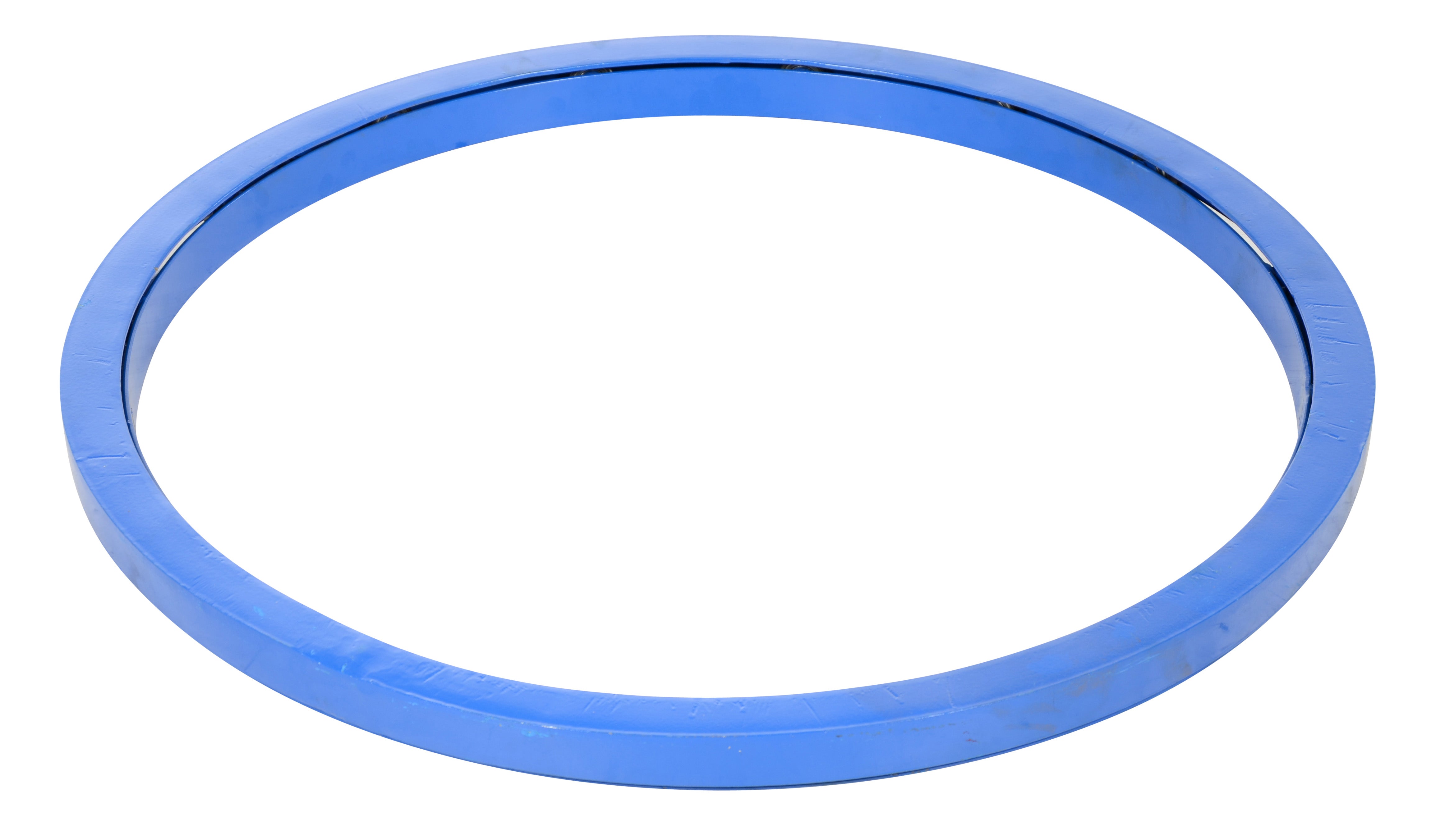

The Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle. A series of standard sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Four guide rollers keep the rings aligned.
-
Vestil CA-18-2-TP-STP Data Sheet
-
Vestil CA-18-2-TP-SSM Data Sheet
-
Vestil CA-18-2-TP-RTP Data Sheet
-
Vestil CA-18-2-TP-RSM Data Sheet
-
Vestil CA-18-2 Data Sheet
-
Vestil CA-24-4-TP-STP Data Sheet
-
Vestil CA-24-4-TP-SSM Data Sheet
-
Vestil CA-30-4-TP-STP Data Sheet
-
Vestil CA-30-4-TP-SSM Data Sheet
-
Vestil CA-30-4-TP-RTP Data Sheet
-
Vestil CA-30-4-TP-RSM Data Sheet
-
Vestil CA-30-4 Data Sheet
-
Vestil CA-36-2 Data Sheet
-
Vestil CA-36-4-TP-STP Data Sheet
-
Vestil CA-36-4-TP-SSM Data Sheet
-
Vestil CA-36-4-TP-RTP Data Sheet
-
Vestil CA-36-4-TP-RSM Data Sheet
-
Vestil CA-36-4 Data Sheet
-
Vestil CA-BASE-36-24 Data Sheet
-
Vestil CA-BASE-36-12 Data Sheet
-
Vestil CA-40-6-TP-STP Data Sheet
-
Vestil CA-40-6-TP-SSM Data Sheet
-
Vestil CA-40-6-TP-RTP Data Sheet
-
Vestil CA-40-6-TP-RSM Data Sheet
-
Vestil CA-40-6-SS Data Sheet
-
Vestil CA-40-6 Data Sheet
-
Vestil CA-40-2 Data Sheet
-
Vestil CA-40-4-TP-STP Data Sheet
-
Vestil CA-40-4-TP-SSM Data Sheet
-
Vestil CA-40-4-TP-RTP Data Sheet
-
Vestil CA-40-4-TP-RSM Data Sheet
-
Vestil CA-40-4-SS Data Sheet
-
Vestil CA-40-4 Data Sheet
-
Vestil CA-BASE-40-24 Data Sheet
-
Vestil CA-BASE-40-12 Data Sheet
-
Vestil CA-48-6-TP-STP Data Sheet
-
Vestil CA-48-6-TP-SSM Data Sheet
-
Vestil CA-48-6-TP-RTP Data Sheet
-
Vestil CA-48-6- Data Sheet
-
Vestil CA-48-6-TP-RSM Data Sheet
-
Vestil CA-48-2-TP-STP Data Sheet
-
Vestil CA-48-2-TP-SSM Data Sheet
-
Vestil CA-48-2-TP-RTP Data Sheet
-
Vestil CA-48-2-TP-RSM Data Sheet
-
Vestil CA-48-2 Data Sheet
-
Vestil CA-48-4-TP-STP Data Sheet
-
Vestil CA-48-4-TP-SSM Data Sheet
-
Vestil CA-48-4-TP-RTP Data Sheet
-
Vestil CA-48-4-TP-RSM Data Sheet
-
Vestil CA-48-4 Data Sheet
-
Vestil CA-BASE-48-24 Data Sheet
-
Vestil CA-BASE-48-12 Data Sheet
-
Vestil CA-60-6-TP-STP Data Sheet
-
Vestil CA-60-6-TP-SSM Data Sheet
-
Vestil CA-60-6-TP-RTP Data Sheet
-
Vestil CA-60-6-TP-RSM Data Sheet
-
Vestil CA-60-6 Data Sheet
-
Vestil CA-60-2-TP-STP Data Sheet
-
Vestil CA-60-2-TP-SSM Data Sheet
-
Vestil CA-60-2-TP-RTP Data Sheet
-
Vestil CA-60-2-TP-RSM Data Sheet
-
Vestil CA-60-2 Data Sheet
-
Vestil CA-60-4-TP-STP Data Sheet
-
Vestil CA-60-4-TP-SSM Data Sheet
-
Vestil CA-60-4-TP-RTP Data Sheet
-
Vestil CA-60-4-TP-RSM Data Sheet
-
Vestil CA-60-4 Data Sheet
-
Vestil CA-BASE-60-24 Data Sheet
-
Vestil CA-72-6-TP-RSM Data Sheet
-
Vestil CA-72-2-TP-STP Data Sheet
-
Vestil CA-72-2-TP-SSM Data Sheet
-
Vestil CA-72-2-TP-RTP Data Sheet
-
Vestil CA-72-2-TP-RSM Data Sheet
-
Vestil CA-72-2 Data Sheet
-
Vestil CA-72-4-TP-STP Data Sheet
-
Vestil CA-72-4-TP-SSM Data Sheet
-
Vestil CA-72-4-TP-RTP Data Sheet
-
Vestil CA-72-4-TP-RSM Data Sheet
-
Vestil CA-72-4 Data Sheet
-
Vestil CA-BASE-72-24 Data Sheet
-
Vestil CA-BASE-72-12 Data Sheet
Page 1 of 11
| Carousels | ||||
| Model | Outer Diameter |
Height | Capacity (lbs) |
Wt. (lbs) |
| CA-18-2 | 18" | 2" | 2,000 | 21 |
| CA-24-2 | 24" | 2" | 2,000 | 28 |

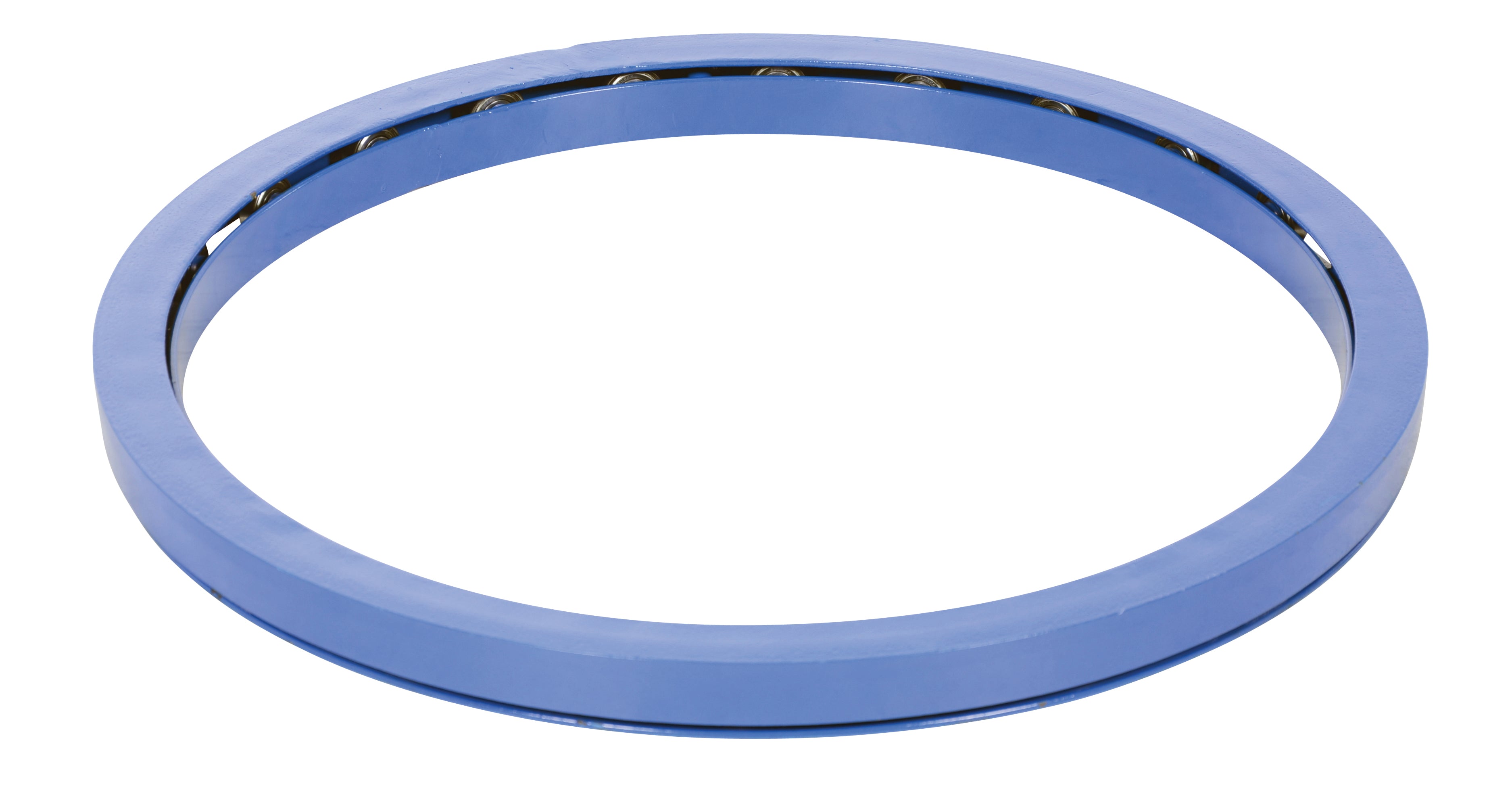

| CA-24-4 | 24" | 2" | 4,000 | 30 |
| CA-30-2 | 30" | 2" | 2,000 | 34 |
| CA-30-4 | 30" | 2" | 4,000 | 36 |

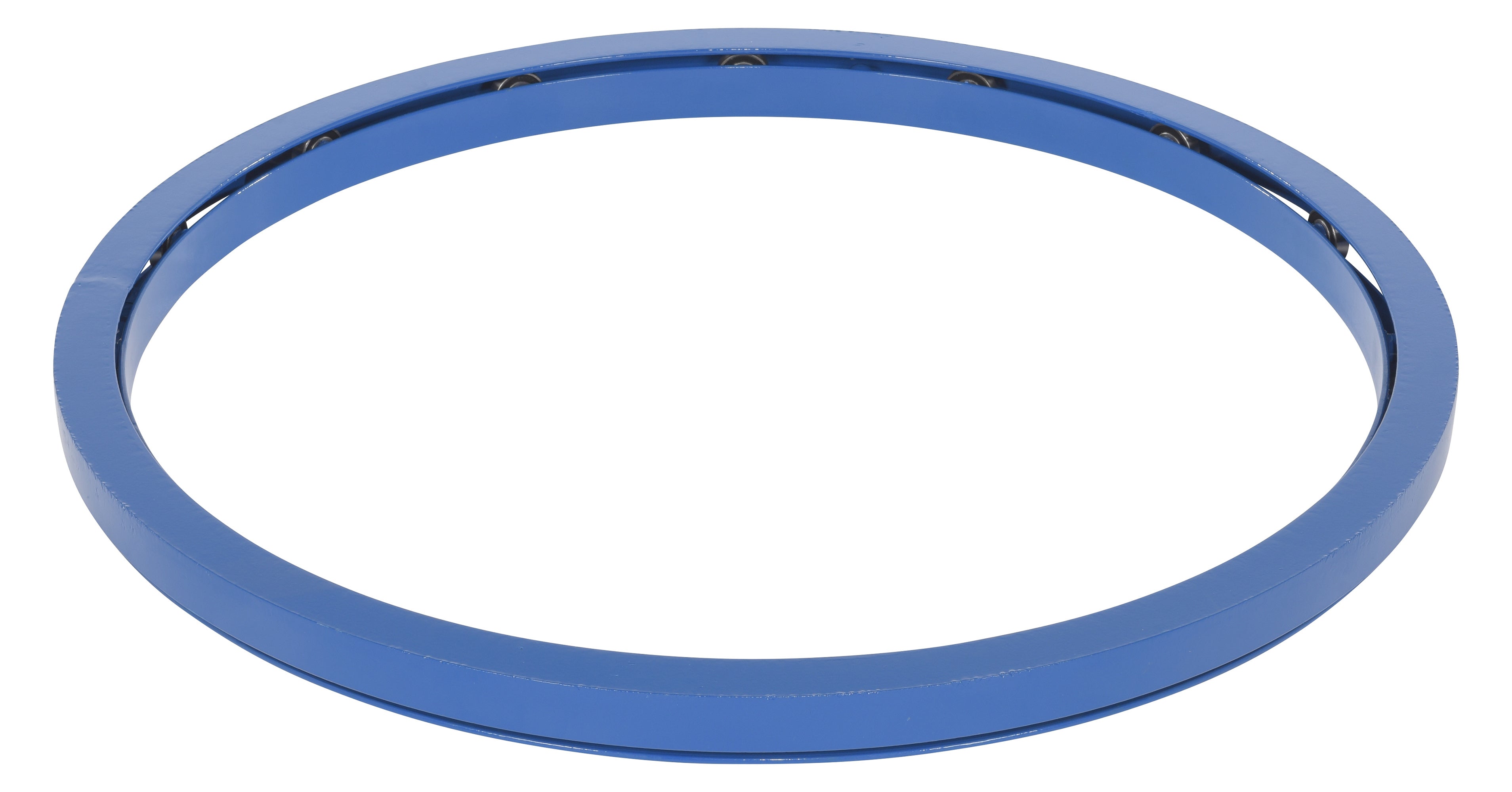

| CA-36-2 | 36" | 2" | 2,000 | 41 |
| CA-36-4 | 36" | 2" | 4,000 | 45 |
| CA-40-2 | 40" | 2" | 2,000 | 47 |

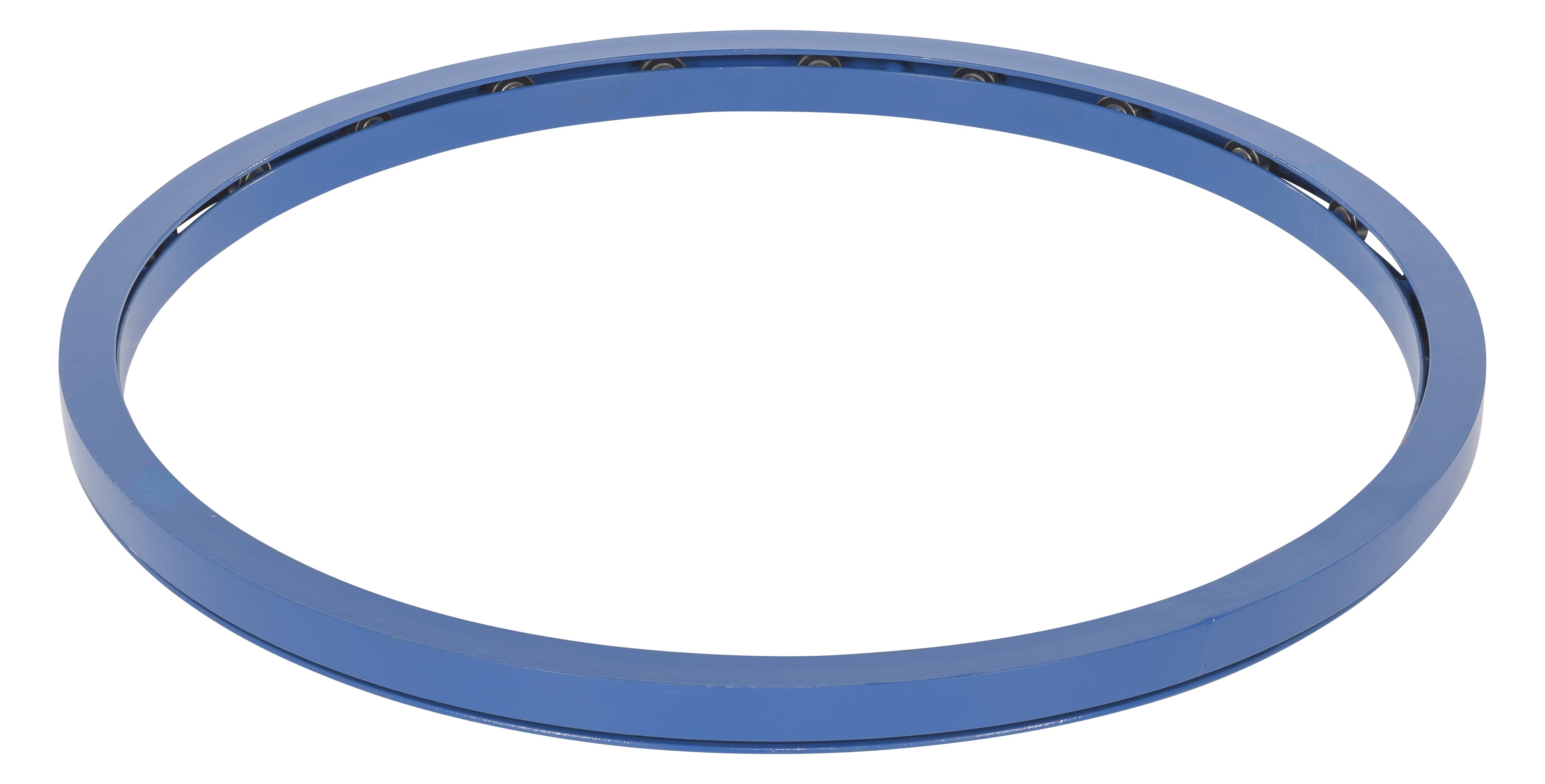

| CA-40-4 | 40" | 2" | 4,000 | 49 |
| CA-40-6 | 40" | 2" | 6,000 | 51 |

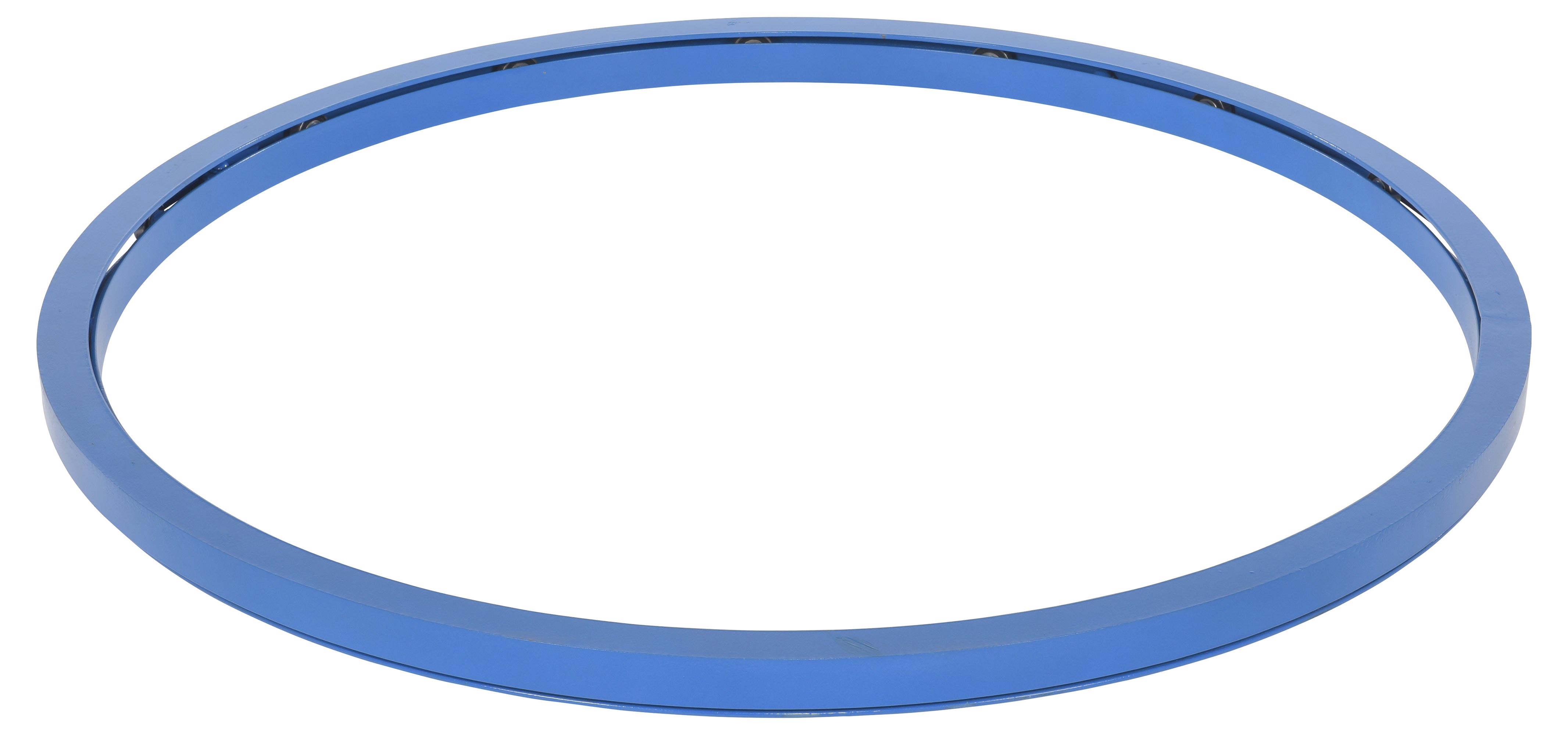

| CA-48-2 | 48" | 2" | 2,000 | 71 |
| CA-48-4 | 48" | 2" | 4,000 | 86 |
| CA-48-6 | 48" | 2" | 6,000 | 97 |
| CA-60-2 | 60" | 2" | 2,000 | 110 |
| CA-60-4 | 60" | 2" | 4,000 | 116 |

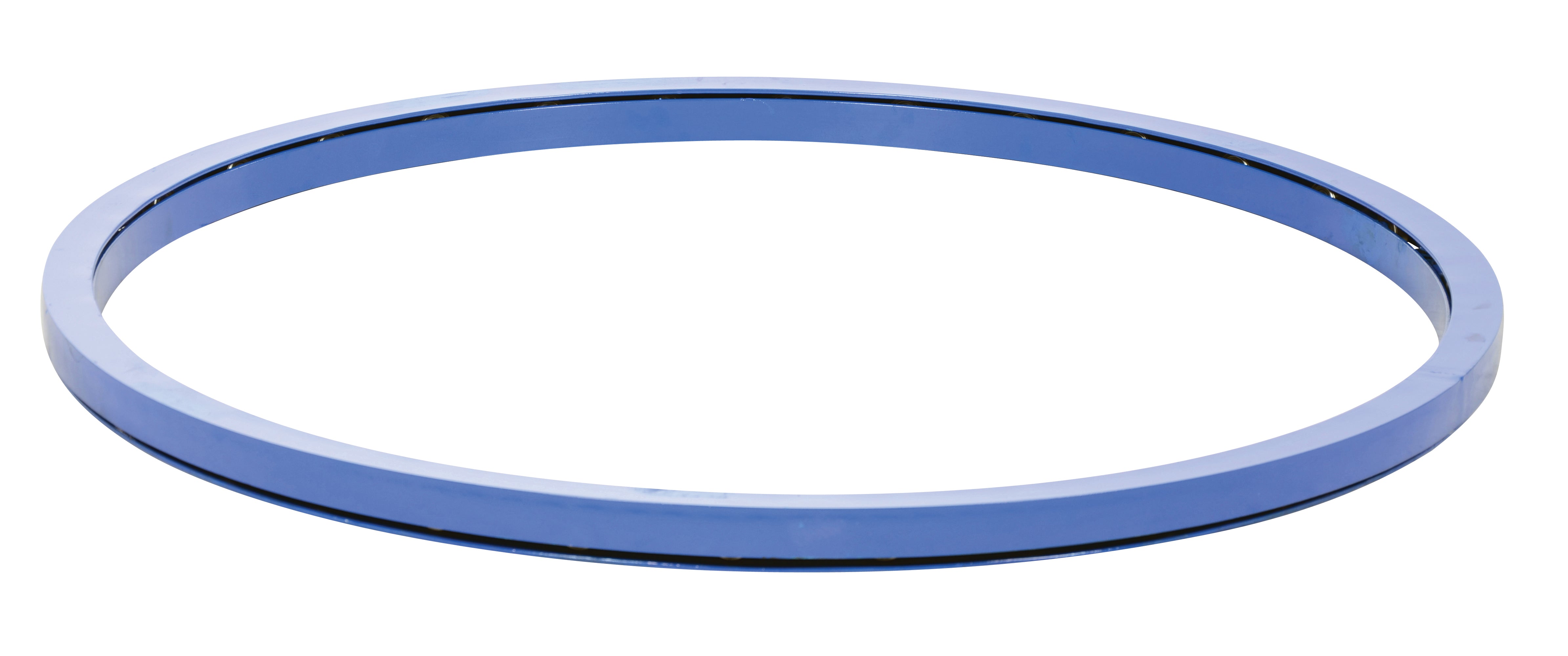

| CA-60-6 | 60" | 2" | 6,000 | 128 |
| CA-72-2 | 72" | 2" | 2,000 | 163 |
| CA-72-4 | 72" | 2" | 4,000 | 163 |
| CA-72-6 | 72" | 2" | 6,000 | 134 |
| Steel Tread Plate Top Plates for Carousel (1/4" Thick) | |||||
| Model Number Diamond Plate |
Model Number Smooth Plate |
Style | Overall Size |
Carousel Diameter |
Wt. (lbs) |

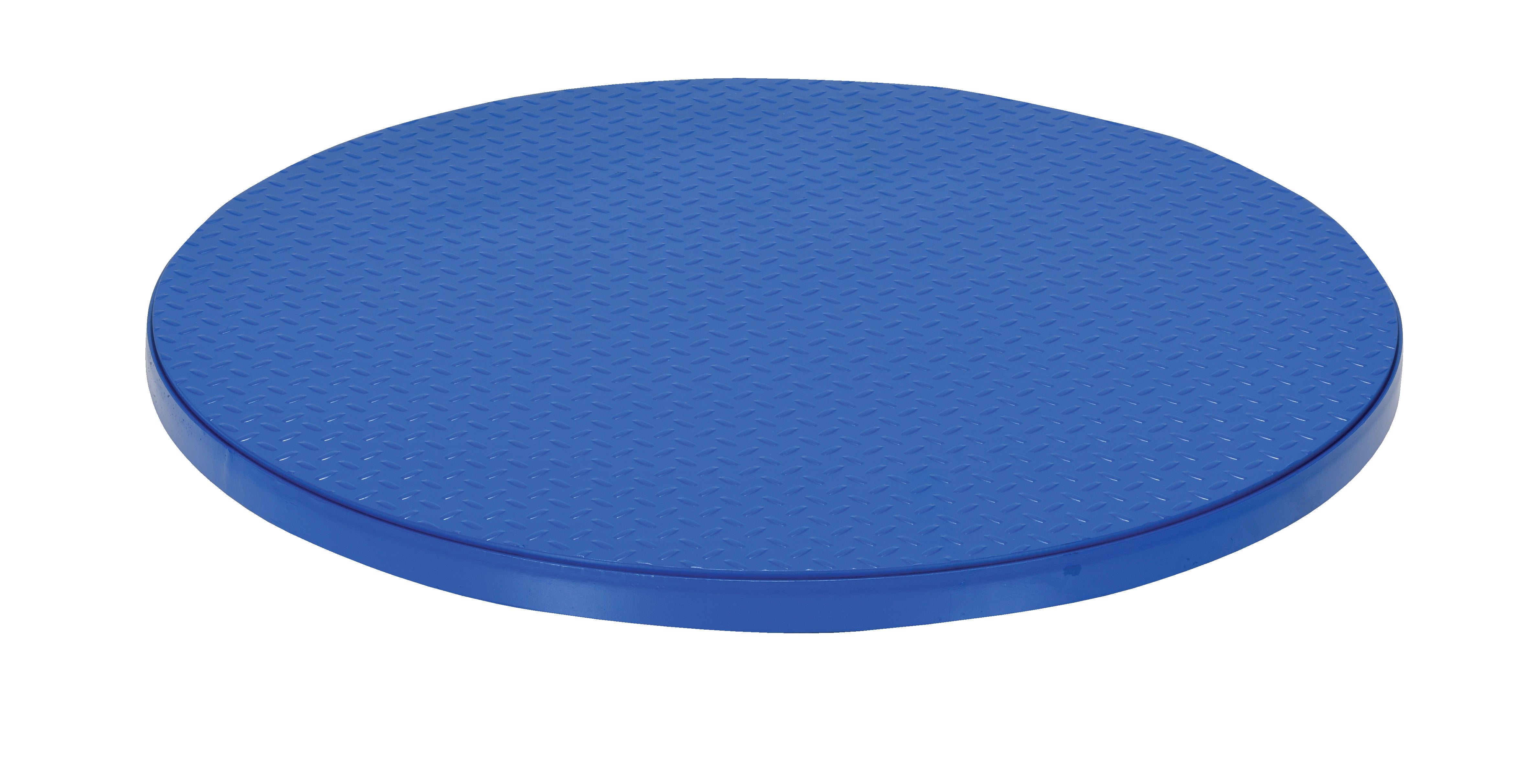

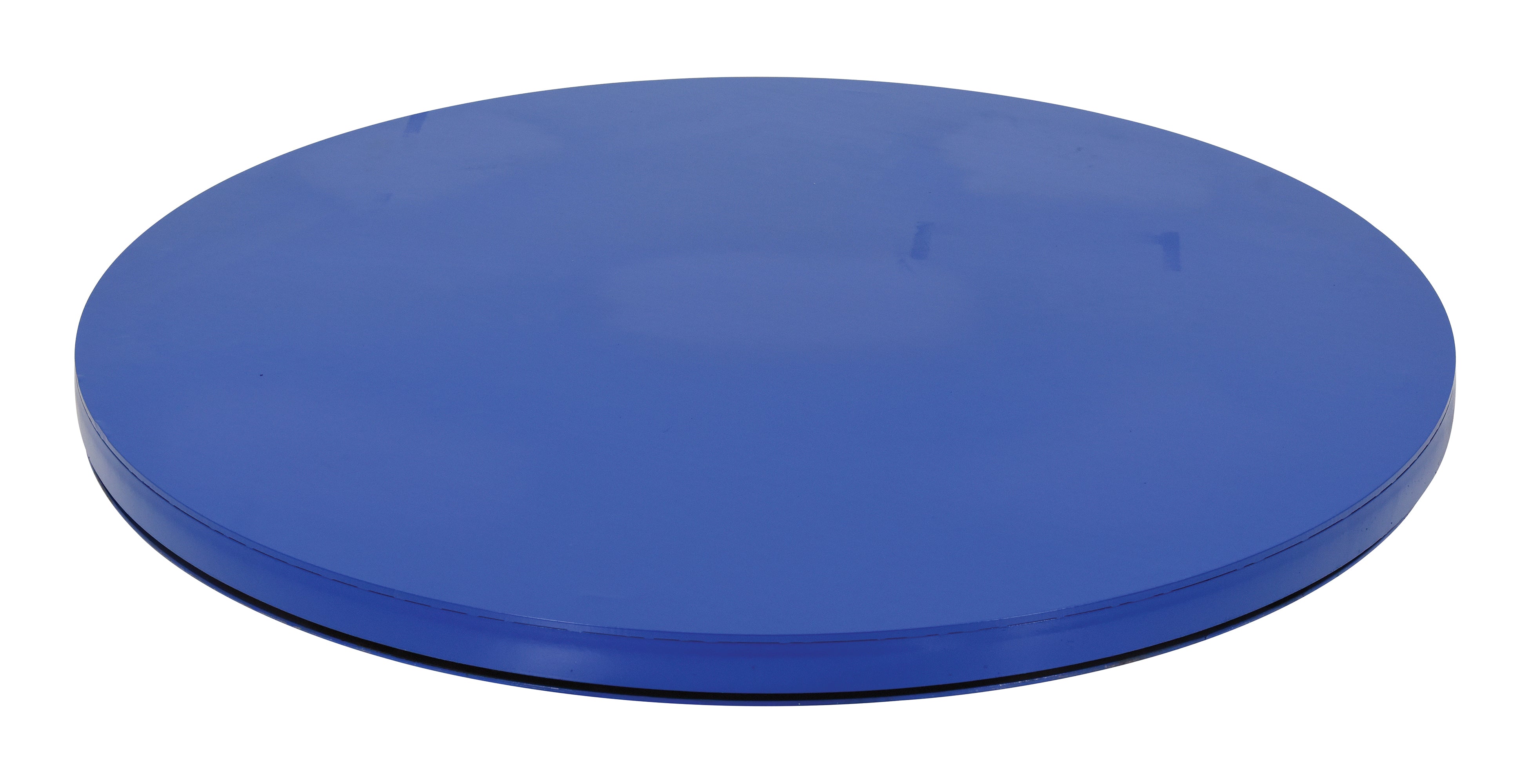

| CA-18-2-TP-RTP | CA-18-2-TP-RSM | Round | 18" Dia. | 18" | 35 |
| CA-24-2-TP-RTP | CA-24-2-TP-RSM | Round | 24" Dia. | 24" | 52 |
| CA-30-2-TP-RTP | CA-30-2-TP-RSM | Round | 30" Dia. | 30" | 72 |
| CA-36-2-TP-RTP | CA-36-2-TP-RSM | Round | 36" Dia. | 36" | 136 |
| CA-40-2-TP-RTP | CA-40-2-TP-RSM | Round | 40" Dia. | 40" | 160 |
| CA-48-2-TP-RTP | CA-48-2-TP-RSM | Round | 48" Dia. | 48" | 210 |
| CA-60-2-TP-RTP | CA-60-2-TP-RSM | Round | 60" Dia. | 60" | 322 |
| CA-72-2-TP-RTP | CA-72-2-TP-RSM | Round | 72" Dia. | 72" | 445 |

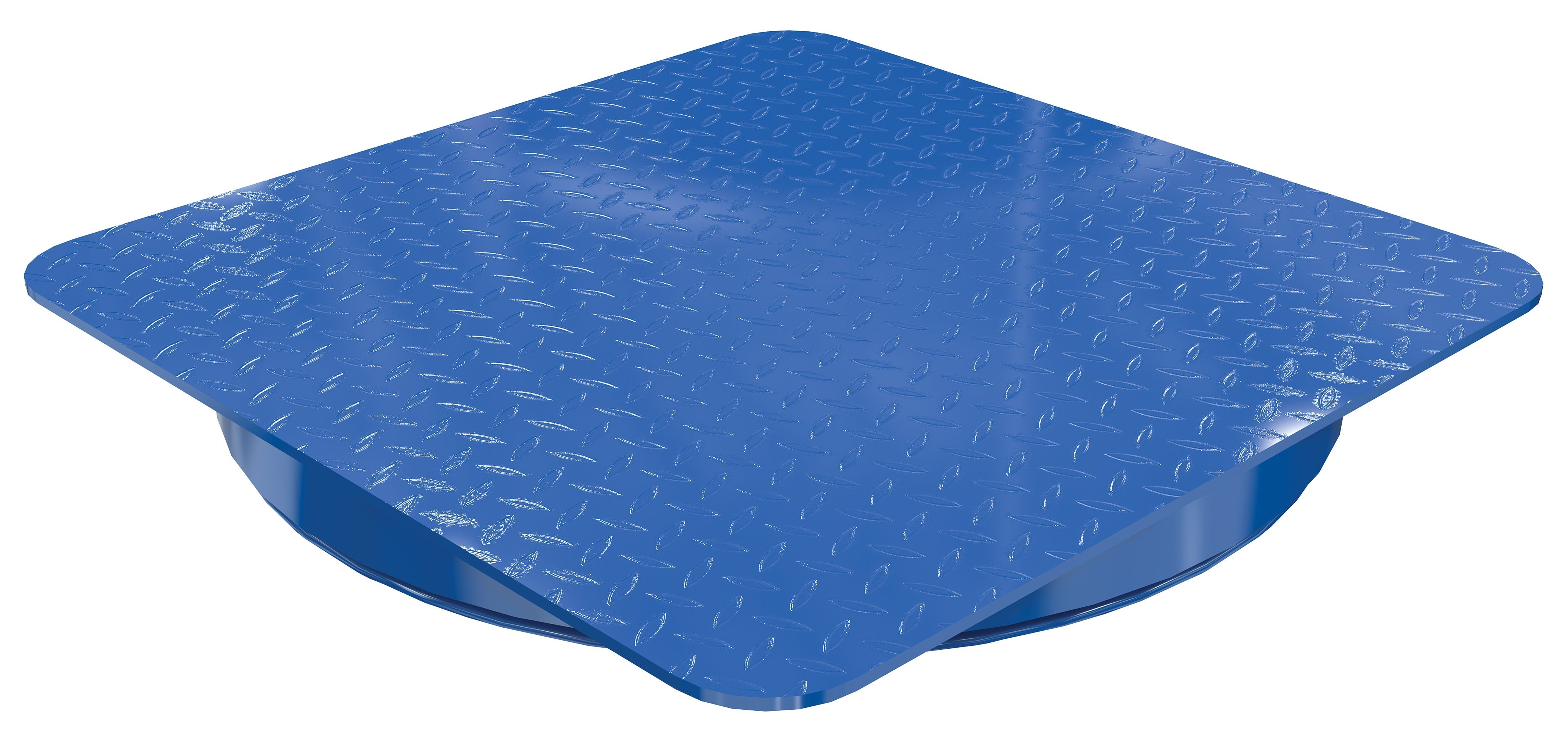

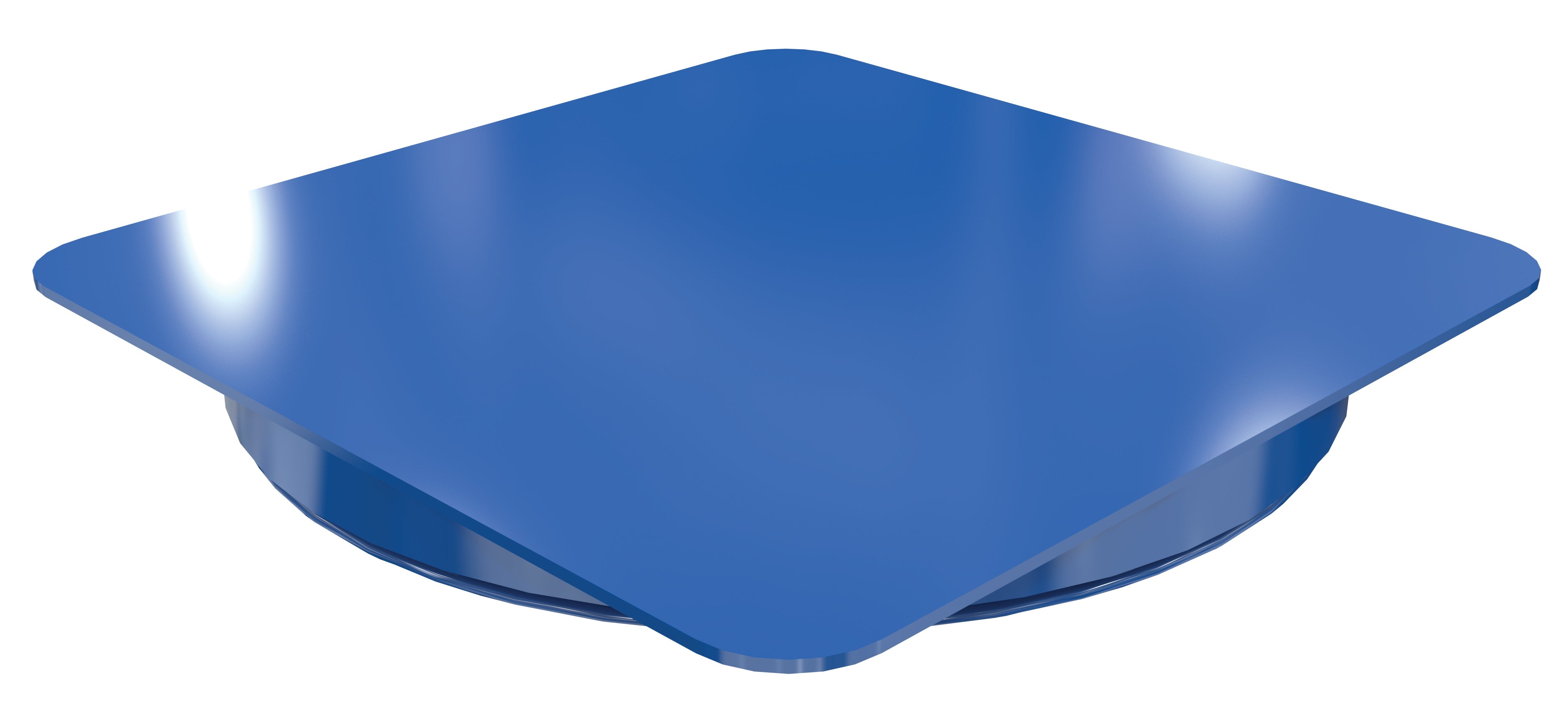

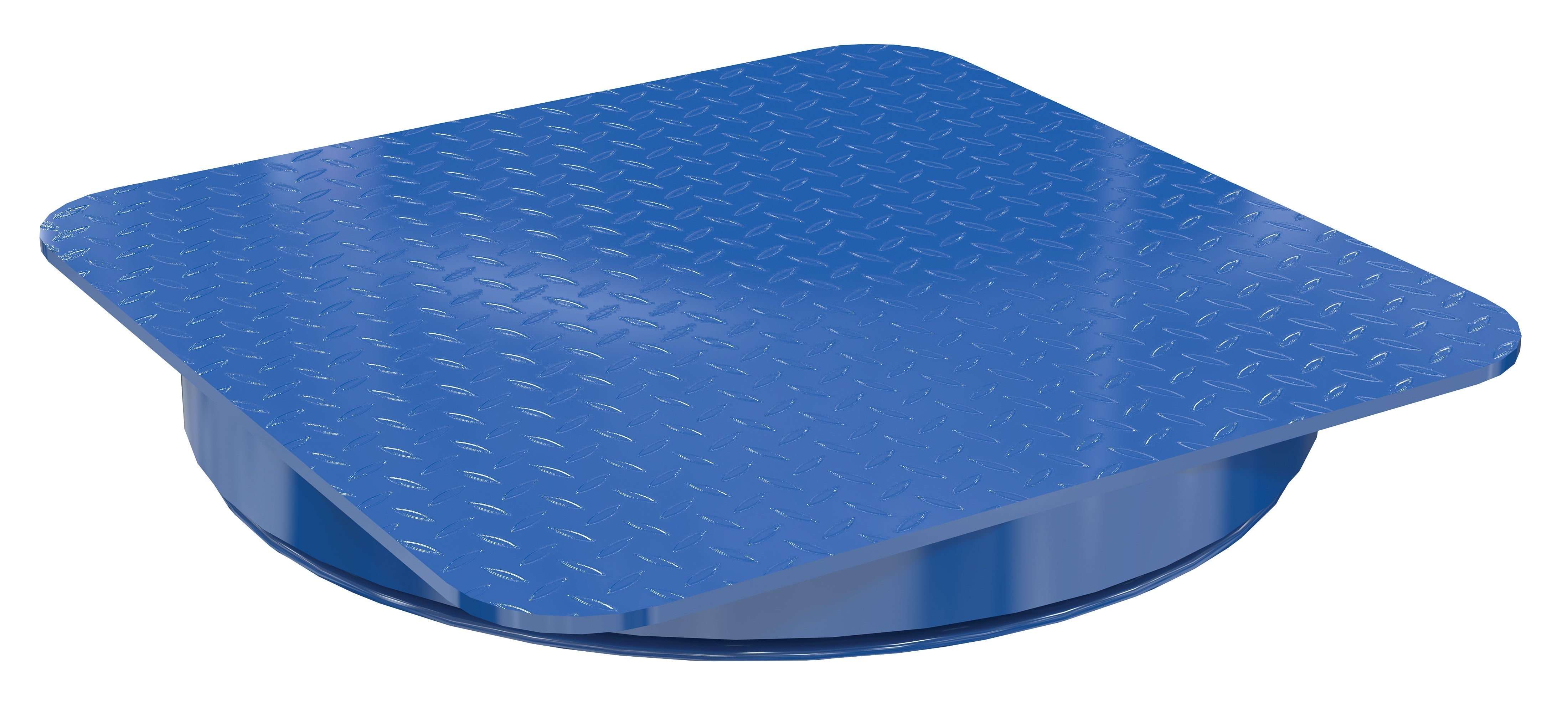

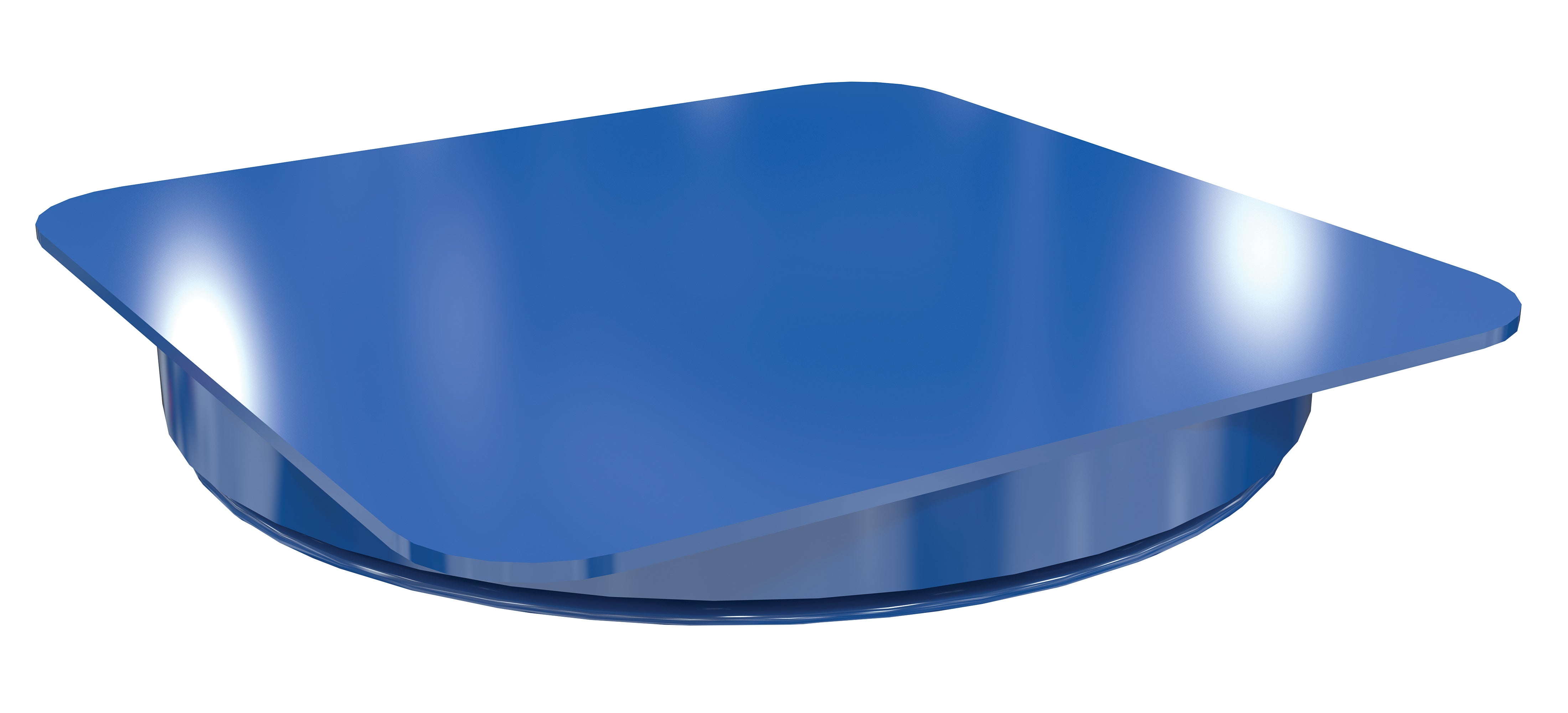

| CA-18-2-TP-STP | CA-18-2-TP-SSM | Square | 18"Wx18"L | 18" | 35 |
| CA-24-2-TP-STP | CA-24-2-TP-SSM | Square | 24"Wx24"L | 24" | 52 |
| CA-30-2-TP-STP | CA-30-2-TP-SSM | Square | 30"Wx30"L | 30" | 72 |
| CA-36-2-TP-STP | CA-36-2-TP-SSM | Square | 36"Wx36"L | 36" | 136 |
| CA-40-2-TP-STP | CA-40-2-TP-SSM | Square | 40"Wx40"L | 40" | 160 |
| CA-48-2-TP-STP | CA-48-2-TP-SSM | Square | 48"Wx48"L | 48" | 210 |
| CA-60-2-TP-STP | CA-60-2-TP-SSM | Square | 60"Wx60"L | 60" | 322 |
| CA-72-2-TP-STP | CA-72-2-TP-SSM | Square | 72"Wx72"L | 72" | 445 |
| Do not exceed the diameter of carousel when ordering top plates | |||||
| Top Plate & Top Ring are welded together. Contact factory for other fastening options. | |||||
| ELEVATED BASES FOR CAROUSELS - 12" HIGH | ||||
| Model | Overall Size (WxL) |
Capacity Up To (lbs) |
Wt. (lbs) |
|
| CA-BASE-18-12 | 18"x18" | 2,000 | 195 | |
| CA-BASE-24-12 | 24"x24" | 4,000 | 245 | |
| CA-BASE-30-12 | 30"x30" | 4,000 | 295 | |
| CA-BASE-36-12 | 36"x36" | 4,000 | 345 | |
| CA-BASE-40-12 | 40"x40" | 6,000 | 395 | |
| CA-BASE-48-12 | 48"x48" | 6,000 | 450 | |
| CA-BASE-60-12 | 60"x60" | 6,000 | 530 | |
| CA-BASE-72-12 | 72"x72" | 6,000 | 590 | |
| ELEVATED BASES FOR CAROUSELS - 24" HIGH | ||||
| Model | Overall Size (WxL) |
Capacity Up To (lbs) |
Wt. (lbs) |
|

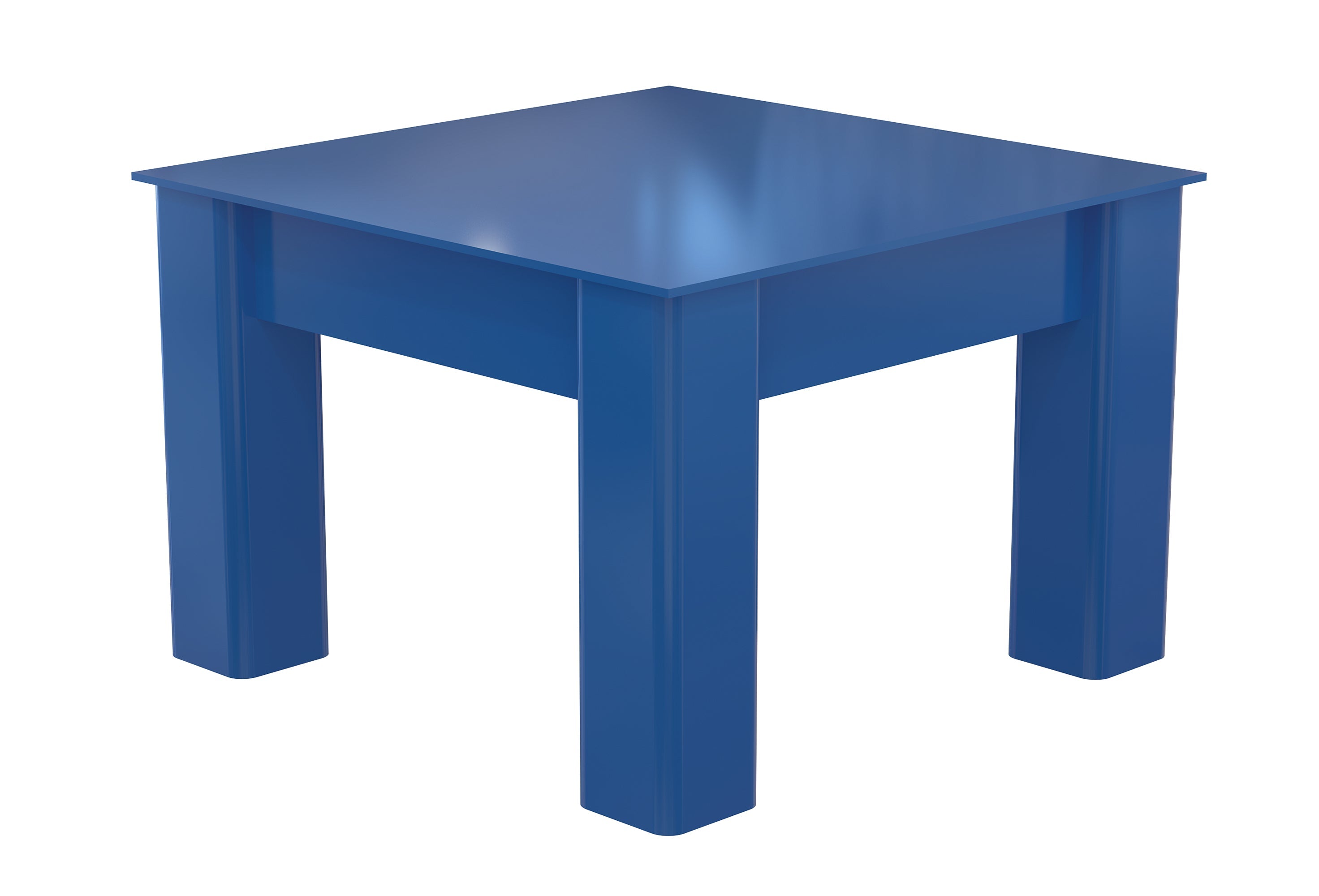

| CA-BASE-18-24 | 18"x18" | 2,000 | 330 | |
| CA-BASE-24-24 | 24"x24" | 4,000 | 380 | |
| CA-BASE-30-24 | 30"x30" | 4,000 | 430 | |
| CA-BASE-36-24 | 36"x36" | 4,000 | 460 | |
| CA-BASE-40-24 | 40"x40" | 6,000 | 510 | |
| CA-BASE-48-24 | 48"x48" | 6,000 | 565 | |
| CA-BASE-60-24 | 60"x60" | 6,000 | 645 | |
| CA-BASE-72-24 | 72"x72" | 6,000 | 705 | |
