Guard Load Arrestor - Stainless Steel
Guard Load Arrestor - Stainless Steel
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
Cable Material

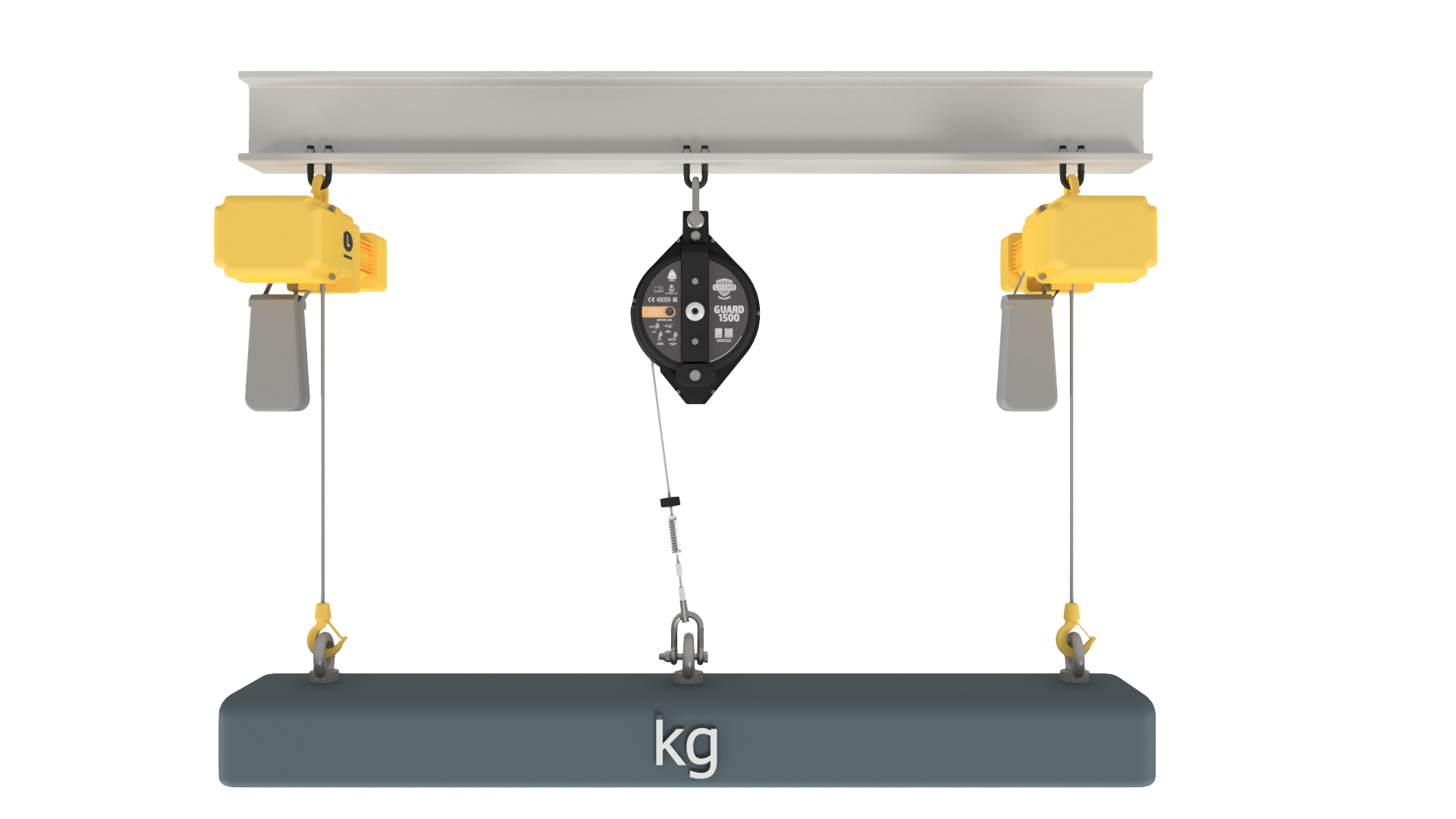

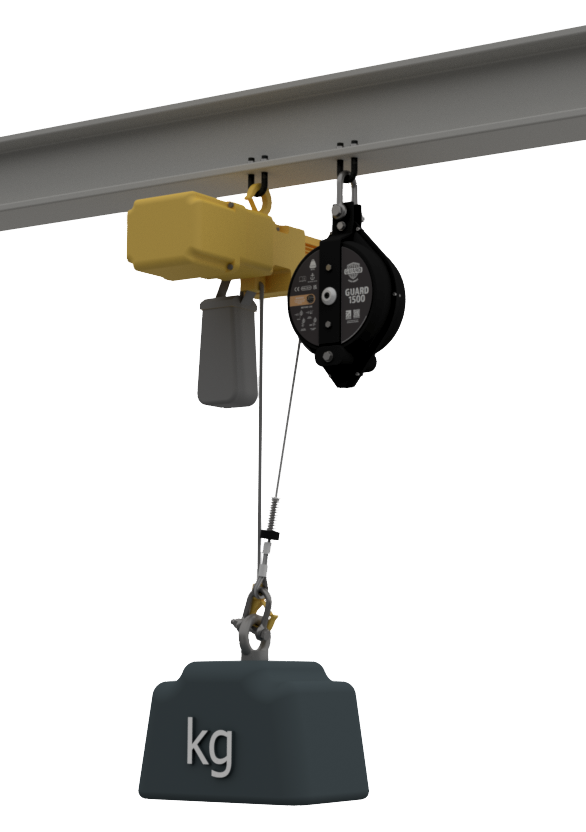

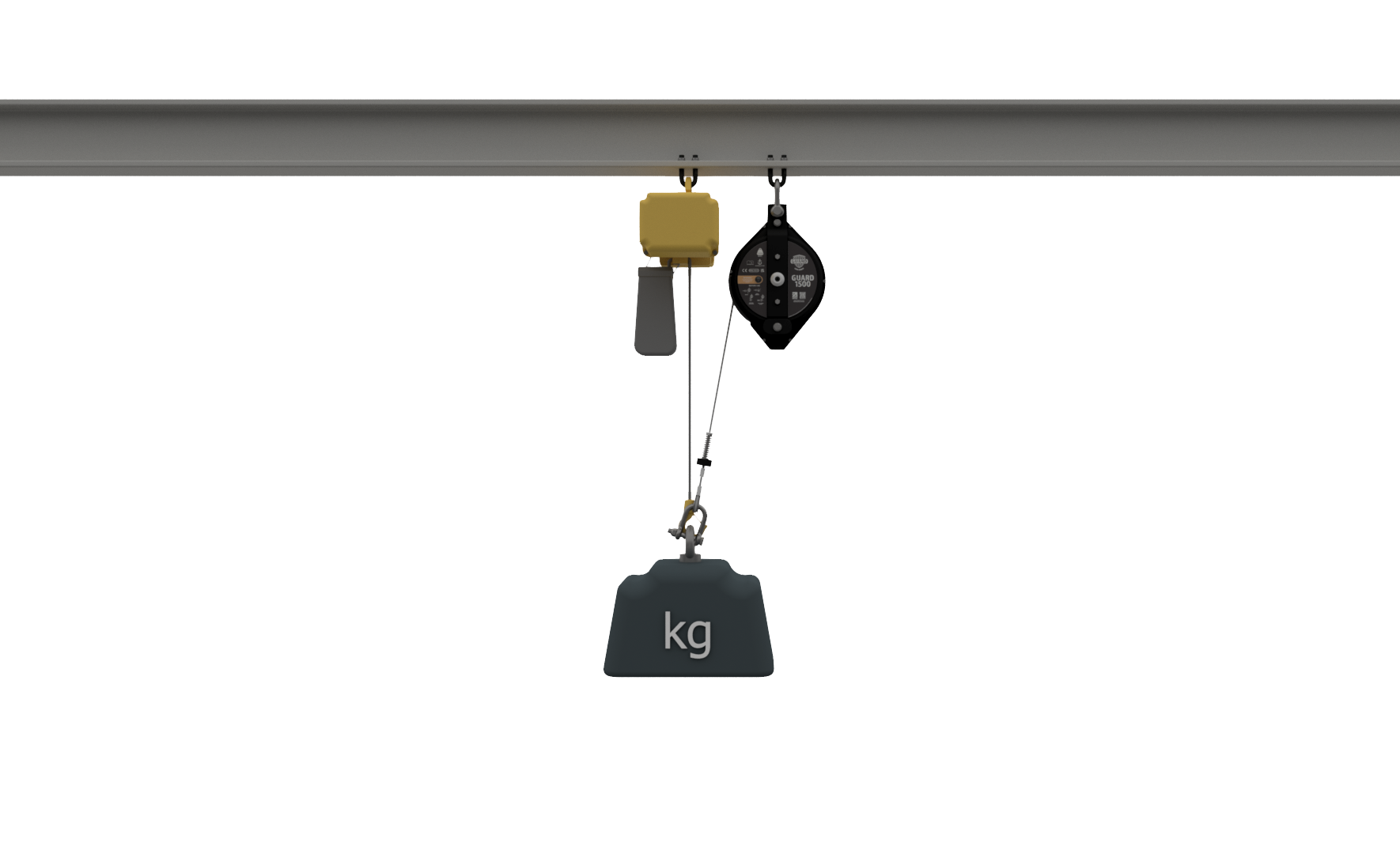

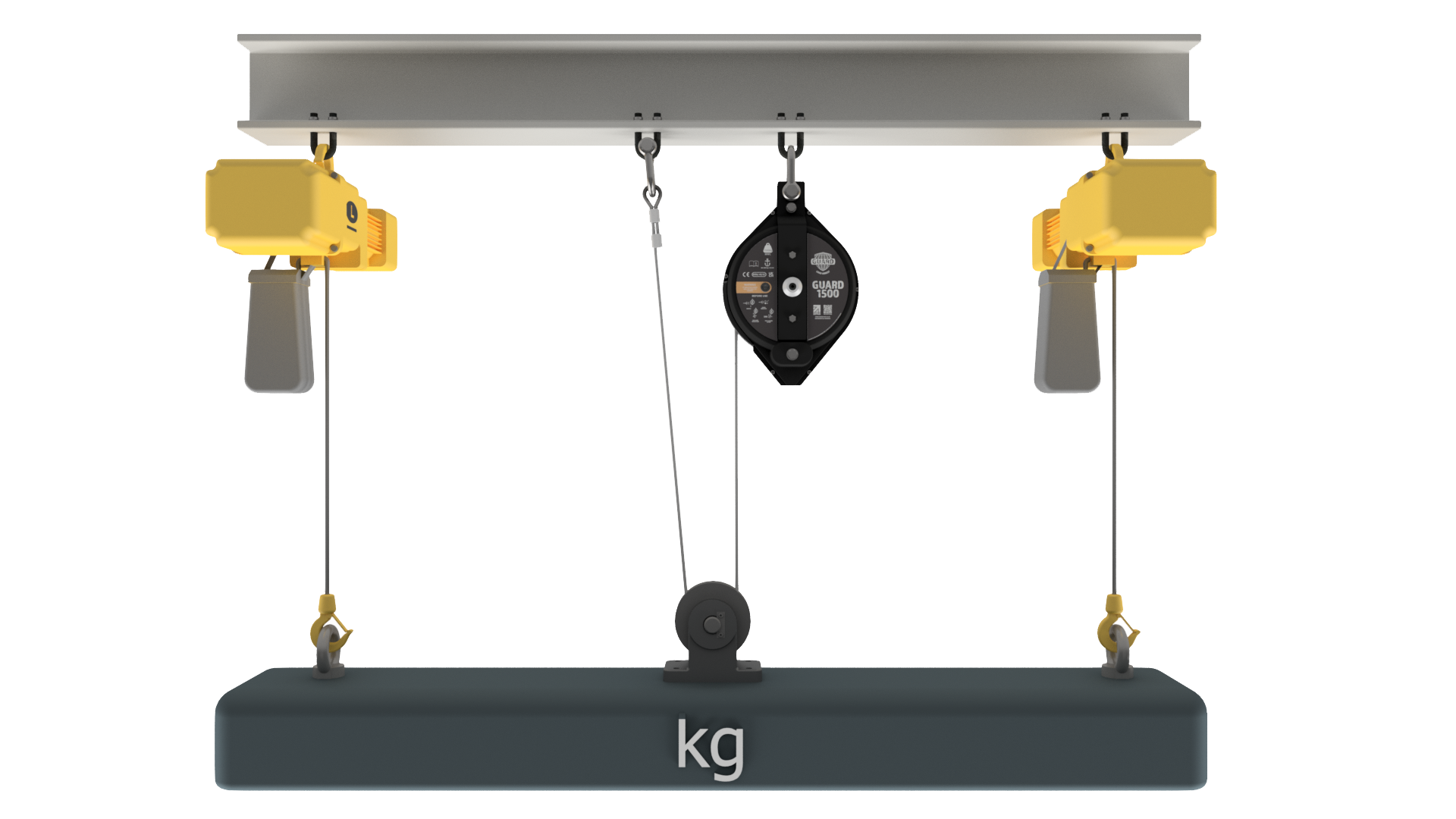

The Guard Load Arrestor with Stainless Steel Cable is a safety device designed to arrest a load in the event of a hoist failure. Suspending it next to a hoist (be sure not to hang the block from the hoist and always read the user manual) and connecting the cable to the load ensures that if the hoist brake fails, this device will kick in and arrest that load before it begins a rapid fall. This device is a reliable and safe way to prevent serious accidents and to remain compliant on your next lift project. The stainless steel cable is ideal in applications that require better weather/environmental resistance. Includes top & bottom shackle.
-
Guard Load Arrest Installation Form
-
Guard Load Arrest User Manual
-
Guard Load Arrest Brochure
-
Guard Load Arrest Events Brochure
-
Guard 150-14G Load Arrestor Drawing
-
Guard 300-10G Load Arrestor Drawing
-
Guard 300-25G Load Arrestor Drawing
-
Guard 500-10G Load Arrestor Drawing
-
Guard 500-24G Load Arrestor Drawing
-
Guard 800-10S Load Arrestor Drawing
-
Guard 1000-10G Load Arrestor Drawing
-
Guard 1500-10G Load Arrestor Drawing
Page 1 of 2
Name | Product Code | Maximum Working Load | Rope Length | Rope & Shackle Material | Maximum Anchor Strength | Maximum Running Speed | ||||
kg | lb | m | ft | kN | lbf | m s-1 | ft s-1 | |||
GUARD150 | GSE150-14G | 150 | 330 | 14 | 46 | Galvanised Steel | 7.4 | 1,663 | 1 | 3.28 |
GUARD150 | GSE150-14S | 150 | 330 | 14 | 46 | Stainless Steel | 7.4 | 1,663 | 1 | 3.28 |

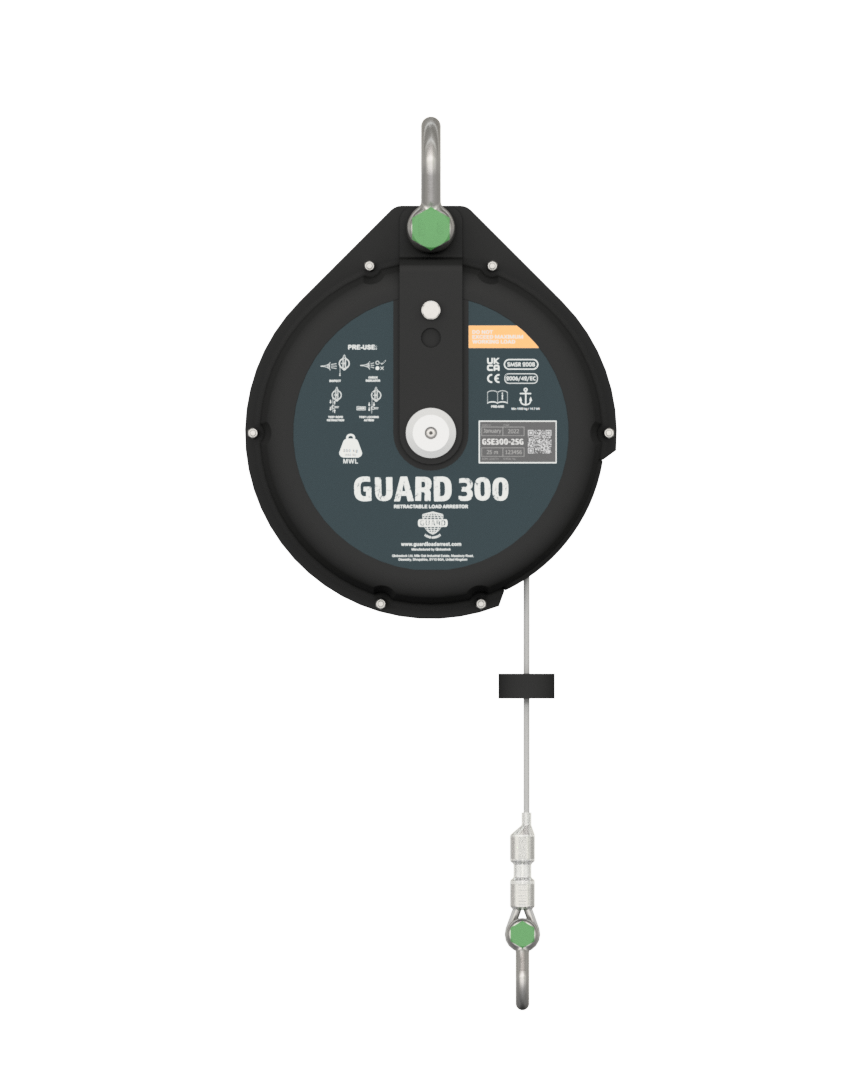

GUARD300 | GSE300-10G | 300 | 660 | 10 | 33 | Galvanised Steel | 14.1 | 3,169 | 0.7 | 2.297 |
GUARD300 | GSE300-10S | 300 | 660 | 10 | 33 | Stainless Steel | 14.1 | 3,169 | 0.7 | 2.297 |
GUARD300 | GSE300-25G | 300 | 660 | 25 | 82 | Galvanised Steel | 14.1 | 3,169 | 0.7 | 2.297 |
GUARD300 | GSE300-25S | 300 | 660 | 25 | 82 | Stainless Steel | 14.1 | 3,169 | 0.7 | 2.297 |
GUARD500 | GSE500-10S | 500 | 1,100 | 10 | 33 | Stainless Steel | 20.6 | 4,631 | 0.7 | 2.297 |
GUARD500 | GSE500-24S | 500 | 1,100 | 24 | 79 | Stainless Steel | 20.6 | 4,631 | 0.7 | 2.297 |
GUARD500 | GSE500-10G | 500 | 1,100 | 10 | 33 | Galvanised Steel | 20.6 | 4,631 | 0.7 | 2.297 |
GUARD500 | GSE500-24G | 500 | 1,100 | 24 | 79 | Galvanised Steel | 20.6 | 4,631 | 0.7 | 2.297 |

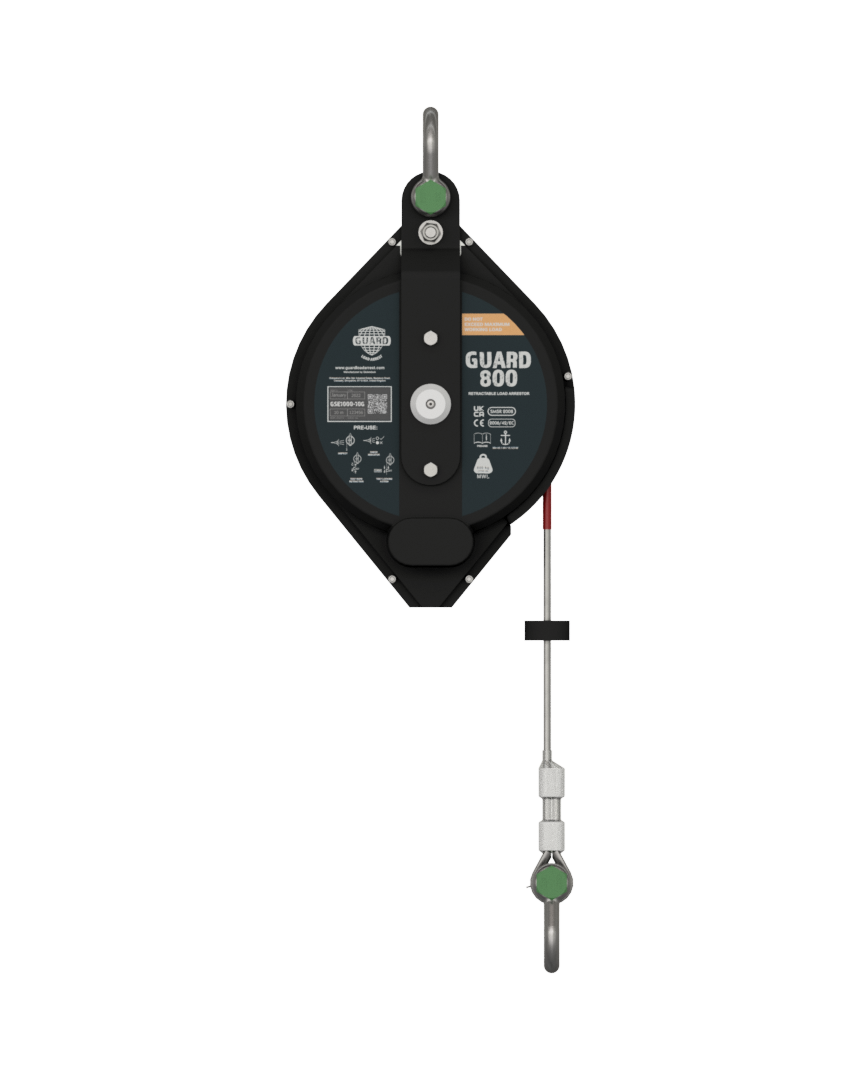

GUARD800 | GSE800-10S | 800 | 1,760 | 10 | 33 | Stainless Steel | 45.1 | 10,123 | 0.6 | 1.969 |
GUARD1000 | GSE1000-10G | 1000 | 2,200 | 10 | 33 | Galvanised Steel | 45.1 | 10,123 | 0.6 | 1.969 |
GUARD1500 | GSE1500-10G | 1500 | 3,300 | 10 | 33 | Galvanised Steel | 63.3 | 14,230 | 0.6 | 1.969 |
