Home / Lifting Equipment / Winches / Electric Winches / Thern Liberty Capstan Winch
Thern Liberty Capstan Winch
Thern Liberty Capstan Winch
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Delivers strength and high performance in a portable machine
- Lift and lower loads up to 1000lbs
- Great durability thanks to powder-coat finish and corrosion-resistant components
- Quiet operation for increased productivity
- 115v-1ph-60hz
- Includes foot-operated control
- Fixed or Swivel Mount (standard unit is fixed, advanced unit for use with tow hitch is swivel mount)
- Choose synthetic rope type and length in the drop-down menu
- Choose 1/2 inch or 3/4 inch rope diameter (they both fit)
Customers Also Bought
Thern Liberty Capstan Winch
When it comes to motorized Capstan Winches for forest, utilities, and other major installation and construction industries, Then have cracked their place in the market as THE BEST! This robustly manufactured American great enables quick and easy lifting and pulling in the field.
Available with a fixed mounting base (Fixed Mount) or a swiveling mounting base (Swivel Mount) which can be combined with Thern's Hitch Mount from the optional accessories range. -The Hitch Mount will enable you to mount your Capstan puller securely right on the tow hitch of your truck, it's universal and really easy to use. Many utility companies carry these as standard issue.
PRODUCT OPTIONS: Fixed or Swivel Mount?

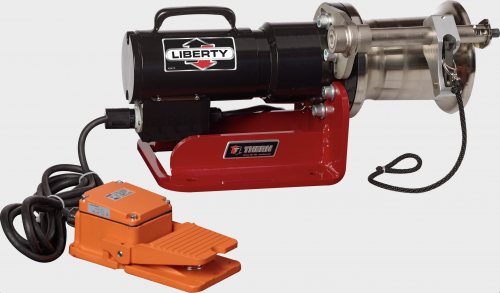

Fixed Mount: The base of this winch is fixed and when mounted you cannot swivel the unit

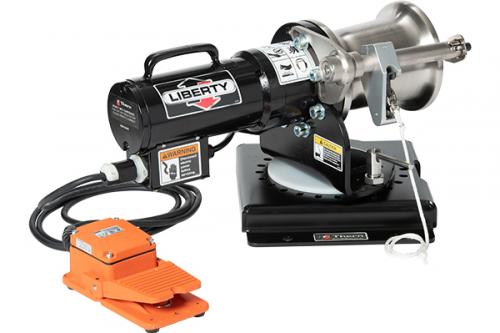

Swivel Mount: The base of this winch is incorporated into a swiveling frame where the user can adjust the rotation in 15-degree increments to align the rope with the load at hand. Secure locking is achieved with the included swivel stop. The ultimate portable design. *The swivel mount is the only model to work with the Capstan Tow Hitch.
Synthetic Rope Diameter x Length: Capstan winches are available alone or with an optional synthetic rope. The winch accepts 1/2" or 3/4" synthetic rope diameter (choose either) and you can select lengths from 300-1200ft within the product listing or larger here .
This Item Ships Direct, FAST!
Fixed Mount Swivel Mount
Premium Means Premium
The overall design and feel of the Liberty Capstan is premium. It's robust, durable and built with longevity in mind. You won't be disappointed.
Fitted with a superior electronic motor that offers quiet operation to enhance communication between your team, whilst being totally enclosed in a steel housing with a durable powder-coat finish means an easy life for you and a long life for the machine. Topped off by the maintenance-free permanently lubricated gearbox, this beast is going to provide you with efficient smooth winching for a very long time.
Easy To Use & Safe
A painted cast-iron footswitch (included) provides easy operation and is well sealed against the elements to NEMA 4 for outdoor use. Connected to a 10-foot cord with a twist-lock plug to avoid accidental disconnection. Then have pushed the boat out on every aspect of this model to ensure maximum efficiency and to really stand a cut above the rest.
Rope Keep: Both models feature an integral rope keep device which is spring-loaded to help prevent accidental removal of hand line from the drum, whist corrosion-resistant components ensure a long-lasting durable essential tool. The rope keep bar also serves as a carrying handle for added convenience.
Rope Lock : Both models feature an integral rope lock device that prevents unintentional lowering of loads.
Swivel frame models include an integrated locking mechanism to avoid accidental and unintentional swiveling.
Accessorize With The Thern Tow Hitch Mount
Only paired with the swivel-mount base which will allow the use of the Thern Capstan Tow Hitch, the tow hitch mount accessory enables users in the field to quickly convert their existing tow hitch point into a versatile winching mount. These are extremely popular items and provide sheer value for money.
We always aim to provide high quality, reliable, and exceptional products to end-users which is why we’re so pleased to be stocking The Liberty Capstan Winch by Thern Winches & Cranes which delivers strength and high performance in a portable machine. This means you can use the handles on the motor to carry it on the job if you require. Lifting and lowering loads reaching up to 1000lbs. With its durable powder-coat finish and corrosion-resistant components, the Liberty Capstan will operate for many years.
The Capstan Winch by Thern Winches & Cranes delivers portable strength and performance. More importantly, quiet operation enhances your team's communication for increased productivity in your business. Among other uses, it’s a great accompaniment for the elevator shaft and cell tower construction projects. The enclosed motor housing, powder-coat finish, and corrosion-resistant components ensure dependable operation for many years.
- Quiet Operation and Long Life
- 1,000 lb, Capacity (450 kg)
- Extremely Portable
- Enhanced Safety
- Increased Productivity
- Maintenance-Free
- Two-year Warranty
Optional Accessories Available Separately:
- Tow hitch mount (only works with swivel base)
- Lead blocks
| MODEL | MAXIMUM CAPACITY | ROPE DIAMETER RANGE** | MAXIMUM LINE SPEED RANGE*** | RATED CURRENT DRAW | INPUT VOLTAGE | SHIP WEIGHT | AMBIENT OPERATING TEMPERATURE RANGE | DUTY CYCLE | MOUNT TYPE |
|---|---|---|---|---|---|---|---|---|---|
| 3CP1S-AFS | 1,000 LBS 450 KG | ½–¾ IN 13–19 MM | 35–50 FPM 11–15 MPM | 15 AMP | 115V/1 Phase/50–60Hz | 76 LBS/34 KG | -4 °F–+105 °F -20°C–+40°C | 20 Minutes Full Load | Swivel |
| 3CP1M-AFS | 1,000 LBS 450 KG | ½–¾ IN 13–19 MM | 35–50 FPM 11–15 MPM | 15 AMP | 115V/1 Phase/50–60Hz | 64 LBS/29 KG | -4 °F–+105 °F -20°C–+40°C | 20 Minutes Full Load | Fixed |
