Home / Camlok CG Girder Turning Clamps

Camlok

Camlok CG Girder Turning Clamps

Camlok CG Girder Turning Clamps
Camlok CG Girder Turning Clamps
Camlok CG Girder Turning Clamps

Camlok CG Girder Turning Clamps

$1,505.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

  • Working Load Limit: 250lbs - 13,200lbs (model dependant)
  • High visibility yellow
  • Can be used on beams, fabrications, channels, rolled steel joists
  • Can lift & turn up to 90º
  • Fitted with spring-operated safety lock
  • Design factor 4:1

Customers Also Bought

Description

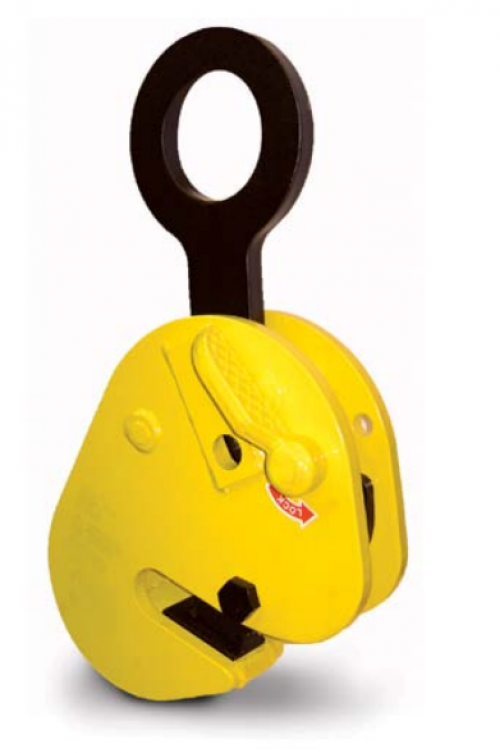

Perfectly designed to match the requirements of the heavy steel industry, Camlok 's CG Girder Turning Clamps provide a highly robust and reliable lifting solution.

Available in four maximum lifting capacities ( 2,200lbs, 4,400lbs, 8,800lbs, and 13,200lbs ) these quality general-purpose girder clamps can be utilized on beams, channels, and rolled steel joists - basically any fabrications up to a surface hardness of 300 Brinell (32HRc).

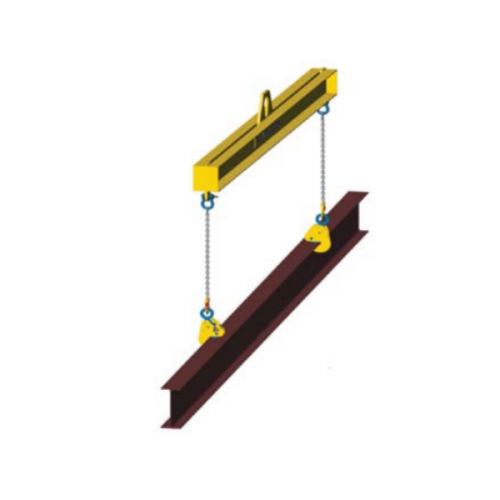

Manufactured with a design factor of 4:1, these girder turning clamps are capable of rotating up to 90 º and are designed to land the beam in either a vertical or horizontal position. NOTE: For longer girders and welded structures, two clamps and a lifting beam may be required.

To ensure optimal safety, each unit is fitted with a cam/spring-operated safety lock.

NOTE: These items should not be used above 250ºF

  • Working Load Limit: 250lbs - 13,200lbs (model dependant)
  • High visibility yellow
  • Can be used on beams, fabrications, channels, rolled steel joists
  • Can lift & turn up to 90º
  • Fitted with spring-operated safety lock
  • Design factor 4:1
