Camlok Horizontal Girder Clamp
Camlok Horizontal Girder Clamp
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Ideal for steel stockholders
- Design factor 4:1
- Use single or multiple clamps
- Lift and transport structural steel beams
- Fitted with Camlok safety lock
Customers Also Bought

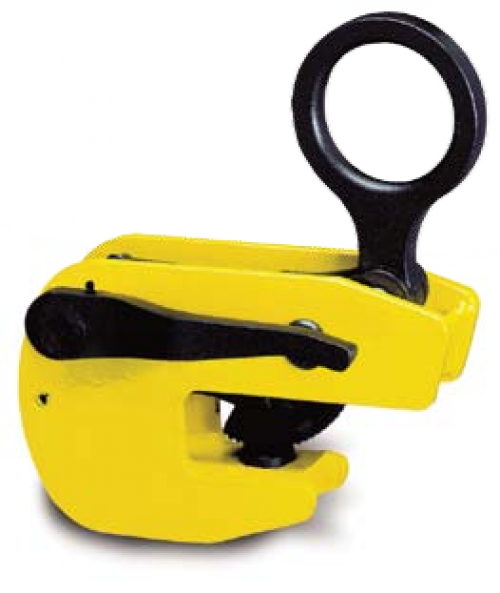

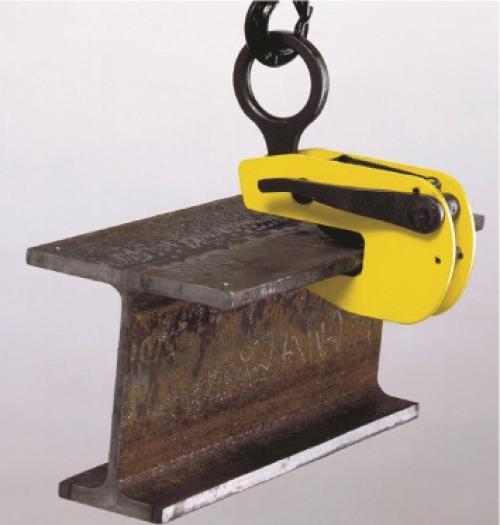

Camlok TTG Horizontal Girder Clamps facilitate easy lifting and transportation of steel beams in a horizontal position and have a working load limit from 200 to 16,500Lbs. Activated under load, the Camlok spring-loaded lock secures plates up to 1-3/4" thick.
A design factor of 4:1 provides a safe lift of steel up to 300 Brinell (32HRc) hardness. When using longer beams, two clamps can be used with longer lifting beams by attaching each clamp to opposite sides of the beam flanges.
- Made in the UK
- Spring-operated Camlok safety lock
- A minimum load is required to activate the jaw lock
- For beams in the horizontal position
- Perfect for steel stockists and those handling horizontal I-beams

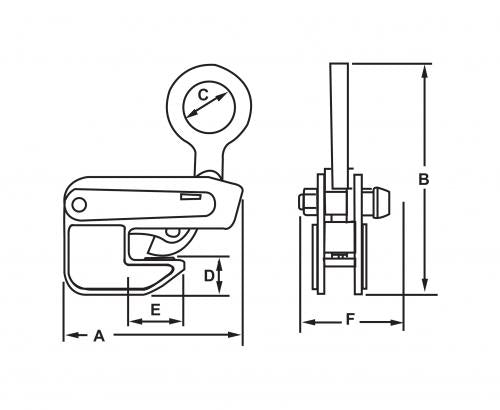

Model | WLL (lbs) | Plate Thickness (in.) | Weight (lbs.) |
---|---|---|---|
TTG1500 | 200-3,300 | 0-1-1/8 | 12.1 |
TTG3000 | 350-6,600 | 0-1-3/8 | 24.3 |
TTG4500 | 1,000-9,900 | 0-1-1/2 | 32.0 |
TTG7500 | 1,650-16,500 | 0-1-3/4 | 61.7 |
