CM Adjustable Trolley Clamp

CM Adjustable Trolley Clamp
CM Adjustable Trolley Clamp

CM Adjustable Trolley Clamp


Typically Ships In: 5 Business Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

  • Metric rated
  • Capacities up to 6600Lbs (3Ton)
  • Up to 12-1/2" I-Beam size
  • Zinc plated spindle for added corrosion resistance
  • Locking nut keeps spindle tight and secure
  • No tools required for installation
  • Perfect for rental fleets

Customers Also Bought


Features & Specification

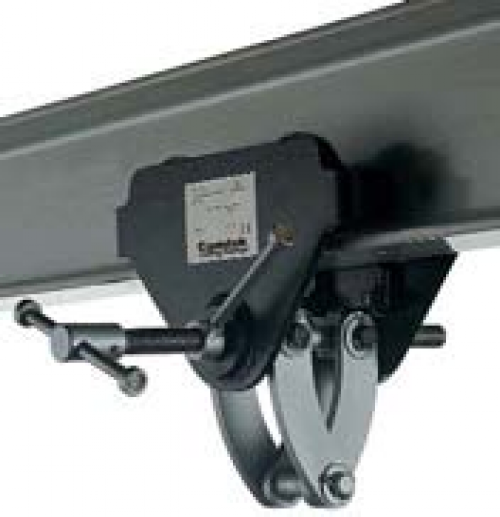

CM's CTP Adjustable Trolley Clamp requires no tools for installation and is an ultimate hybrid between a manual push/pull trolley and a static beam clamp. Incorporating the horizontal traverse function with the ability to hook large hoists in the opposite orientation, the CM Adjustable Trolley Clamp is perfect for rental fleets since they install and remove extremely fast.

Security isn't an issue since the locking nut with handy handle ensures the spindle remains tight and secure. Capacities up to 6600Lbs (3Tons) suffice most on site requirements whilst the zinc plated spindle adds a layer of protection to the great outdoors.

  • Corrosion Resistant zinc-plated spindle
  • Metric rated
  • Fast installation
  • Easy to use
  • Safe and secure
Product Code Model Capacity I-Beam Width Minimum Radius Curve Wheel Diameter
0500024 CTP/A 1T 2200Lbs (1Ton) 2-1/4" to 6" 24" 2.36"
0500025 CTP/A 2T 4400Lbs (2Ton) 3" to 7-7/8" 35" 3.27"
0500026 CTP/B 2T 4400Lbs (2Ton) 7-7/8" to 11-7/8" 35" 3.27"
0500027 CTP/A 3T 6600Lbs (3Ton) 3" to 7-7/8" 45" 4.37"
0500028 CTP/B 3T 6600Lbs (3Ton) 7-7/8" to 12-1/2" 45" 4.37"
