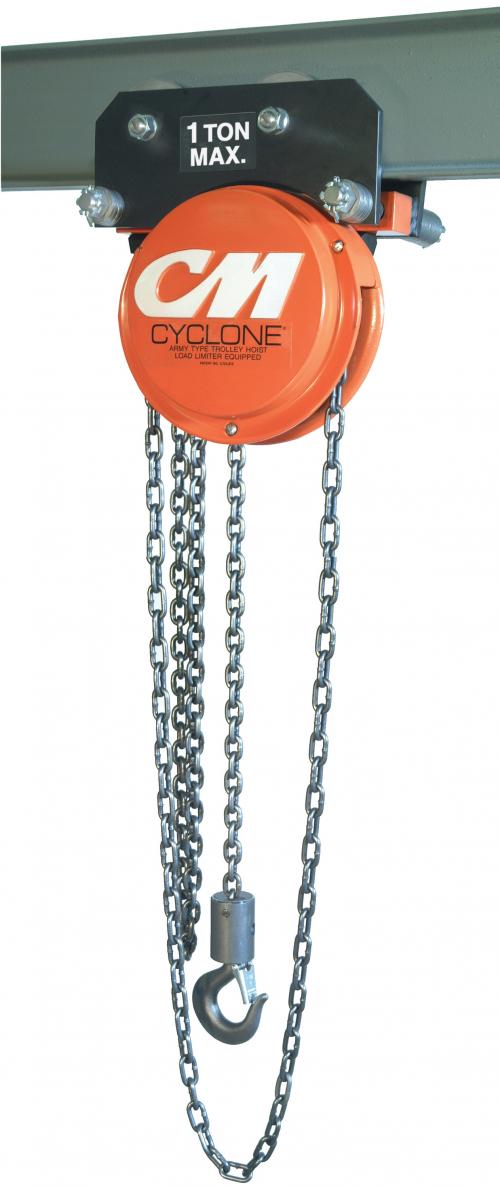

CM Cyclone Hand Chain Hoist with Army-Type Trolley

CM Cyclone Hand Chain Hoist with Army-Type Trolley

Trolley Type, Capacity, Lift:

$2,989.00

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Army-type beam trolley
Push or geared trolley (choose from the menu)
Superior engineering
Inspected over 75 times
Weston-type automatic brake
High efficiency
High Strength aluminum castings
Lifetime warranty
Metric rated
Made in the USA

Customers Also Bought

Description

Features & Specification

CM Cyclone Hand Chain Hoists are amongst the best quality and build in the world when it comes to chain blocks and pulleys. This truly is a premium model; made in the USA, aluminum cast frame and covers, easily interchangeable parts, positive load control thanks to a Weston-type automatic brake that allows for accurate and precise load control and it's all backed up by CM's lifetime warranty.

Not to mention, the CM Cyclone Chain Hoist is inspected over 75 times to meet or exceed HMI and ASME/ANSI performance and safety standards.

This series is fitted with an Army-type plain or geared trolley (you choose using the drop-down menu and specification table).

Push/pull or geared trolley
Spur gearing provides high efficiency
Fully machined, forged liftwheel
Safety catches
Hand operated- no need for power
Supreme quality
Reliable and superbly engineered

Download Manuals

CM Cyclone Army Trolley Brochure

Prouct Code	Trolley Type, Capacity, Lift	Reeving	Headroom (in.)	Weight (lbs.)
4541	Army-Type Geared Trolley, 1/4T, 10' Lift	1	11.81	110
4778	Army-Type Geared Trolley, 1/4T, 15' Lift	1	11.81	110
4806	Army-Type Geared Trolley, 1/4T, 20' Lift	1	11.81	110
4542	Army-Type Geared Trolley, 1/2T, 10' Lift	1	11.81	110
4779	Army-Type Geared Trolley, 1/2T, 15' Lift	1	11.81	110
4808	Army-Type Geared Trolley, 1/2T, 20' Lift	1	11.81	110
4544	Army-Type Geared Trolley, 1T, 10' Lift	1	11.81	133
4780	Army-Type Geared Trolley, 1T, 15' Lift	1	11.81	133
4814	Army-Type Geared Trolley, 1T, 20' Lift	1	11.81	133
4545	Army-Type Geared Trolley, 1-1/2T, 10' Lift	1	15.31	168
4781	Army-Type Geared Trolley, 1-1/2T, 15' Lift	1	15.31	168
4815	Army-Type Geared Trolley, 1-1/2T, 20' Lift	1	15.31	168
4546	Army-Type Geared Trolley, 2T, 10' Lift	1	15.31	168
4782	Army-Type Geared Trolley, 2T, 15' Lift	1	15.31	168
4816	Army-Type Geared Trolley, 2T, 20' Lift	1	15.31	168
4547	Army-Type Geared Trolley, 3T, 10' Lift	2	18.88	237
4783	Army-Type Geared Trolley, 3T, 15' Lift	2	18.88	237
4817	Army-Type Geared Trolley, 3T, 20' Lift	2	18.88	237
4548	Army-Type Geared Trolley, 4T, 10' Lift	2	18.88	237
4784	Army-Type Geared Trolley, 4T, 15' Lift	2	18.88	237
4818	Army-Type Geared Trolley, 4T, 20' Lift	2	18.88	237
4549	Army-Type Geared Trolley, 5T, 10' Lift	3	23.5	310
4785	Army-Type Geared Trolley, 5T, 15' Lift	3	23.5	310
4819	Army-Type Geared Trolley, 5T, 20' Lift	3	23.5	310
4550	Army-Type Geared Trolley, 6T, 10' Lift	3	24	315
4786	Army-Type Geared Trolley, 6T, 15' Lift	3	24	315
4820	Army-Type Geared Trolley, 6T, 20' Lift	3	24	315
4551	Army-Type Geared Trolley, 8T, 10' Lift	4	28.25	601
4787	Army-Type Geared Trolley, 8T, 15' Lift	4	28.25	601
4821	Army-Type Geared Trolley, 8T, 20' Lift	4	28.25	601
4552	Army-Type Geared Trolley, 10T, 10' Lift	5	28.25	611
4788	Army-Type Geared Trolley, 10T, 15' Lift	5	28.25	611
4822	Army-Type Geared Trolley, 10T, 20' Lift	5	28.25	611
4553	Army-Type Geared Trolley, 12T, 10' Lift	6	30.38	1098
4789	Army-Type Geared Trolley, 12T, 15' Lift	6	30.38	1098
4823	Army-Type Geared Trolley, 12T, 20' Lift	6	30.38	1098
4521	Army-Type Plain Trolley, 1/4T, 10' Lift	1	11.75	68
4766	Army-Type Plain Trolley, 1/4T, 15' Lift	1	11.75	68
4790	Army-Type Plain Trolley, 1/4T, 20' Lift	1	11.75	68
4522	Army-Type Plain Trolley, 1/2T, 10' Lift	1	11.75	68
4767	Army-Type Plain Trolley, 1/2T, 15' Lift	1	11.75	68
4791	Army-Type Plain Trolley, 1/2T, 20' Lift	1	11.75	68
4524	Army-Type Plain Trolley, 1T, 10' Lift	1	11.75	81
4768	Army-Type Plain Trolley, 1T, 15' Lift	1	11.75	81
4792	Army-Type Plain Trolley, 1T, 20' Lift	1	11.75	81
4525	Army-Type Plain Trolley, 1-1/2T, 10' Lift	1	15.31	140
4769	Army-Type Plain Trolley, 1-1/2T, 15' Lift	1	15.31	140
4793	Army-Type Plain Trolley, 1-1/2T, 20' Lift	1	15.31	140
4526	Army-Type Plain Trolley, 2T, 10' Lift	1	15.31	140
4770	Army-Type Plain Trolley, 2T, 15' Lift	1	15.31	140
4794	Army-Type Plain Trolley, 2T, 20' Lift	1	15.31	140
4527	Army-Type Plain Trolley, 3T, 10' Lift	2	18.88	189
4771	Army-Type Plain Trolley, 3T, 15' Lift	2	18.88	189
4795	Army-Type Plain Trolley, 3T, 20' Lift	2	18.88	189
4528	Army-Type Plain Trolley, 4T, 10' Lift	2	18.88	189
4772	Army-Type Plain Trolley, 4T, 15' Lift	2	18.88	189
4796	Army-Type Plain Trolley, 4T, 20' Lift	2	18.88	189
4529	Army-Type Plain Trolley, 5T, 10' Lift	3	23.5	278
4773	Army-Type Plain Trolley, 5T, 15' Lift	3	23.5	278
4797	Army-Type Plain Trolley, 5T, 20' Lift	3	23.5	278
4530	Army-Type Plain Trolley, 6T, 10' Lift	3	24	283
4774	Army-Type Plain Trolley, 6T, 15' Lift	3	24	283
4798	Army-Type Plain Trolley, 6T, 20' Lift	3	24	283
4531	Army-Type Plain Trolley, 8T, 10' Lift	4	28.25	526
4775	Army-Type Plain Trolley, 8T, 15' Lift	4	28.25	526
4799	Army-Type Plain Trolley, 8T, 20' Lift	4	28.25	526
4532	Army-Type Plain Trolley, 10T, 10' Lift	5	28.25	535
4776	Army-Type Plain Trolley, 10T, 15' Lift	5	28.25	535
4800	Army-Type Plain Trolley, 10T, 20' Lift	5	28.25	535
4533	Army-Type Plain Trolley, 12T, 10' Lift	6	30.38	1068
4777	Army-Type Plain Trolley, 12T, 15' Lift	6	30.38	1068
4805	Army-Type Plain Trolley, 12T, 20' Lift	6	30.38	1068
