Home / CM Galvanized Alloy Anchor Shackles With Bolt, Nut & Cotter Pin

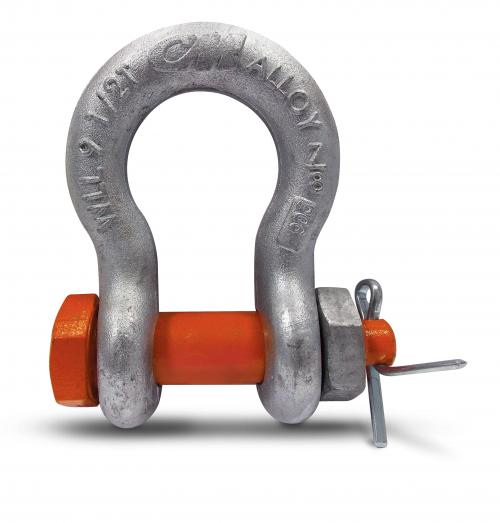

CM Galvanized Alloy Anchor Shackles With Bolt, Nut & Cotter Pin
CM Galvanized Alloy Anchor Shackles With Bolt, Nut & Cotter Pin

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help
Quick Overview:
- 3/8" to 3" Size
- 2T to 120T Capacity
- Galvanized finish
- Orange quenched and tempered 'Bolt, Nut & Cotter Pin' type fitting
- Anchor shackle design
- Made in the USA
Customers Also Bought
Boasting capacities up to 120T, a 5:1 design factor and the fact they're made from domestic Special Bar Quality (SBQ) steel with fine grain, reduced sulfur and phosphorous is what really makes these CM shackles stand apart from the rest. CM Galvanized Alloy Anchor Shackles With Bolt, Nut & Cotter Pin feature alloy quenched and tempered pins that offer optimum hardness for strength and ductility. Full traceability is achieved through permanent markings on the body of the shackle.
The galvanized finish offers resistance against the elements without being brittle whilst the steel alloy enables the material to show major deformation prior to failure.
- Permanent Working Load Limit (WLL) and traceability codes
- Standard industry tolerances apply
- Meets the dimensional, marking and performance requirements of RR-C-271
- 5:1 design factor
- Shackles display major deformation prior to failure

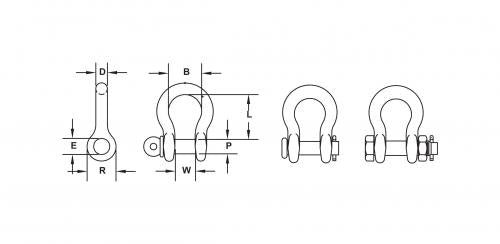

PRODUCT NUMBER | WORKING LOAD LIMIT (Ton) | SIZE (IN) | PIN TYPE |
---|---|---|---|
M848AG | 2 | 3/8 | Bolt, Nut & Cotter Pin |
M849AG | 2.6 | 7/16 | Bolt, Nut & Cotter Pin |
M850AG | 3.3 | 1/2 | Bolt, Nut & Cotter Pin |
M851AG | 5 | 5/8 | Bolt, Nut & Cotter Pin |
M852AG | 7 | 3/4 | Bolt, Nut & Cotter Pin |
M853AG | 9.5 | 7/8 | Bolt, Nut & Cotter Pin |
M854AG | 12.5 | 1 | Bolt, Nut & Cotter Pin |
M855AG | 15 | 1-1/8 | Bolt, Nut & Cotter Pin |
M856AG | 18 | 1-1/4 | Bolt, Nut & Cotter Pin |
M866AG | 21 | 1-3/8 | Bolt, Nut & Cotter Pin |
M857AG | 30 | 1-1/2 | Bolt, Nut & Cotter Pin |
M885AG | 35 | 1-5/8 | Bolt, Nut & Cotter Pin |
M877AG | 34 | 1-3/4 | Bolt, Nut & Cotter Pin |
M858AG | 50 | 2 | Bolt, Nut & Cotter Pin |
MC860AG | 85 | 2-1/2 | Bolt, Nut & Cotter Pin |
MC862AG | 120 | 3 | Bolt, Nut & Cotter Pin |
