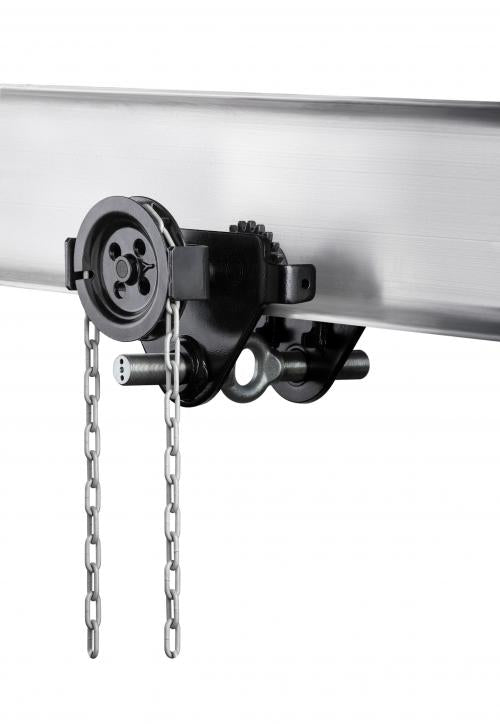

CM HTG Geared Beam Trolley
CM HTG Geared Beam Trolley
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- Screw-type geared trolley
- Fits most CM hoists
- Installed in seconds
- Includes clevis
- Choose 1/2t - 20t capacity
- Choose up to 12.21in flange width
- Standard 15ft hand chain drop (other sizes on request)
Customers Also Bought
CM HTG Geared Beam trolleys are easy to rig using their screw-type clevis eye. Offering capacities up 20Ton and an optional wider beam flange (select from the drop-down menu).
Universally compatible with nearly every CM hoist, the HTG Geared Beam Trolley features anti-drop plates as standard for added safety.
| Model | Product Code | Capacity (ton) | Min. Flange Width (in) | Max. Flange Width (in) | Flange Thickness (in) | Min. Radius (in) | Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| HTG500 | HTG050A | 1/2 | 1.97 | 8.67 | 0.99 | 35.43 | 21 |
| HTG1000 | HTG0100A | 1 | 1.97 | 8.67 | 0.99 | 35.43 | 25 |
| HTG2000 | HTG0200A | 2 | 2.60 | 8.67 | 0.99 | 45.28 | 40 |
| HTG3000 | HTG0300A | 3 | 2.92 | 8.67 | 0.99 | 55.12 | 78 |
| HTG5000 | HTG0500A | 5 | 3.55 | 8.67 | 0.99 | 70.87 | 114 |
| HTG500 | HTG0500B | 1/2 | 6.30 | 11.82 | 1.58 | 35.43 | 28 |
| HTG1000 | HTG0100B | 1 | 6.30 | 11.82 | 1.58 | 35.43 | 31 |
| HTG2000 | HTG0200B | 2 | 6.30 | 11.82 | 1.58 | 45.28 | 47 |
| HTG3000 | HTG0300B | 3 | 6.30 | 11.82 | 1.58 | 55.12 | 86 |
| HTG5000 | HTG0500B | 5 | 7.09 | 11.82 | 1.58 | 70.87 | 123 |
| HTG10000B | HTG1000B | 10 | 4.93 | 12.21 | 1.58 | 70.87 | 229 |
| HTG20000B | HTG2000B | 20 | 4.93 | 12.21 | 1.58 | 196.85 | 507 |
