Home / CM Tornado 360 Ratchet Lever Hoist

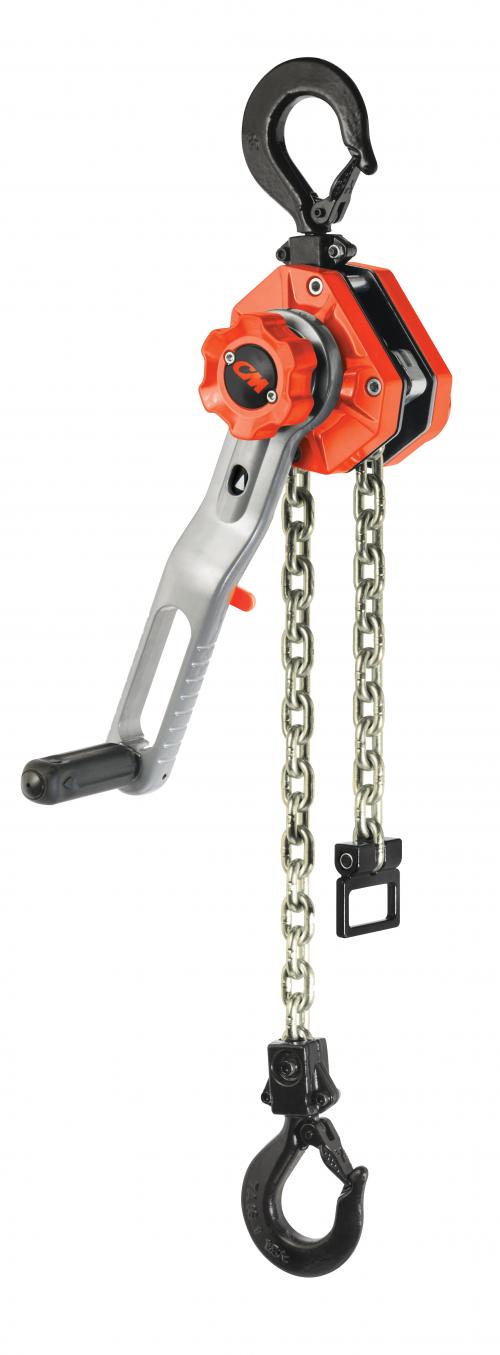

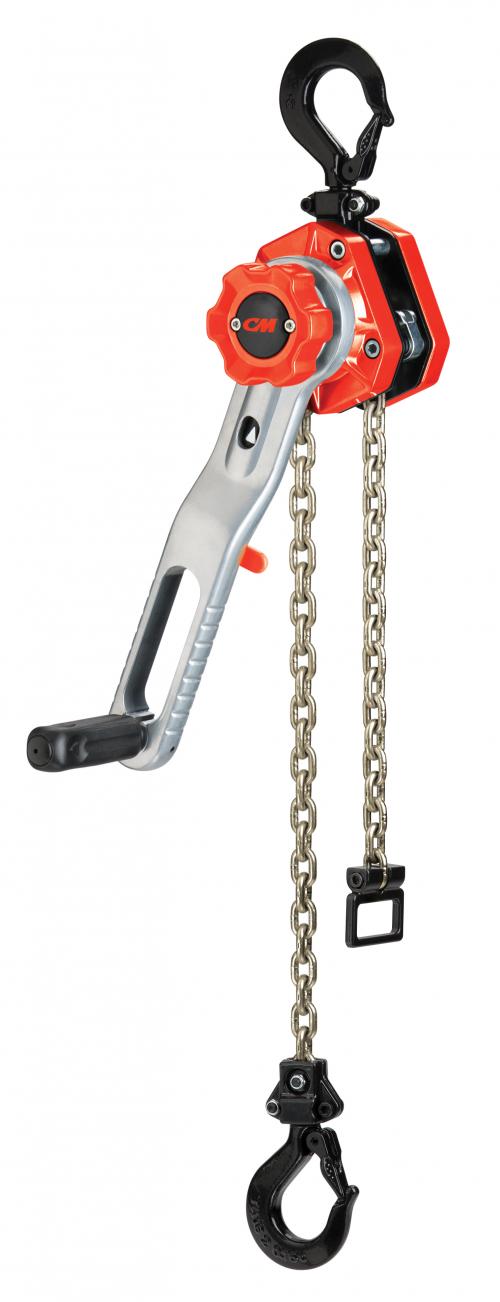

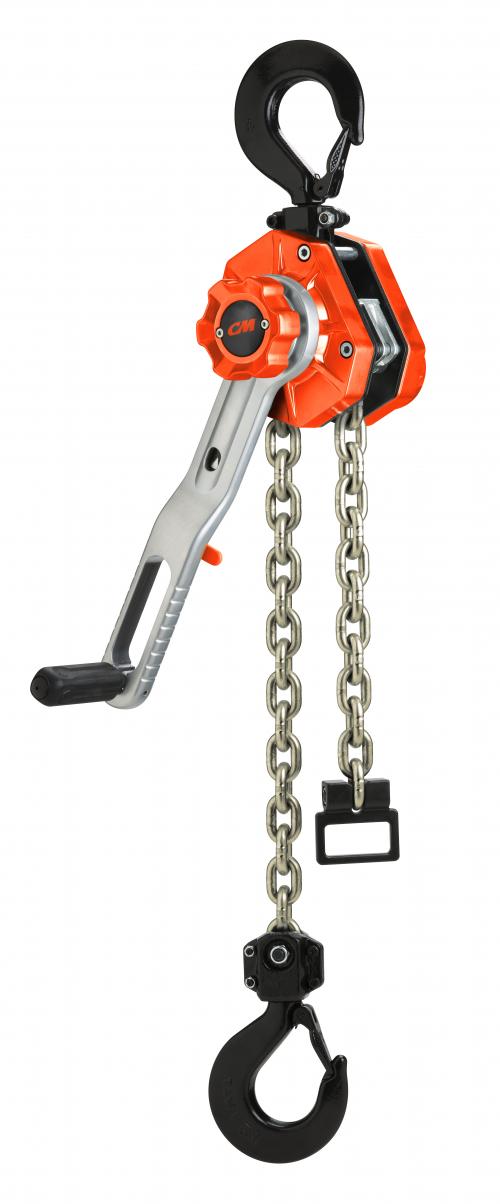

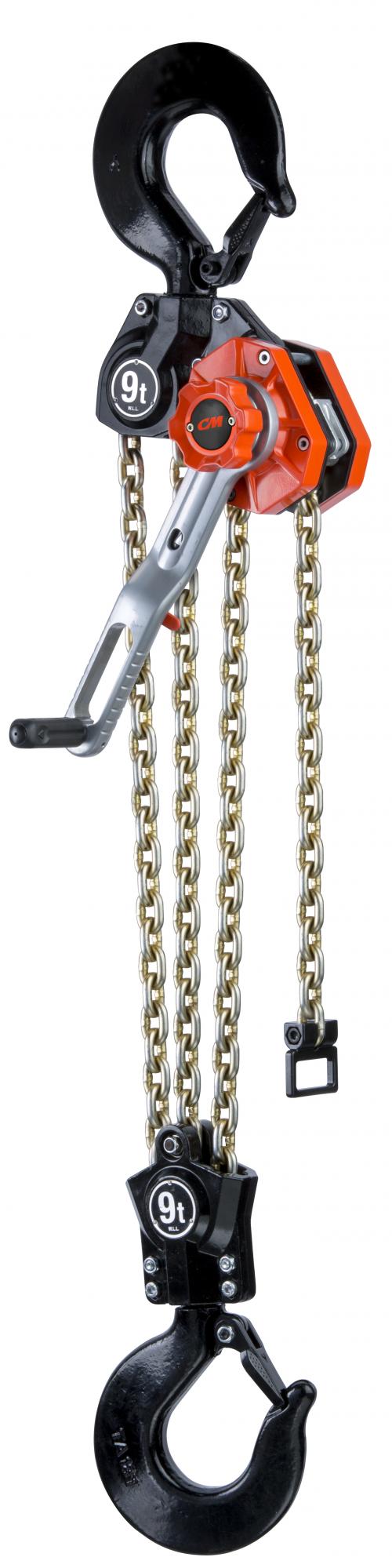

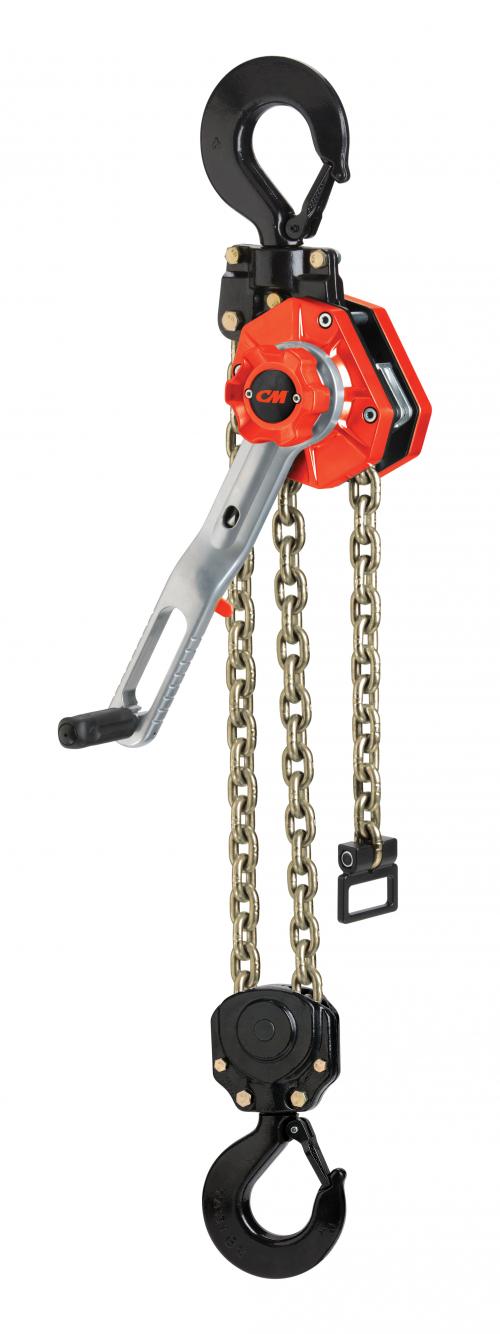

CM Tornado 360 Ratchet Lever Hoist
CM Tornado 360 Ratchet Lever Hoist
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- 360˚ Rotating Sidewinder™ lever
- Fold-out handle
- Lightweight aluminum design
- Free chaining
- Corrosion resistant
- Easy to inspect
- 3 Year brake warranty
Customers Also Bought
Redefining the Lever Hoist
Innovative 360˚ Rotating Lever Hoists from CM, the Tornado 360 Ratchet Lever Hoists feature a unique Sidewinder™ lever with a fold-out handle that when operated provides a positive clicking indication, easy change of direction and free chaining. An increased productivity is achieved with the ability to wind the handle lever 360˚ whilst reducing the risk of operator injury- just some of the advanced features of this hoist.

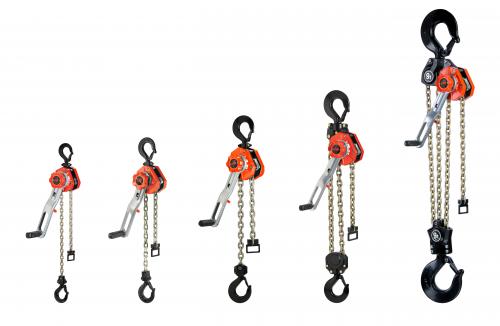

Available in capacities from 20,160Lbs to 13,440Lbs with the standard lifting height from 5ft. Lever hoists are normally used to lift, tension and pull loads in a variety of industries and applications from industrial and utilities to entertainment and agriculture- a truly unique and versatile tool.
Essential Efficiency
A reduced pull force of up to 30% is required by the operator which reduces risk of fatigue and repetitive strain injury. With the fold-up handle in the 'up' position the Tornado Lever Hoist can be used like a traditional Ratchet Lever Hoist, whilst with the handle out the hoist is extremely easy to carry since the operator can simply connect the hook to the end stop and then slip the hook on to the handle and away you go!
Trust In CM
Engineered to be extremely robust and meet the strict criteria of ASME B30.21 and B30.10. , the Tornado 360 Lever Hoist is enclosed in a corrosion-resistant aluminum housing that protects against the elements. Backed with a manufacturers 3 year brake warranty and lifetime warranty on all mechanical components (including the Sidewinder™ lever handle) ensures you can be confident when you purchase your next CM lever hoist from LES.
Need Something A Little Different?
Fitted with zinc-plated load chains as standard, the CM Tornado 360 Lever Hoist can be upgraded to Gold Chromate Chain for added corrosion resistance, Shipyard Hooks, Smart ID for easy inventory and inspection management and an Internal Load Limiter to prevent overload.
- Sidewinder™ Lever handle 360˚ rotation
- Easy free chaining
- Corrosion resistance
- Built to last
- Clear directional indicator
- Mega warranty
- Increased productivity
- High precision
- Reduces required pull force by up to 30%
- Optional load limiter
| PRODUCT NUMBER | CAPACITY (LBS) | LIFT (FT) | REEVING | HEADROOM (IN) |
|---|---|---|---|---|
| CTOR90005 | 20,160.00 | 5 | 3 | 27.36 |
| CTOR90010 | 20,160.00 | 10 | 3 | 27.36 |
| CTOR90015 | 20,160.00 | 15 | 3 | 27.36 |
| CTOR90020 | 20,160.00 | 20 | 3 | 27.36 |
| CTOR90005LL | 20,160.00 | 5 | 3 | 27.36 |
| CTOR90010LL | 20,160.00 | 10 | 3 | 27.36 |
| CTOR90015LL | 20,160.00 | 15 | 3 | 27.36 |
| CTOR90020LL | 20,160.00 | 20 | 3 | 27.36 |
| CTOR075LCX | 1,680.00 | 0 | 1 | 12.6 |
| CTOR07505 | 1,680.00 | 5 | 1 | 12.6 |
| CTOR07510 | 1,680.00 | 10 | 1 | 12.6 |
| CTOR07515 | 1,680.00 | 15 | 1 | 12.6 |
| CTOR07520 | 1,680.00 | 20 | 1 | 12.6 |
| CTOR150LCX | 3,360.00 | 0 | 1 | 14.76 |
| CTOR15005 | 3,360.00 | 5 | 1 | 14.76 |
| CTOR15010 | 3,360.00 | 10 | 1 | 14.76 |
| CTOR15015 | 3,360.00 | 15 | 1 | 14.76 |
| CTOR15020 | 3,360.00 | 20 | 1 | 14.76 |
| CTOR300LCX | 6,720.00 | 0 | 1 | 17.52 |
| CTOR30005 | 6,720.00 | 5 | 1 | 17.52 |
| CTOR30010 | 6,720.00 | 10 | 1 | 17.52 |
| CTOR30015 | 6,720.00 | 15 | 1 | 17.52 |
| CTOR30020 | 6,720.00 | 20 | 1 | 17.52 |
| CTOR600LCX | 13,440.00 | 0 | 2 | 22.16 |
| CTOR60005 | 13,440.00 | 5 | 2 | 22.16 |
| CTOR60010 | 13,440.00 | 10 | 2 | 22.16 |
| CTOR60015 | 13,440.00 | 15 | 2 | 22.16 |
| CTOR60020 | 13,440.00 | 20 | 2 | 22.16 |
