Codipro DSR Swivel Hoist Ring

Codipro DSR Swivel Hoist Ring
Codipro DSR Swivel Hoist Ring
Codipro DSR Swivel Hoist Ring

Codipro DSR Swivel Hoist Ring

$81.93
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/" title="/">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:

  • UNC or Metric Thread
  • 360 Degree Rotation
  • 180 Degree Swivel
  • Swivels Under Load
  • 100% Anti Crack
  • Fatigue Tested
  • Special Sizes Available
  • Usually Ships in: 1 Day

Customers Also Bought

Description

Videos

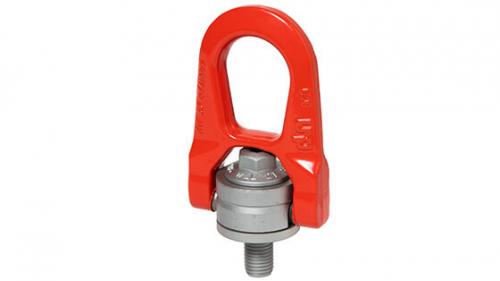

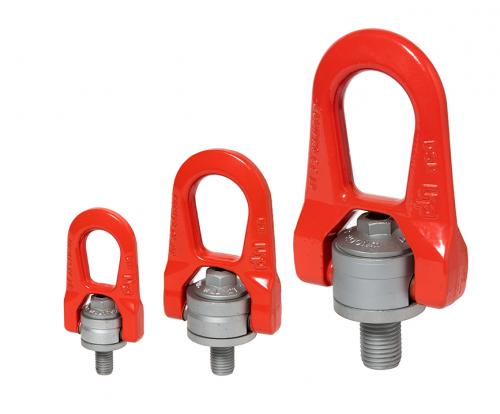

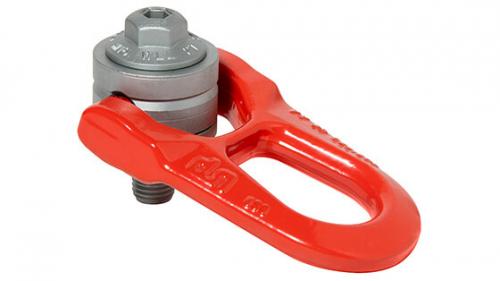

The Codipro DSR Swivel Hoist Ring is a top quality angular eyebolt offering unique advantages over alternatives and is an essential piece of rigging hardware in many of todays lifting applications. The Lifting Ring comprises of a GRADUP steel ring that can swivel 180 degrees but has a rotating range of 360 degrees for guiding and maneuvering even the most difficult of loads. If you are unsure of how to use the Double Swivel Lifting Ring, a user manual will also be delivered with the product along with useful recommendations.

No Compromise: Quality & Safety

Due to the raw materials used in Codipro's GRADUP steel range, the Swivel Hoist Ring has a very high safety factor of 4 and 5, which enables the breaking load to be 4:1 to 5:1 times greater than the capacity listed in our Specifications tab. This particular range of products is ISO 14001 and ISO 9001 compliant meaning they are certified and are regulated to the highest level of safety standards.

Codipro's GRADUP Hoist Rings consist of high-quality raw materials allowing for the highest performance when lifting and turning. With corrosion-resistant coating, the lifting rings are suited to all weather and industrial conditions and resistant to salt spray for up to 600 hours (on unpainted parts of the device). For ease of tracking and compliance, the tightening torque and traceability number (serial number) are engraved.

Traceability Through Every Step

At the forefront of Technology within the industry, the research teams at Codipro have integrated compatibility of their products with RFID (Radio Frequency Identification) allowing for true optimization, traceability, quick data reading, management and tracking.

Contact Lifting Equipment Store to purchase a Codipro Swivel Hoist Ring Today!

Swivel Hoist Ring Installation

The bolt and/or nut must be tightened with the right toque recommended in the user manual. Codipro recommend using a calibrated torque wrench set to the ring toque value and that you should avoid any abrupt tightening. For mountingin a smooth hole you should provide H7 adjustment. The chamfer lead should be approx. 0.5 x thread pitch. The complete ring flange must be in flush contact with the load it is installed in. Every swiveling part must stay moveable in every direction without meeting any obstacles. Before every lift, ensure that the ring is in the direction of the lift and is free of any obstacle.

*Always read the full user manual before opreation

Swivel Hoist Ring Applications

This angular type of eyebolt is commonly used in the following industries:

  • Injection Molding
  • Angular Lifting
  • Offshore Windmill Installation
  • Construction
  • Engineering

Looking for an offshore alternative? See our Codirpro Stainless Steel Swivel Hoist Ring .

  • Swivel Hoist Ring
  • Ideal for lifting injection molding molds and many other items
  • Permanent lubrication
  • Swivels under load
  • Zinc coating
  • UNC or Metric thread types
  • CE Certificate of Compliance included
  • Made in Luxembourg
  • Individual serial number on each lifting ring
  • Complete unit, no removable bolts or pins to lose!
  • Custom Thread Sizes Available

Check Dimensions & Lifting Capacities

SF = Safety Factor (Design Factor), this is the safety ratio included between the WLL of the lifting point and it's breaking point, example- if the hoist ring is rated at 0.07t @ 4:1 it would break if stressed to 0.028t. (Note- you should never use your Hoist Ring beyond the rated WLL and the factor of safety exists for the purpose of safety and not for the purpose of increased capacity.

WLL = Working Load Limit, the rings should never be used beyond the WLL (this varies per the SF you choose to use in your lift)

Torque = The bolting torque required when installing these Swivel Hoist Rings

Downloads
  • Codipro DSR Data Sheet

  • Codipro DSR Load Angle Chart

  • Codipro DSR Hoist Ring User Manual
