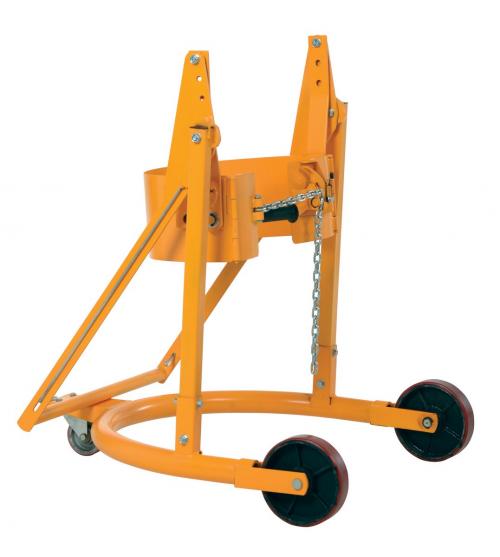

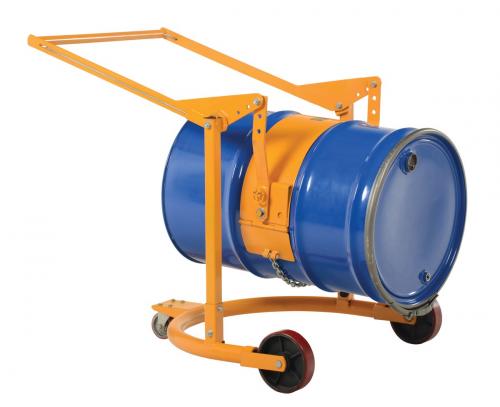

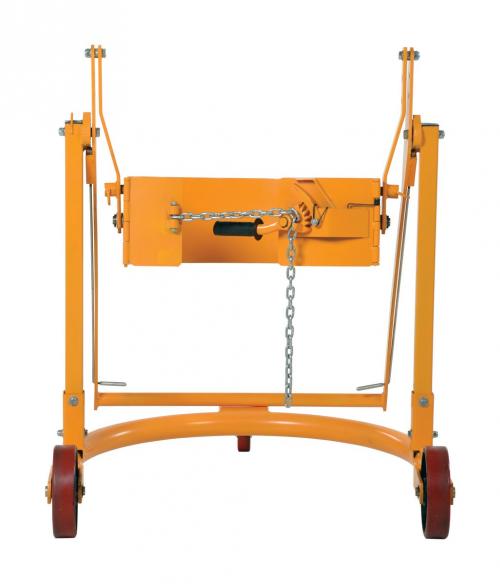

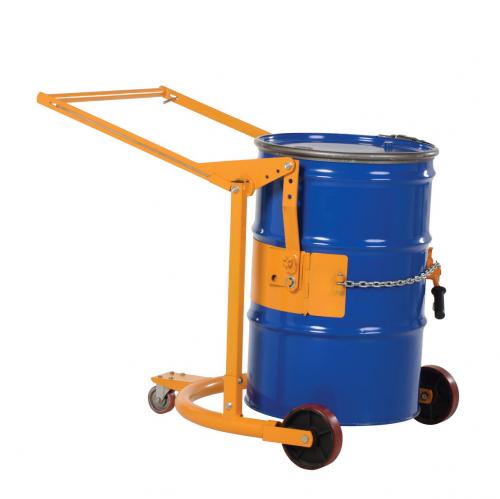

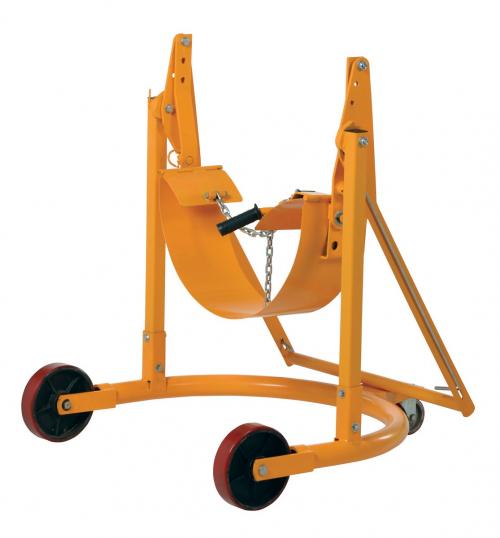

Drum Carrier, Rotator and Dispenser Trolley

$589.92

Secure Payment Transaction Guarantee

Choose Rapid Shipping at Checkout

24/7 U.S. Based Customer Service Help

Quick Overview:

Lifter, rotates and enables dispensing of 55-gallon steel drums
Chain crank system secures drum safely in the carrying plate
Rotates drums through 360-degrees
Two front steering wheels, one rear swivel caster
Handle provides leverage and locks drums in to position
Polyurethane wheels
MPN: DCR-110-55
Usually Ships In: 1-2 days

Customers Also Bought

Description

Features & Specification

The Drum Carrier, Rotator and Dispenser Trolley facilitates easy and efficient lifting, transporting and rotating of 55-gallon steel drums. When the drum is placed flush against the back-plate the jaws are closed and the chain crank system enables a tight grip of the drum for essential security. The user can then apply pressure to the handle which lifts the drum. The drum can then be rotated through 360-degrees or simply positioned for dispensing.

To lower the drum the user can pull on the triggers mounted on the inside of the handle (these are the silver rods pictured on the handle).

*Note: The drum must be full to rotate at rated capacity.

Download Manuals

Drum Carrier Rotator Trolley Drawing

Dimensions: 34.5 W x 36.5 L x 42 H	Unit: EACH	Color: Yellow
Material: Steel	Warranty: 90 Days	Weight: 143
Quickship Item? Yes	Can It Ship UPS? No	Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drums	Lift Height (in.): 5 to 11	Drum Rotation (degree): 360
Front Rigid Caster Diameter (in.): 8	Rear Swivel Caster Diameter (in.): 4	Front Rigid Caster Width (in.): 2
Rear Swivel Caster Width (in.): 1	Caster Material: Poly on Steel
