Home / EKKO EB16EA 4400lbs Fully Powered Straddle Stacker

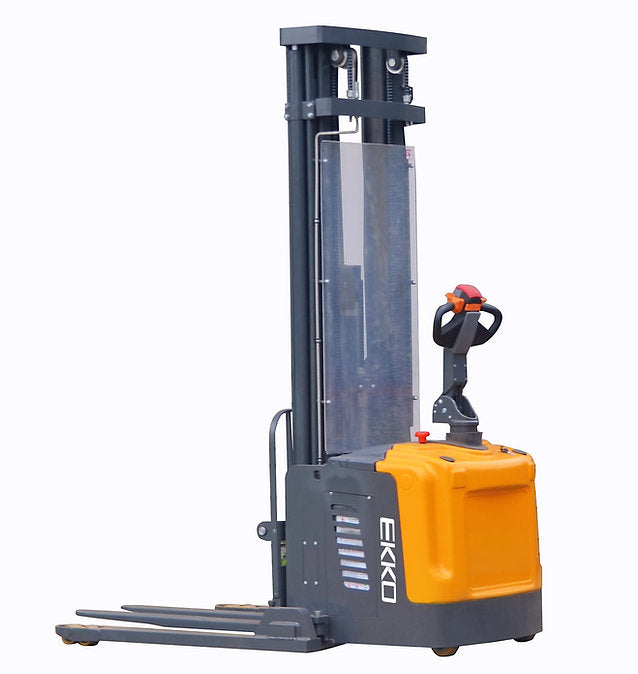

EKKO EB16EA 4400lbs Fully Powered Straddle Stacker
EKKO EB16EA 4400lbs Fully Powered Straddle Stacker
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
The EKKO EB16EA Full Powered Straddle Stacker is a high-performance electric material handling solution designed to maximize productivity in warehouses, distribution centers, manufacturing facilities, and loading docks. Combining the capabilities of a forklift, reach truck, and walkie stacker, the EB16EA delivers exceptional lifting performance while maintaining a compact footprint for operation in narrow aisles.
With a 4,400 lb (2,000 kg) load capacity and an impressive 216-inch maximum lift height, this fully powered stacker is ideal for stacking pallets, loading and unloading trucks, and moving heavy materials safely and efficiently. Its triple-stage mast provides excellent vertical reach, while Electric Power Steering (EPS) ensures smooth maneuverability and reduced operator fatigue.
Built with a heavy-duty steel frame and precision robotic welding, the EB16EA is engineered for long-lasting durability in demanding industrial environments. Adjustable forks and straddle legs allow the stacker to accommodate a wide range of pallet sizes, making it a versatile solution for diverse material handling applications.
Key Features
- 4,400 lb (2,000 kg) lifting capacity
- 216" maximum lift height with triple-stage mast
- Fully powered drive, lift, and lowering functions
- Electric Power Steering (EPS) for effortless operation
- Curtis electronic controller for reliable performance
- 24V AC drive motor and 24V lift motor
- Adjustable forks (9.8"–31.5") and adjustable straddle legs (38.06"–51.81")
- 45.28" forks for standard pallet handling
- Polyurethane wheels for smooth indoor operation
- Ergonomic controls for enhanced operator comfort
- Heavy-duty steel construction with robotic welding
- Includes 24V/210Ah battery and 24V charger
- Backed by a 3-Year Limited Warranty
Ideal Applications
- Warehousing and distribution
- Manufacturing facilities
- Loading docks
- Stockrooms
- Retail backrooms
- Material handling and pallet storage
The EKKO EB16EA is the ideal choice for businesses seeking a powerful, reliable, and versatile electric stacker capable of handling demanding lifting tasks while improving operational efficiency and workplace safety.
|
Model |
|
EB16EA |
|
Load capacity |
(lb) |
4400 |
|
The max. lifting height |
(in) |
216 |
|
Load center distance |
(in) |
24 |
|
Free Lift |
(in) |
76.25 |
|
EPS (Elec. Power Steer) |
|
Yes |
|
Fork length |
(in) |
45.28 |
|
Single fork width |
(in) |
4.7 |
|
Overall fork width |
(in) |
9.8-31.5 |
|
Lowered fork height |
(in) |
1.58 |
|
Fixed leg length |
(in) |
42 |
|
Adjustable legs |
(in) |
38.06-51.81 |
|
Turning radius |
(in) |
69.09 |
|
Overall length |
(in) |
81.69 |
|
Max width |
(in) |
46.93-60.71 |
|
Extended mast height |
(in) |
253.15 |
|
Lowered mast height |
(in) |
98.03 |
|
Battery voltage |
(V/Ah) |
24/210Ah |
|
Charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s |
|
AC Driving Motor |
(W) |
3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h |
|
Service Weight |
(lb) |
3542 |
