Home / EKKO EK10S-138LI 2200lbs Counterbalanced Stacker 138" Lift
EKKO EK10S-138LI 2200lbs Counterbalanced Stacker 138" Lift
EKKO EK10S-138LI 2200lbs Counterbalanced Stacker 138" Lift
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought

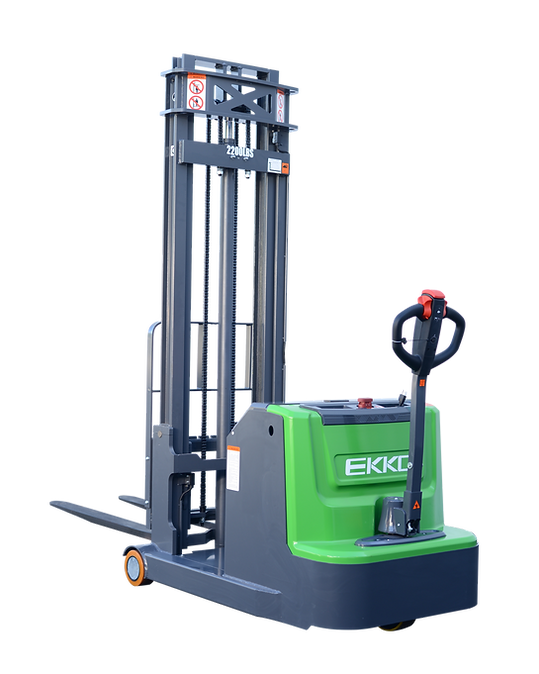

The EKKO EK10S-138LI is a lithium-powered counterbalanced walkie stacker designed for lifting and transporting loads up to 2,200 lbs. The counterbalanced design eliminates the need for front straddle legs, allowing it to handle closed-bottom pallets, skids, and equipment that standard stackers cannot.
Powered by a 24V 100Ah lithium battery with a built-in charger, the EK10S-138LI provides maintenance-free operation, fast charging, and consistent performance throughout the workday. Its compact footprint and tight turning radius make it well suited for warehouses, manufacturing facilities, retail stockrooms, and other material handling applications where space is limited.
Features
- 2,200 lb load capacity
- 138" maximum lift height
- Counterbalanced design for closed-bottom pallets
- 24V 100Ah lithium-ion battery
- Built-in 110V charger
- Compact design for narrow aisles
- Electric lift and drive
- Ergonomic walk-behind controls
- Durable steel construction
Specifications
- Capacity: 2,200 lbs
- Maximum Lift Height: 138"
- Battery: 24V 100Ah Lithium-Ion
- Lift Motor: 2.2 kW
- Drive Motor: 0.9 kW
- Fork Length: 42.1"
- Overall Width: 34.5"
- Turning Radius: 53"
- Machine Weight: Approx. 3,597 lbs
Ideal for warehouses, distribution centers, manufacturing facilities, and commercial material handling applications requiring efficient lifting and stacking without front support legs.
| Model | EK10S-118LI | EK10S-138LI |
| Lift | Electric | Electric |
| Drive | Electric | Electric |
| Load Capacity | 2200lbs | 2200lbs |
| Load Center Distance | 24" | 24" |
| Lifting Height | 118" | 138" |
| Lowered Height | 2.36" | 2.36" |
| Lowered Mast Height | 79.53" | 89.25" |
| Mast Extended Height | 137.48" | 137.48" |
| Overall Length | 99" | 99" |
| Overall Width | 34.5" | 34.5" |
| Tires | Polyurethane | Polyurethane |
| Fork Dimensions | 1.4"s/3.9"e/42.1"l | 1.4"s/3.9"e/42.1"l |
| Turning Radius | 53" | 53" |
| Charger | 24V/30A | 24V/30A |
| Driving Motor | 0.9kW | 0.9kW |
| Lift Motor Rating S3 10% | 2.2kW | 2.2kW |
| Battery Voltage and Capactiy | 24/100 V/Ah Li-Ion | 24/100 V/Ah Li-Ion |
| Drive Control Type | DC Speed Control | DC Speed Control |
| Service Weight | 3535 lbs | 3597 lbs |
