EKKO EK13S-177 2860lbs Counterbalanced Stacker 177" Lift
EKKO EK13S-177 2860lbs Counterbalanced Stacker 177" Lift
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought

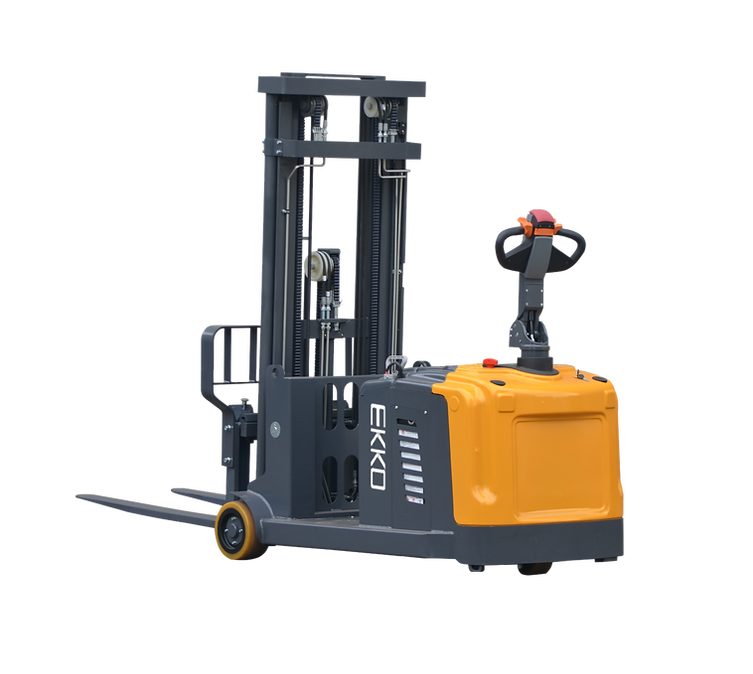

The EKKO EK13S-177 is a fully electric counterbalanced walkie stacker built for lifting, transporting, and stacking loads up to 2,860 lb. Its counterbalanced design handles both open- and closed-bottom pallets without support legs, making it ideal for warehouses, loading docks, manufacturing facilities, and stockrooms.
With a 177-inch maximum lift height, integrated hydraulic side shift, and adjustable forks, the EK13S-177 delivers precise load positioning while maximizing productivity in tight work areas. Electronic power steering, AC drive technology, and ergonomic controls provide smooth operation throughout the workday.
Constructed with a heavy-duty steel frame and powered by a 24V battery system, this walkie stacker is designed for reliable indoor material handling and comes complete with a battery and charger.
Features
- 2,860 lb load capacity
- 177 in. maximum lift height
- Integrated hydraulic side shift
- Counterbalanced design for closed-bottom pallets
- Adjustable forks from 8.6 to 28.3 in.
- 45.3 in. forks
- 24V AC drive motor
- Electronic Power Steering (EPS)
- Curtis controller
- Heavy-duty steel construction
- Polyurethane wheels
- Battery and charger included
- 3-year limited warranty
|
Model |
|
EK13S-177 |
|
Drive type |
|
Electric |
|
Type of operation |
|
Walike type |
|
Load Capacity |
Q (LBS) |
2860 |
|
Load Centre |
c (Inch) |
23.6 |
|
Distance between fork backrest and front wheel |
x (Inch) |
5.91 |
|
Wheelbase |
y (Inch) |
46.81 |
|
Service Weight（with battery） |
LBS |
4070 |
|
Tire material |
|
PU |
|
Driving wheel size |
Φ×w(Inch) |
Φ9.84×2.95 |
|
Bearing wheel size |
Φ×w(Inch) |
Φ9.84×4.72 |
|
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel |
|
2/1X |
|
Front wheelbase |
b10 (Inch) |
34.09 |
|
Rear wheelbase |
b11 (Inch) |
0 |
|
Mast/fork carriage tilt, forward/backward |
α/β (°) |
2/5 |
|
Lowered mast height |
h1 (Inch) |
78.74 |
|
Free lift height |
h2 (Inch) |
59.84 |
|
Lift height |
h3 (Inch) |
177.17 |
|
Extended mast height |
h4 (Inch) |
214.53 |
|
Height of seat/stand-on platform |
h7 (mm) |
5 |
|
The height of handle in the operation position |
h14 (Inch) |
43.5/56.69 |
|
Overall Length |
l1 (Inch) |
109 |
|
Body Length |
l2 (Inch) |
62.52 |
|
Overall Width |
b1/ b2 (Inch) |
39.29 |
|
Fork Size |
s/e/l (Inch) |
1.38/3.94/45.28 |
|
Fork Width |
b5 (Inch) |
8.66-28.35 |
|
Ground clearance under mast |
m1 (Inch) |
3.54 |
|
Min Ground clearance |
m2 (Inch) |
3.39 |
|
Aisle width for pallets 1000*1200 crossways |
Ast (Inch) |
115.95 |
|
Aisle width for pallets 800*1200 lengthways |
Ast (Inch) |
120.28 |
|
Turing Radius |
Wa (Inch) |
56.89 |
|
Driving Speed，load/unload |
(km/h) |
5.2/5.5 |
|
Lifting Speed load/unload |
(mm/s) |
100/120 |
|
Lowered Speed load/unload |
(mm/s) |
136/120 |
|
Maximum gradeability load/unload |
(%) |
6/8 |
|
Brake Type |
|
Electromagnetic brake |
|
Drive Motor |
(kW) |
2.5 |
|
Lift Motor |
(kW) |
2.5 |
|
Battery voltage/rate capacity |
(V/Ah) |
24/210 |
|
Battery Weight（±5%） |
(lbs) |
460 |
|
Type of drive control |
|
AC |
|
Noise level |
(dB(A)) |
70 |
|
Steering type |
|
EPS |
