Home / EKKO EK14-130 3300lbs Counterbalanced Stacker 130" Lift

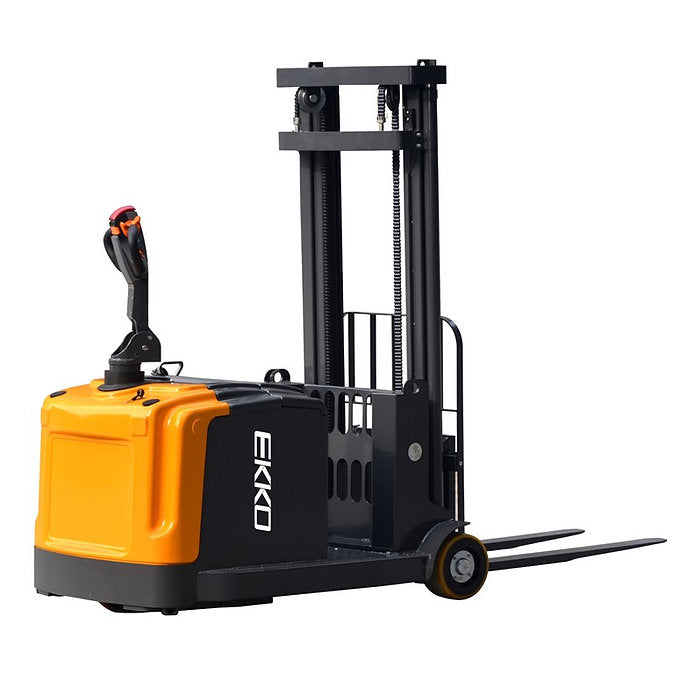

EKKO EK14-130 3300lbs Counterbalanced Stacker 130" Lift
EKKO EK14-130 3300lbs Counterbalanced Stacker 130" Lift
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
The EKKO EK14-130 is a fully powered counterbalanced walkie stacker designed for lifting and transporting loads up to 3,300 lbs with a maximum lift height of 130 inches. Its counterbalanced design eliminates the need for front support legs, making it ideal for handling closed-bottom pallets, skids, machinery, and other loads that standard straddle stackers cannot access.
Powered by a 24V AC drive system with electronic power steering (EPS), the EK14-130 delivers smooth operation, precise maneuverability, and reliable performance in warehouses, loading docks, manufacturing facilities, and stockrooms. Adjustable forks accommodate a variety of pallet sizes, while the compact design allows operation in confined work areas.
Built with a heavy-duty steel frame, robotic weld construction, polyurethane wheels, and an ergonomic control handle, the EK14-130 is engineered for long-lasting durability and operator comfort.
Features
- 3,300 lb load capacity
- 130" maximum lift height
- Counterbalanced design for closed-bottom pallets and skids
- Fully powered lift and drive functions
- 24V AC drive motor
- 24V lift motor
- Electronic Power Steering (EPS)
- Curtis AC controller
- Adjustable forks from 8.6" to 28.3"
- 45.3" fork length
- 2° forward / 5° backward mast tilt
- Polyurethane wheels
- Ergonomic operator controls
- Heavy-duty steel construction with robotic welding
- On-board 24V charger included
- 24V / 210Ah battery
- 3-year limited warranty
Ideal for warehouses, distribution centers, production facilities, and truck loading applications where maneuverability and unobstructed pallet access are essential.
|
Model |
EK14-118 |
EK14-130 |
|
Lift |
Electric |
Electric |
|
Drive |
Electric |
Electric |
|
Load capacity |
3300 |
3300 |
|
Load center distance |
24" |
24" |
|
Wheel base |
47" |
47" |
|
Lifting height |
118" |
130" |
|
Free lifting height |
4" |
4" |
|
Lowered mast height |
78" |
84" |
|
Extended mast height |
155" |
167" |
|
Mast/Fork carriage tilt forward/backward |
2/5" |
2/5" |
|
Overall length |
109" |
109" |
|
Overall width |
39" |
39" |
|
Fork size, Thick/Width/Length |
1.4/4/45.3" |
1.4/4/45.3" |
|
Fork adjust width |
8.6-28.3" |
8.6-28.3" |
|
Turning radius |
57" |
57" |
|
Max. gradient performance, laden/unladen |
6/10" |
6/10" |
|
Lift speed, laden/unladen |
4"/5.1s |
4"/5.1s |
|
Lowering speed, laden/unladen |
5.3"/4.7s |
5.3"/4.7s |
|
Charger |
24V/30A |
24V/30A |
|
Driving Motor |
AC 24V/2500W |
AC 24V/2500W |
|
Lifting Motor |
24V/2500W |
24V/2500W |
|
EPS Steering Motor |
24/200W |
24/200W |
|
Battery voltage |
24V/210Ah (Side) |
24V/210Ah (Side) |
|
Service Weight |
3740 lbs |
3840 lbs |
