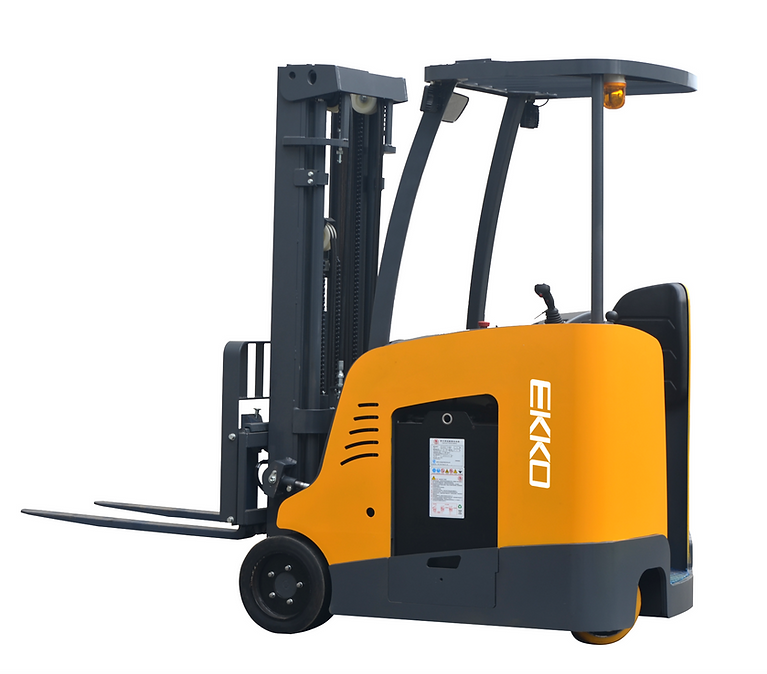

EKKO EK18RFL 4000lbs Stand-Up Rider Forklift
EKKO EK18RFL 4000lbs Stand-Up Rider Forklift
Product Reviews
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
Customers Also Bought
The EKKO EK18RF Stand-Up Rider Forklift delivers powerful performance, precision handling, and long-lasting durability for demanding material handling operations. Built to streamline loading, unloading, stacking, and warehouse transportation, this high-capacity forklift is the ideal solution for loading docks, manufacturing facilities, stock rooms, and distribution centers.
Engineered with high-quality steel construction and advanced robotic welding technology, the EK18RF is designed to withstand rigorous daily use, impacts, and constant directional changes while maintaining dependable performance in any industrial environment. Its ergonomic stand-up rider design enhances operator comfort and visibility, helping improve productivity during long shifts.
Powered by a reliable German AC drive motor and Curtis Instrument Controller, the EK18RF provides smooth acceleration, responsive control, and efficient operation. The hydraulic steering system and side-shifting adjustable forks allow operators to maneuver loads with exceptional precision, even in tight warehouse aisles and confined spaces.
With a 4,000 lb load capacity and an impressive 189” lift height, this forklift is built for high-reach stacking and heavy-duty applications. Adjustable forks ranging from 9.4” to 35.6” and durable solid cushion load tires provide versatility and stability across a wide range of material handling tasks.
The included 48V/420Ah battery and 48V/65A charger ensure dependable power and extended operating time, while polyurethane drive tires deliver smooth traction and reduced maintenance requirements.
Key Features:
• 4,000 lb load capacity
• 189” maximum lift height (15.75 ft)
• Side-shifting adjustable forks
• Fork adjustment range: 9.4” – 35.6”
• 45.3” fork length
• Hydraulic steering system
• Curtis Instrument Controller
• German AC drive motor
• 48V/420Ah battery included
• 48V/65A charger included
• Solid cushion load tires
• Polyurethane drive tires
• Ergonomic operator controls
• Heavy-duty steel construction
• Precision robotic welding
• Backed by a 3-Year Limited Warranty
The EKKO EK18RF Stand-Up Rider Forklift combines strength, maneuverability, and operator-focused design to maximize efficiency and reliability in any warehouse or industrial setting.
|
Model |
|
EK18RFL |
|
Power unit |
|
Electric |
|
Operation Type |
|
Rider |
|
Loading capacity |
Q (LBS) |
4000 |
|
Load center |
c (Inch) |
24 |
|
Axle centre to fork face |
x (Inch) |
11.5 |
|
Wheelbase |
y (Inch) |
48.8 |
|
Service weight with battery |
LBS |
7870 |
|
Wheels type |
|
Solid wheel |
|
Driving wheel size |
Φ×w(Inch) |
16×7-10.5（15.98*7.01*10.51） |
|
Bearing wheel size |
Φ×w(Inch) |
13.5×5.2 |
|
Wheels, number front/rear |
|
1×/2 |
|
Track width |
b10 (Inch) |
35.04 |
|
Mast/fork carriage tilt, fwd/bwd |
a/b (°) |
3/5 |
|
Lowered mast height |
h1 (Inch) |
82.6 |
|
Free lift height |
h2 (Inch) |
52.17 |
|
Lift height |
h3 (Inch) |
188.98 |
|
Extended mast height |
h4 (Inch) |
220.87 |
|
Height of overhead guard (cabin) |
h6 (Inch) |
90.08 |
|
Height of seat/stand-on platform |
h7 (Inch) |
9.06 |
|
Overall length |
l1 (Inch) |
117.78 |
|
Length to fork face |
l2 (Inch) |
72.52 |
|
Overall width |
b1/ b2 (mm) |
42.52/42.13 |
|
Fork dimensions |
s/e/l (Inch) |
1.58/4.72/45.28 |
|
Width of forks |
b3 (Inch) |
36.22 |
|
Ground clearance under mast |
m1 (Inch) |
2.95 |
|
Min.Ground clearance |
m2 (Inch) |
3.86 |
|
Aisle Width Requirement |
Ast (FT) |
10.5 |
|
Min.Turning radius |
Wa (Inch) |
58.5 |
|
Travel speed,laden/unladen |
(km/h) |
12/13 |
|
Lifting speed, with/without load |
(mm/s) |
250/400 |
|
Lowering speed, with/without |
(mm/s) |
240/258 |
|
Climbing ability, with/without |
(%) |
6/10 |
|
Service brake |
|
Hydraulic |
|
Drive motor, 60-minute rating |
(kW) |
6 |
|
Lift motor rating at S3 15% |
(kW) |
7.7 |
|
Battery according to DIN 43531/35/36 A,B,C,no |
|
no |
|
Battery voltage/rated capacity |
(V/Ah) |
48/420 |
|
Battery weight (± 5%) |
(LBS) |
1570 |
|
Power consumption VDI |
(mm) |
38*18.1*29.53 |
|
Type of drive control |
|
AC |
|
Noise level at operator‘s ear |
(dB(A)) |
≤70 |
|
steering type |
|
Hydraulic steering |
