Home / EKKO ES120E-LI 700lbs Scissor Lift Max. Height 468"

EKKO

EKKO ES120E-LI 700lbs Scissor Lift Max. Height 468"

EKKO ES120E-LI 700lbs Scissor Lift Max. Height 468"

EKKO ES120E-LI 700lbs Scissor Lift Max. Height 468"

$38,398.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Load Capacity 700 lb
  • Raised Height 39' (468'')
  • Lowered Height 102.36''
  • Size: Length 89" x Width 45"
  • Steel construction

Customers Also Bought

Description

Features & Specification

Reviews

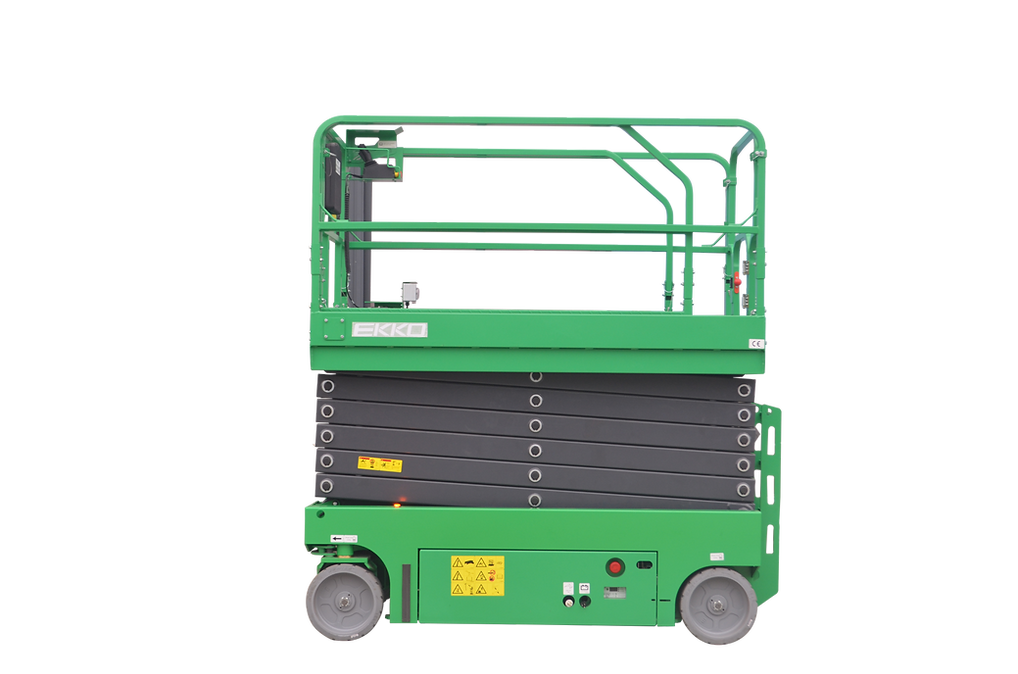

The EKKO ES120E-Li is a 39 ft electric scissor lift designed for safe, efficient elevated work in warehouses, manufacturing facilities, maintenance, and commercial applications. Powered by a maintenance-free lithium-ion battery, it delivers all-day performance with fast charging and reduced downtime. With a 700 lb platform capacity, space for two operators, a compact design, and quiet zero-emission operation, the ES120E-Li is ideal for indoor jobs requiring reliable access up to a 45 ft working height. Built to EN280 standards, it provides dependable performance with low operating costs.

  ES120E-LI
product dimensions
A1 Max working height  Inch 45' (547'')
A2 Max platform height Inch 39' (468'')
B Length Inch 94.5
C Width Inch 45.27
D  Overall height (guardrail not folded)  Inch 102"
Overall height (folding guardrail)  Inch 77"
Platform size (length EX width FX height G)  Inch 88.58x45.27
G Guardrail height Inch 43.3
H Platform extension size  Inch 39.37
 I Ground clearance (closed state)  Inch 3.74
J  Ground clearance (lifting state)  Inch 0.78
 K Wheelbase  Inch 72.83
 product performance
Maximum number of workers (indoor/outdoor)   2 / -
 load rating  LBS 700
Extended platform load rating LBS 265
Driving speed (folding state) km/h 0-3.2
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 86.61
Rise/fall time s 52/52
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 30
control   proportional control
actuator   Double front wheels
braking    Double rear wheels
 Tyre specification/type Inch 15*5
Product power
Lift/drive motor kw 3.3/0.7x2
Battery voltage/capacity V/Ah 25.6V/230AH
Charger input voltage VAC 25.6V
Charger output current A 36
control voltage VDC 24
Hydraulic tank capacity L 22
total weight  lbs 6490
