Home / EKKO ES40E-LI 500lbs Scissor Lift Max. Height 236.2"

EKKO

EKKO ES40E-LI 500lbs Scissor Lift Max. Height 236.2"

EKKO ES40E-LI 500lbs Scissor Lift Max. Height 236.2"

EKKO ES40E-LI 500lbs Scissor Lift Max. Height 236.2"

$12,798.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Customers Also Bought

Description

Features & Specification

Reviews

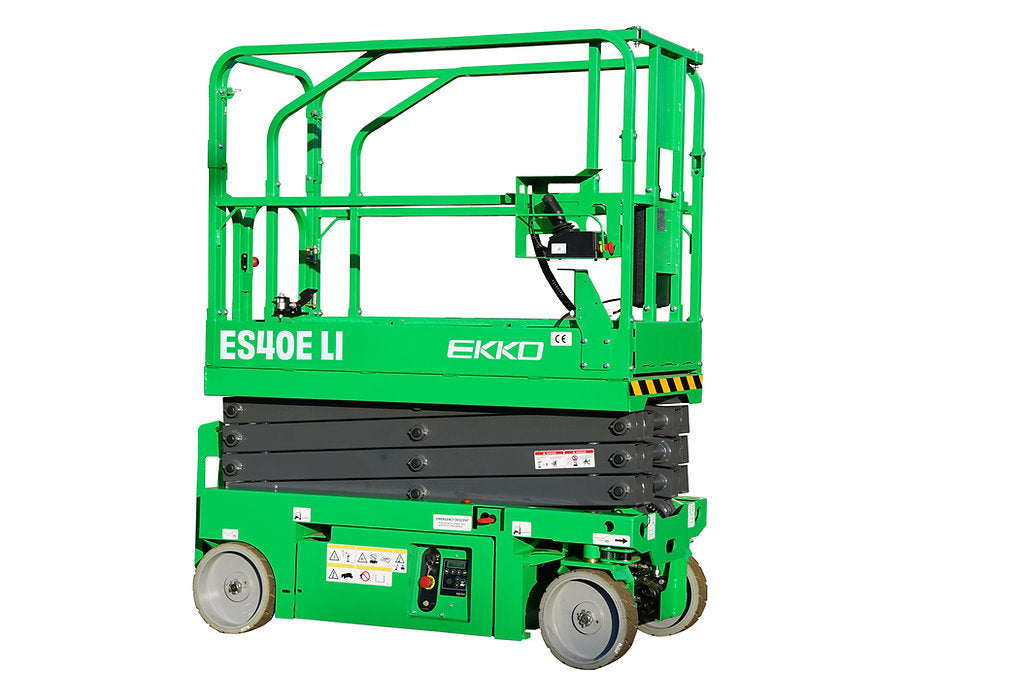

The EKKO ES40E-Li Aerial Work Platform is a compact electric scissor lift built for indoor maintenance, installation, and facility work where maneuverability and reliable lifting performance matter. With a 13-foot platform height and a maximum working height of approximately 19.7 feet, it provides safe access to elevated work areas while maintaining a narrow footprint for navigating tight spaces.

Powered by a lithium battery system, the ES40E-Li delivers consistent performance with reduced maintenance compared to traditional lead-acid models. Proportional controls allow for smooth lift and drive operation, while the platform extension provides additional reach for tasks that require extra workspace without repositioning the lift.

Designed for warehouses, retail stores, manufacturing facilities, schools, and commercial buildings, this aerial work platform combines durable steel construction with a 500 lb. capacity to support two operators and their tools. Non-marking tires, zero inside turning radius, and compact dimensions make it well suited for finished indoor floors and congested work environments.

Key Features

  • 13 ft. platform height with up to 19.7 ft. working height
  • 500 lb. platform capacity
  • Maintenance-friendly lithium battery system
  • Compact design for narrow aisles and confined work areas
  • Platform extension for increased working reach
  • Smooth proportional lift and drive controls
  • Zero inside turning radius for exceptional maneuverability
  • Heavy-duty steel construction for long-term durability
  • Suitable for two indoor operators
  • Backed by a 3-year limited warranty
  ES40E-Li
product dimensions
A1 Max working height  Inch 19.7' (236.2'')
A2 Max platform height Inch 13' (157'')
B Length Inch 57.1
C Width Inch 29.9
D  Overall height (guardrail not folded)  Inch 76.8
Overall height (folding guardrail)  Inch 63
Platform size (length EX width FX height G)  Inch 50.4*29.1
G Guardrail height Inch 43.3
H Platform extension size  Inch 23.6
 I Ground clearance (closed state)  Inch 2.36
J  Ground clearance (lifting state)  Inch 0.59
 K Wheelbase  Inch 40.6
 product performance
Maximum number of workers (indoor/outdoor)   2 / –
 load rating  LBS 500
Extended platform load rating LBS 220
Driving speed (folding state) km/h 0~4
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 61
Rise/fall time s 25/25
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 25
control   proportional control
actuator   Dual front wheels
braking    Double front wheels
 Tyre specification/type Inch 9*3.1
Product power
Lift/drive motor kw 1.2/0.4*2
Battery voltage/capacity V/Ah 25.6V/75AH
Charger input voltage VAC 100-240
Charger output current A 10
control voltage VDC 24
Hydraulic tank capacity L 3
total weight  lbs 2046
