Home / EKKO ES60E-LI 500lbs Scissor Lift Max. Height 228"

EKKO

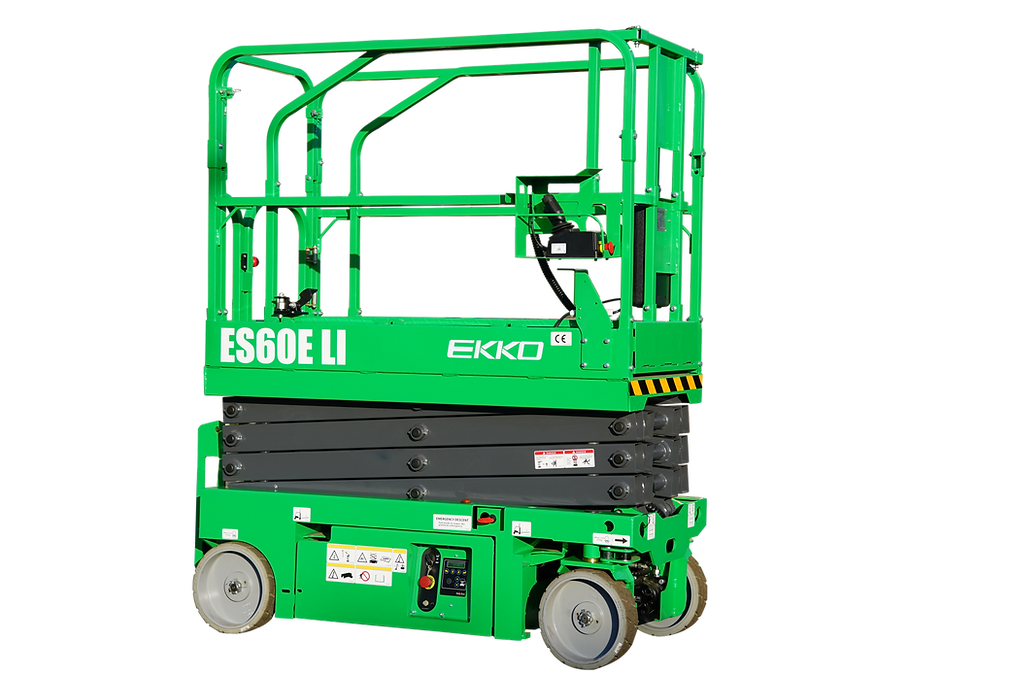

EKKO ES60E-LI 500lbs Scissor Lift Max. Height 228"

EKKO ES60E-LI 500lbs Scissor Lift Max. Height 228"

EKKO ES60E-LI 500lbs Scissor Lift Max. Height 228"

$27,198.00
<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • -Load Capacity 500 lb
  • -Raised Height 19' (228")
  • -Lowered Height 86''
  • -Size: Length 65" x Width 30"
  • -Steel construction

Customers Also Bought

Description

Features & Specification

Reviews

The EKKO ES60E-Li Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complies with GB25849 and EN280 standards.



-Load Capacity 500 lb

-Raised Height 19' (228")

-Lowered Height 86''

-Size: Length 65" x Width 30"

-Steel construction

  ES60E-LI
product dimensions
A1 Max working height  Inch 25.5' (307'')
A2 Max platform height Inch 19' (228'')
B Length Inch 72.44
C Width Inch 29.92
D  Overall height (guardrail not folded)  Inch 85.75"
Overall height (folding guardrail)  Inch 72.5"
Platform size (length EX width FX height G)  Inch 64.96x29.92
G Guardrail height Inch 43.31
H Platform extension size  Inch 35.43
 I Ground clearance (closed state)  Inch 2.36
J  Ground clearance (lifting state)  Inch 0.59
 K Wheelbase  Inch 1.36
 product performance
Maximum number of workers (indoor/outdoor)   2 / –
 load rating  LBS 506
Extended platform load rating LBS 264
Driving speed (folding state) km/h 0~4
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 61
Rise/fall time s 18/28
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 30
control   proportional control
actuator   Double front wheels
braking    Double rear wheels
 Tyre specification/type Inch 12.71*3.93
Product power
Lift/drive motor kw 2.2/0.7x2
Battery voltage/capacity V/Ah 25.6V/150AH Lithium
Charger input voltage VAC 25.6V
Charger output current A 36A
control voltage VDC 24
Hydraulic tank capacity L 8
total weight  lbs 3356
