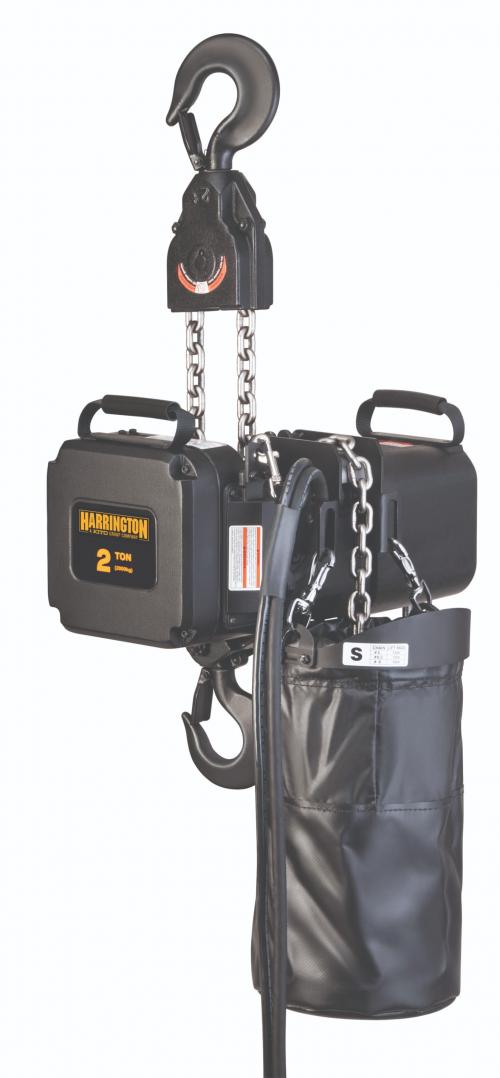

Harrington Black TNER Stage Electric Chain Hoist
Harrington Black TNER Stage Electric Chain Hoist
Secure Payment Transaction Guarantee
Choose Rapid Shipping at Checkout
24/7 U.S. Based Customer Service Help
Quick Overview:
- 1/2-2ton capacities
- 208-230v or 460v models available
- Complies with German BGV-D8 standard/regulation
- CE Certified
- Ergonomic and sleek design which avoids sharp edges
- Grease packed gearbox for superior lubrication
- Plug & play voltage changer between 230v and 460v
- Low-profile upper & lower limit switches
- Designed to fit standard road cases from 1/2 and 1ton 16FPM; 2ton 8FPM
- Nickel-plated load chain conforms to DIN and EN 818-7 standards (available in black on request)
- Carrying handles (flexible)
- Quiet operation thanks to a unique chain guide and load sheave
Customers Also Bought
Harrington TNER Theatrical 3-phase hoists are industry-leading and designed with safety and compliance in mind. Used throughout the world, and conforming to German BGV-D8 regulations for stage hoists, Harrington TNER's are switchable between 230v and 460v three-phase power making them perfectly universal for multi-site re-location.
A uniquely designed chain guide and wheel provide quiet and smooth operation whilst the high-quality nickel-plated load chain (available in black too) provides one of the many levels of protection against the elements, combined with the compliance to DIN and EN 818-7 standards makes this stage hoist an all-round-winner in theatre applications.
- Pull-rotor motor brake with 5-year warranty
- Nickel-plated load chain
- BGV-D8 Compliance
Optional Extras:
- Pendant/Pickle control
- Chain container (to meet BGV-D8)
- Power supply cord
- Road case
- Black load chain
- Bullard and Shur-Loc Hooks
To discuss optional extras and accessories for your Harrington TNER Series Theatrical Chain Hoist please reach out to our knowledgeable sales team who will be able to provide in-depth assistance with motorized chain hoists within the entertainment and theatre rigging industry.
- 208-230/460v 3phase 60hz (switchable internally)
- 110v Control voltage
- 30 Minutes duty cycle
- ASME H3, JS/ISO M3, FEM 1Bm classifications
- UL/cUL (CSA) listed, IP55 hoist protection (optional pendants are protected to NEMA 4X
- 60' Standard lift, other lengths available on request
- 2.5' Standard power and pendant cord lengths (others on request)
|
Cap.
(Tons) |
Product
Code |
Headroom
C (in) |
Std. Lift
(ft) |
Push Button
Cord L (ft) |
Lifting
Speed (ft/min) |
Lifting
Speed Min (ft/min) |
Lifting
Speed Max (ft/min) |
Lifting Motor
3 Phase 60Hz Output (Hp) |
Lifting Motor
3 Phase 60Hz Rated Current @208-230V (Amps) |
Lifting Motor
3 Phase 60Hz Rated Current @460V (Amps) |
Lifting Motor
3 Phase 60Hz Output Min (Hp) |
Lifting Motor
3 Phase 60Hz Rated Current @208-230V (Amps) Min |
Lifting Motor
3 Phase 60Hz Rated Current @460V (Amps) Min |
Lifting Motor
3 Phase 60Hz Output Max (Hp) |
Lifting Motor
3 Phase 60Hz Rated Current @208-230V (Amps) Max |
Lifting Motor
3 Phase 60Hz Rated Current @460V (Amps) Max |
a
(in) |
b
(in) |
d
(in) |
D
(in) |
e
(in) |
g
(in) |
h
(in) |
i
(in) |
Load Chain
Diameter (mm) x Chain Fall Lines |
Net
Weight (lbs) |
Weight for
Add'l One Foot of Lift (lbs) |
Net Weight
for 10' lift |
Net Weight
for 60' lift |
| 1/2 | TNER005L | 13.2 | 10 or 60 | 2.5 | 16 | - | - | 0.65 | 3.7 | 1.8 | - | - | - | - | - | - | 18.7 | 14.2 | 9.6 | 35.4 | 9.2 | 0.9 | 3.9 | 4.0 | 6.3 x 1 | - | .57 | 77 | 104 |
| 1 | TNER010L | 16.1 | 10 or 60 | 2.5 | 16 | - | - | 1.3 | 5.6 | 2.8 | - | - | - | - | - | - | 20 | 15 | 10.2 | 37 | 9.8 | 1.2 | 4.1 | 4.7 | 8.0 x 1 | - | .93 | 99 | 146 |
| 1 | TNER010S | 16.1 | 10 or 60 | 2.5 | 32 | - | - | 2.4 | 10.4 | 5.2 | - | - | - | - | - | - | 20 | 15 | 8.8 | 37 | 11.2 | 1.2 | 4.1 | 4.7 | 8.0 x 1 | - | .93 | 108 | 155 |
| 2 | TNER020L | 22.8 | 10 or 60 | 2.5 | 8 | - | - | 1.3 | 5.6 | 2.8 | - | - | - | - | - | - | 20 | 15 | 10.2 | 48.8 | 9.8 | 1.5 | 4.1 | 4.7 | 8.0 x 2 | - | 1.9 | 126 | 217 |
| 2 | TNER020S | 22.8 | 10 or 60 | 2.5 | 16 | - | - | 2.4 | 10.4 | 5.2 | - | - | - | - | - | - | 20 | 15 | 8.8 | 48.8 | 11.2 | 1.5 | 4.1 | 4.7 | 8.0 x 2 | - | 1.9 | 135 | 225 |
