Home / HSI 10000lbs Heavy Duty Freestanding Jib Cranes (8ft - 14ft Span)

HSI 10000lbs Heavy Duty Freestanding Jib Cranes (8ft - 14ft Span)

HSI 10000lbs Heavy Duty Freestanding Jib Cranes (8ft - 14ft Span)

HSI 10000lbs Heavy Duty Freestanding Jib Cranes (8ft - 14ft Span)

$8,019.80

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 10,000lbs
  • Span Options: 8ft - 14ft
  • Height Under Boom Options: 8ft – 20ft
  • Freestanding Design
  • 360-Degree Rotation
  • Fully Tested & Certified

Customers Also Bought

Description

Features & Specification

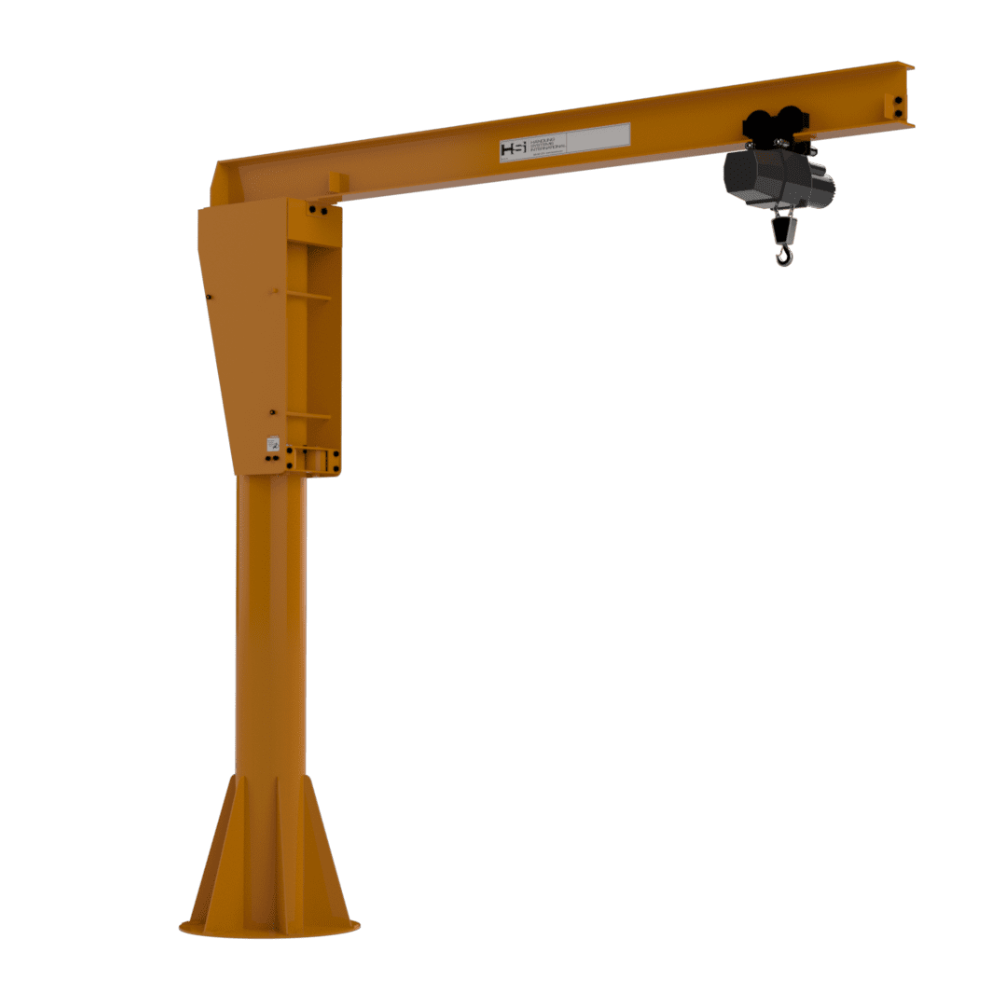

We understand that some lifting tasks require heavy-duty equipment, designed and built to handling excess loads with ease and precision – and here’s where this Freestanding Jib Crane from crane system specialists, HSI, ticks all the boxes.

Designed to handle loads of up to 10,000lbs, a variety of specifications are available here at LES, with overall span options from 8ft to 14ft, and under boom height ranges from 8ft right up to 20ft.

Boasting complete smooth 360-degree rotation, this heavy-duty pillar-base swing jib has been built-to-last, even when put through the rigors of constant and excess usage.



HSI’s heavy-duty Jib Crane includes:

  • A heavy-duty assembly with reinforcing side plates
  • Full plate style gussets for maximum load distribution
  • Heavy duty top thrust bearings with pressure fitted housing for easy rotation
  • Heavy duty roller cage; steel rollers with low friction bearings; adjustable tension bolts; keeper bar; and zerk fittings
  • Anti-slip angles to prevent head removal from accidental impact, and spacer rods to prevent head assembly plate flexing



All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist







Downloads
  • Model 351 Jib Crane Owners Manual

  • EXAMPLE - Model 351 Technical Drawing



For model specific technical drawings and specifications, please contact our sales team with the required product code

NOTEThe above drawing is an example drawing, and is only used for the purpose of illustrating the span, height under boom, and overall height. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
