HSI 1000lbs Cantilever Style Jib Crane

HSI 1000lbs Cantilever Style Jib Crane

HSI 1000lbs Cantilever Style Jib Crane

$1,905.85

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 1000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Headroom Required
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

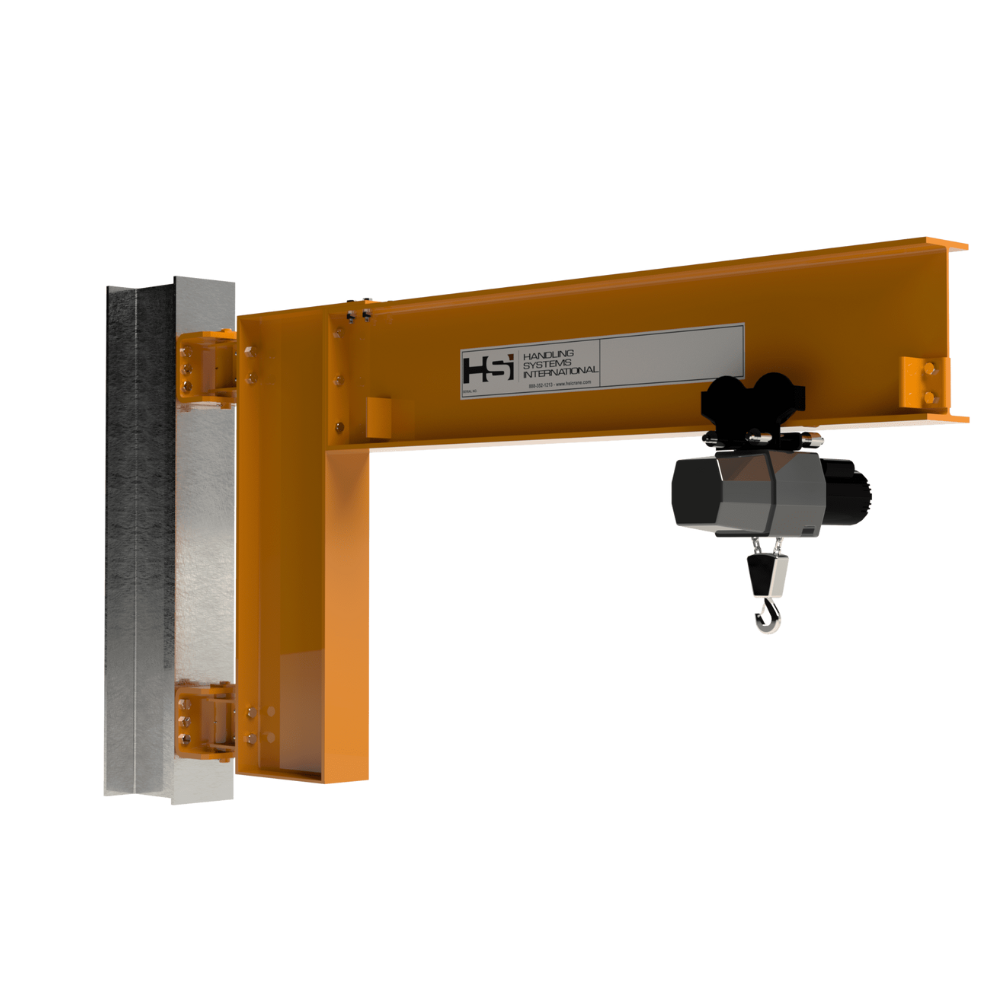

If floor space is a premium in your facility, but you still require a heavy-duty lifting tool, then this wall/column-mounted jib crane from HSI Crane could be the answer to your problems.

Highly suitable for use in bays, along a wall, or in an individual work cell, this cantilever-style jib crane has a safe working load limit of 1000lbs and is available in span lengths from 8ft up to 20ft*. Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist.

Standard rotation with a cantilever jib crane is 180-degrees (depending on how and where it’s mounted), with this particular heavy-duty model offering smooth and effortless rotation, thanks to the cast iron fittings, complete with rollers bearings and zerk fittings allowing for easy in-situ lubrication.

Designed to maximize hoist lift, this wall/column-mounted jib crane requires less headroom when mounting, making it an easy to install lifting solution, even in heavy-duty environments.

All Cranes manufactured by HIS have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the Downloads section to the right.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Cantilever Jib Crane ONLY!

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.



Downloads
  • HSI Model 313 Cantilever Type Jib Crane Owners Manual

  • HSI Jib Crane Accessories

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311/313 Wall to Fitting Centerline

313-1000-8

313

1000

8

W8X18

5-1/4"

4'-0"

250

2591

1000 Series

3"

313-1000-9

313

1000

9

W8X18

5-1/4"

4'-0"

280

2955

1000 Series

3"

313-1000-10

313

1000

10

W8X18

5-1/4"

4'-0"

298

3324

1000 Series

3"

313-1000-11

313

1000

11

W8X18

5-1/4"

4'-0"

314

3698

1000 Series

3"

313-1000-12

313

1000

12

W8X18

5-1/4"

4'-0"

330

4075

1000 Series

3"

313-1000-13

313

1000

13

W10X26

5-3/4"

4'-0"

610

4633

1000 Series

3"

313-1000-14

313

1000

14

W10X26

5-3/4"

4'-0"

640

5048

1000 Series

3"

313-1000-15

313

1000

15

W10X26

5-3/4"

4'-0"

665

5469

1000 Series

3"

313-1000-16

313

1000

16

W10X26

5-3/4"

4'-0"

690

5896

1000 Series

3"

313-1000-17

313

1000

17

W12X30

6-1/2"

5'-0"

1020

5183

1000 Series

3"

313-1000-18

313

1000

18

W12X30

6-1/2"

5'-0"

1050

5549

1000 Series

3"

313-1000-19

313

1000

19

W12X30

6-1/2"

5'-0"

1080

5922

1000 Series

3"

313-1000-20

313

1000

20

W12X30

6-1/2"

5'-0"

1110

6300

1000 Series

3"

313-1000-21

313

1000

21

W16x50#

7-1/8"

6'-6"

1659

6174

1000 Series

3"

313-1000-22

313

1000

22

W16x50#

7-1/8"

6'-6"

1659

6174

1000 Series

3"

313-1000-23

313

1000

23

W16x50#

7-1/8"

7'-6"

1809

5987

1000 Series

3"

313-1000-24

313

1000

24

W16x50#

7-1/8"

7'-6"

1809

5987

1000 Series

3"

313-1000-25

313

1000

25

W18x55#

7-1/2"

8'-0"

2128

6730

1000 Series

3"

313-1000-26

313

1000

26

W18x55#

7-1/2"

8'-0"

2128

6730

1000 Series

3"

313-1000-27

313

1000

27

W18x55#

7-1/2"

9'-0"

2293

6621

1000 Series

3"

313-1000-28

313

1000

28

W18x55#

7-1/2"

9'-0"

2293

6621

1000 Series

3"

313-1000-29

313

1000

29

W18x55#

7-1/2"

10'-0"

2458

6557

1000 Series

3"

313-1000-30

313

1000

30

W18x55#

7-1/2"

10'-0"

2458

6557

1000 Series

3"
