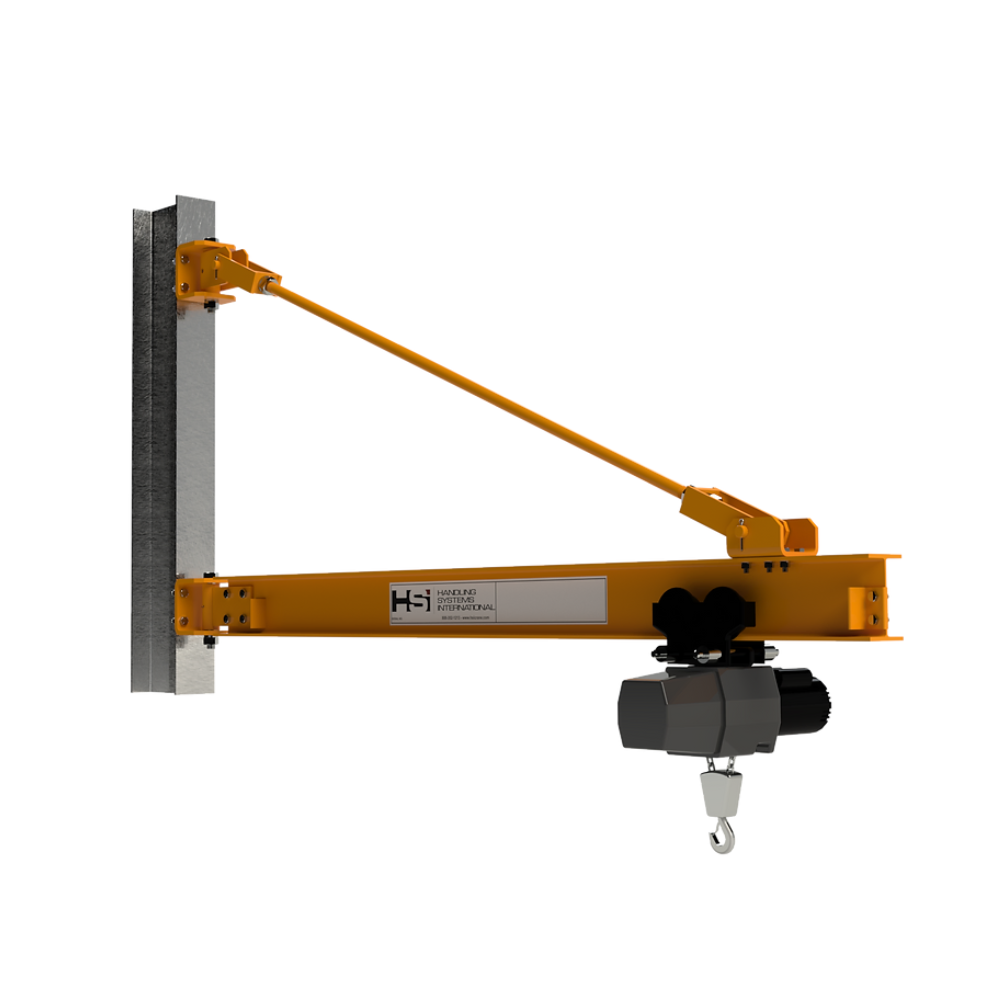

HSI 1000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 1000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 1000lbs Tie Rod Style Wall/Column Mounted Jib Crane

$1,489.75

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 1000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Beam Deflection than Cantilever Style
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If you’re facility is lacking in available floor space, but you need a heavy-duty lifting solution such as a jib crane, HSI’s Tie Rod Style models can be easily mounted on walls and columns, anywhere across your workplace.

Primarily designed for use in bays, along walkways, and in work cells, the heavy-duty tie rod style jib crane is similar to the cantilever style models but is more economical for scenarios where headroom is not an issue.

This particular model has a working load limit of 1000lbs and is available in spans up to 20ft* as standard. Designed to provide 180-degree rotation as standard, courtesy of the heavy-duty cast iron fittings with smooth roller bearings, HSI’s Model 311 range has many benefits over the Cantilever Style:

  • More economical
  • Less beam deflection
  • Smaller beam size
  • Easier rotation in larger applications
  • Hook travel closer to mounting column
  • Easier adjustment of boom tip

All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately Pricing is for Tie Rod Style Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.

Downloads
  • HSI Model 311 Tie Rod Style Wall/Column Mounted Jib Crane Owners Manual

  • HSI Jib Crane Accessories

  • EXAMPLE - Model 311 Drawing

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311-1000-8

311

1000

8

S6X12.5

3 3/8"

2'-9"

210

3550

1000 Series

311-1000-9

311

1000

9

S6X12.5

3 3/8"

3'-0"

225

3700

1000 Series

311-1000-10

311

1000

10

S6X12.5

3 3/8"

3'-0"

240

4120

1000 Series

311-1000-11

311

1000

11

S6X12.5

3 3/8"

3'-9"

255

3650

1000 Series

311-1000-12

311

1000

12

S6X12.5

3 3/8"

3'-9"

270

3990

1000 Series

311-1000-13

311

1000

13

S6X12.5

3 3/8"

4'-6"

288

3610

1000 Series

311-1000-14

311

1000

14

S6X12.5

3 3/8"

4'-6"

305

3900

1000 Series

311-1000-15

311

1000

15

S6X12.5

3 3/8"

5'-6"

323

3430

1000 Series

311-1000-16

311

1000

16

S6X12.5

3 3/8"

5'-6"

340

3670

1000 Series

311-1000-17

311

1000

17

W8X18

5 1/4"

6'-0"

470

3585

1000 Series

311-1000-18

311

1000

18

W8X18

5 1/4"

6'-0"

495

3800

1000 Series

311-1000-19

311

1000

19

W8X18

5 1/4"

6'-6"

509

3700

1000 Series

311-1000-20

311

1000

20

W8X18

5 1/4"

6'-6"

522

3900

1000 Series

311-1000-21

311

1000

21

W8x31

8"

7'-0"

619

5120

1000 Series

311-1000-22

311

1000

22

W8x31

8"

7'-0"

619

5120

1000 Series

311-1000-23

311

1000

23

W8x31

8"

7'-6"

739

5320

1000 Series

311-1000-24

311

1000

24

W8x31

8"

7'-6"

739

5320

1000 Series

311-1000-25

311

1000

25

W8x31

8"

8'-0"

914

5800

1000 Series

311-1000-26

311

1000

26

W8x31

8"

8'-0"

914

5800

1000 Series

311-1000-27

311

1000

27

W10x39

8"

9'-0"

986

5670

1000 Series

311-1000-28

311

1000

28

W10x39

8"

9'-0"

986

5670

1000 Series

311-1000-29

311

1000

29

W10x39

8"

10'-0"

1407

6010

1000 Series

311-1000-30

311

1000

30

W10x39

8"

10'-0"

1407

6010

1000 Series





NOTEThe above drawing is an example drawing, and is only used for the purpose of illustrating the span. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
