Home / HSI 1500lbs Cantilever Style Jib Crane

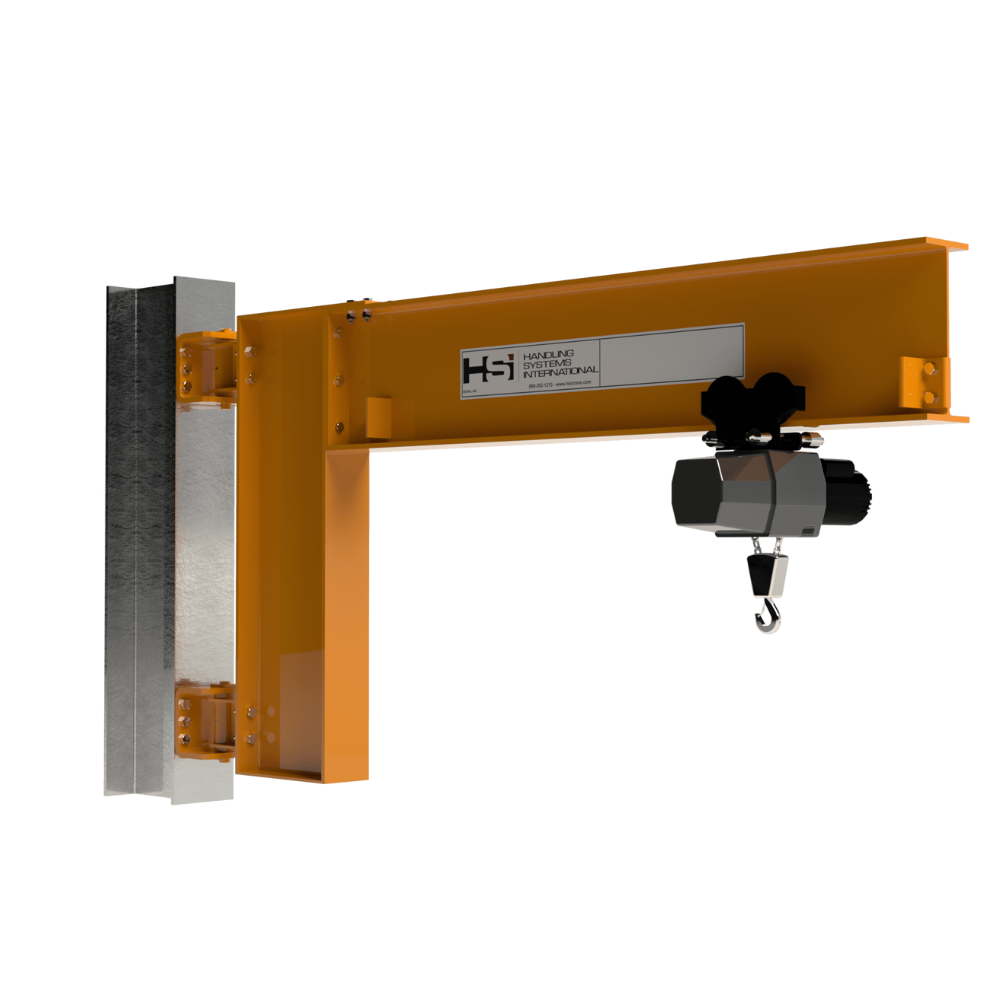

HSI 1500lbs Cantilever Style Jib Crane

HSI 1500lbs Cantilever Style Jib Crane

HSI 1500lbs Cantilever Style Jib Crane

$1,981.12

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 1500lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Headroom Required
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If floor space is a premium in your facility, but you still require a heavy-duty lifting tool, then this wall/column-mounted jib crane from HSI Crane could be the answer to your problems.

Highly suitable for use in bays, along a wall, or in an individual work cell, this cantilever-style jib crane has a safe working load limit of 1500lbs and is available in span lengths from 8ft up to 20ft*. Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist.

Standard rotation with a cantilever jib crane is 180-degrees (depending on how and where it’s mounted), with this particular heavy-duty model offering smooth and effortless rotation, thanks to the cast iron fittings, complete with rollers bearings and zerk fittings allowing for easy in-situ lubrication.

Designed to maximize hoist lift, this wall/column-mounted jib crane requires less headroom when mounting, making it an easy to install lifting solution, even in heavy-duty environments.

All Cranes manufactured by HIS have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the Downloads section to the right.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Cantilever Jib Crane ONLY!

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.



Downloads
  • HSI Model 313 Cantilever Type Jib Crane Owners Manual

  • HSI Jib Crane Accessories

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311/313 Wall to Fitting Centerline

313-1500-8

313

1500

8

W8X21

5-1/4"

4'-0"

250

3835

1000 Series

3"

313-1500-9

313

1500

9

W10X26

5-3/4"

4'-0"

430

4422

1000 Series

3"

313-1500-10

313

1500

10

W10X26

5-3/4"

4'-0"

460

4973

1000 Series

3"

313-1500-11

313

1500

11

W10X26

5-3/4"

4'-0"

475

5530

1000 Series

3"

313-1500-12

313

1500

12

W10X26

5-3/4"

4'-0"

490

6094

1000 Series

3"

313-1500-13

313

1500

13

W12X30

6-1/2"

5'-0"

745

5402

1000 Series

3"

313-1500-14

313

1500

14

W12X30

6-1/2"

5'-0"

775

5874

1000 Series

3"

313-1500-15

313

1500

15

W12X30

6-1/2"

5'-0"

808

6353

1000 Series

3"

313-1500-16

313

1500

16

W12X30

6-1/2"

5'-0"

840

6837

1000 Series

3"

313-1500-17

313

1500

17

W16X45

7"

6'-0"

1375

6479

1000 Series

3"

313-1500-18

313

1500

18

W16X45

7"

6'-0"

1420

6937

1000 Series

3"

313-1500-19

313

1500

19

W16X45

7"

6'-0"

1465

7402

1000 Series

3"

313-1500-20

313

1500

20

W16X45

7"

6'-0"

1510

7875

1000 Series

3"

313-1500-21

313

1500

21

W18x55#

7-1/2"

7'-0"

1853

10391

2000 Series

4"

313-1500-22

313

1500

22

W18x55#

7-1/2"

7'-0"

1853

10391

2000 Series

4"

313-1500-23

313

1500

23

W18x55#

7-1/2"

7'-6"

1991

10780

2000 Series

4"

313-1500-24

313

1500

24

W18x55#

7-1/2"

7'-6"

1991

10780

2000 Series

4"

313-1500-25

313

1500

25

W21x68#

8-1/4"

8'-0"

2699

12217

2000 Series

4"

313-1500-26

313

1500

26

W21x68#

8-1/4"

8'-0"

2699

12217

2000 Series

4"

313-1500-27

313

1500

27

W21x68#

8-1/4"

9'-0"

2903

11962

2000 Series

4"

313-1500-28

313

1500

28

W21x68#

8-1/4"

9'-0"

2903

11962

2000 Series

4"

313-1500-29

313

1500

29

W24x84#

9"

10'-0"

3830

11790

2000 Series

4"

313-1500-30

313

1500

30

W24x84#

9"

10'-0"

3830

11790

2000 Series

4"
