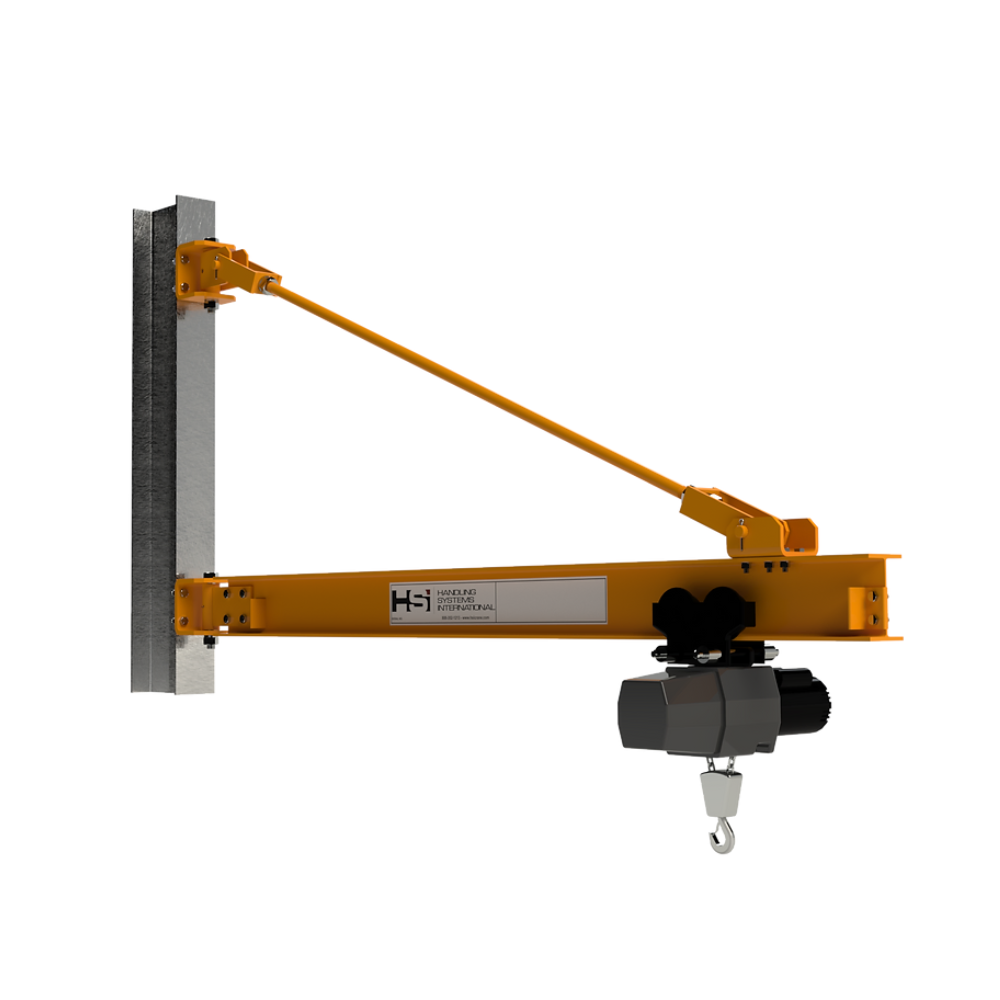

HSI 2000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 2000lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 2000lbs Tie Rod Style Wall/Column Mounted Jib Crane

$1,491.17

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 2000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Beam Deflection than Cantilever Style
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If you’re facility is lacking in available floor space, but you need a heavy-duty lifting solution such as a jib crane, HSI’s Tie Rod Style models can be easily mounted on walls and columns, anywhere across your workplace.

Primarily designed for use in bays, along walkways, and in work cells, the heavy-duty tie rod style jib crane is similar to the cantilever style models but is more economical for scenarios where headroom is not an issue.

This particular model has a working load limit of 2000lbs and is available in spans up to 20ft* as standard. Designed to provide 180-degree rotation as standard, courtesy of the heavy-duty cast iron fittings with smooth roller bearings, HSI’s Model 311 range has many benefits over the Cantilever Style:

  • More economical
  • Less beam deflection
  • Smaller beam size
  • Easier rotation in larger applications
  • Hook travel closer to mounting column
  • Easier adjustment of boom tip

All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately Pricing is for Tie Rod Style Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.

Downloads
  • HSI Model 311 Tie Rod Style Wall/Column Mounted Jib Crane Owners Manual

  • HSI Jib Crane Accessories

  • EXAMPLE - Model 311 Drawing

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311-2000-8

311

2000

8

S6X12.5

3 3/8"

2'-9"

210

7100

1000 Series

311-2000-9

311

2000

9

S6X12.5

3 3/8"

3'-3"

225

6800

1000 Series

311-2000-10

311

2000

10

S6X12.5

3 3/8"

3'-3"

240

7600

1000 Series

311-2000-11

311

2000

11

S6X12.5

3 3/8"

4'-0"

255

6800

1000 Series

311-2000-12

311

2000

12

S6X12.5

3 3/8"

4'-0"

270

7480

1000 Series

311-2000-13

311

2000

13

W8X21

5 1/4"

4'-9"

380

6850

1000 Series

311-2000-14

311

2000

14

W8X21

5 1/4"

4'-9"

405

7390

1000 Series

311-2000-15

311

2000

15

W8X21

5 1/4"

5'-6"

418

6860

1000 Series

311-2000-16

311

2000

16

W8X21

5 1/4"

5'-6"

431

7330

1000 Series

311-2000-17

311

2000

17

W8X21

5 1/4"

6'-3"

456

6870

1000 Series

311-2000-18

311

2000

18

W8X21

5 1/4"

6'-3"

480

7280

1000 Series

311-2000-19

311

2000

19

W10X26

5.75"

7'-0"

632

6885

1000 Series

311-2000-20

311

2000

20

W10X26

5.75"

7'-0"

662

7250

1000 Series

311-2000-21

311

2000

21

W8x31

8"

7'-0"

832

9570

2000 Series

311-2000-22

311

2000

22

W8x31

8"

7'-0"

832

9570

2000 Series

311-2000-23

311

2000

23

W8x31

8"

7'-6"

902

9880

2000 Series

311-2000-24

311

2000

24

W8x31

8"

7'-6"

902

9880

2000 Series

311-2000-25

311

2000

25

W8x31

8"

8'-0"

976

10170

2000 Series

311-2000-26

311

2000

26

W8x31

8"

8'-0"

976

10170

2000 Series

311-2000-27

311

2000

27

W10x39

8"

9'-0"

1291

10290

2000 Series

311-2000-28

311

2000

28

W10x39

8"

9'-0"

1291

10290

2000 Series

311-2000-29

311

2000

29

W10x39

8"

10'-0"

1407

10070

2000 Series

311-2000-30

311

2000

30

W10x39

8"

10'-0"

1407

10070

2000 Series







NOTEThe above drawing is an example drawing, and is only used for the purpose of illustrating the span. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
