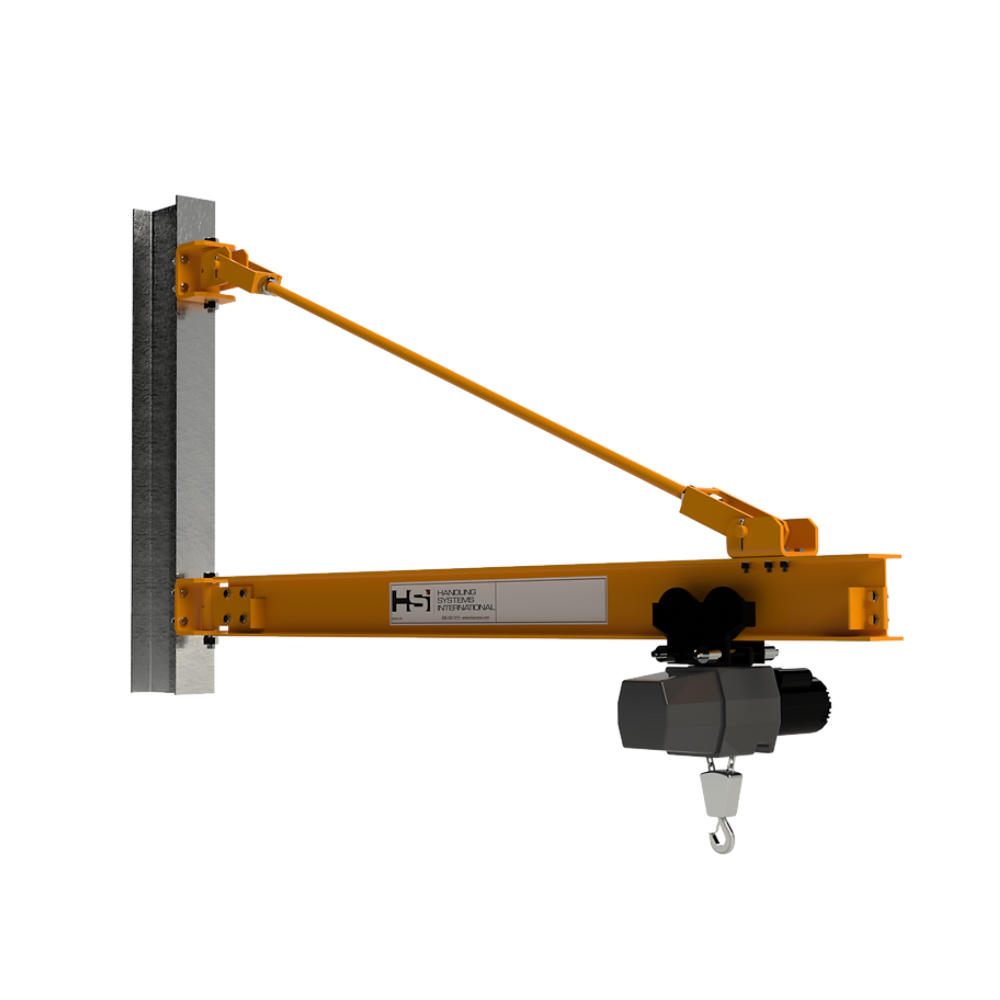

HSI 250lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 250lbs Tie Rod Style Wall/Column Mounted Jib Crane

HSI 250lbs Tie Rod Style Wall/Column Mounted Jib Crane

$1,489.75

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 250lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Beam Deflection than Cantilever Style
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If you’re facility is lacking in available floor space, but you need a heavy-duty lifting solution such as a jib crane, HSI’s Tie Rod Style models can be easily mounted on walls and columns, anywhere across your workplace.

Primarily designed for use in bays, along walkways, and in work cells, the heavy-duty tie rod style jib crane is similar to the cantilever style models but is more economical for scenarios where headroom is not an issue.

This particular model has a working load limit of 250lbs and is available in spans up to 20ft* as standard. Designed to provide 180-degree rotation as standard, courtesy of the heavy-duty cast iron fittings with smooth roller bearings, HSI’s Model 311 range has many benefits over the Cantilever Style:

  • More economical
  • Less beam deflection
  • Smaller beam size
  • Easier rotation in larger applications
  • Hook travel closer to mounting column
  • Easier adjustment of boom tip

All Cranes manufactured by HSI have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the downloads section to the right of the description.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately Pricing is for Tie Rod Style Jib Crane ONLY! Please see related products below.

Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.

Downloads
  • HSI Model 311 Tie Rod Style Wall/Column Mounted Jib Crane Owners Manual

  • HSI Jib Crane Accessories

  • EXAMPLE - Model 311 Drawing

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311-250-8

311

250

8

S6X12.5

3 3/8"

2'-9"

210

1091

1000 Series

311-250-9

311

250

9

S6X12.5

3 3/8"

3'-0"

225

1163

1000 Series

311-250-10

311

250

10

S6X12.5

3 3/8"

3'-0"

240

1333

1000 Series

311-250-11

311

250

11

S6X12.5

3 3/8"

3'-9"

255

1210

1000 Series

311-250-12

311

250

12

S6X12.5

3 3/8"

3'-9"

270

1360

1000 Series

311-250-13

311

250

13

S6X12.5

3 3/8"

4'-0"

288

1422

1000 Series

311-250-14

311

250

14

S6X12.5

3 3/8"

4'-0"

305

1575

1000 Series

311-250-15

311

250

15

S6X12.5

3 3/8"

5'-0"

323

1388

1000 Series

311-250-16

311

250

16

S6X12.5

3 3/8"

5'-0"

340

1520

1000 Series

311-250-17

311

250

17

S6X12.5

3 3/8"

5'-6"

356

1507

1000 Series

311-250-18

311

250

18

S6X12.5

3 3/8"

5'-6"

371

1636

1000 Series

311-250-19

311

250

19

S6X12.5

3 3/8"

6'-0"

388

1623

1000 Series

311-250-20

311

250

20

S6X12.5

3 3/8"

6'-0"

405

1750

1000 Series

311-250-21

311

250

21

W8x31

8"

7'-0"

619

1870.321429

1000 Series

311-250-22

311

250

22

W8x31

8"

7'-0"

619

1996.607143

1000 Series

311-250-23

311

250

23

W8x31

8"

7'-6"

739

1991.5

1000 Series

311-250-24

311

250

24

W8x31

8"

7'-6"

739

2116.3

1000 Series

311-250-25

311

250

25

W8x31

8"

8'-0"

914

2110.53125

1000 Series

311-250-26

311

250

26

W8x31

8"

8'-0"

914

2234.03125

1000 Series

311-250-27

311

250

27

W8x31

8"

9'-0"

986

2473.958333

1000 Series

311-250-28

311

250

28

W8x31

8"

9'-0"

986

2617.013889

1000 Series

311-250-29

311

250

29

W8x31

8"

10'-0"

1407

2497.5625

1000 Series

311-250-30

311

250

30

W8x31

8"

10'-0"

1407

2633.3125

1000 Series




NOTE: The above drawing is an example drawing, and is only used for the purpose of illustrating the span. All other details and measurements are model specific and should not be taken into account when choosing your jib crane. If you would like a drawing for a specific model, please contact our sales team who can get your requested model drawing generated.
