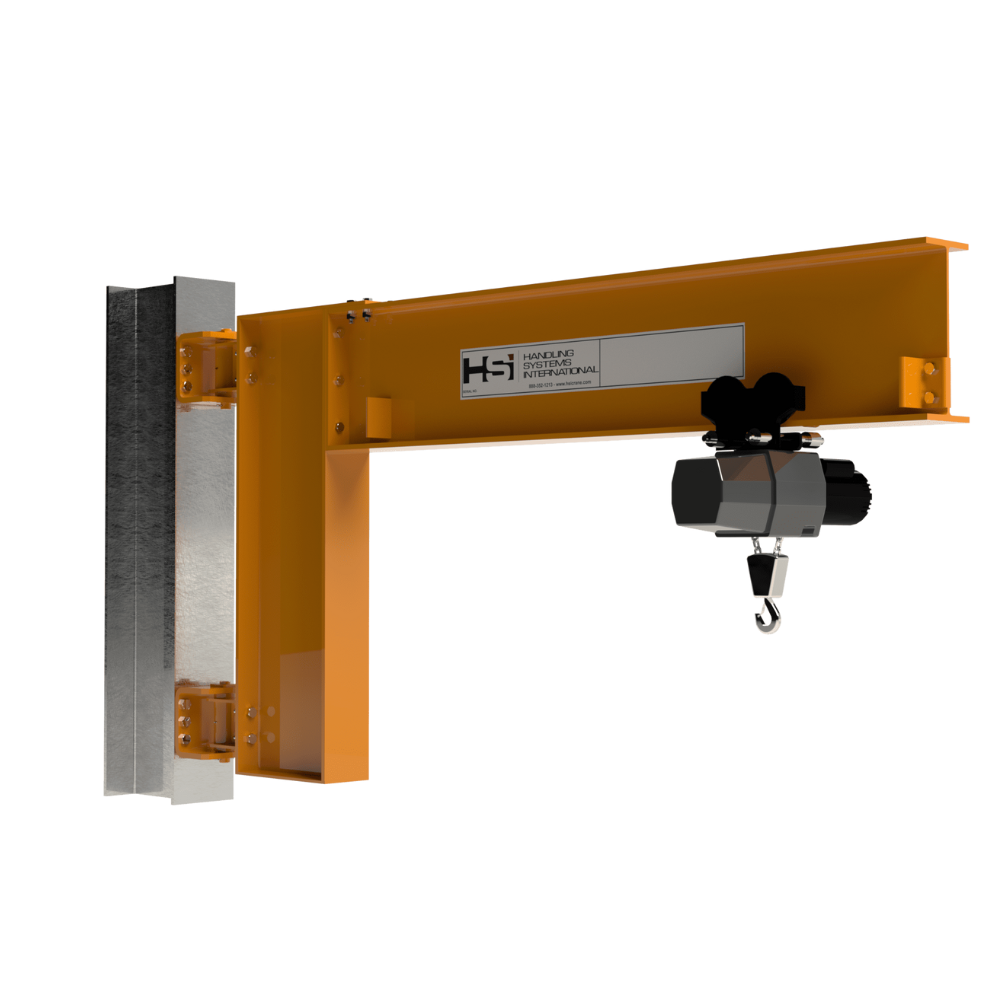

HSI 3000lbs Cantilever Style Jib Crane

HSI 3000lbs Cantilever Style Jib Crane

HSI 3000lbs Cantilever Style Jib Crane

$2,733.00

Made To Order: Typically Ships in 30 Days

<p>Secure Payment Transaction Guarantee</p>

Secure Payment Transaction Guarantee

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
<p>Choose Rapid Shipping at Checkout</p>

Choose Rapid Shipping at Checkout

<p>24/7 U.S. Based <a href="/pages/contact" title="Contact">Customer Service Help</a></p>

24/7 U.S. Based Customer Service Help

Quick Overview:
  • Capacity: 3000lbs
  • Wall/Column-Mounted Design
  • Span: Up to 20ft*
  • Less Headroom Required
  • 180-Degree Rotation
  • Fully Tested & Compliant

Customers Also Bought

Description

Features & Specification

If floor space is a premium in your facility, but you still require a heavy-duty lifting tool, then this wall/column-mounted jib crane from HSI Crane could be the answer to your problems.

Highly suitable for use in bays, along a wall, or in an individual work cell, this cantilever-style jib crane has a safe working load limit of 3000lbs and is available in span lengths from 8ft up to 20ft*. Tight Wire Kit available HERE when purchasing an accompanying electric chain hoist. Tight Wire Kit is only required should you purchase an electric chain hoist.

Standard rotation with a cantilever jib crane is 180-degrees (depending on how and where it’s mounted), with this particular heavy-duty model offering smooth and effortless rotation, thanks to the cast iron fittings, complete with rollers bearings and zerk fittings allowing for easy in-situ lubrication.

Designed to maximize hoist lift, this wall/column-mounted jib crane requires less headroom when mounting, making it an easy to install lifting solution, even in heavy-duty environments.

All Cranes manufactured by HIS have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.

Additionally, all designs meet AISC standards, all cranes are in accordance with OSHA 1910.179, and all designing and manufacturing is done in accordance to ANSI B31.11.

For Technical Information such as Installation Instructions and Parts Breakdown, please refer to the Owners Manual available in the Downloads section to the right.

NOTE: Hoists, Trollies, Festooning, and other Accessories are sold separately. Pricing is for Cantilever Jib Crane ONLY!

*For span lengths of over 20ft, please see Specification Tab for more details and contact our Sales Team for information or to place an order.

Downloads
  • HSI Model 313 Cantilever Type Jib Crane Owners Manual

  • HSI Jib Crane Accessories

Part Number

MODEL

Capacity (Lbs.)

Span (Ft.)

Beam Size

Flange Width

Fitting Centers

Weight

Thrust & Pull

Fitting Number

311/313 Wall to Fitting Centerline

313-3000-8

313

3000

8

W12X30

6-1/2"

5'-0"

485

6054

2000 Series

4"

313-3000-9

313

3000

9

W12X30

6-1/2"

5'-0"

555

6887

2000 Series

4"

313-3000-10

313

3000

10

W12X30

6-1/2"

5'-0"

525

7725

2000 Series

4"

313-3000-11

313

3000

11

W12X30

6-1/2"

5'-0"

665

8570

2000 Series

4"

313-3000-12

313

3000

12

W12X30

6-1/2"

5'-0"

700

9420

2000 Series

4"

313-3000-13

313

3000

13

W16X45

7"

5'-0"

1110

10540

2000 Series

4"

313-3000-14

313

3000

14

W16X45

7"

5'-0"

1160

11444

2000 Series

4"

313-3000-15

313

3000

15

W18X55

7-1/2"

6'-0"

1485

10491

2000 Series

4"

313-3000-16

313

3000

16

W18X55

7-1/2"

6'-0"

1545

11285

2000 Series

4"

313-3000-17

313

3000

17

W18X55

7-1/2"

6'-0"

1650

12089

2000 Series

4"

313-3000-18

313

3000

18

W18X55

7-1/2"

6'-0"

1755

12902

2000 Series

4"

313-3000-19

313

3000

19

W18X55

7-1/2"

6'-0"

1920

13724

2000 Series

4"

313-3000-20

313

3000

20

W18X55

7-1/2"

6'-0"

2080

14555

2000 Series

4"

313-3000-21

313

3000

21

W21x68#

8-1/4"

7'-0"

2385

15516

3000 Series

4 1/2"

313-3000-22

313

3000

22

W21x68#

8-1/4"

7'-0"

2385

15516

3000 Series

4 1/2"

313-3000-23

313

3000

23

W21x68#

8-1/4"

7'-6"

2555

16092

3000 Series

4 1/2"

313-3000-24

313

3000

24

W21x68#

8-1/4"

7'-6"

2555

16092

3000 Series

4 1/2"

313-3000-25

313

3000

25

W24x84#

9"

8'-0"

3353

16636

3000 Series

4 1/2"

313-3000-26

313

3000

26

W24x84#

9"

8'-0"

3353

16636
